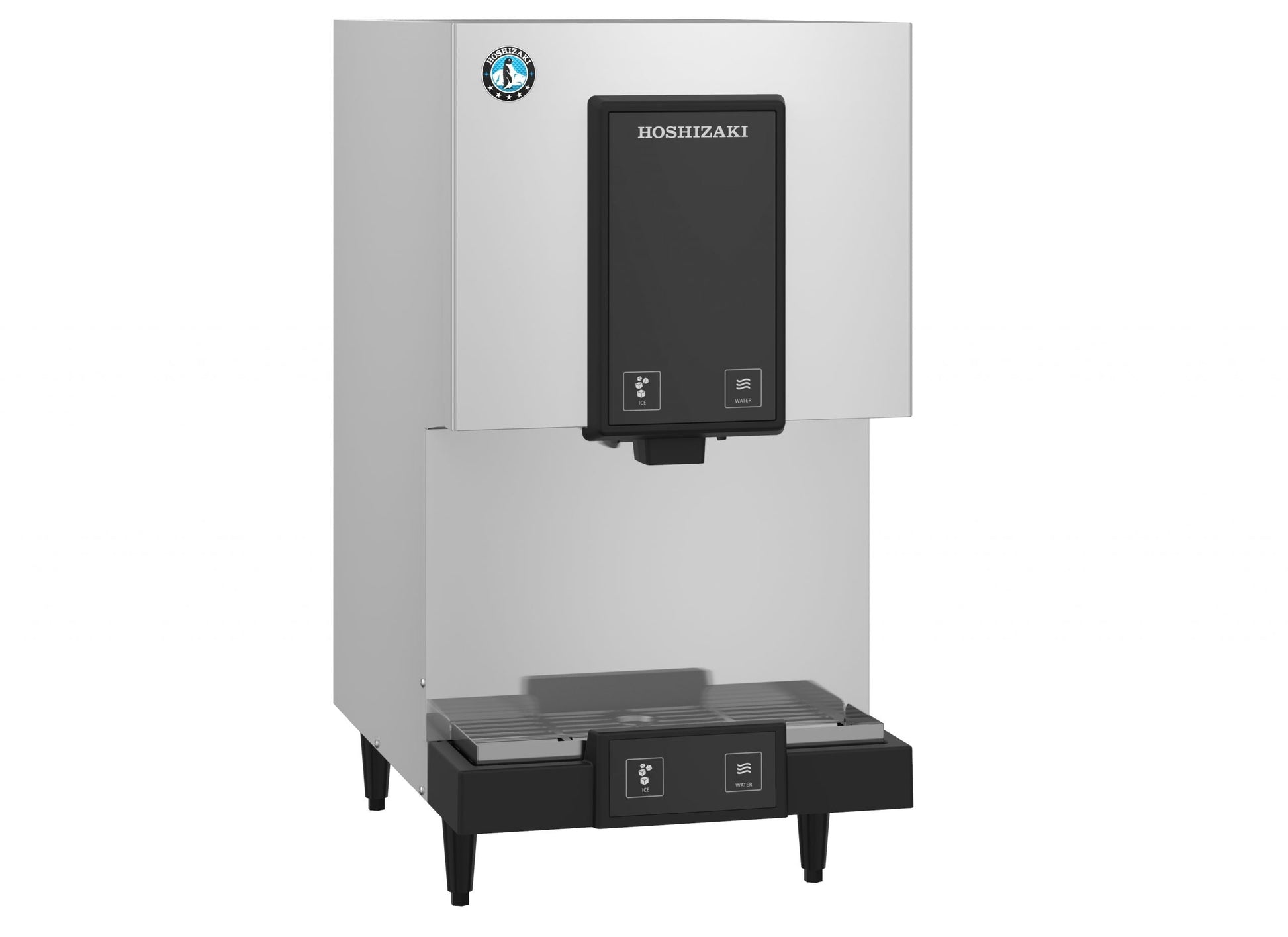

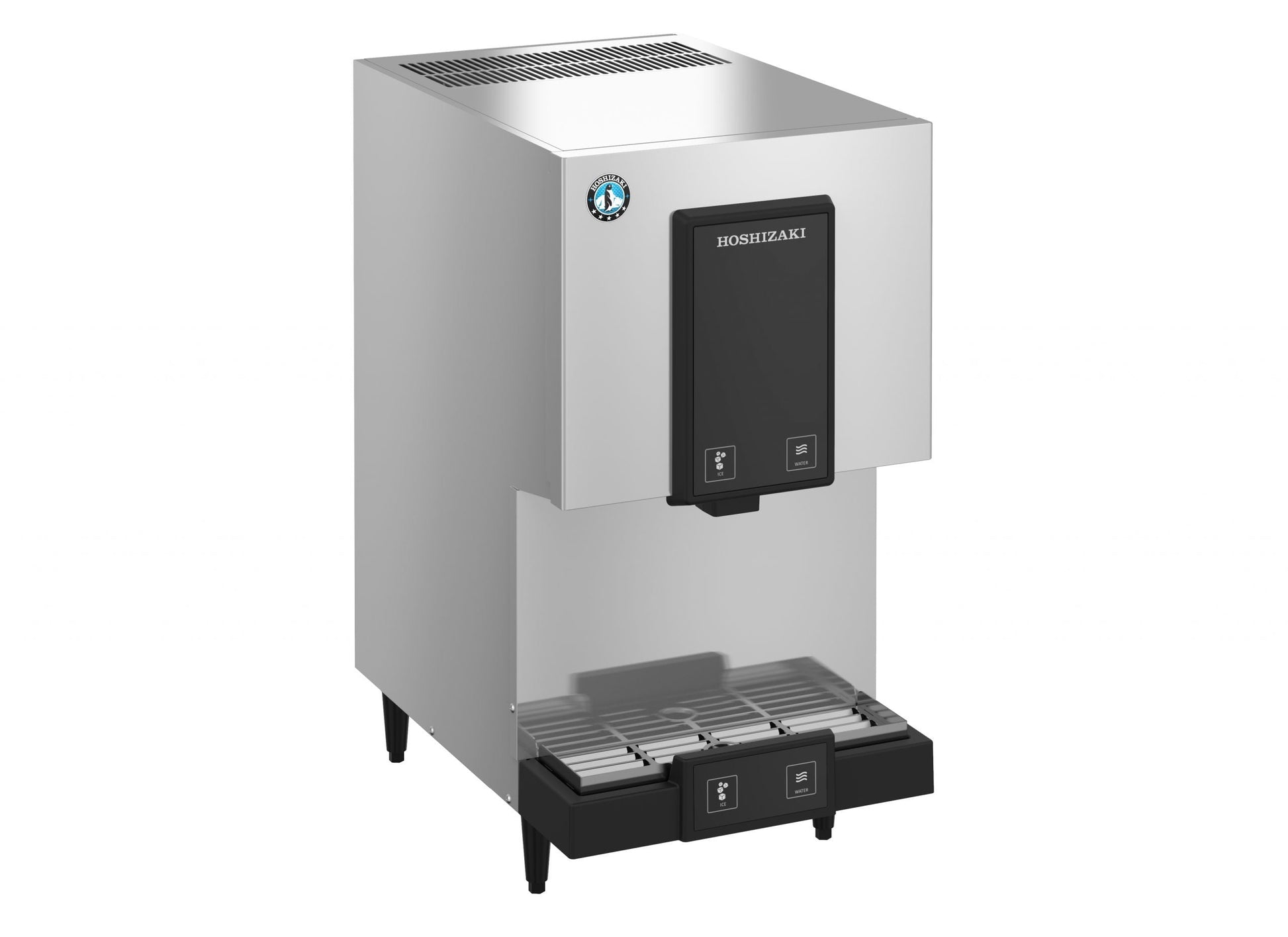

Hoshizaki | 17" Wide Air-Cooled Mini Cubelet Ice & Water Dispenser w/ Built-In Storage Bin - DCM-271BAH
The DCM-271BAH is capable of producing approximately 257 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 10 lbs of ice* at a time. This Air-cooled icemaker has an Push button operation that dispenses ice or water. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features Advanced CleanCycle24™ design – it performs a 2 second purge every hour to clean itself and it is Protected by H-GUARD Plus Antimicrobial Agent. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Features
- Dimensions: 16-5/8 ” W x 24-1/4″ D x 31-3/4 ” H
- Up to 257 lbs of ice produced per 24 hours
- Up to 10 lbs of built-in storage capacity (0.3ft3)

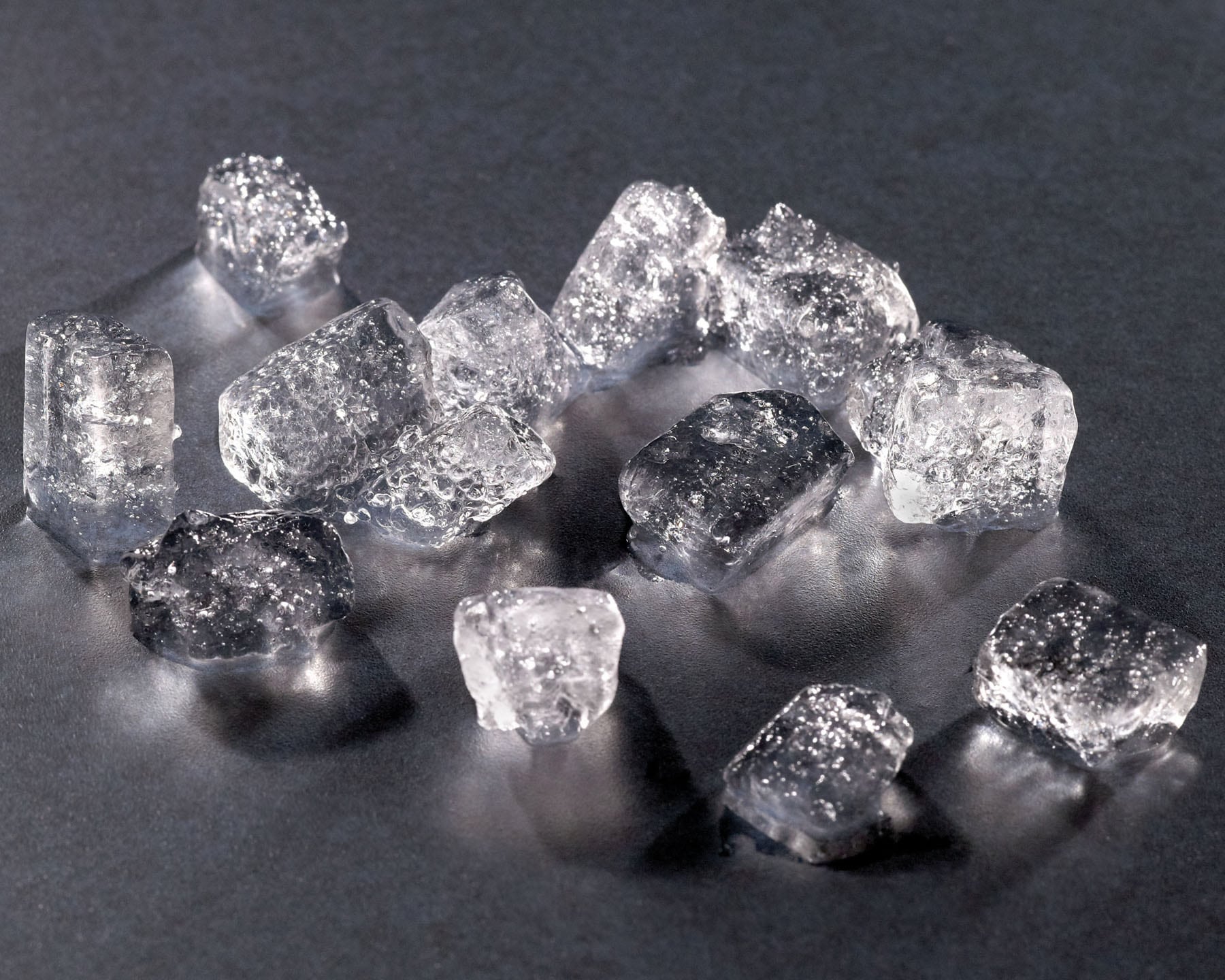

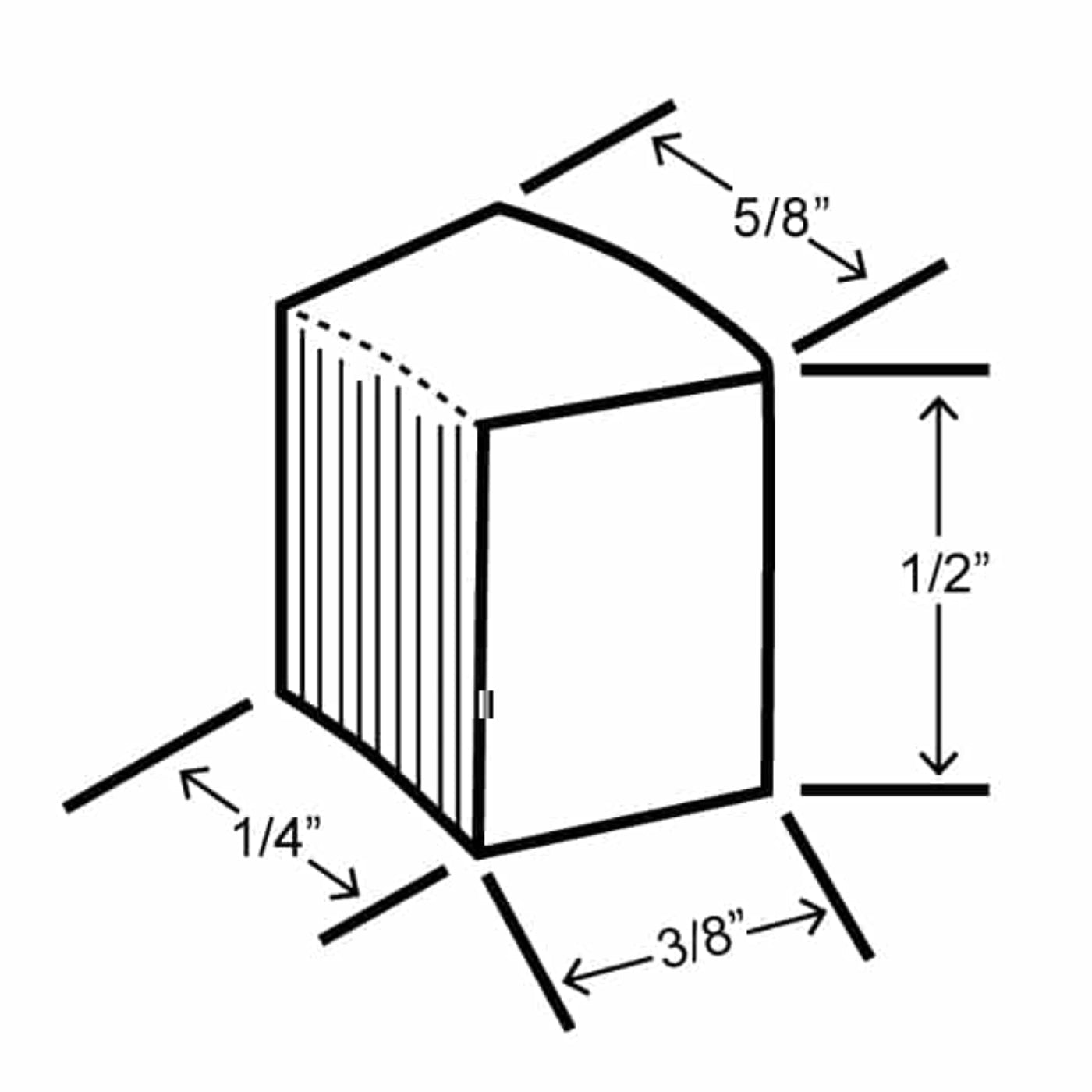

- Produces mini cubelet nugget-style ice
- Durable stainless steel exterior

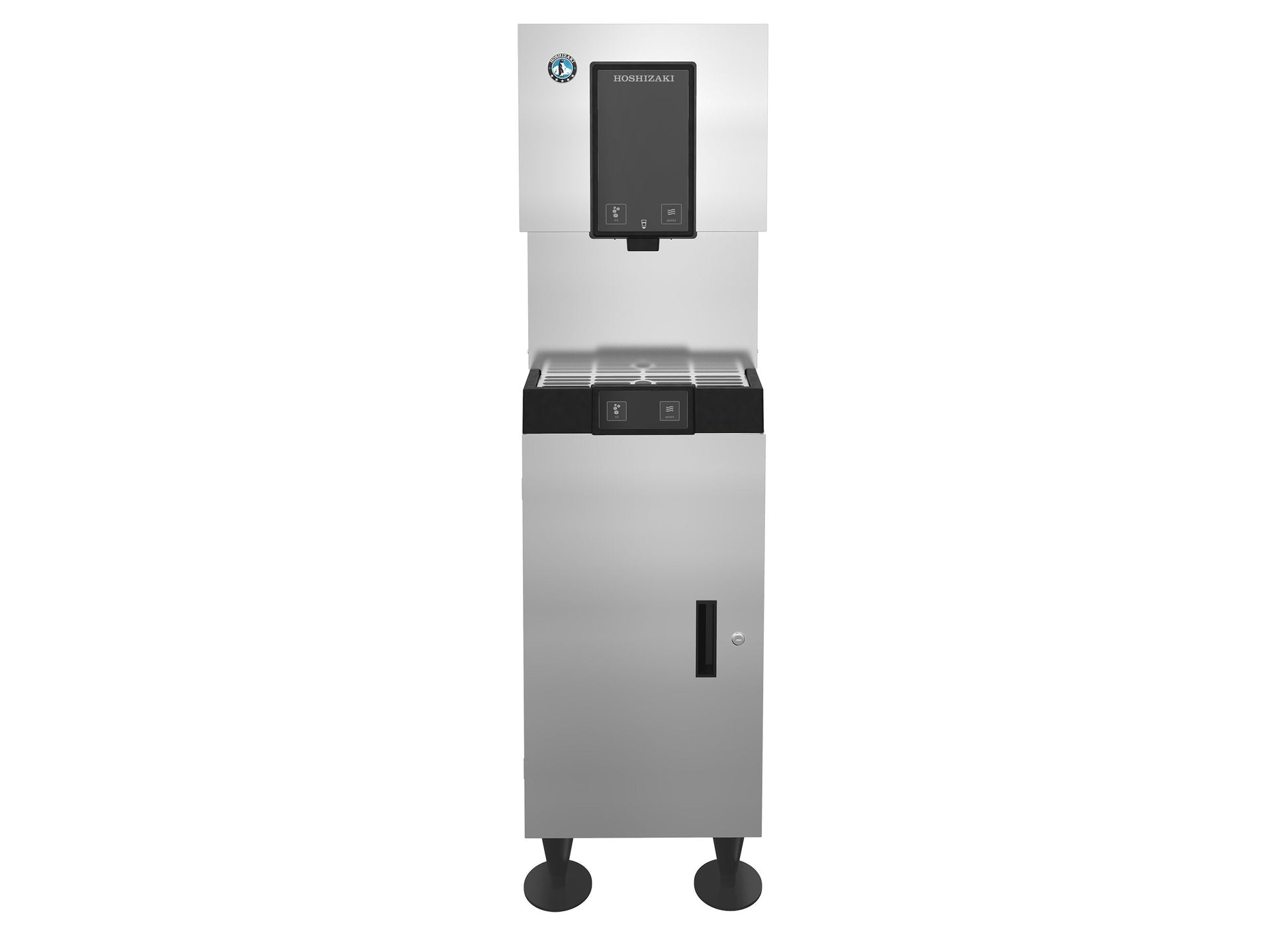

- Place on countertop or optional stand: SD-271
- Push button operation that dispenses ice or water
- Advanced CleanCycle24™ design – it performs a 2 second purge every hour to clean itself
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (14.8 oz. / 420 g)
- Heat Rejection:3300 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 8.5 amps (15 Amp Max fuse)
- 6.9 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1 6 ft. cord with a NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Specifications
| Brand |
Hoshizaki |
| Model Number |
DCM-271BAH |
| Weight |
154 lbs |
| Width |
16.63" |
| Depth |
24.25" |
| Height |
31.75" |
| Installation Type |
countertop |
| Cooling |
air-cooled |
| Ice Type |
nugget ice |
| Refrigeration |
self-contained refrigeration |
| Dispenser Type |
push button |
| Dispenses |
Ice & Water |
| Production per 24 hr (Lbs) |
257 |
| Bin storage capacity (Lbs) |
10 |
| Voltage |
115 |
| Phase |
1 |
What Our Experts Think
-
Compact & Efficient: 17-inch wide design perfect for small spaces, delivering both ice and water in a convenient dispenser.
-
Air-Cooled System: Air-cooled technology ensures quiet and energy-efficient operation, ideal for areas with limited ventilation.
-
Mini Cubelet Ice: Produces chewable, small cubelet ice that’s perfect for drinks and easy to handle.
-
Built-In Storage Bin: Convenient built-in storage for up to 27 lbs of ice, reducing the need for additional storage space.
-
User-Friendly: Simple operation with a user-friendly interface, making it perfect for offices, break rooms, and small commercial spaces.
Q&A
Q: What is the Hoshizaki DCM-271BAH?
A: The Hoshizaki DCM-271BAH is a compact, 17-inch wide air-cooled mini cubelet ice and water dispenser that features a built-in storage bin, designed for small to medium commercial use.
Q: What type of ice does the Hoshizaki DCM-271BAH produce?
A: It produces mini cubelet ice, which is chewable and ideal for beverages and food service, offering a high cooling capacity with minimal waste.
Q: Is the ice maker air-cooled?
A: Yes, the DCM-271BAH is air-cooled, providing efficient ice production while minimizing water usage and heat buildup, perfect for small commercial spaces.
Q: Does the Hoshizaki DCM-271BAH come with a bin?
A: Yes, it comes with a built-in storage bin, making it convenient for easy access to ice without the need for a separate bin.
Q: How much ice does the Hoshizaki DCM-271BAH produce?
A: The DCM-271BAH can produce up to 275 pounds of mini cubelet ice per day, making it a great choice for businesses with moderate ice needs.
Maintenance Tips
-
Regular Cleaning: Clean the exterior and interior with a damp cloth and mild detergent to remove dirt and stains.
-
Descale the Unit: Descale regularly to prevent mineral buildup and maintain ice production efficiency.
-
Inspect the Water Filter: Replace or clean the water filter periodically to ensure clean water and prevent clogging.
-
Check Airflow: Keep the air vents clear of debris to maintain proper airflow and cooling efficiency.
-
Empty Ice Bin: Regularly empty the storage bin to maintain ice freshness and prevent odors.
