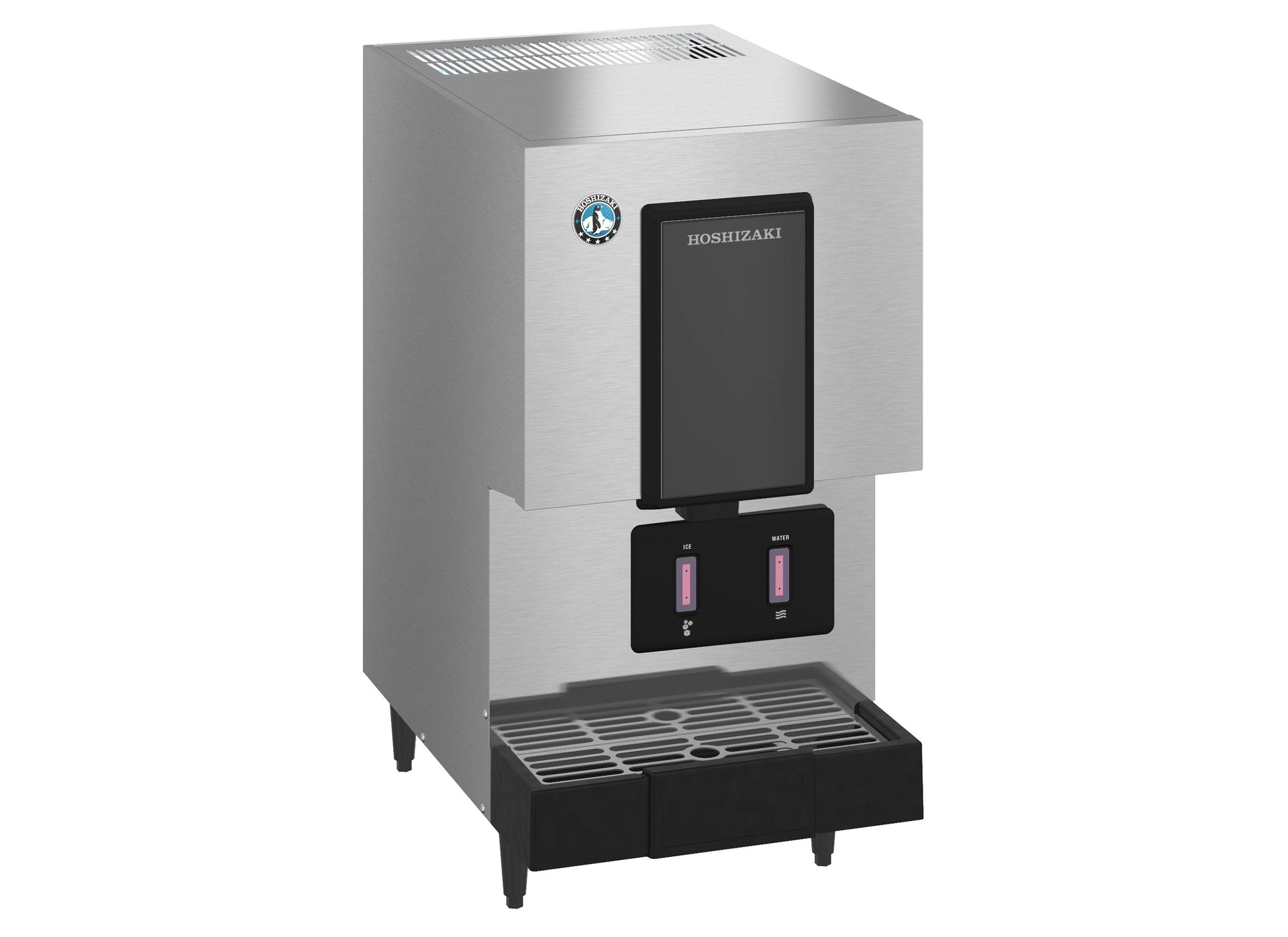

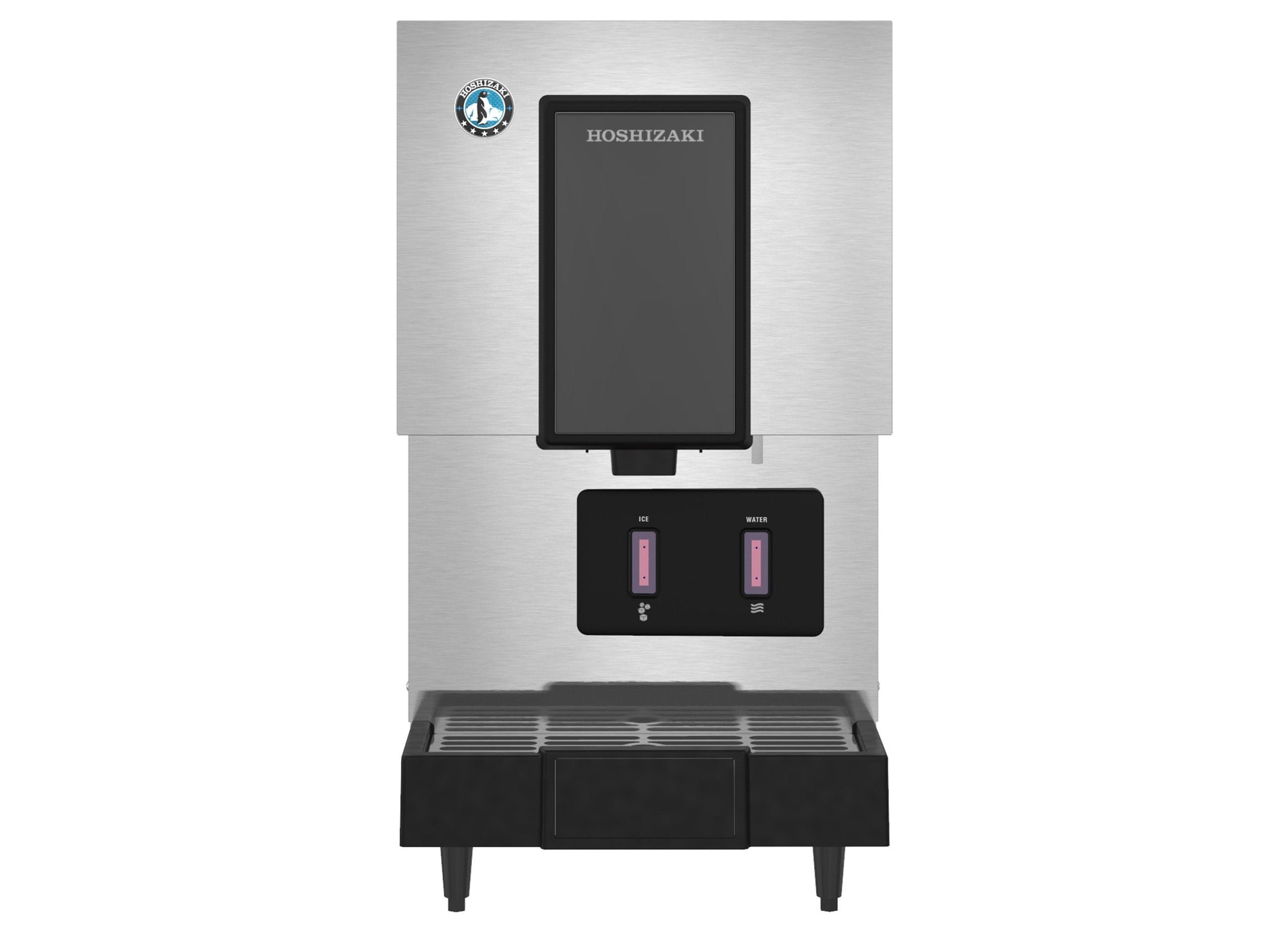

Hoshizaki| 17" Wide Hands Free Air-Cooled Mini Cubelet Ice & Water Dispenser w/ Built-In Storage Bin -DCM-271BAH-OS
The DCM-271BAH-OS is capable of producing approximately 257 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 10 lbs of ice* at a time. This Air-cooled icemaker has an LED remote sensor for hands-free operation with opaque containers. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed hands free. This model features Advanced CleanCycle24™ design – it performs a 2 second purge every hour to clean itself and it is Protected by H-GUARD Plus Antimicrobial Agent. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Features
- Dimensions: 16-5/8 ” W x 24-1/4″ D x 31-3/4 ” H
- Up to 257 lbs of ice produced per 24 hours
- Up to 10 lbs of built-in storage capacity (0.3ft3)

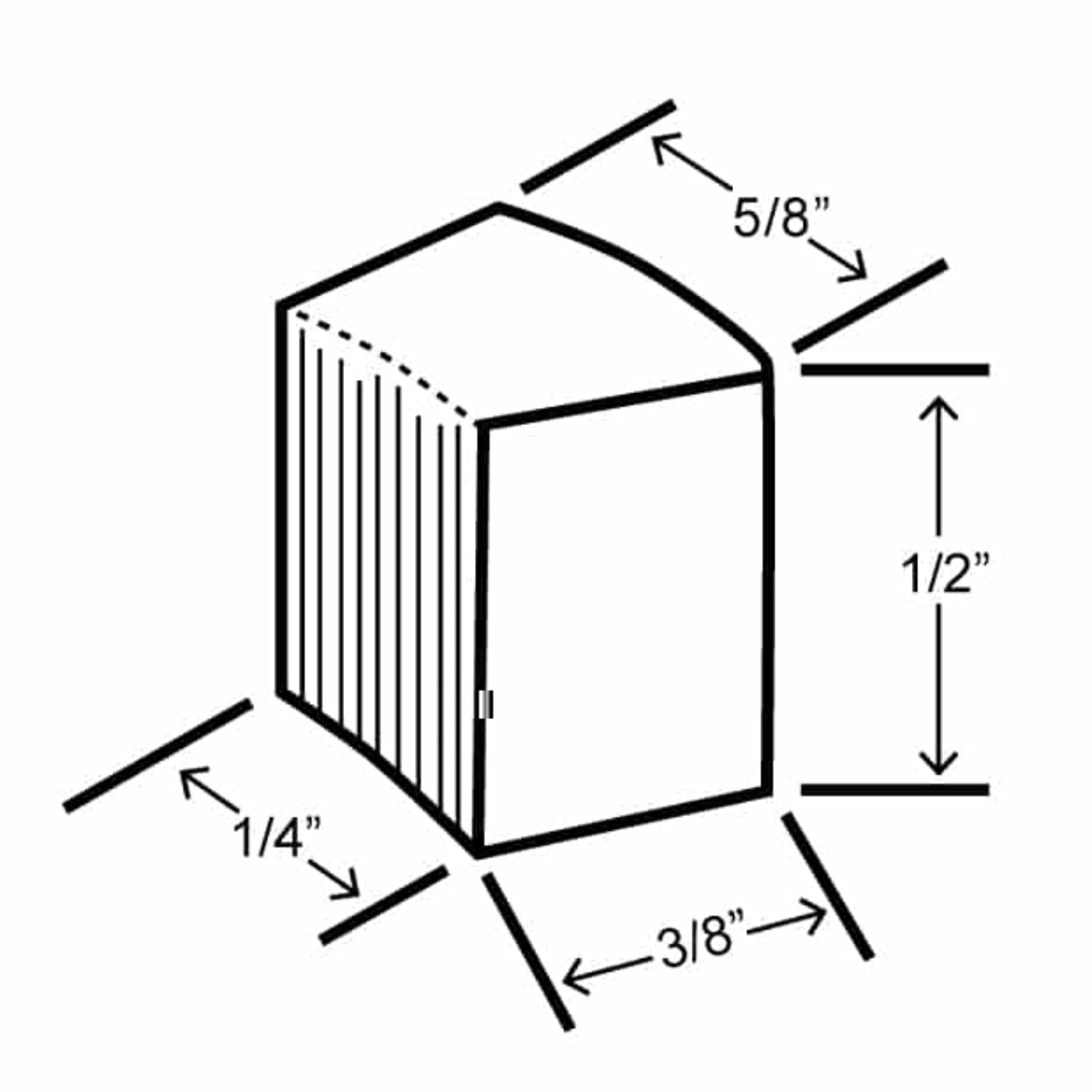

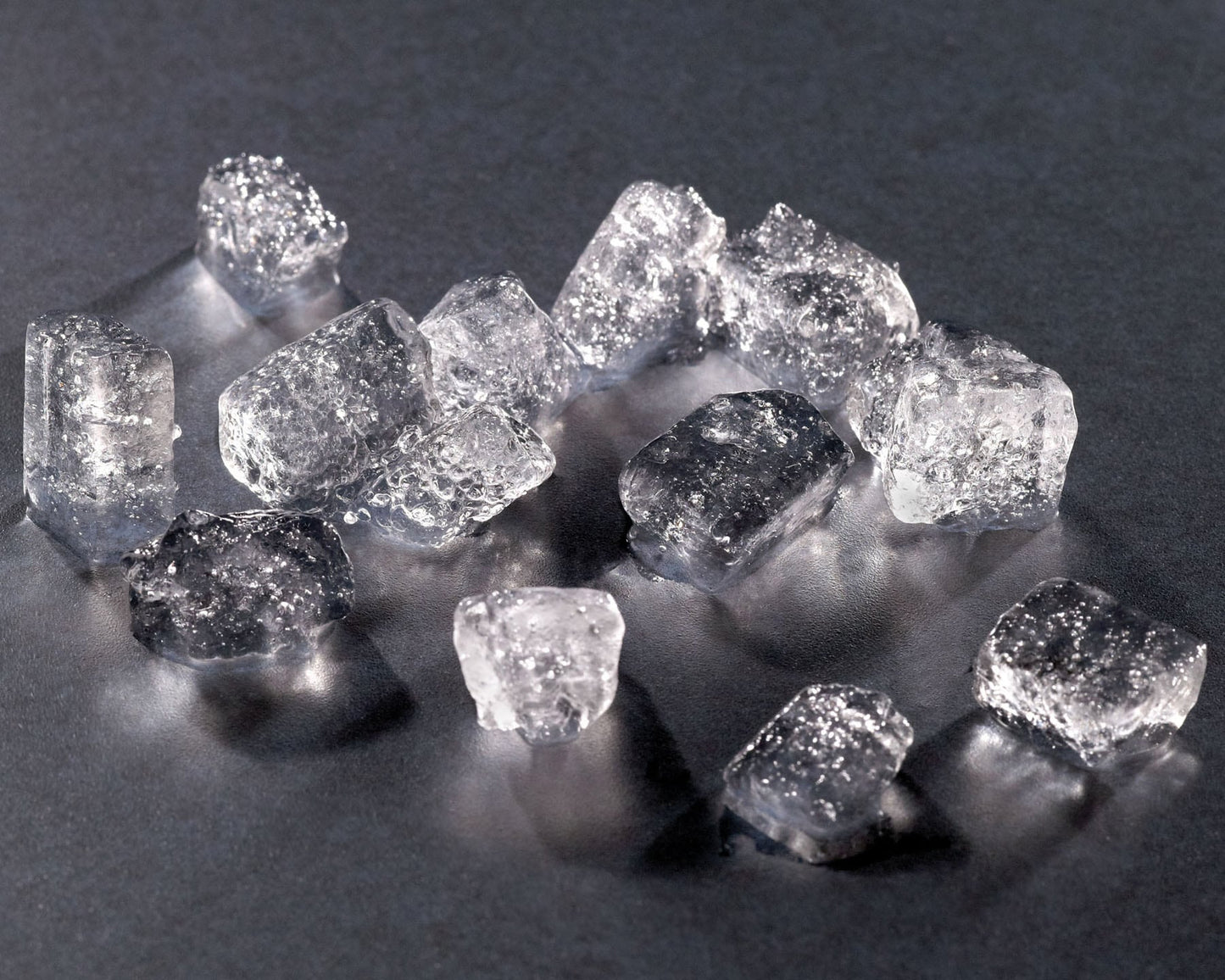

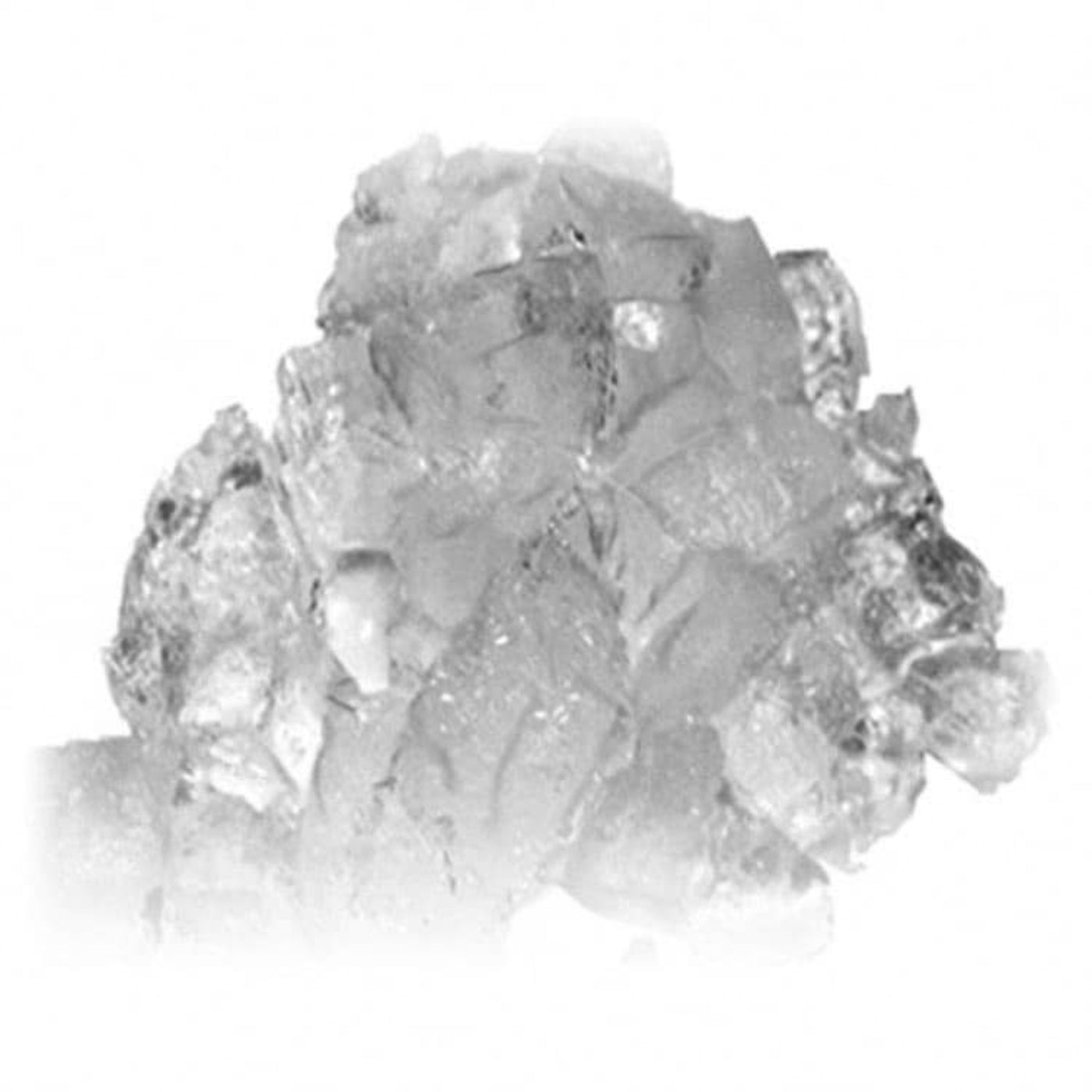

- Produces mini cubelet nugget-style ice
- Durable stainless steel exterior
- Place on countertop or optional stand: SD-271
- LED remote sensor for hands-free operation with opaque containers
- Advanced CleanCycle24™ design – it performs a 2 second purge every hour to clean itself
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (14.8 oz. / 420 g)
- Heat Rejection:3300 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 8.5 amps (15 Amp Max fuse)
- 6.9 kwh/100 lbs. 90/70
- Single phase, 115v/60/1 6 ft. cord with a NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Specifications
| Brand |
Hoshizaki |
| Model Number |
DCM-271BAH-OS |
| Weight |
154 lbs |
| Width |
16.56" |
| Depth |
24.13" |
| Height |
31.69" |
| Installation Type |
countertop |
| Cooling |
air-cooled |
| Ice Type |
nugget ice |
| Refrigeration |
self-contained refrigeration |
| Dispenser Type |
sensor |
| Dispenses |
Ice & Water |
| Production per 24 hr (Lbs) |
288 |
| Bin storage capacity (Lbs) |
8.8 |
| Voltage |
115 |
| Phase |
1 |
| Certifications |
ADA Compliant, AHRI, NSF, UL |
What Our Experts Think
The Hoshizaki DCM-271BAH-OS is a compact, hands-free ice and water dispenser designed for hygiene and efficiency in small commercial spaces.
-
Touch-Free Operation – Infrared sensor minimizes contamination risks.
-
Mini Cubelet Ice – Soft, chewable ice ideal for beverages and healthcare applications.
-
Air-Cooled System – Reduces water usage while maintaining efficient ice production.
-
17” Wide Space-Saving Design – Perfect for small offices, cafés, and healthcare facilities.
-
Built-In Storage Bin – Provides convenient, on-demand access to fresh ice.
Q&A
Q: What is the daily ice production capacity?
A: The DCM-271BAH-OS produces up to 257 lbs of mini cubelet ice per day under optimal conditions.
Q: How much ice can the built-in storage bin hold?
A: The integrated storage bin holds up to 10 lbs of ice, ensuring a steady supply.
Q: What type of ice does this machine produce?
A: It produces mini cubelet ice, which is chewable, absorbs flavors well, and is ideal for beverages and healthcare applications.
Q: What cooling system does this unit use?
A: This model features an air-cooled system, which is efficient and easy to install without requiring additional water lines for cooling.
Q: Is this unit hands-free?
A: Yes, it features a touch-free dispensing system, promoting hygiene and reducing the risk of cross-contamination.
Q: What are the dimensions of this unit?
A: It is 17 inches wide, making it a compact and space-saving option for various applications.
Q: Is professional installation recommended?
A: Yes, professional installation is recommended to ensure proper water, drainage, and electrical connections for optimal performance.
Maintenance Tips
-
Clean & Sanitize Regularly: Use a Hoshizaki-approved cleaner to remove scale, mineral buildup, and bacteria for optimal hygiene.
-
Check & Replace Filters: Inspect water filters periodically and replace them as needed to maintain water quality and prevent clogs.
-
Keep Hands-Free Sensors Clean: Ensure the sensors are free from dust and debris to maintain reliable touch-free operation.
-
Monitor Air Vents & Condenser: Keep vents clear and clean the condenser coils regularly to maintain efficient cooling.
-
Sanitize the Ice Storage Bin: Prevent mold and bacteria buildup by routinely cleaning and disinfecting the bin.
