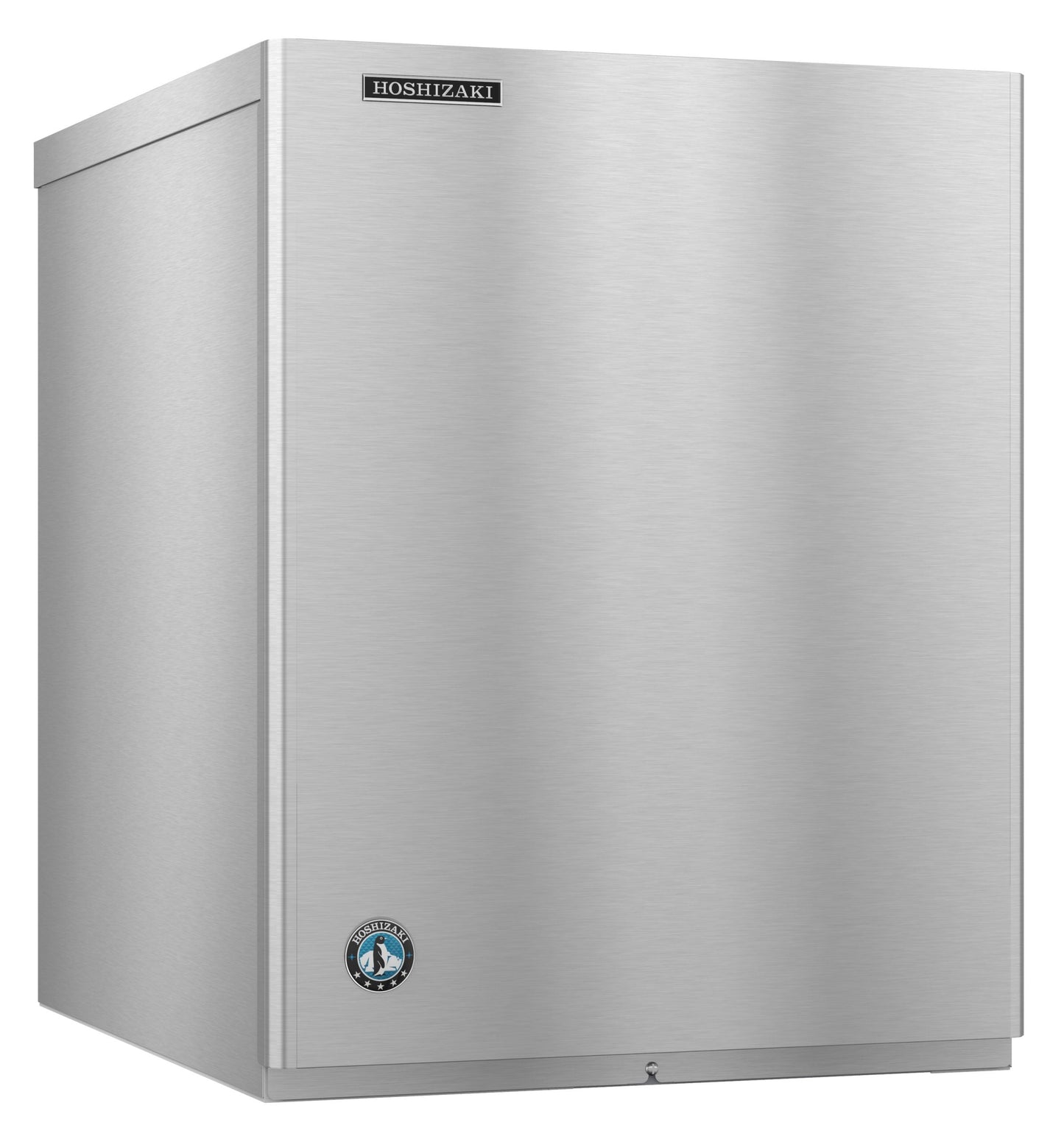

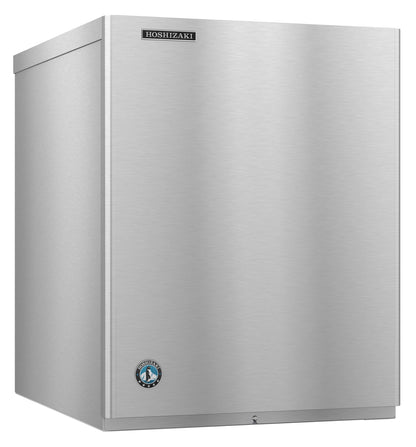

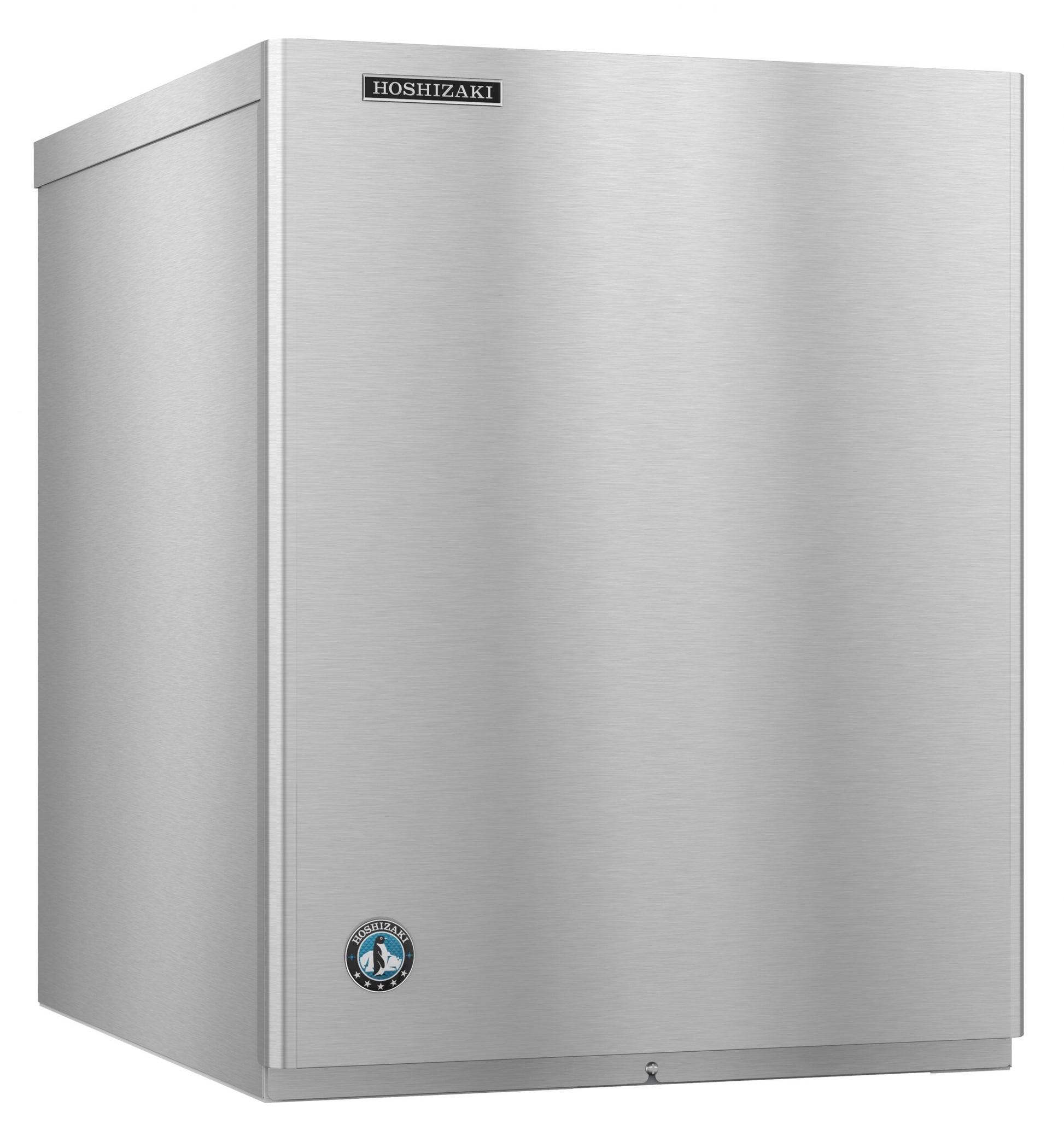

Hoshizaki KM-660MRJZ | 22" Wide Remote-Cooled Crescent Cuber Ice Maker (Remote Condenser Sold Separately) - KM-660MRJZ
The KM-660MRJZ is capable of producing approximately 642 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-5FZ icemaker features a CycleSaverâ„¢ design and includes the EverCheckâ„¢ alert system making the unit energy efficient and simple to maintain. The KM-660MRJZ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.Â
Features
- Dimensions: 22″ W x 27-3/8″ D x 28″ H
- Up to 642 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior

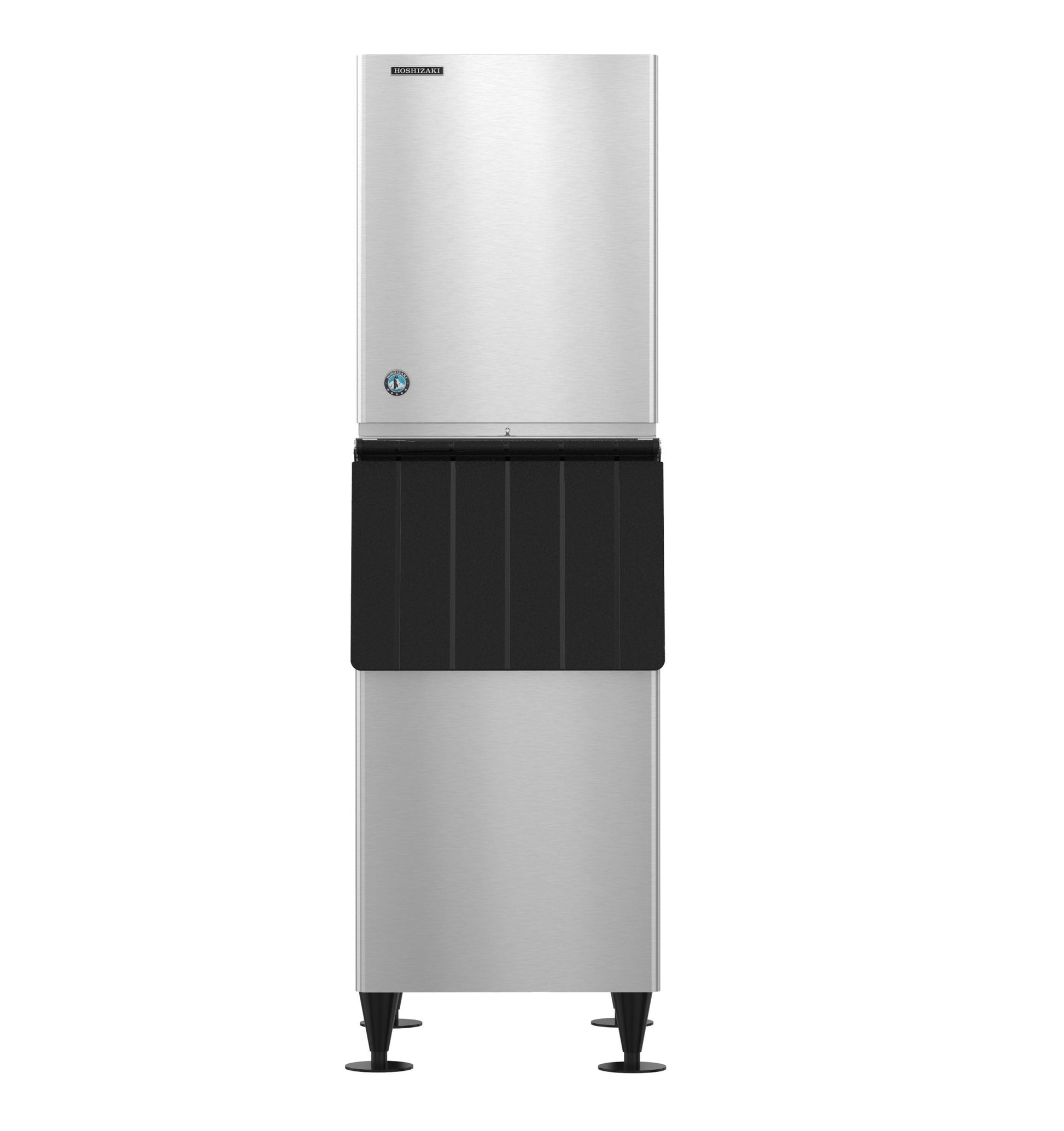

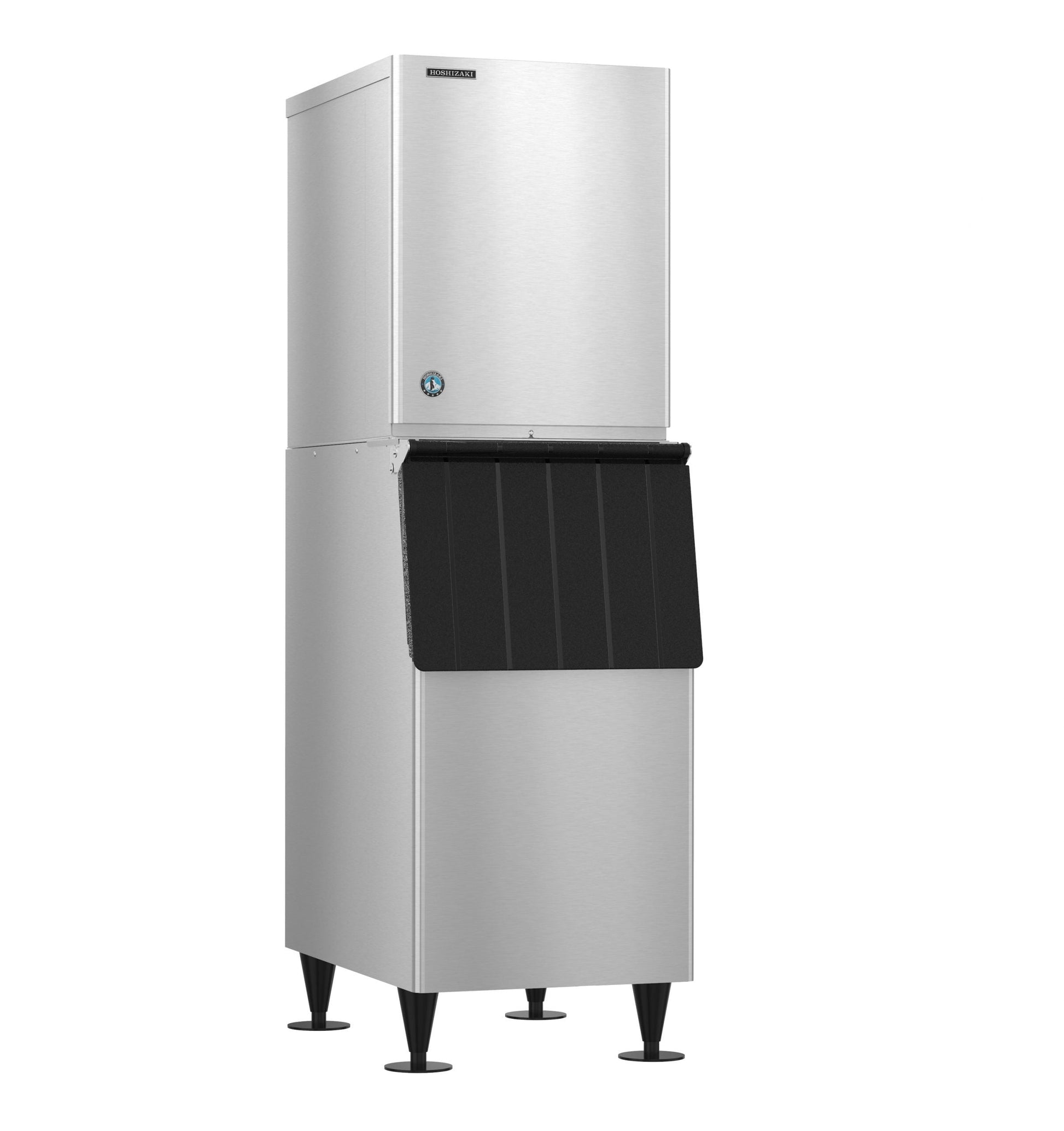

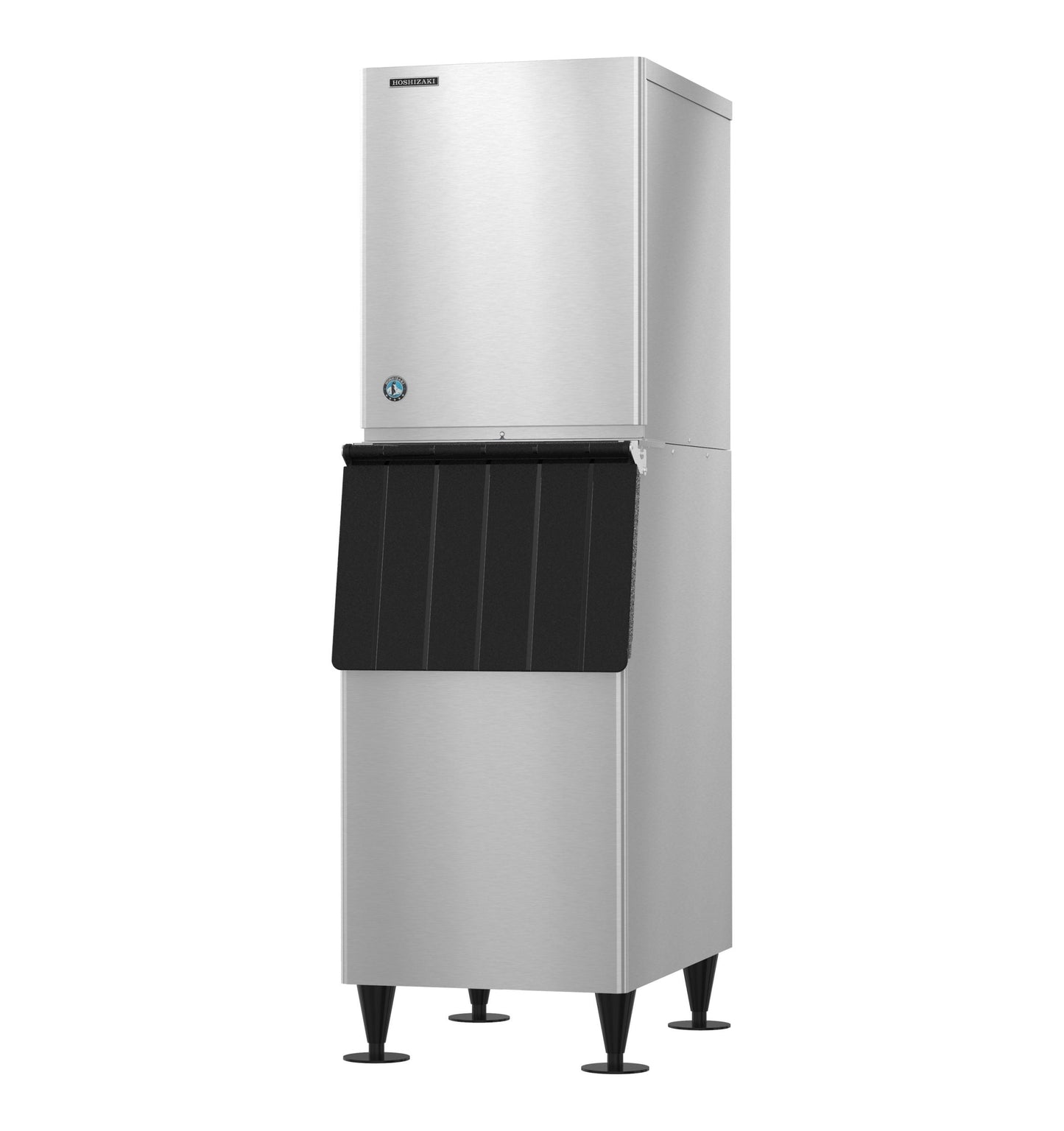

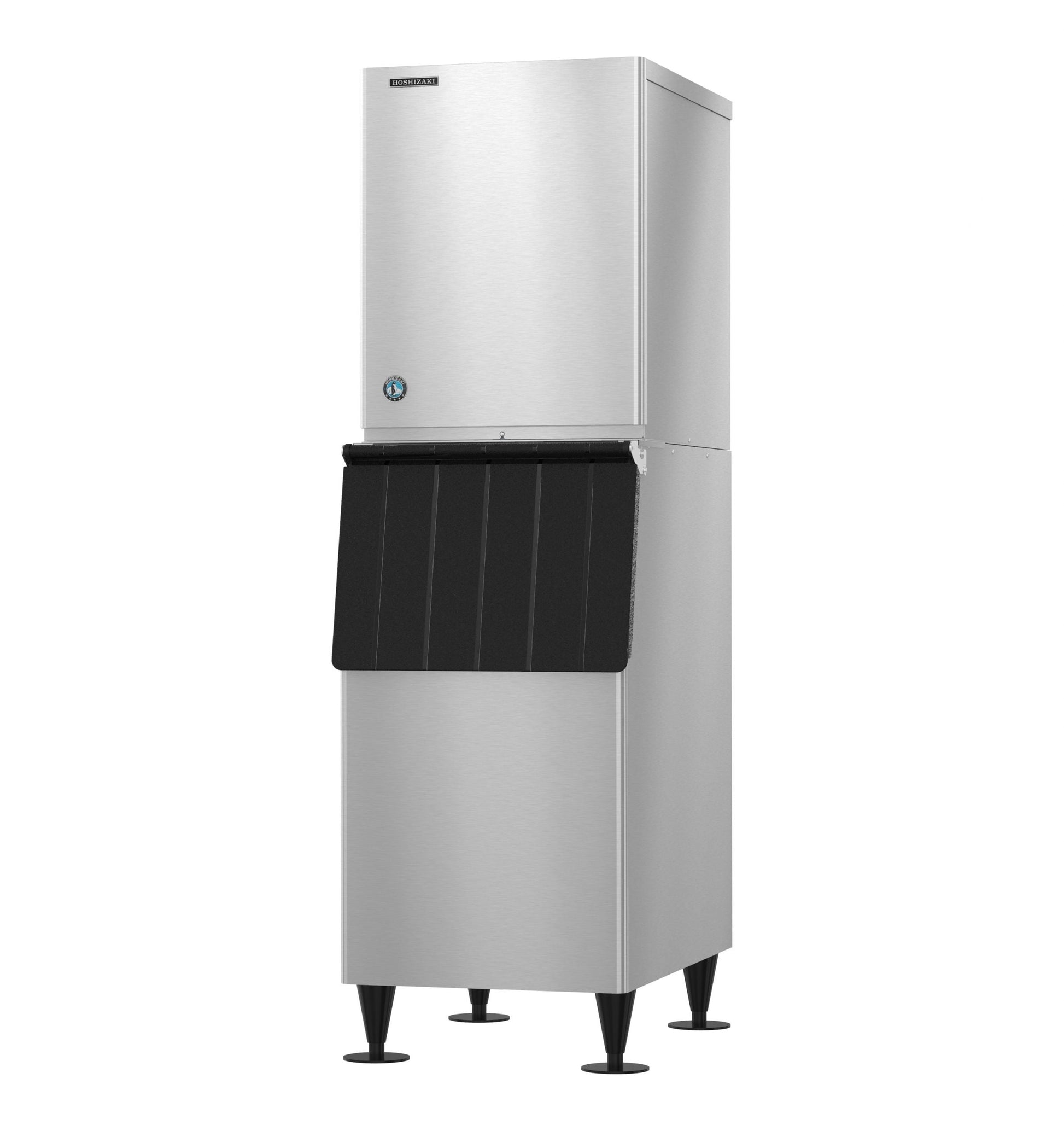

- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
- EverCheckâ„¢ alert system
- CycleSaverâ„¢ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (2 lbs. 4.7 oz / 1012 g)
- Heat Rejection:8100 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 16.1 amps (20 Amp Max fuse)
- 5.6 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- ENERGY STAR® qualified
- Three Years: Parts & Labor warranty on entire machine.
Specifications
| Weight |
180 lbs |
|
Height |
28" H
|
| Width |
22" W |
|
Depth |
27-3/8" D |
|
Amps |
16.1amp
|
Cooling Method
|
Air |
| Cube Size |
Full |
| Ice Type |
Cube |
| Maximum Production Per Day |
646lbs
|
|
Voltage |
115V |
| Water Consumption Rate |
Gal. per 100lbs: Potable 14.7Â Â
|
| Certifications And Listings |
UL /
NSF /
AHRI |
What our Experts Think
-
High production: Up to 642 lbs of crescent ice daily, ideal for busy commercial settings.
-
Space-efficient: Compact 22" width fits tight kitchen spaces.
-
Energy efficient: Uses 5.6 kWh per 100 lbs of ice, ENERGY STAR® certified.
-
Durable stainless steel construction ensures long-lasting performance.
-
Features EverCheckâ„¢ alert system and CycleSaverâ„¢ design for reliability and energy savings.
-
H-GUARD Plus Antimicrobial Agent helps maintain clean ice production.
-
Compatible with multiple Hoshizaki ice bins and dispensers (sold separately).
Q&A
Q: What is the Hoshizaki KM-660MRJZ?
A: A 22" wide remote-cooled crescent cuber ice maker producing clear, crescent-shaped ice for commercial use.
Q: Does it include a remote condenser?
A: No, the remote condenser is sold separately for flexible installation.
Q: What type of cooling system does it use?
A: Remote-cooled system reduces heat and noise in your workspace.
Q: What kind of ice does it produce?
A: Produces clear, hard crescent-shaped ice ideal for bars, restaurants, and healthcare.
Q: Is it energy efficient?
A: Yes, designed for efficient energy and water consumption.
Q: Where is it best used?
A: Suitable for businesses needing quiet, high-volume ice production with remote cooling.
Maintenance Tips
-
Clean condenser coils monthly to optimize cooling.
-
Regularly defrost to prevent ice buildup.
-
Inspect and clean door seals for a proper airtight fit.
-
Clean interior surfaces and shelves frequently.
-
Avoid overloading to maintain airflow.
-
Schedule annual professional maintenance.
