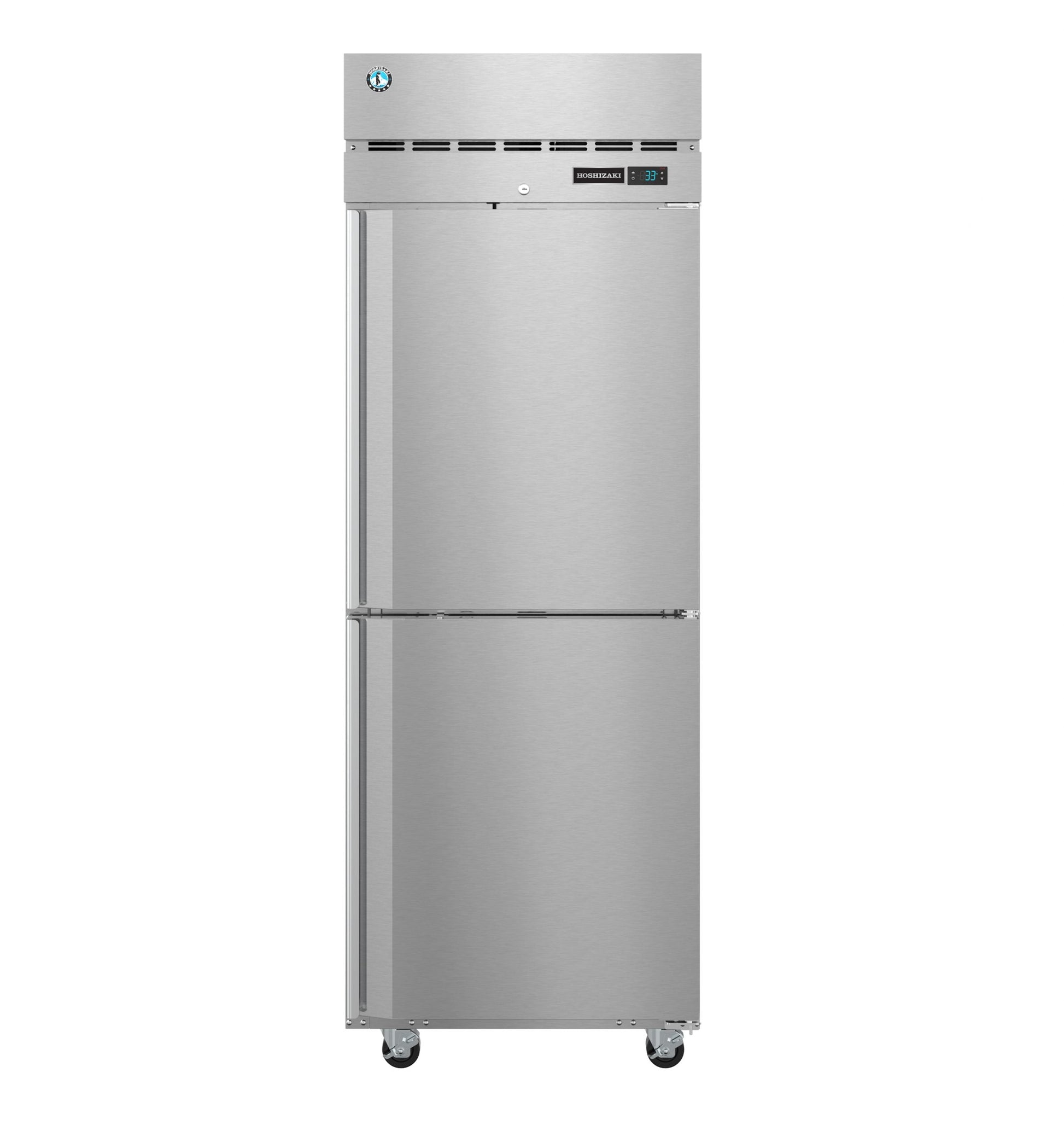

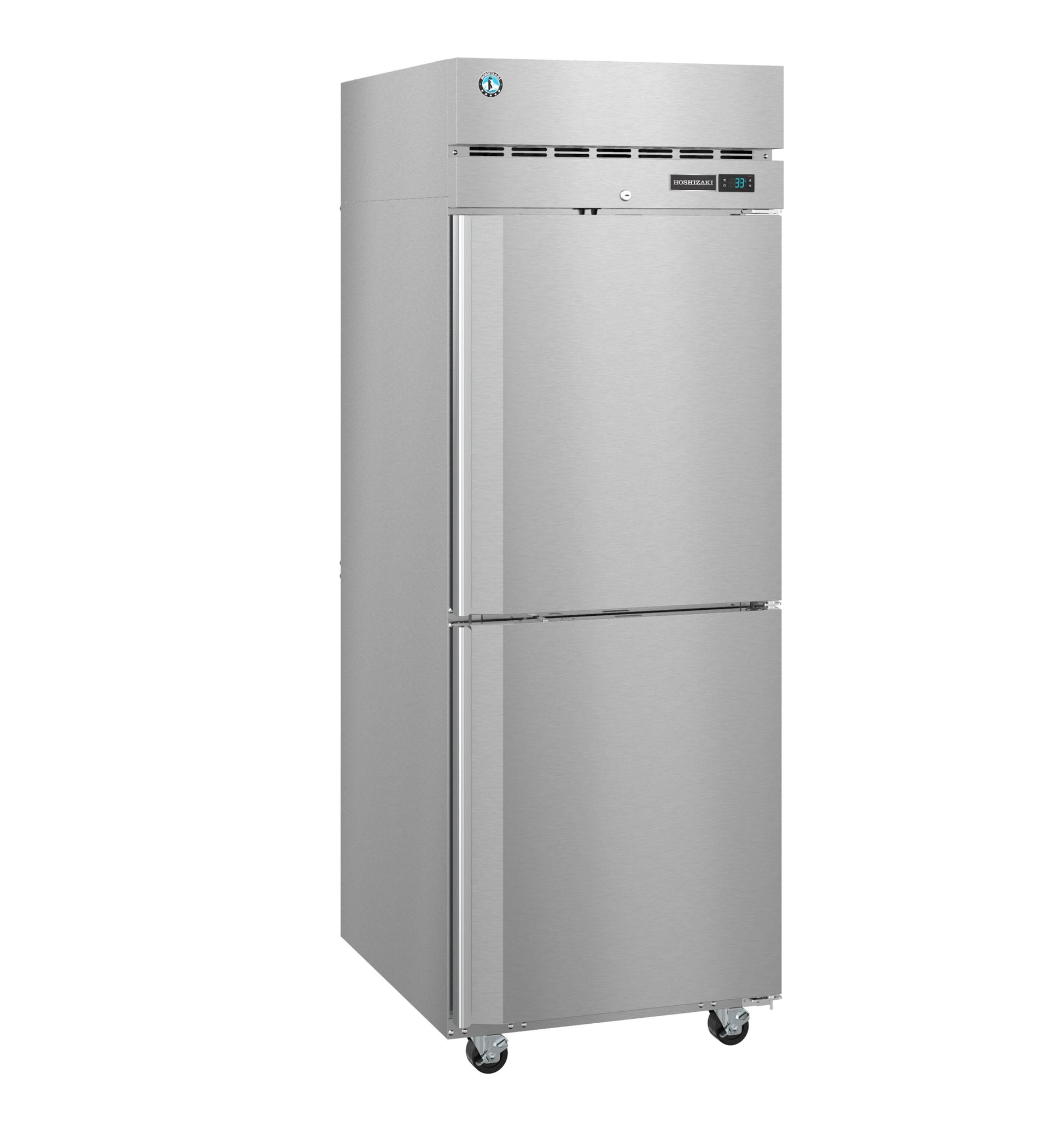

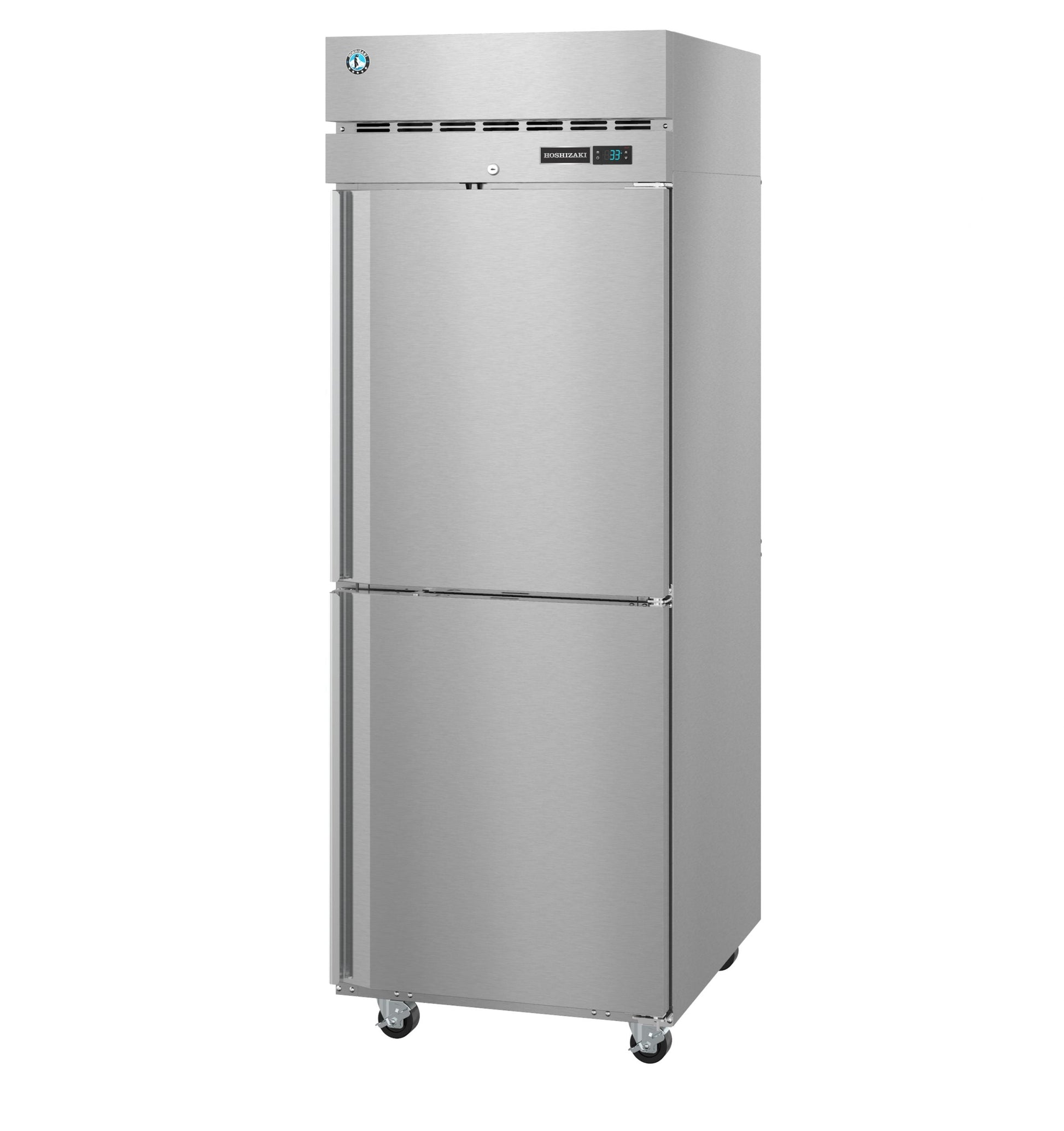

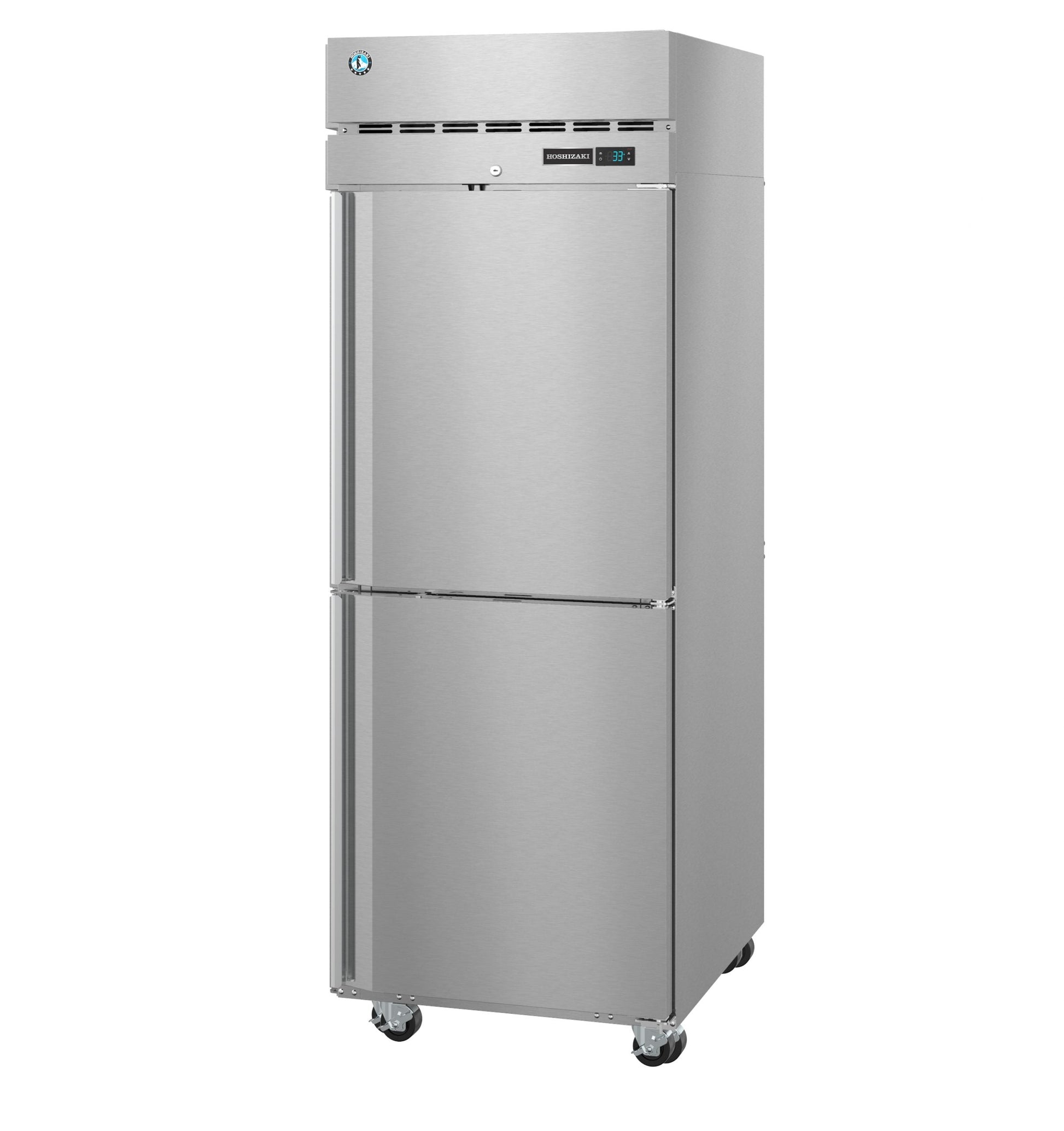

Hoshizaki | 28" Wide 2 Door Top Mount Reach-In Freezer - F1A-HS
The F1A-HS Steelheart Series Upright single section freezer with a half stainless doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright freezer and front air flow design is perfect for hot/tight kitchens. The F1A-HS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The F1A-HS also includes Interior LED light bar is mounted horizontally on the ceiling, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 6.25 kWh/day at 8.46 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty.
Features
- Dimensions: 27.5″ W x 33.5″ D x 79.5″ H
- Net capacity of 23.1 cubic feet

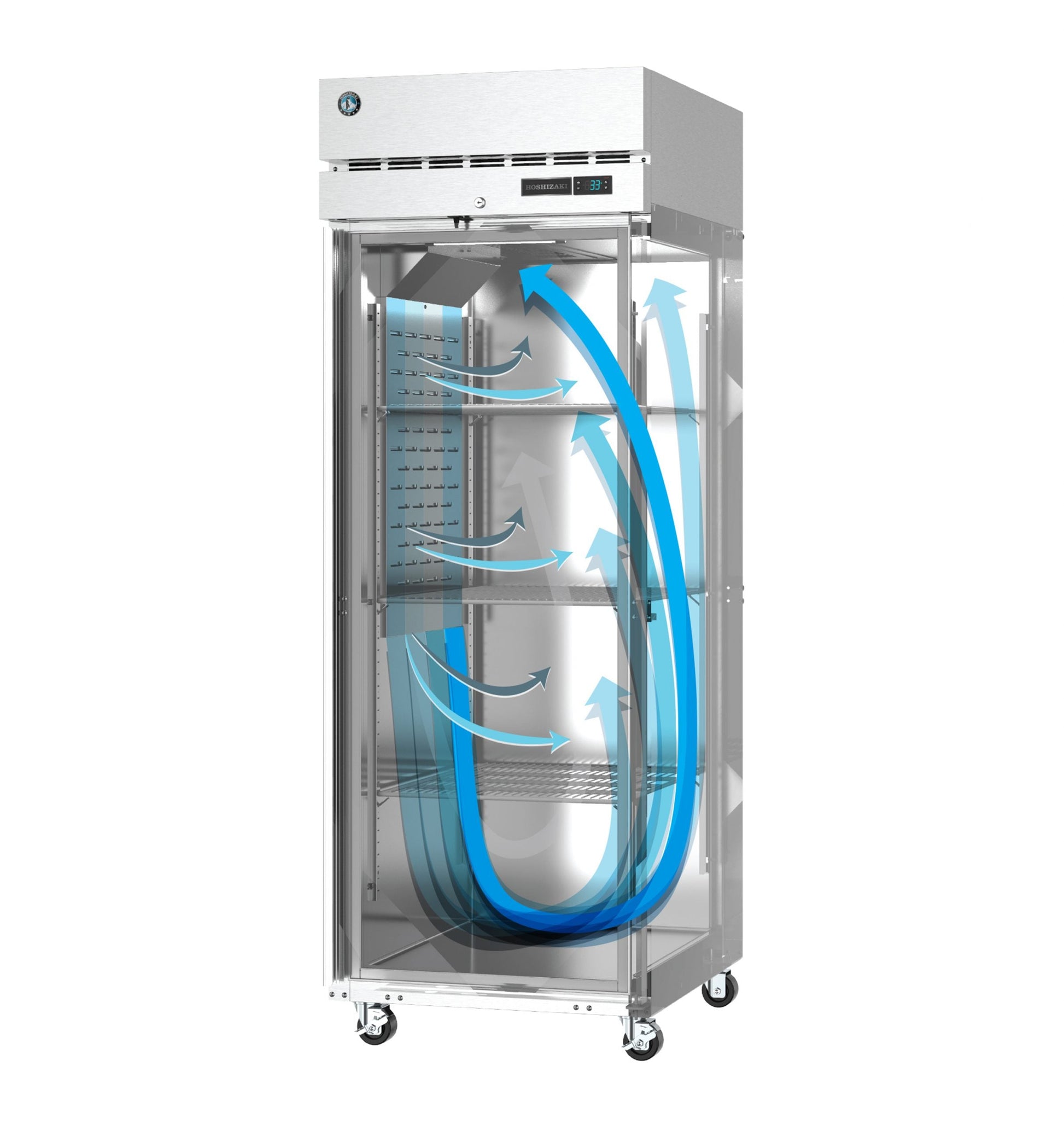

- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
- One piece, full door length, extruded aluminum flush mount door handle
- Lockable Half Stainless Doors
- Insulated with 2 3/8″ CFC free, foamed in place polyurethane

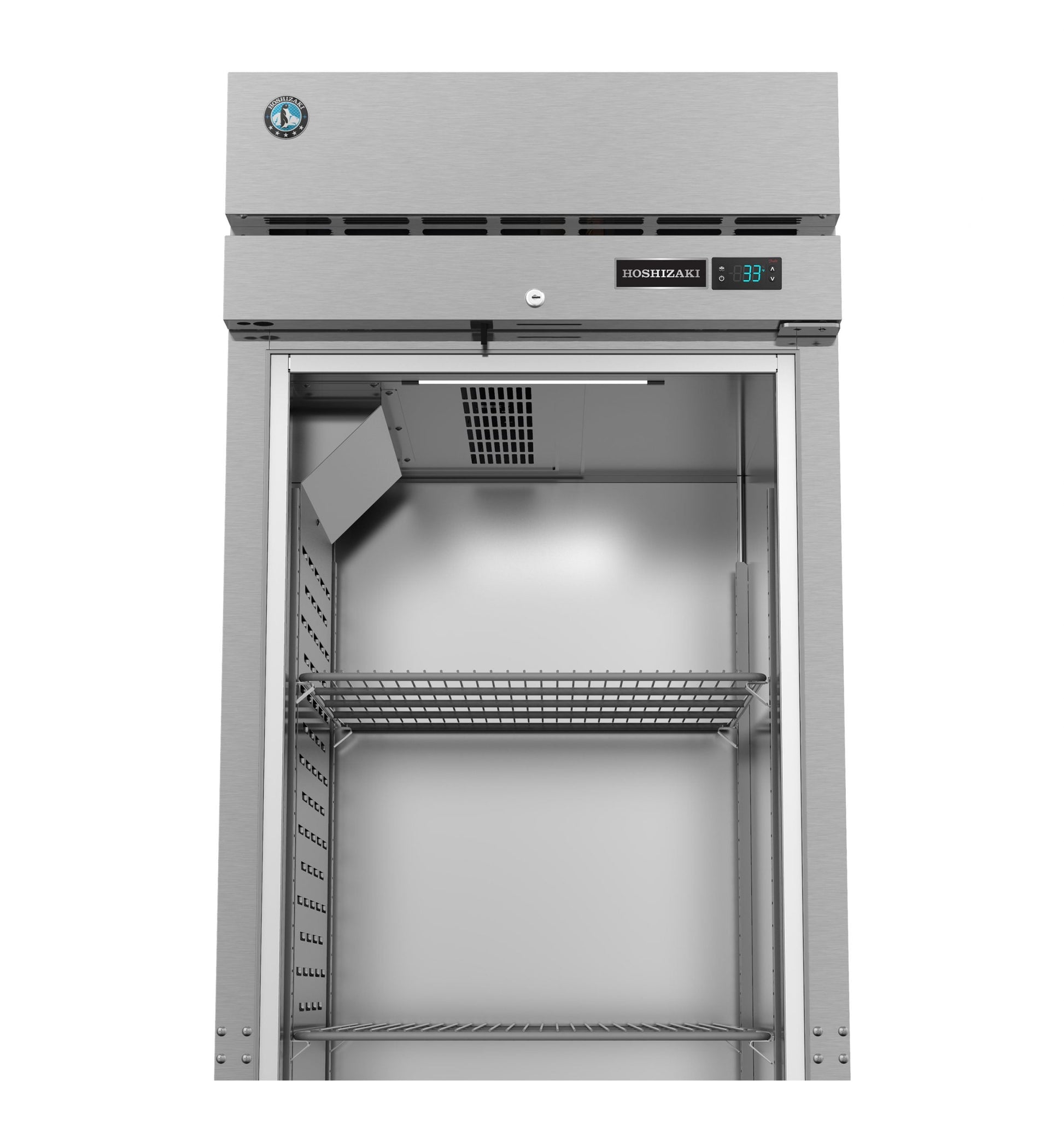

- Interior LED light bar is mounted horizontally on the ceiling
- Solid state control system with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (4) 4″ Stem Casters (2 with brakes) are standard

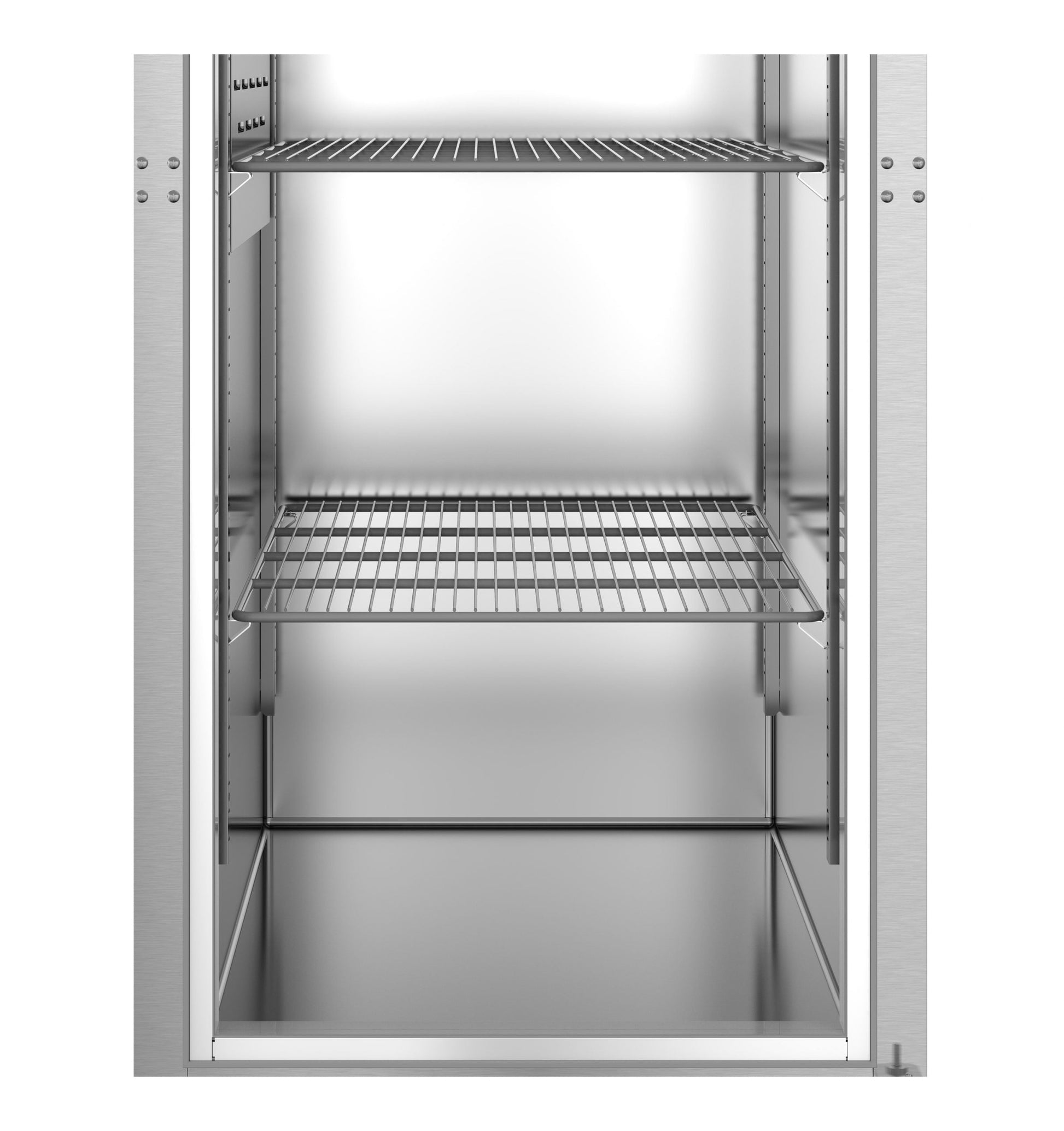

- Includes 3 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports

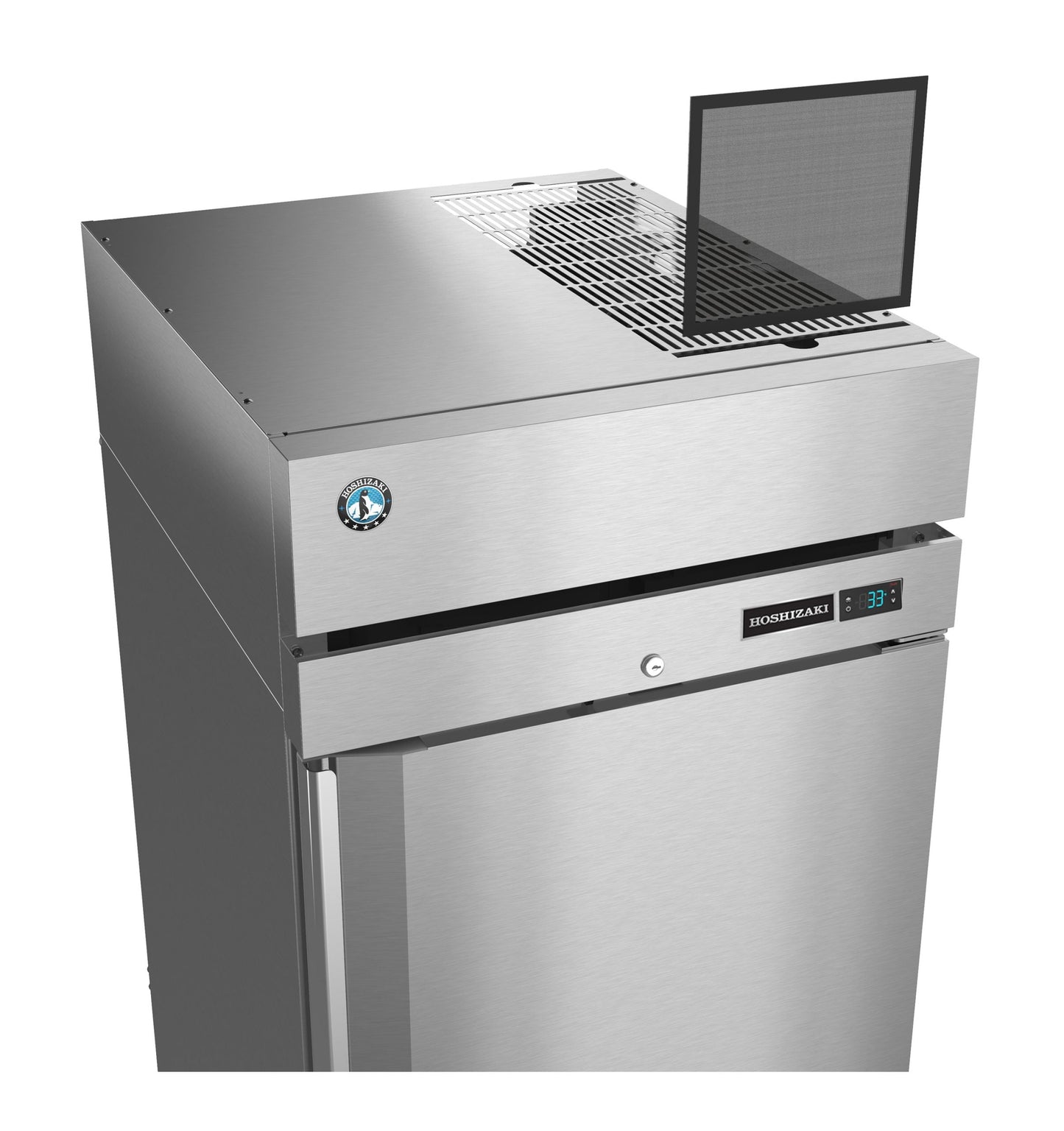

- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
- Nominal Compres. of 1425 BTU/hr at 3/4 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 36″ L x 31.5″ D x 81″ H at 355 lbs
- Top mounted energy efficient non-electric evaporation system
Specifications
| Brand |
Hoshizaki |
| Model Number |

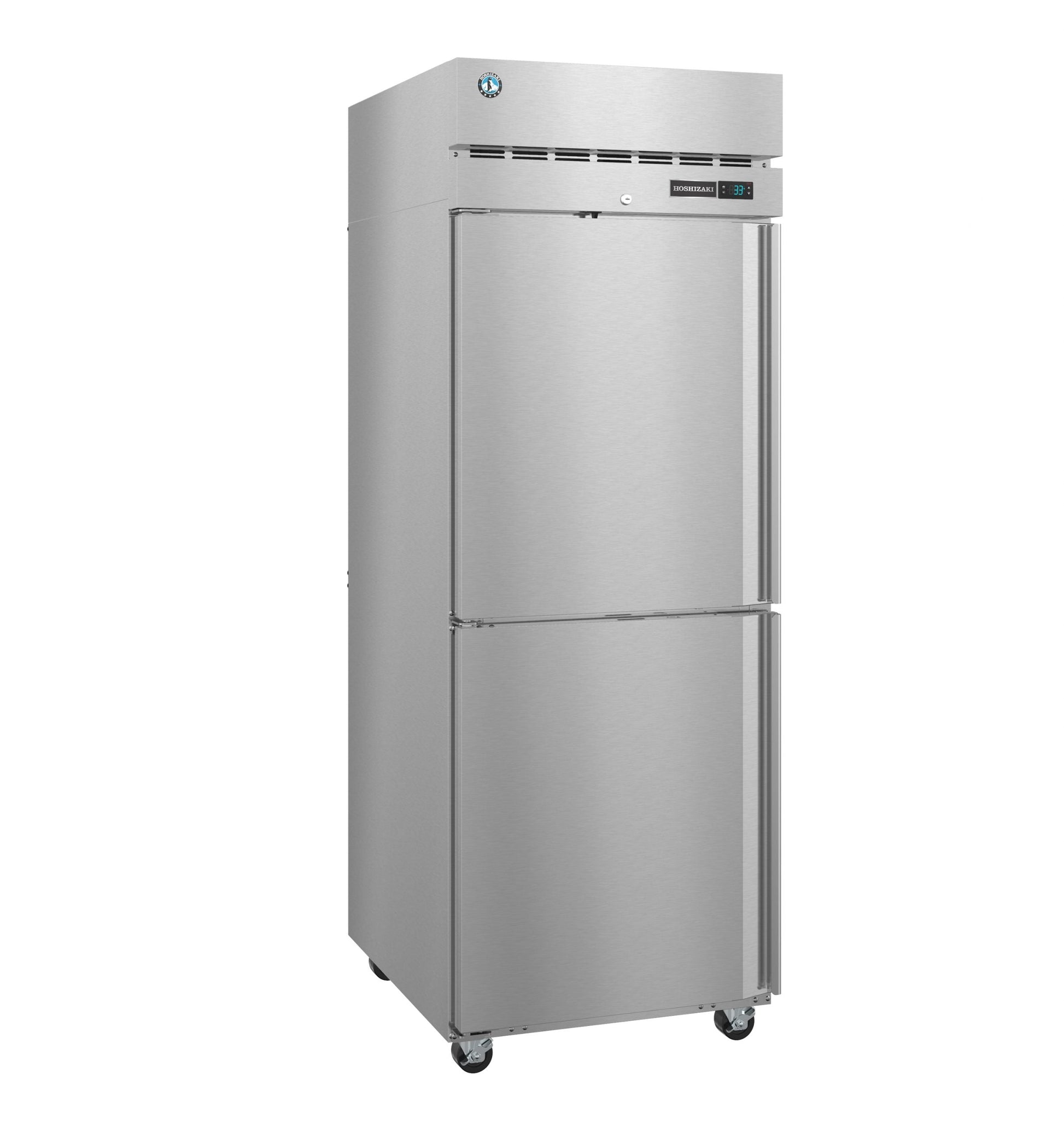

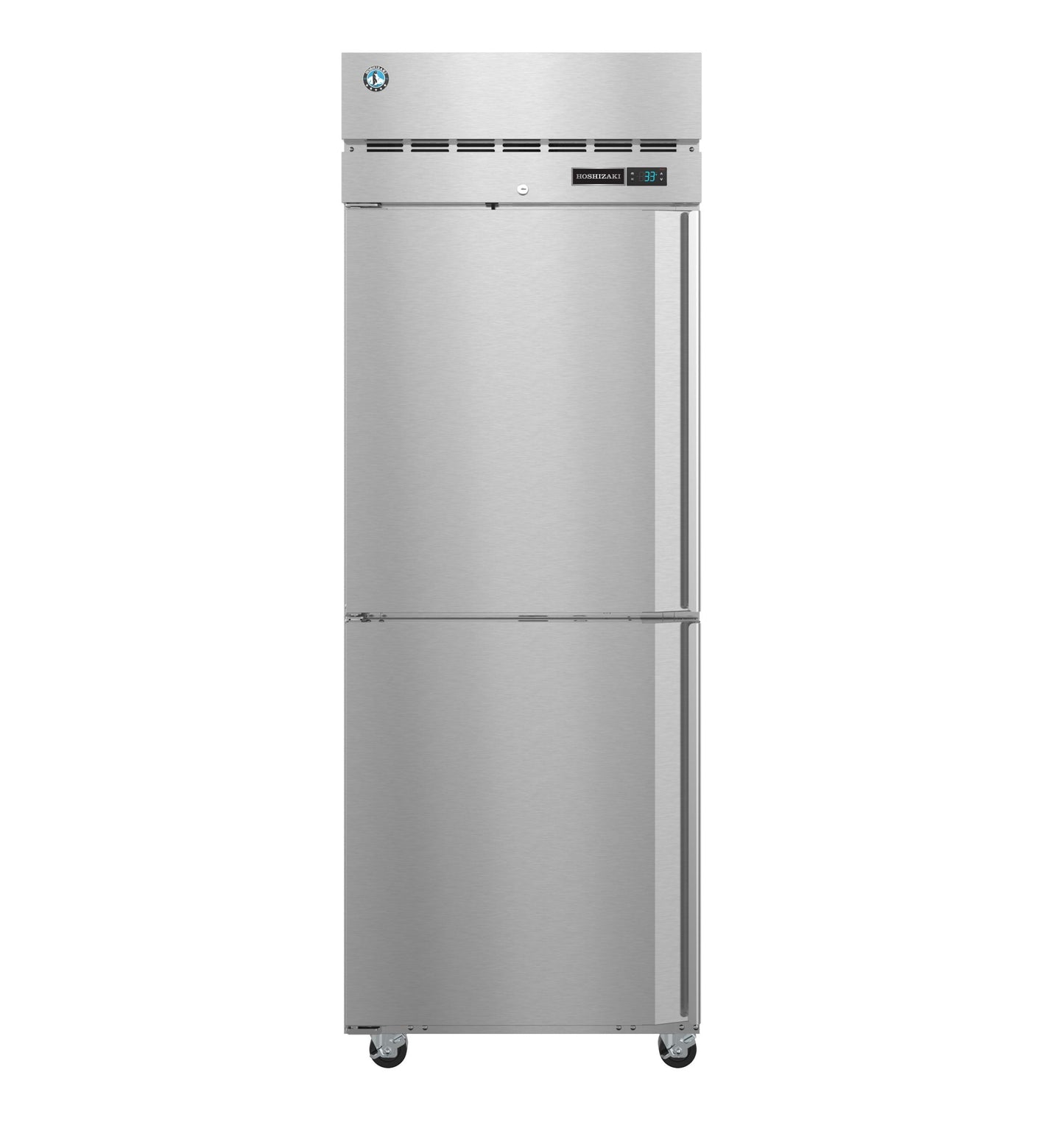

F1A-HSL |
| Door Type |
solid |
| Size |
1 section |
| Exterior Finish |
stainless steel |
| Compressor HP |
3/4 HP |
| Compressor Location |
top mounted |
| Refrigerator Type |
Reach-In |
| Door Quantity |
2 |
| Interior Finish |
stainless steel |
| Capacity (Cu. Ft.) |
23 |
| Door Style |
half hinged |
What our Experts Think
-
Compact Yet Spacious: At 28" wide, this 2-door freezer offers ample interior storage without taking up excess floor space.
-
Top-Mount Compressor: Keeps the cooling system away from floor debris—ideal for high-traffic kitchens and cleaner operation.
-
Energy Efficient: Designed to meet Energy Star® standards, reducing utility costs without compromising performance.
-
Durable Construction: Stainless steel exterior and interior ensure long-lasting use in commercial environments.
-
Precise Temperature Control: Digital controller maintains consistent freezing, vital for food safety compliance.
Q&A
Q: What is the storage capacity of the Hoshizaki F1A-HS freezer?
A: It offers 23.1 cu. ft. of storage, ideal for commercial kitchens needing reliable frozen storage.
Q: What are the dimensions of this reach-in freezer?
A: It measures 27.5" W x 33.5" D x 79.5" H, compact enough for tight spaces yet spacious inside.
Q: What type of doors does it have?
A: It features two half-height solid stainless steel doors with field-reversible hinges.
Q: Is the refrigeration system top-mounted?
A: Yes, the top-mount design keeps the condenser away from floor debris and improves efficiency.
Q: What is the temperature range?
A: Maintains consistent temperatures at or below 0°F, ideal for safe frozen food storage.
Q: Is it ENERGY STAR® certified?
A: Yes, it meets ENERGY STAR® standards for energy efficiency and performance.
Q: What material is the interior made of?
A: Stainless steel exterior with a corrosion-resistant, easy-to-clean ABS interior.
Q: Does it include shelving?
A: Yes, includes three adjustable, epoxy-coated wire shelves for flexible storage.
Maintenance Tips
-
Clean Condenser Coils Monthly: Use a soft brush or vacuum to maintain cooling efficiency and prevent overheating.
-
Inspect Door Gaskets: Check for cracks or wear; replace damaged seals to maintain consistent internal temperature.
-
Defrost as Needed: Although auto-defrosting, manual checks help avoid ice buildup and ensure optimal airflow.
-
Wipe Interior & Exterior Weekly: Use mild detergent and a soft cloth; avoid abrasive cleaners on stainless steel.
-
Check Thermostat Settings: Ensure proper temperature (-10°F to 0°F) for safe food storage and energy efficiency.
