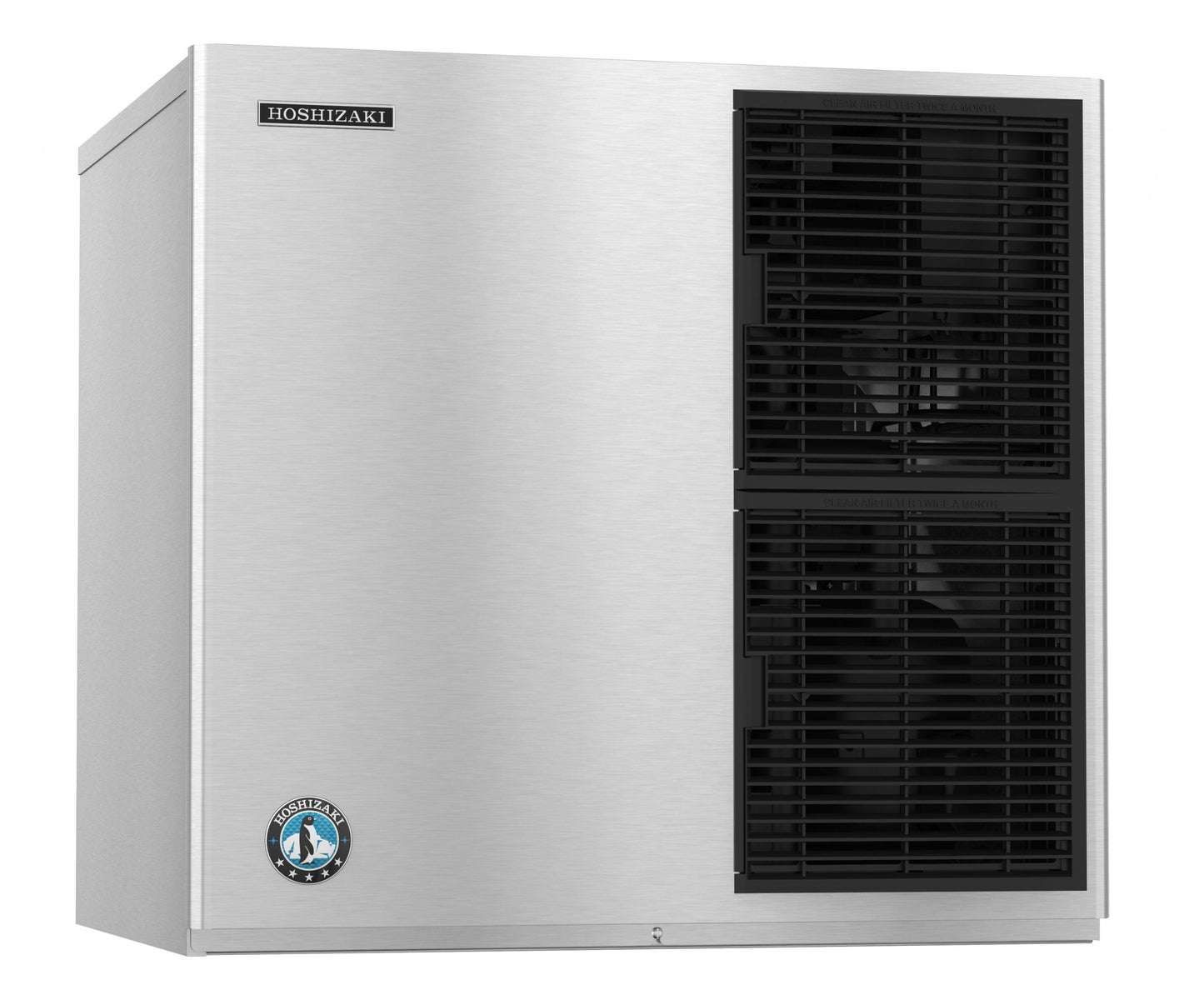

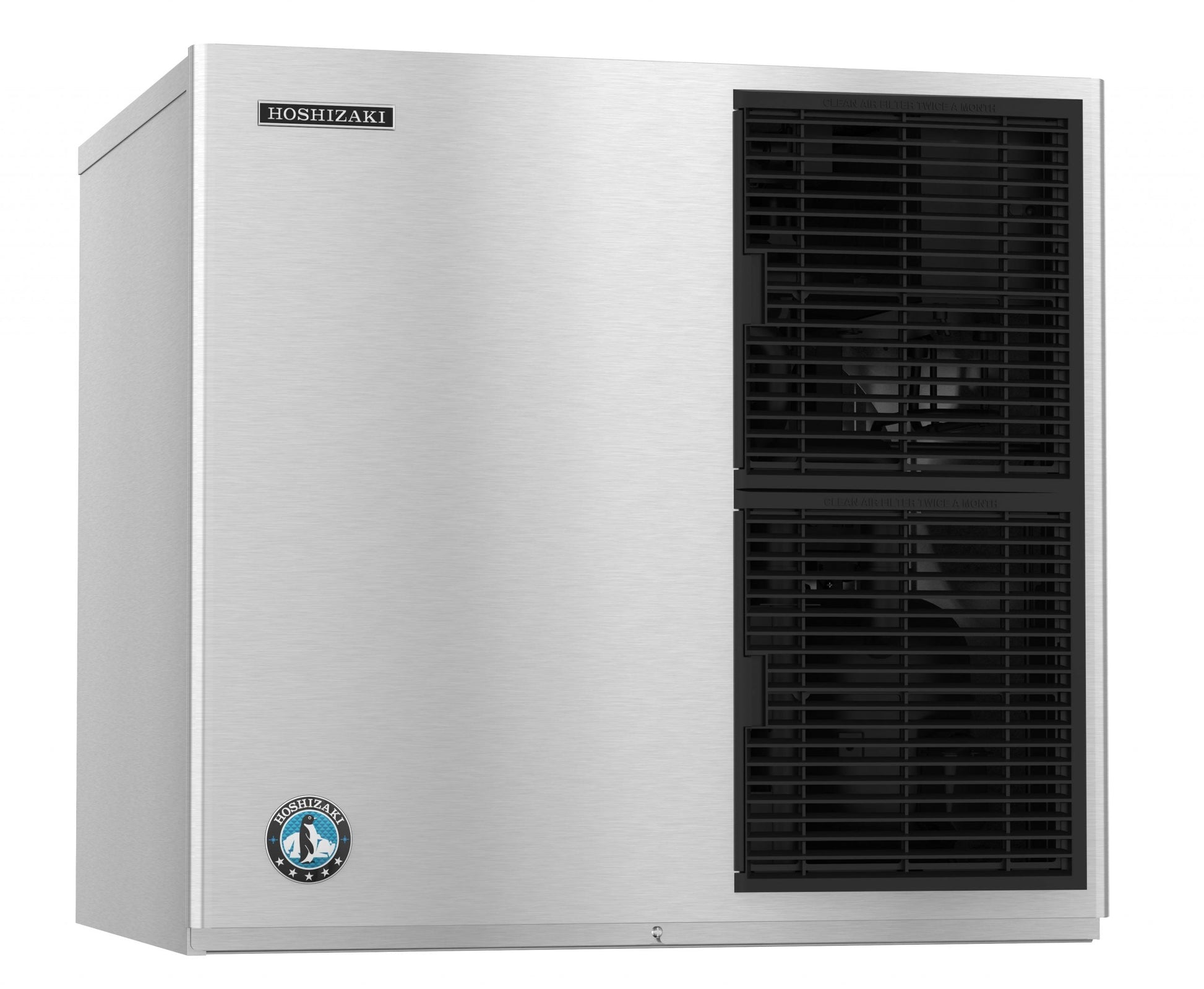

Hoshizaki 30" Wide Air-Cooled Crescent Cuber Ice Maker - KMD-860MAJ

Hoshizaki 30" Wide Air-Cooled Crescent Cuber Ice Maker - KMD-860MAJ

The KMD-860MAJ is capable of producing approximately 855 lbs of crescent cubed ice. The energy efficient KMEdge design incorporates a dual-sided stainless steel evaporator. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Air-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-860MAJ requires a Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. Replaces KMD-850MAH & KMD-901MAH.

Features

• Dimensions: 30″ W x 24-5/8″ D x 28″ H
• Up to 855 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent shaped ice cubes
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
• EverCheck™ alert system
• CycleSaver™ design
• Protected by H-GUARD Plus Antimicrobial Agent
• R-404A refrigerant (2 lbs. 6.8 oz. / 1100 g)
• Heat Rejection:13100 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 187 – 253V
• 9.9 amps (20 Amp Max fuse)
• 5.16 kwh/100 lbs.@ 90/70
• Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts & Labor warranty on evaporator.

Specifications

What Our Experts Think

• High Ice Production: Produces up to 865 lbs. of crescent-shaped ice per day, perfect for high-demand settings.
• Air-Cooled Efficiency: Uses an air-cooled system for reliable performance and energy savings.
• Compact & Powerful: 30” wide design maximizes output while saving space.
• Durable Construction: Stainless steel build ensures long-lasting durability in commercial environments.
• Easy Maintenance: Removable air filters and accessible components simplify cleaning and servicing.

Q&A

Q: What is the Hoshizaki KMD-860MAJ Ice Maker used for?
A: It produces crescent-shaped ice cubes, ideal for commercial kitchens, bars, and food service establishments.

Q: What are its dimensions?
A: The unit is 30 inches wide, designed for efficient ice production while saving space.

Q: How much ice does it produce?
A: It can produce up to 865 lbs. of ice per day under optimal conditions.

Q: What are its key features?
A: The KMD-860MAJ features an air-cooled system, stainless steel exterior, CycleSaver™ technology for efficiency, and a self-diagnostic system for easy maintenance.

Q: What type of ice does it make?
A: It produces hard, slow-melting crescent-shaped cubes that optimize ice-to-drink displacement.

Q: Is it energy efficient?
A: Yes, it includes energy-efficient components and uses an environmentally friendly refrigerant.

Q: Does it require a separate ice storage bin?
A: Yes, a compatible ice storage bin is required for optimal ice management.

Q: Does it require professional installation?
A: Yes, professional installation is recommended to ensure proper setup and performance.

Maintenance Tips

• Clean Condenser Coils: Remove dust monthly to maintain efficient cooling and ice production.
• Inspect Water Filters: Replace regularly to ensure clean ice and optimal performance.
• Sanitize the Ice Bin: Clean and disinfect to prevent bacterial buildup.
• Descale the Evaporator: Remove mineral deposits periodically to maintain ice quality.
• Check for Unusual Noises: Address vibrations or abnormal sounds to prevent potential issues.
