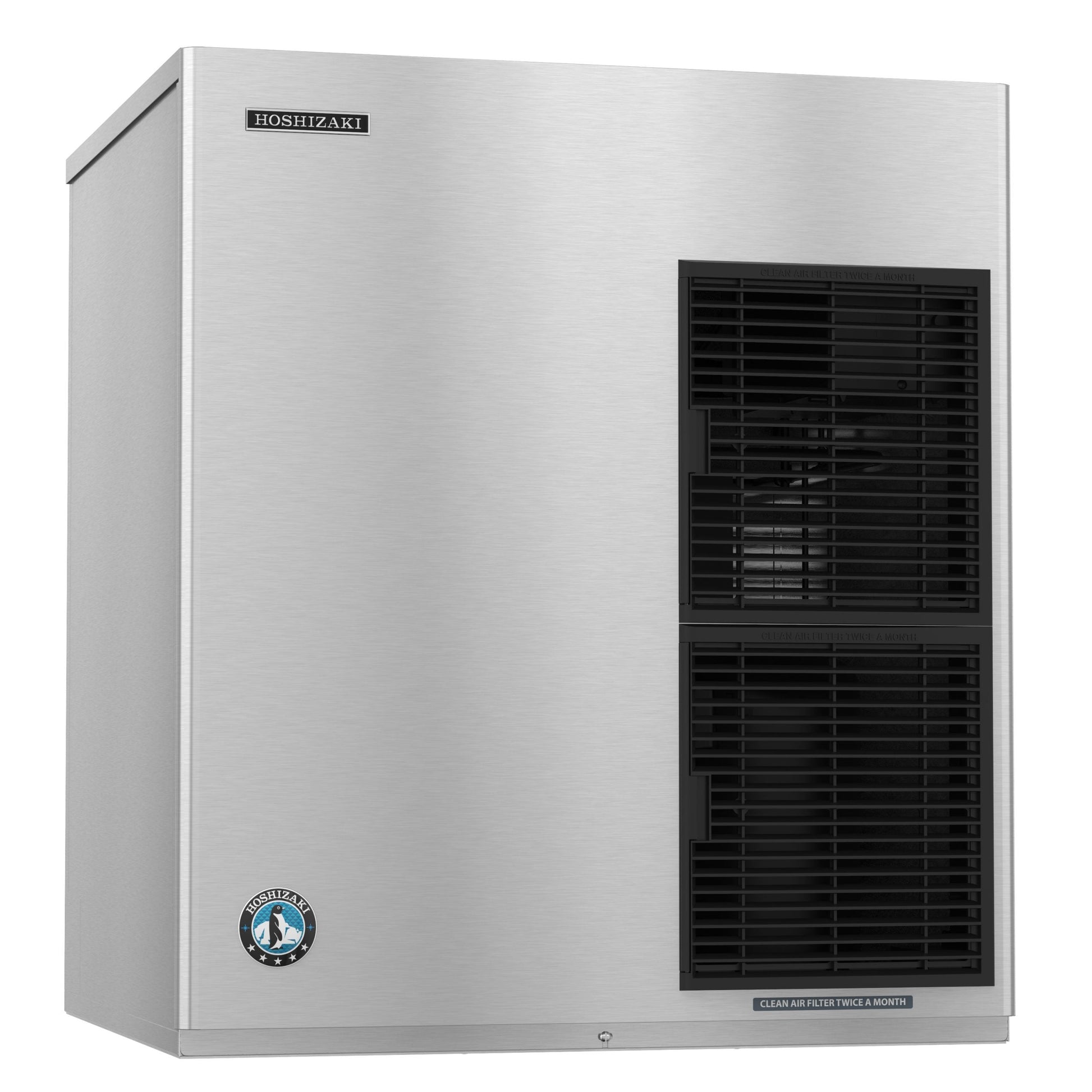

Hoshizaki F-1501MWJ | 30" Wide Water-Cooled Flaker Ice Maker (Bin Sold Separately) - F-1501MWJ
The F-1501MWJ is capable of producing approximately 1624 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Water-cooled, Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1501MWJ requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 30″ W x 27-3/8″ D x 34-7/16″ H
- Up to 1624 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces flaked ice
- Durable stainless steel exterior

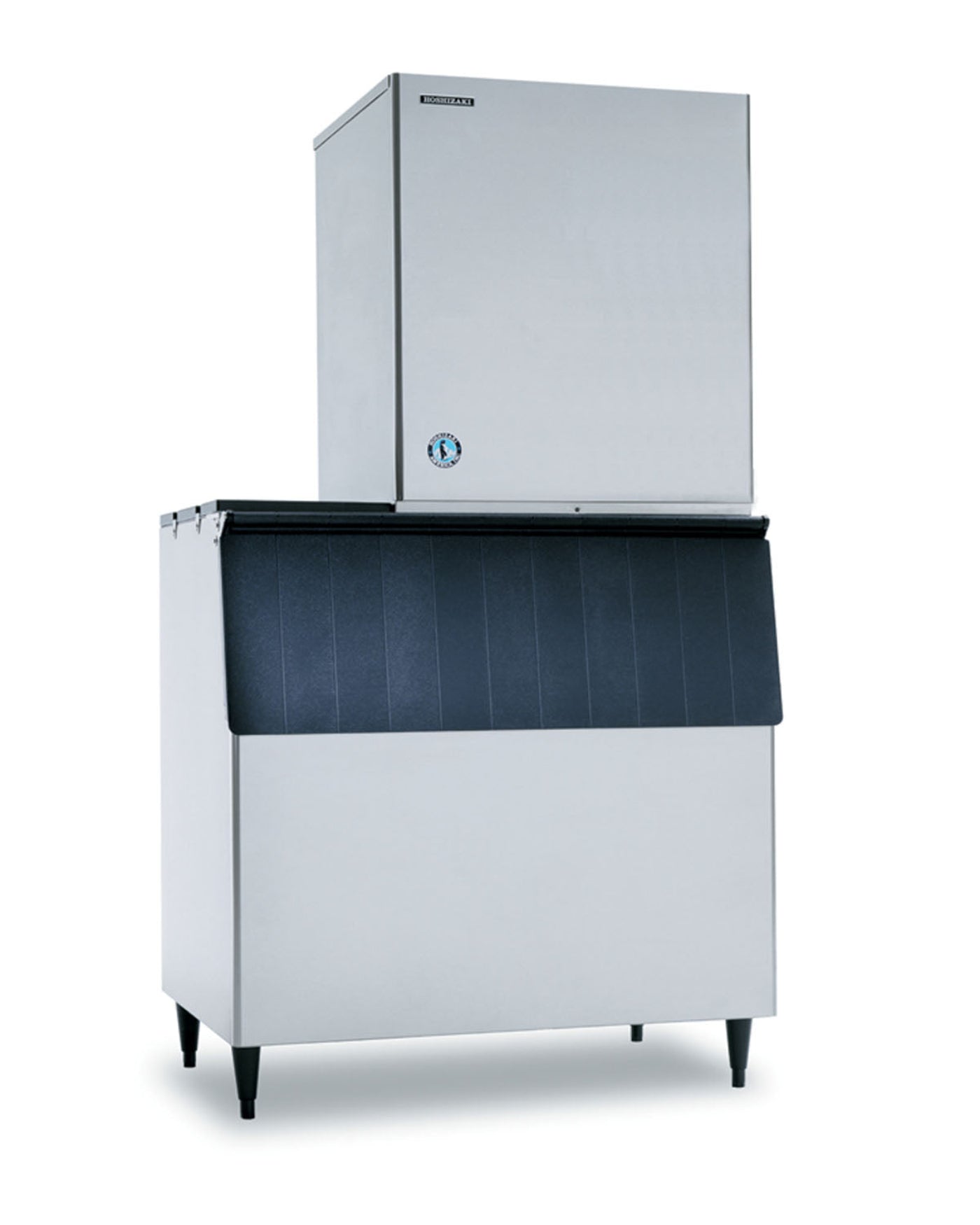

- Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24™ design
- Infrared bin control for easy cleaning and reliability
- R-404A refrigerant (1 lbs. 4.5 oz. / 580 g)
- Heat Rejection:12900 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 15.4 amps (20 Amp Max fuse)
- 3.2 kwh/100 lbs.@ 90/70
- Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
Specifications
| Brand |
Hoshizaki |
| Model Number |
F-1501MWJ |
| Weight |
350 lbs |
| Width |
30" |
| Depth |
27.38" |
| Height |
34.44" |
| Compatible With |
ice storage bin |
| Cooling |
water-cooled |
| Ice Type |
flake ice |
| Refrigeration |
self-contained refrigeration |
| Production per 24 hr (Lbs) |
1624 |
| Voltage |
208/230 |
| Phase |
1 |
| Drain Type |
gravity drain |
What our Experts Think
-
High Production Capacity – Produces up to 1,545 lbs of flake ice per day, ideal for high-demand applications.
-
Water-Cooled System – Efficient operation in hot environments, reducing strain on HVAC systems.
-
Flake Ice Output – Soft, moldable ice perfect for seafood displays, healthcare, and blended beverages.
-
30-Inch Width – Compact yet powerful, fitting well in commercial kitchens and grocery stores.
-
Durable Stainless Steel Build – Corrosion-resistant, easy to clean, and built for long-term performance.
Q&A
Q: What is the Hoshizaki F-1501MWJ Ice Maker?
A: The Hoshizaki F-1501MWJ is a 30" wide water-cooled flaker ice maker designed for high-capacity ice production in commercial settings.
Q: Who is the Hoshizaki F-1501MWJ ideal for?
A: It is ideal for restaurants, seafood markets, healthcare facilities, and food preservation applications requiring soft, moldable flake ice.
Q: How much ice can the Hoshizaki F-1501MWJ produce?
A: This machine can produce up to 1,508 lbs of flake ice per day, ensuring a continuous supply for high-demand environments.
Q: What type of ice does the Hoshizaki F-1501MWJ make?
A: It produces flake ice, which is soft and moldable, making it perfect for food displays, beverage cooling, and medical applications.
Q: Is an ice storage bin included?
A: No, the ice storage bin is sold separately, allowing users to choose a compatible bin for their storage needs.
Maintenance Tips
-
Clean Exterior & Interior – Wipe stainless steel surfaces with a mild detergent; avoid abrasive cleaners.
-
Sanitize Ice-Making Components – Every 1–2 months, run a food-safe ice machine cleaner to prevent bacterial growth.
-
Inspect & Replace Water Filters – Change filters regularly to maintain ice quality and prevent mineral buildup.
-
Monitor Ice Quality & Production – If ice appears soft, dirty, or production slows, clean the system and check for maintenance needs.
-
Check & Clean Condenser Coils – Keep the condenser free of dust and debris to ensure efficient cooling performance.
-
Ensure Proper Drainage – Regularly inspect and clear drain lines to prevent water backup and mold growth.
-
Prevent Scale Buildup – Use an approved descaler periodically to remove mineral deposits and keep internal components functioning properly.
-
Schedule Routine Professional Maintenance – Have a technician inspect the unit periodically to ensure peak efficiency and longevity.
