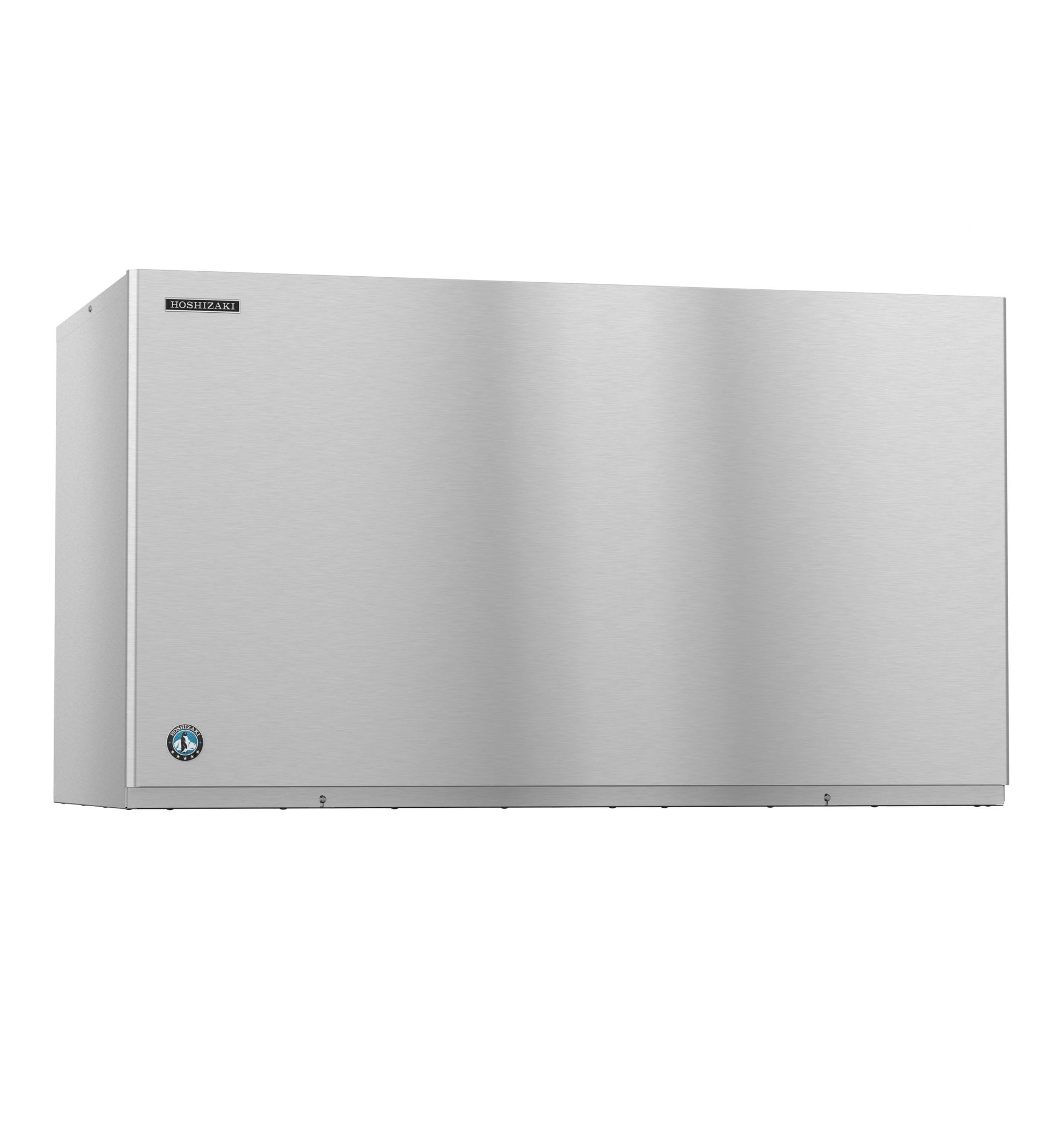

Hoshizaki KM-1601SRJZ | 48" Wide Remote-Cooled Crescent Cuber Ice Maker (Remote Condenser Sold Separately) - KM-1601SRJZ
The KM-1601SRJZ is capable of producing approximately 1640 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-22FZ icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1601SRJZ requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 48″ W x 27-3/8″ D x 27-3/8″ H
- Up to 1640 lbs of ice produced per 24 hours
- Stack 2 units for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
- EverCheckâ„¢ alert system
- CycleSaverâ„¢ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (15 lbs. 3.4 oz. / 6900 g)
- Heat Rejection:21200 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 15.9 amps (20 Amp Max fuse)
- 3.96 kwh/100 lbs.@ 90/70
- Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required
- ENERGY STAR qualified
Specifications
| Brand |
Hoshizaki |
| Model Number |
KM-1601SRJZ |
| Weight |
335 lbs |
| Width |
48" |
| Depth |
27.38" |
| Height |
27.38" |
| Compatible With |
ice storage bin |
| Cooling |
air-cooled |
| Ice Type |
crescent cubes |
| Refrigeration |
remote (refrigeration not included) |
| Production per 24 hr (Lbs) |
1640 |
| Voltage |
208/230 |
| Phase |
1 |
| Drain Type |
gravity drain |
| Certifications |
AHRI, NSF, UL |
What our Experts Think
-
High Ice Production – Produces up to 1,595 lbs of crescent-shaped ice daily.
-
Remote-Cooled System – Reduces heat and noise in the workspace (condenser sold separately).
-
48" Wide Design – Fits various commercial ice storage bins for flexibility.
-
Crescent Cube Efficiency – Slower melting, ideal for beverages and food displays.
-
Durable Stainless Steel Build – Corrosion-resistant and easy to maintain.
Q&A
Q: What type of ice does this machine produce?
A: This unit produces crescent-shaped ice cubes, which are designed to melt slowly and maximize cooling efficiency.
Q: What is the cooling system type?
A: It features a remote-cooled system, which means the condenser is located separately to reduce heat and noise in the workspace. (Remote condenser sold separately.)
Q: How much ice can it produce?
A: The KM-1601SRJZ can produce up to 1,595 lbs of ice per day under ideal conditions, making it ideal for high-volume commercial use.
Q: What are its dimensions?
A: This ice maker is 48 inches wide, providing a large ice-making capacity while maintaining a space-efficient design.
Q: Is it energy efficient?
A: Yes! The CycleSaverâ„¢ technology and EverCheckâ„¢ alert system help optimize performance while reducing energy consumption and maintenance needs.
Q: What businesses is this best suited for?
A: It’s perfect for restaurants, bars, hotels, hospitals, grocery stores, and other commercial establishments that require large quantities of ice.
Maintenance Tips
-
Clean Water System: Sanitize every 6 months to prevent scale buildup.
-
Inspect & Replace Filters: Ensure water purity for high-quality ice.
-
Check & Clean Remote Condenser: Remove dust and debris for efficient cooling.
-
Monitor Ice Production: Address any drop in output promptly.
-
Clean Evaporator & Bin: Prevent mold, bacteria, and mineral deposits.
-
Ensure Proper Ventilation: Keep the area around the condenser clear for optimal performance.
