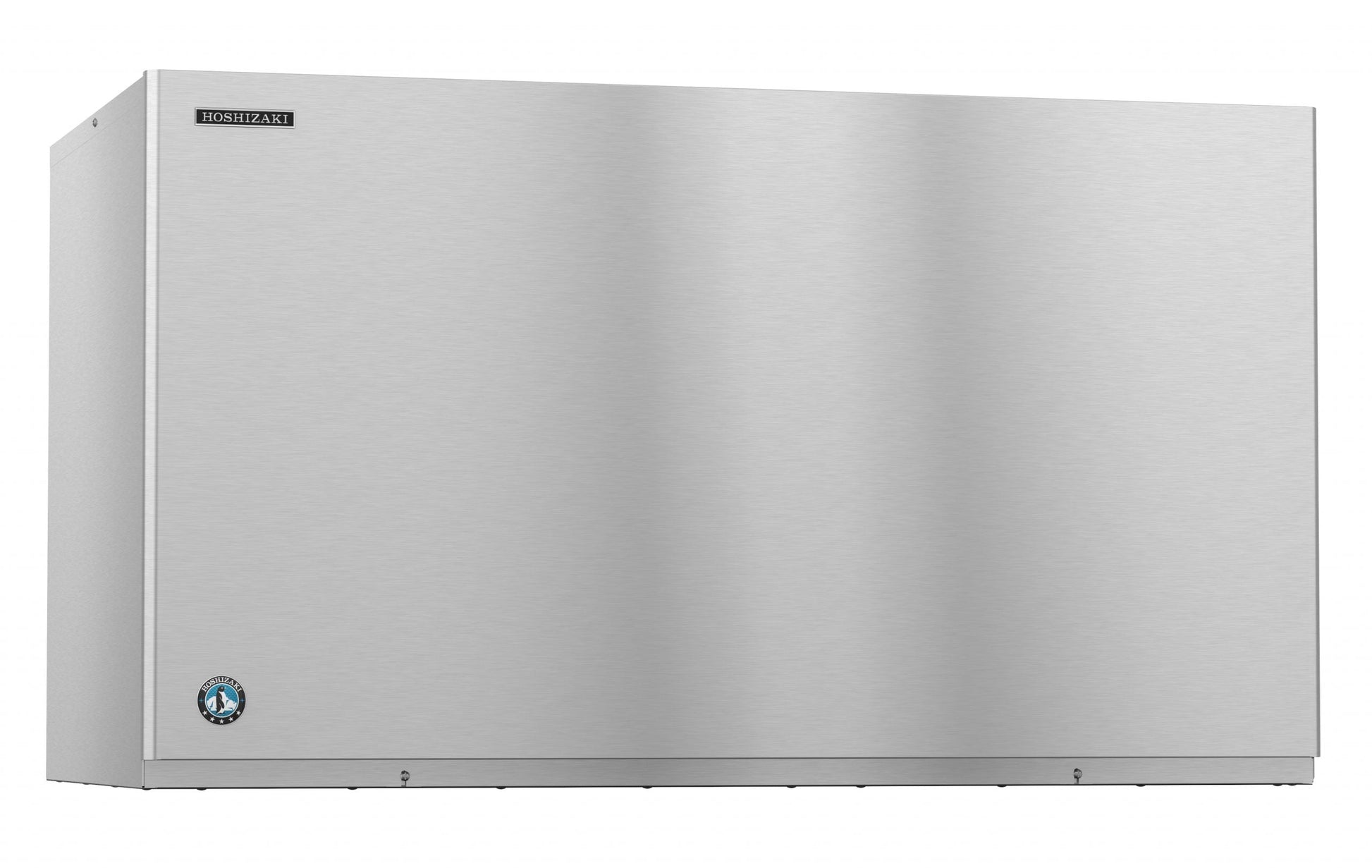

Hoshizaki KM-1301SWJ | 48" Wide Water-Cooled Crescent Cuber Ice Maker (Bin Sold Separately) - KM-1301SWJ
The KM-1301SWJ is capable of producing approximately 1247 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Stackable icemaker features a CycleSaverâ„¢ design and includes the EverCheckâ„¢ alert system making the unit energy efficient and simple to maintain. The KM-1301SWJ requires a Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. Replaces KM-1301SWH.
Features
- Dimensions: 48″ W x 27-3/8″ D x 27-3/8″ H
- Up to 1247 lbs of ice produced per 24 hours
- Stack 2 units for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior

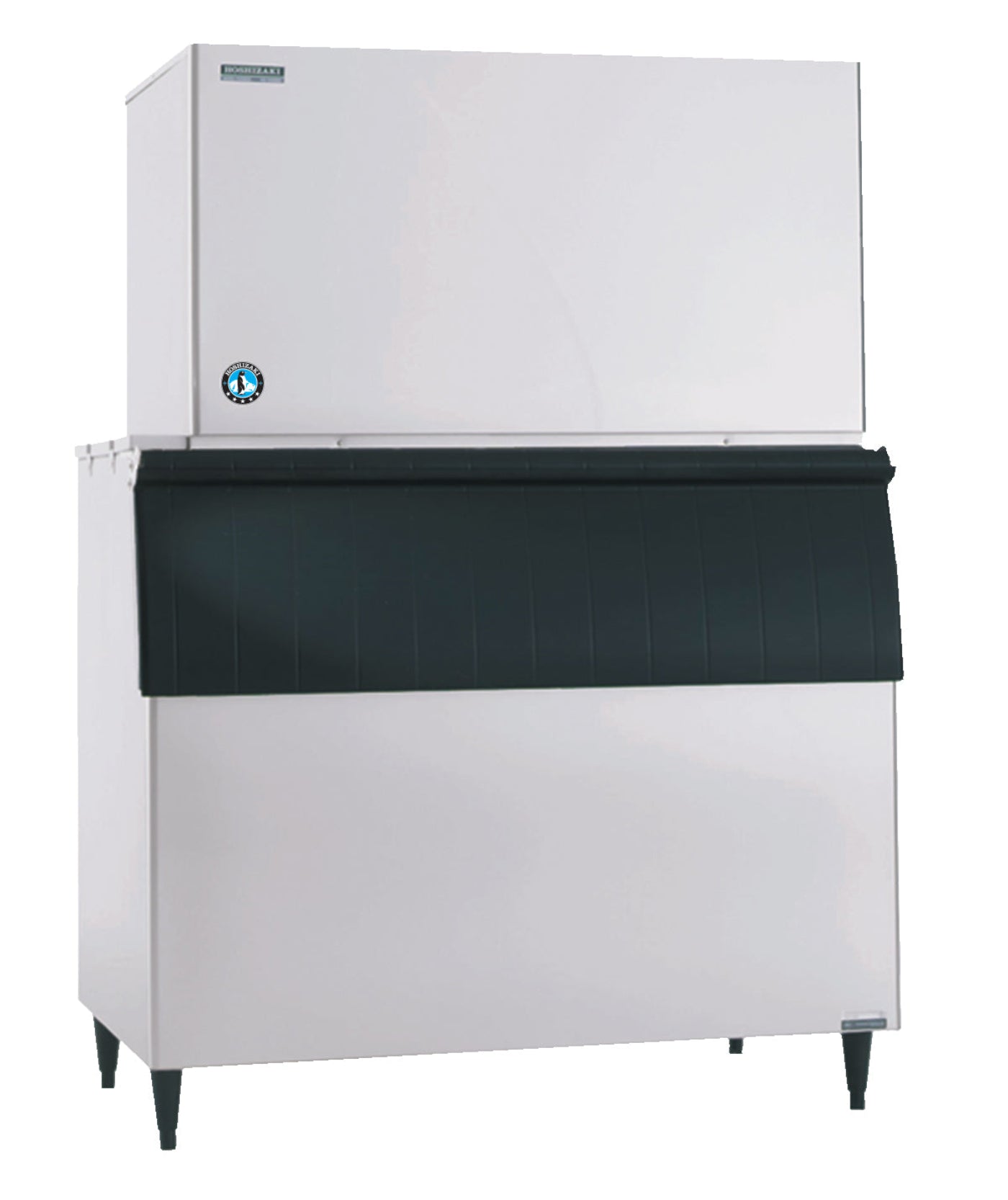

- Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
- EverCheckâ„¢ alert system
- CycleSaverâ„¢ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (2 lbs. 2.4 oz. / 975 g)
- Heat Rejection:20900 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 8.2 amps (20 Amp Max fuse)
- 3.76 kwh/100 lbs.@ 90/70
- Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
Specifications
| Brand |
Hoshizaki |
| Model Number |
KM-1301SWJ |
| Weight |
340 lbs |
| Width |
48" |
| Depth |
27.38" |
| Height |
27.38" |
| Compatible With |
ice storage bin |
| Cooling |
water-cooled |
| Ice Type |
crescent cubes |
| Refrigeration |
self-contained refrigeration |
| Production per 24 hr (Lbs) |
1247 |
| Voltage |
208/230 |
| Phase |
1 |
| Drain Type |
gravity drain |
What our Experts Think
-
High Ice Production: Produces up to 1,247 lbs of crescent-shaped ice per day, ideal for high-demand commercial environments.
-
Stackable Design: Allows for stacking two units to double ice output without increasing floor space requirements.
-
Water-Cooled Efficiency: Utilizes water-cooled condenser with R-404A refrigerant, suitable for areas with limited ventilation.
-
Durable Construction: Features a stainless steel exterior and double-sided stainless steel evaporator for longevity and easy cleaning.
-
Advanced Features: Equipped with EverCheckâ„¢ alert system for proactive maintenance and CleanAssistâ„¢ for simplified cleaning processes.
Q&A
Q: What is the ice production capacity of the Hoshizaki KM-1301SWJ?
A: Produces up to 1,250 lbs of crescent-shaped ice cubes per 24 hours.
Q: What are the dimensions of this ice maker?
A: Compact 48" wide design suitable for large commercial kitchens.
Q: What cooling system does it use?
A: Water-cooled system for efficient and consistent ice production.
Q: What shape are the ice cubes?
A: Crescent-shaped, ideal for beverages and food service.
Q: Is an ice storage bin included?
A: No, the bin is sold separately to customize storage needs.
Q: What materials are used in construction?
A: Stainless steel exterior for durability and easy cleaning.
Maintenance Tips
-
Regularly clean and descale the ice machine to prevent mineral buildup.
-
Flush the water system to maintain ice quality and prevent clogs.
-
Inspect water filters and replace as needed.
-
Check water inlet and drainage for leaks or blockages.
-
Schedule professional maintenance for optimal performance and longevity.
