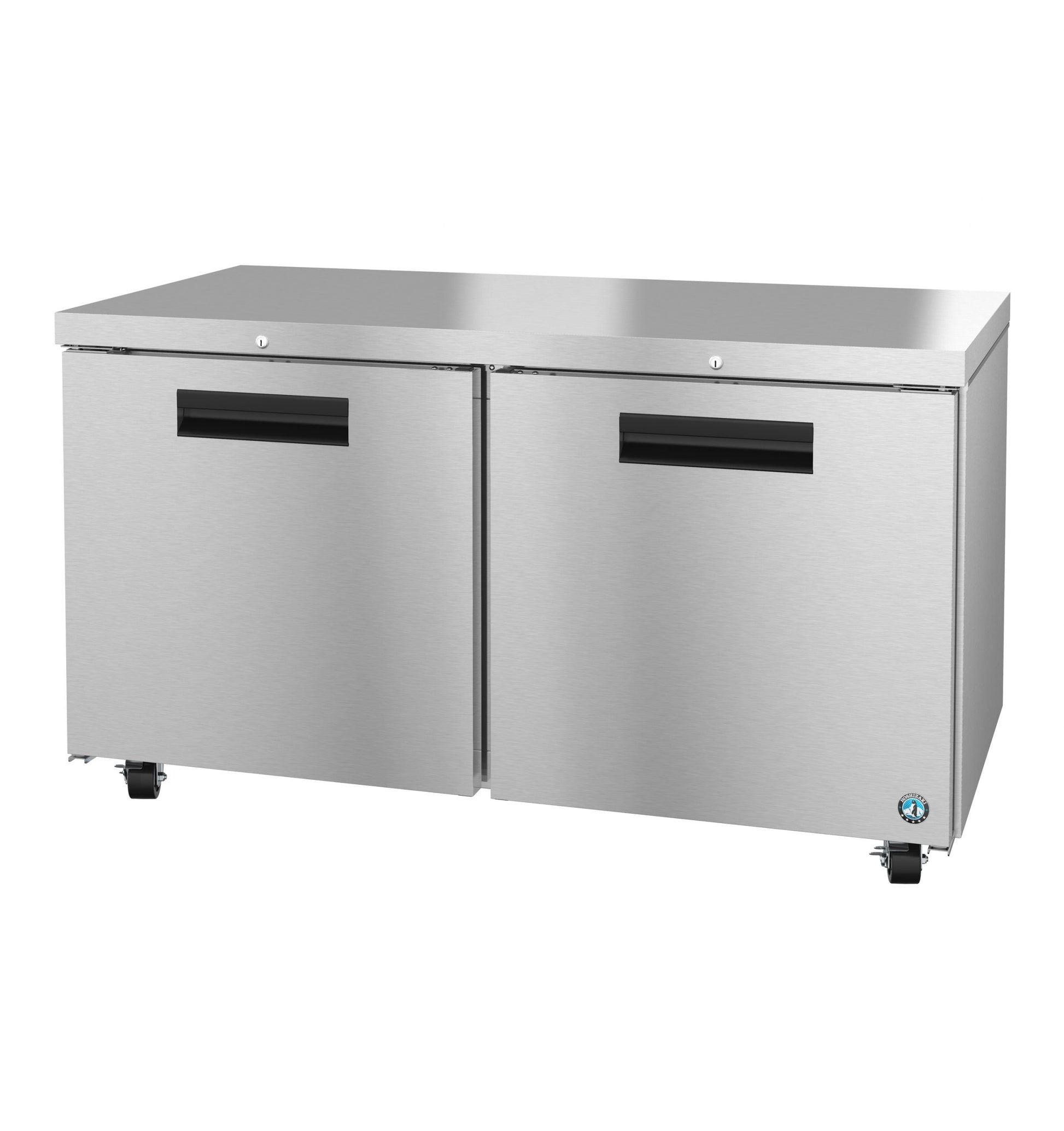

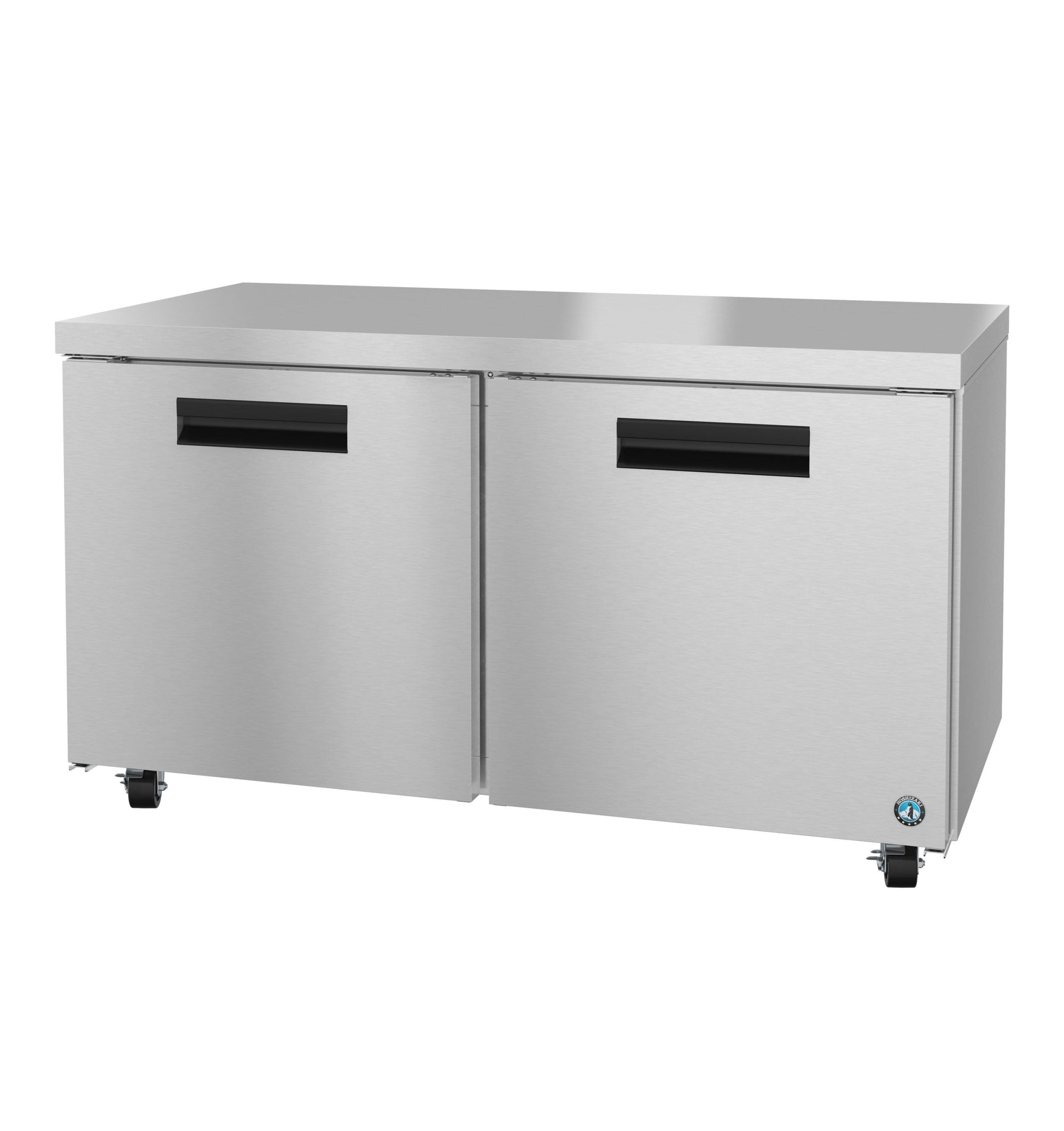

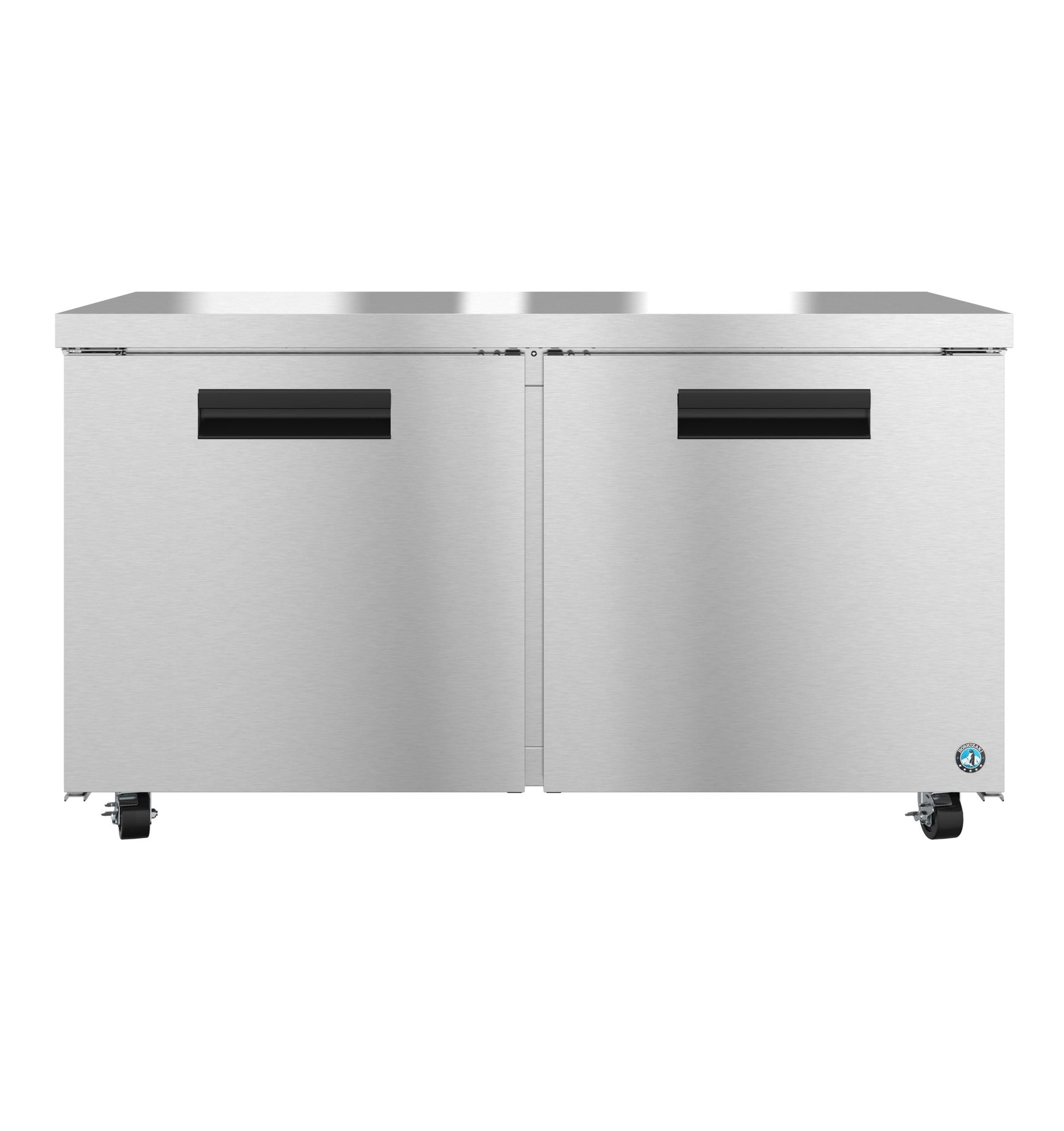

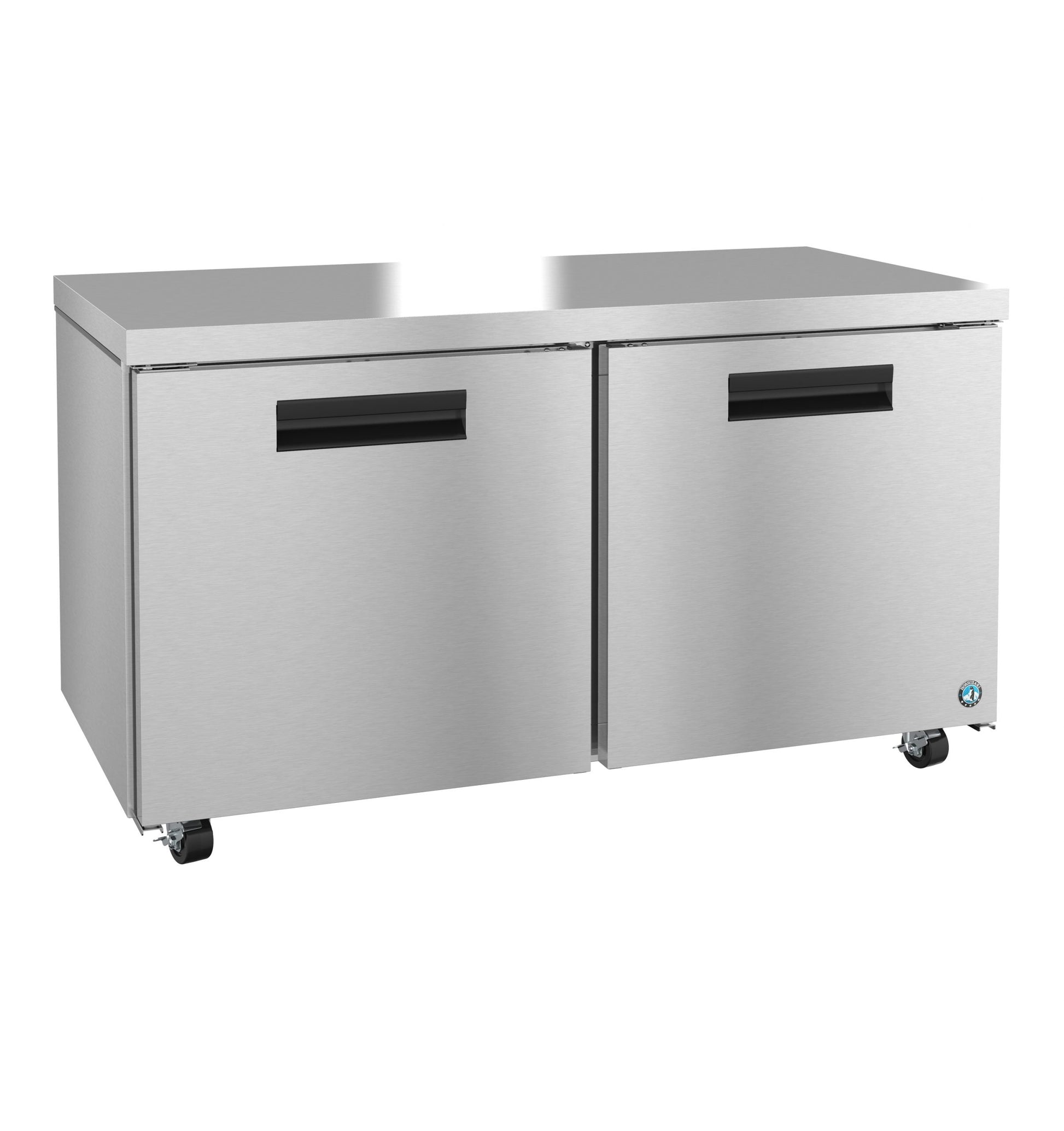

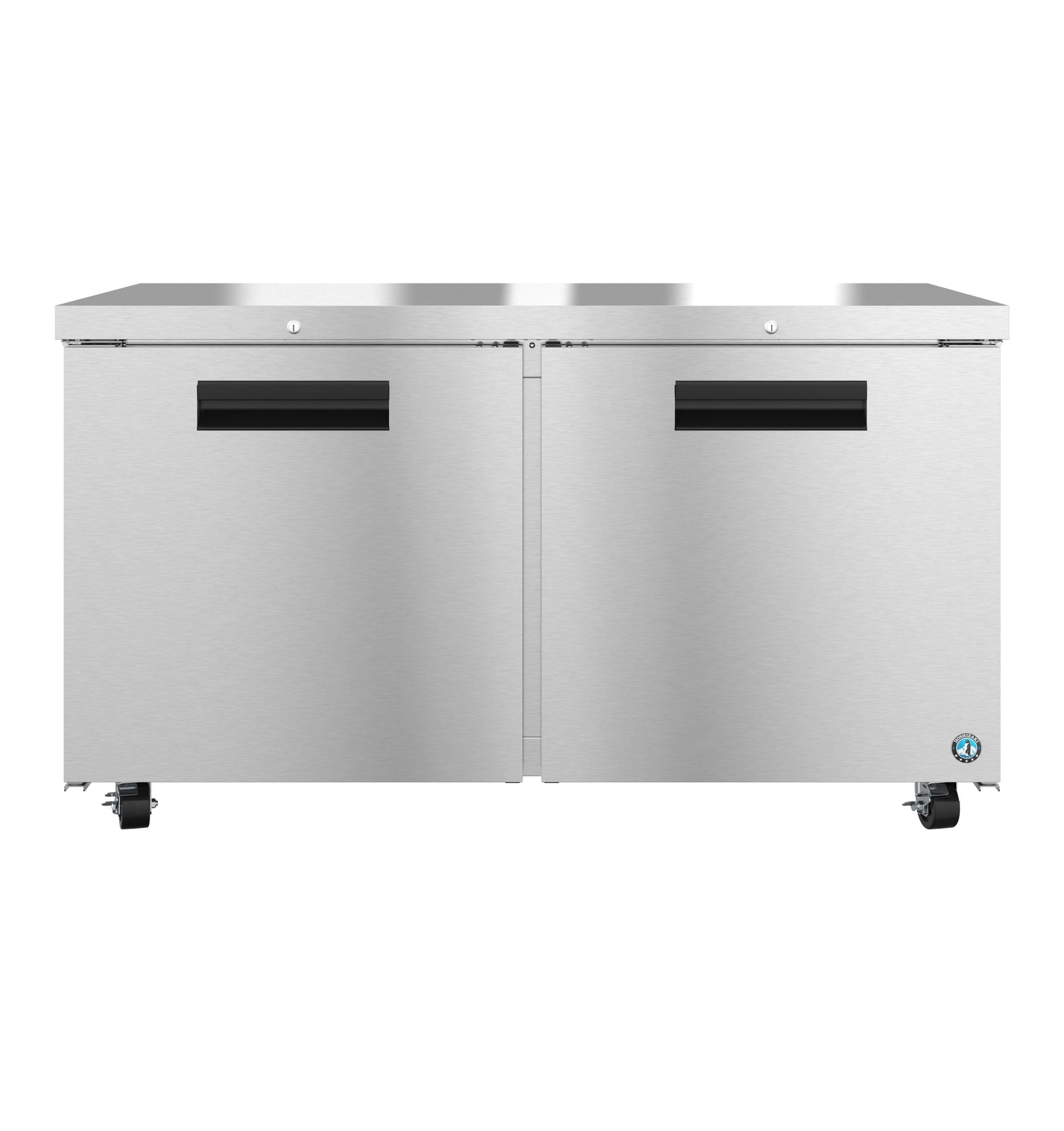

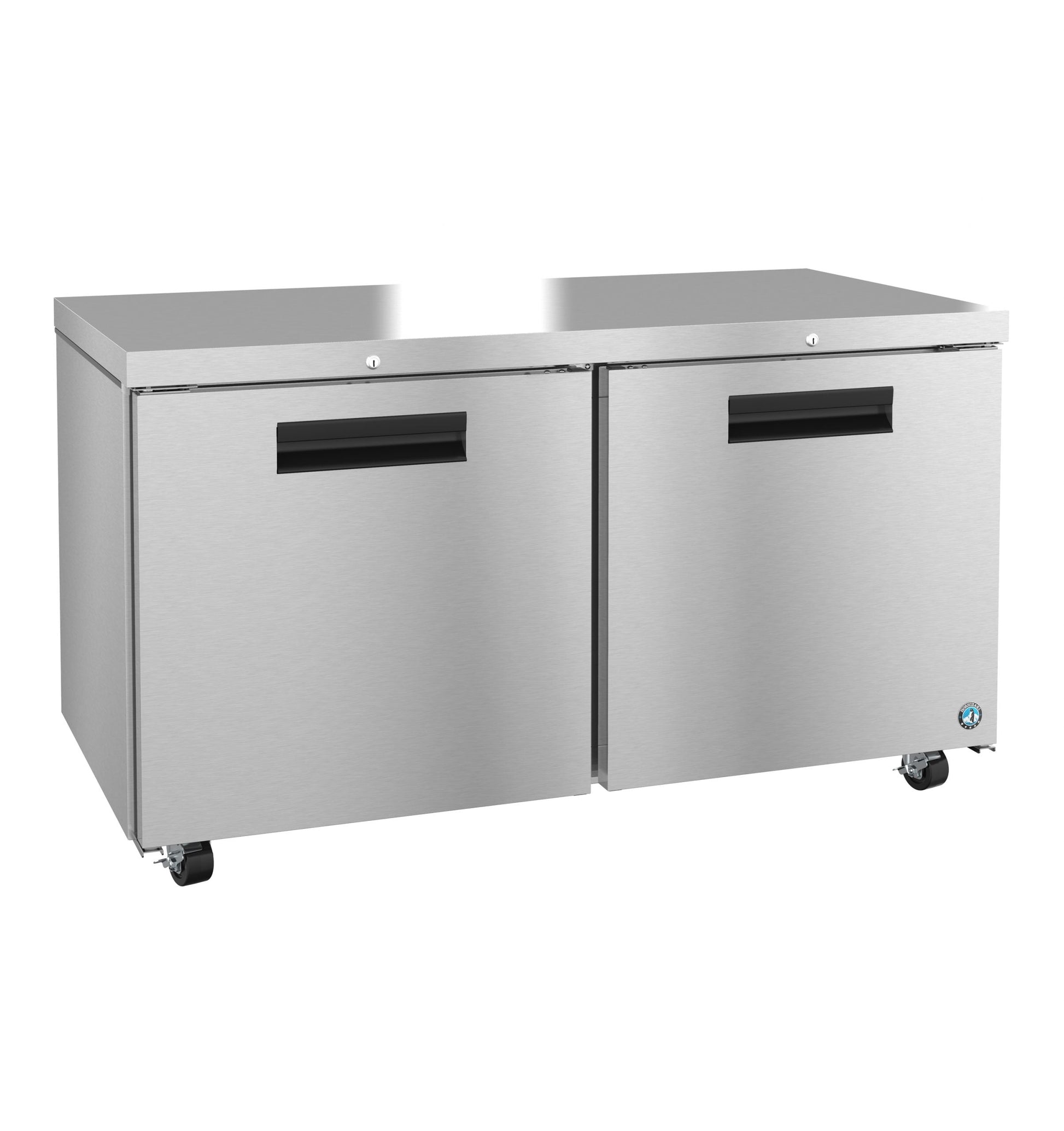

Hoshizaki 60" Wide 2 Door Undercounter Freezer - UF60B
The UF60B Steelheart Series Undercounter two section freezer with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 15.27 cubic feet this efficient undercounter freezer and front air flow design is perfect for hot/tight kitchens. The UF60B is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UF60B also includes (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 3.95 kWh/day at 4 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2.25″ or 6″ casters, Stacking Kit, Epoxy wire shelf, Stainless steel shelf, Overshelves, See Spec Sheet for additional options. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified, ENERGY STAR® Qualified and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty.
Features
- Dimensions: 60″ W x 30″ D x 33.63″ H
- Net capacity of 15.27 cubic feet
- Innovative air distribution system distributes air evenly to maintain product temperature
- Enamel coated evaporator coil for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
- Extruded aluminum flush mount door handle
- (2) stainless steel doors with ABS interior liner
- Insulated with 2″ CFC free, foamed in place polyurethane
- (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
- Engineered to maintain food safe temperatures in 100°F ambient conditions
- R290 refrigerant
- (4) 4″ Stem Casters (2 with brakes) are standard
- Automatic time-initiated heated defrost
- Optional kits: 2.25″ or 6″ casters, Stacking Kit, Epoxy wire shelf, Stainless steel shelf, Overshelves, See Spec Sheet for additional options
- Nominal Compres. of 1426 BTU/hr at 1/3 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 62.5″ L x 34″ D x 36.5″ H at 310 lbs
- ENERGY STAR qualified
- Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty
Specifications
| Brand |
Hoshizaki |
| Model Number |
UF60B-01 |
| Weight |
310 lbs |
| Width |
60" |
| Depth |
31" |
| Height |
33.75" |
| Certifications |
cETLus, ETL-Sanitation |
| Size |
2 section |
| Door Type |
solid |
| Refrigeration |
self-contained, rear mounted |
| Capacity (cu. ft.) |
15 |
| Door Quantity |
2 |
| Installation Type |
freestanding |
| Door Lock |
with door lock |
| Handle Type |
recessed |
| Hinge Location |
reversible |
| Compressor Style |
front breathing |
| Exterior Finish |
stainless steel |
| Access Type |
doors |
| Compressor HP |
1/3 HP |
What Our Experts Think
-
Spacious & Compact: 60” width provides generous storage while fitting neatly under counters.
-
Reliable Freezing: Maintains consistent low temperatures for optimal food preservation.
-
Durable Construction: Stainless steel exterior and interior ensure long-lasting performance.
-
Energy Efficient: Eco-friendly refrigeration system and insulated doors help reduce energy costs.
-
User-Friendly Design: Self-closing doors, recessed handles, and adjustable shelves for easy access.
Q&A
Q: What is the Hoshizaki UF60B Undercounter Freezer used for?
A: It provides reliable frozen storage in a compact, undercounter design, ideal for commercial kitchens, bars, and prep areas.
Q: What are its dimensions?
A: The freezer is 60 inches wide, offering ample storage while fitting neatly under countertops.
Q: How much storage capacity does it offer?
A: It features a spacious two-door design with adjustable shelves for organized frozen storage.
Q: What are its key features?
A: The UF60B includes a stainless steel exterior, self-closing doors, an efficient refrigeration system, and environmentally friendly refrigerant.
Q: What is the temperature range?
A: It maintains consistent freezing temperatures to ensure proper food preservation.
Q: Is it energy efficient?
A: Yes, it features an energy-efficient compressor and eco-friendly refrigerant for optimal performance.
Q: Does it require professional installation?
A: While designed for easy setup, professional installation is recommended for best performance and longevity.
Maintenance Tips
-
Clean Condenser Coils: Remove dust monthly to maintain efficient cooling performance.
-
Inspect Door Gaskets: Check for cracks or wear to ensure a tight seal and prevent energy loss.
-
Defrost When Necessary: Prevent excessive ice buildup to maintain optimal airflow.
-
Monitor Temperature Settings: Keep at recommended levels for food safety and efficiency.
-
Wipe Interior & Exterior: Use mild detergent to prevent dirt and bacterial buildup.
