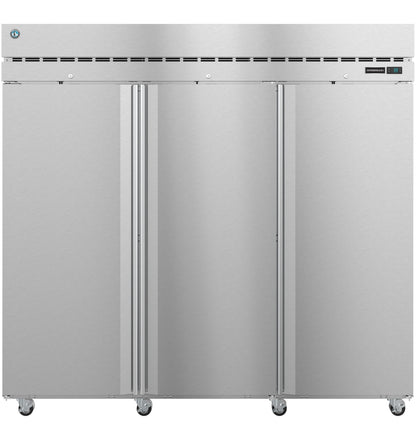

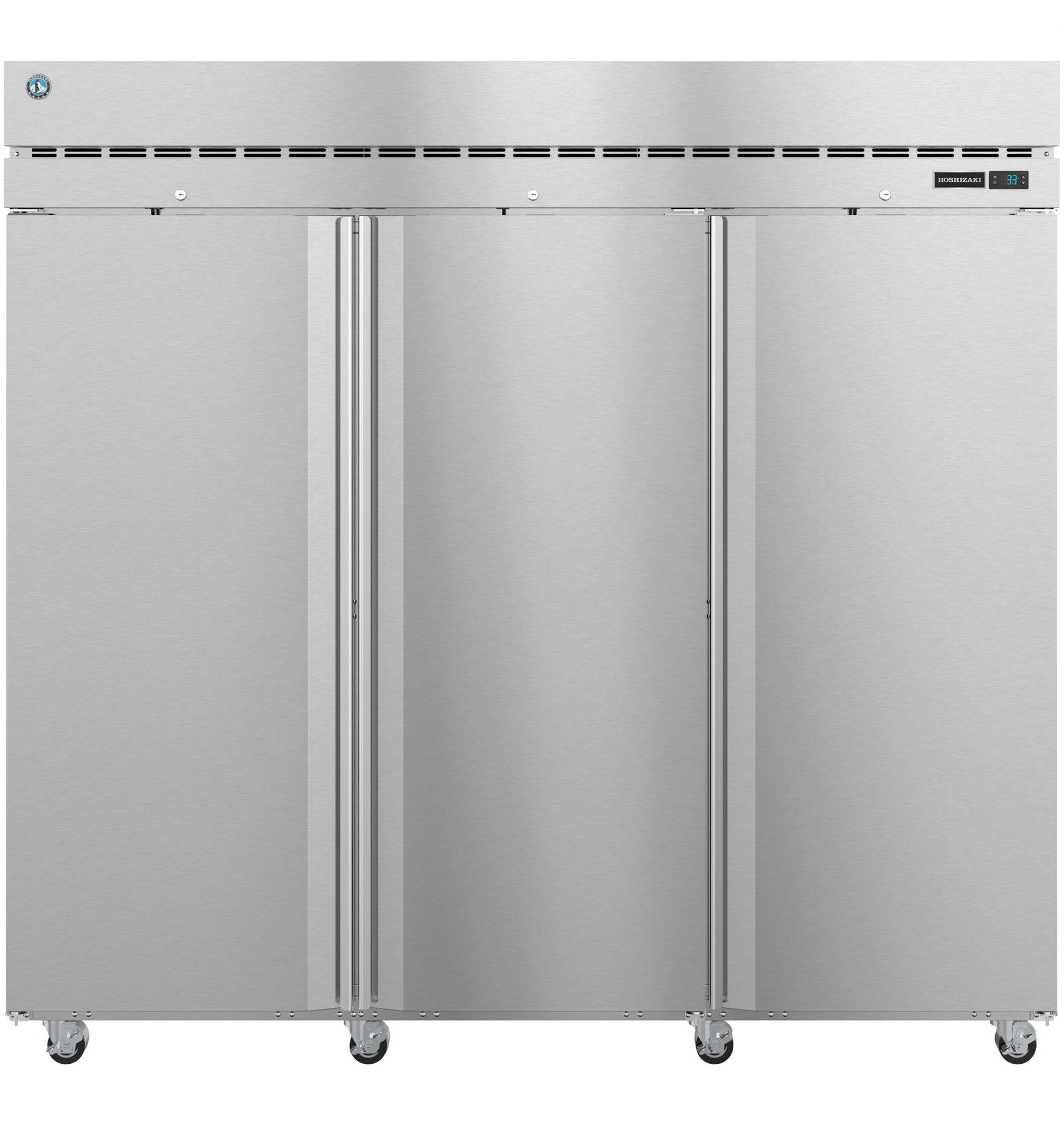

Hoshizaki F3A-FS | 83" Wide 3 Door Top Mount Reach-In Freezer - F3A-FS
The F3A-FS Steelheart Series Upright three section freezer with full stainless doors is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With a net capacity of 79.03 cubic feet this efficient upright freezer and front air flow design is perfect for hot/tight kitchens. The F3A-FS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The F3A-FS also includes Interior LED light bar is mounted horizontally on the ceiling, (8) 4″ stem casters (4 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of kWh/day at 9 Amps, 10 ft long cord with a 5 – 20P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty.
Features
- Dimensions: 82.5″ W x 33.5″ D x 79.5″ H
- Net capacity of 79.03 cubic feet
- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
- One piece, full door length, extruded aluminum flush mount door handle
- Lockable Full Stainless Doors
- Insulated with 2 3/8″ CFC free, foamed in place polyurethane
- Interior LED light bar is mounted horizontally on the ceiling
- Solid state digital controller with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (8) 4″ Stem Casters (4 with brakes) are standard
- Includes 9 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
- Nominal Compres. of 3000 BTU/hr at 5/8 HP(left), BTU/hr at (right)
- 230v/60/1, 10 ft. cord and plug
- Shipping Crate: 86″ L x 37.875″ D x 81″ H at 830 lbs
- Top mounted energy efficient non-electric evaporation system
Specifications
| Brand |
Hoshizaki |
| Model Number |
F3A-FS |
| Weight |
830 lbs |
| Width |
82.5" |
| Depth |
33.5" |
| Height |
79.5" |
| Door Type |
solid |
| Size |
3 section |
| Exterior Finish |
stainless steel |
| Compressor HP |
(2) 3/4 HP |
| Compressor Location |
top mounted |
| Refrigerator Type |
Reach-In |
| Door Quantity |
3 |
| Interior Finish |
stainless steel |
| Capacity (Cu. Ft.) |
79 |
| Door Style |
full hinged |
| Hinge Location |
left / right |
What our Experts Think
-
Spacious Design: At 83" wide with 3 doors, offers ample storage for large-volume freezing needs.
-
Top-Mount Compressor: Keeps the cooling system away from floor debris, improving durability and serviceability.
-
Energy Efficient: Engineered to reduce power consumption while maintaining consistent freezing temperatures.
-
Durable Construction: Stainless steel exterior and interior built for tough commercial environments.
-
Precise Temperature Control: Digital thermostat ensures food safety and quality
Q&A
Q: What are the dimensions of the Hoshizaki F3A-FS?
A: It measures 83" wide, providing ample frozen storage space.
Q: How many doors does it have?
A: Features three stainless steel doors with field-reversible hinges.
Q: What type of refrigeration system does it use?
A: Top-mounted refrigeration system for easy maintenance and improved airflow.
Q: What is the storage capacity?
A: Offers a large capacity suitable for high-volume commercial use.
Q: Is it ENERGY STAR® certified?
A: Yes, it meets ENERGY STAR® standards for energy efficiency.
Q: What materials are used?
A: Stainless steel exterior and interior for durability and easy cleaning.
Q: Does it include shelving?
A: Yes, includes adjustable wire shelves for customizable storage.
Maintenance Tips
-
Clean Condenser Coils Monthly: Remove dust to ensure efficient cooling and prevent overheating.
-
Inspect Door Gaskets: Replace cracked or worn seals to maintain airtight closure and consistent temperature.
-
Defrost as Needed: Prevent frost buildup to maintain airflow and efficiency.
-
Wipe Interior & Exterior Weekly: Use mild detergent and soft cloth; avoid abrasive cleaners on stainless steel.
-
Monitor Temperature Settings: Keep between -10°F to 0°F for optimal frozen storage
