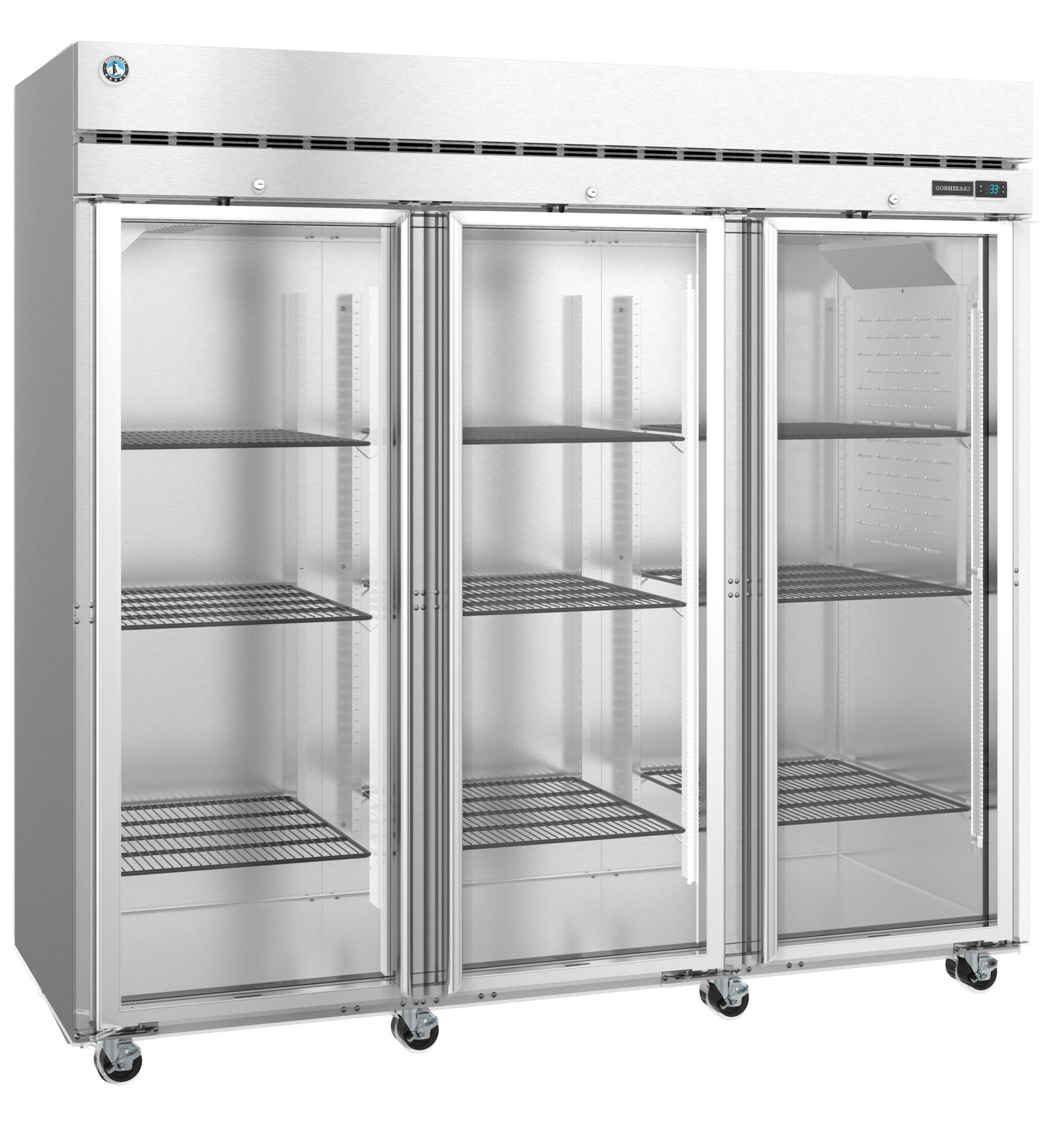

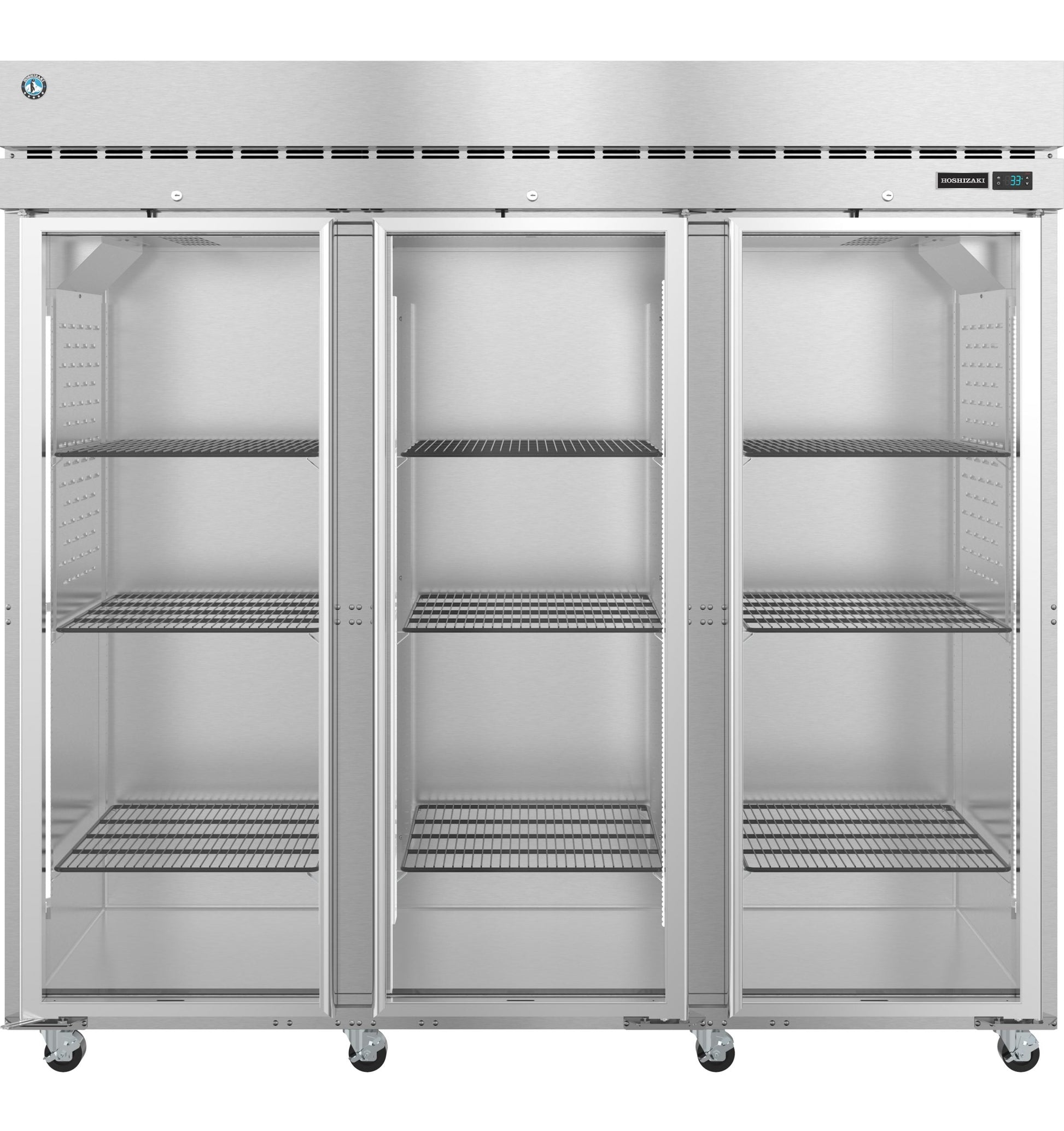

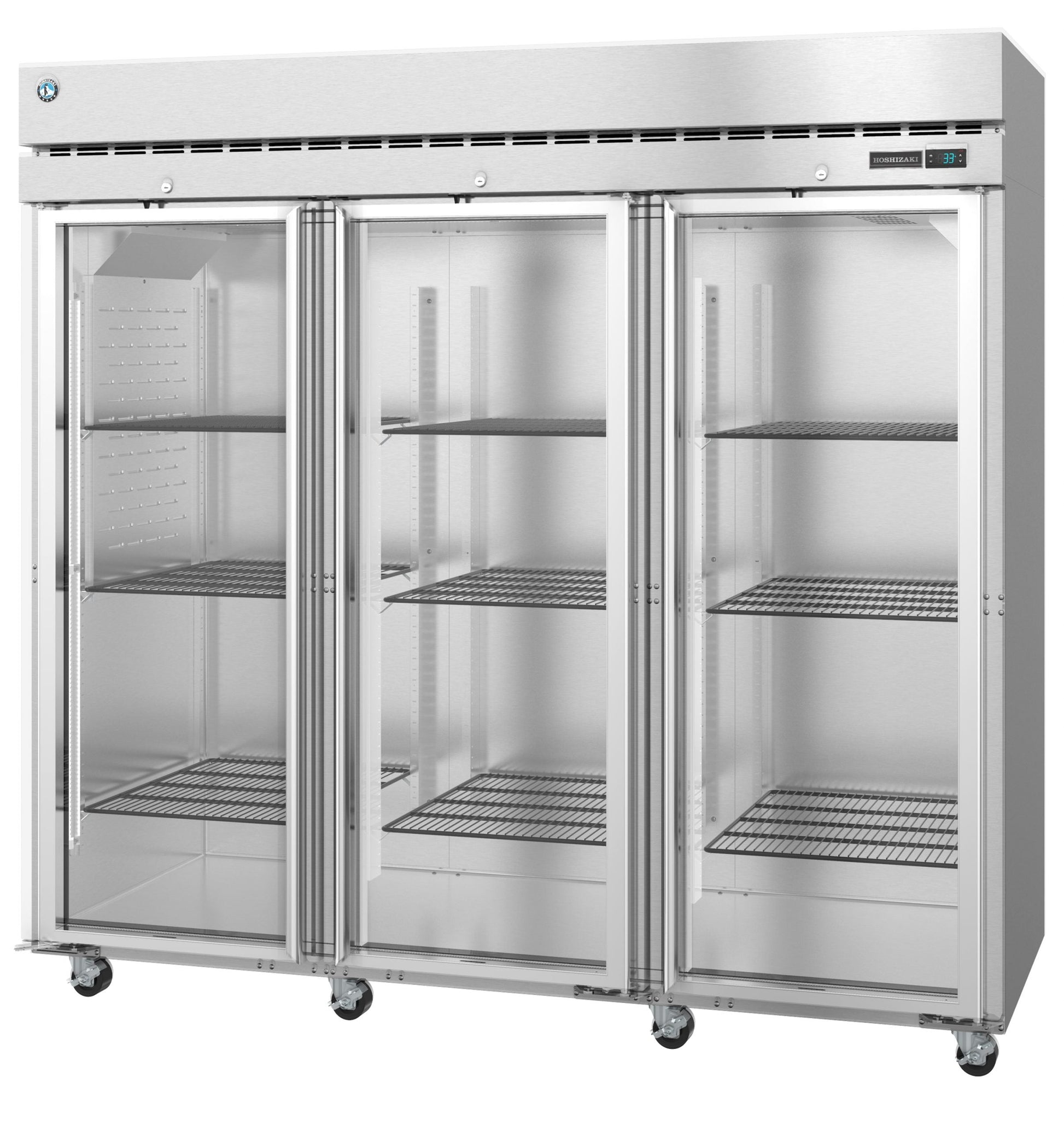

Hoshizaki R3A-FG | 83" Wide 3 Glass Door Top Mount Reach-In Refrigerator - R3A-FG
The R3A-FG Steelheart Series Upright three section refrigerator with full glass doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 79.03 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R3A-FG is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The R3A-FG also includes Interior LED light bars are vertically mounted on each wall, (8) 4″ stem casters (4 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 6.5 kWh/day at 9.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation, ENERGY STAR Qualified and includes a six years parts , five years labor , and seven years compressor .
Features
- Dimensions: 82.5″ W x 34.5″ D x 79.5″ H
- Net capacity of 79.03 cubic feet
- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
- One piece, full door length, chrome door handle
- Lockable Full Glass Doors
- Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks
- Interior LED light bars are vertically mounted on each wall
- Solid state control system with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (8) 4″ Stem Casters (4 with brakes) are standard
- Includes 9 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
- Nominal Compres. of 770 BTU/hr at 1/4 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 86″ L x 37.875″ D x 81″ H at 826 lbs
- ENERGY STAR Qualified
Specifications
| Brand |
Hoshizaki |
| Model Number |
R3A-FG |
| Weight |
826 lbs |
| Width |
82.5" |
| Depth |
34.5" |
| Height |
79.5" |
| Door Type |
glass |
| Refrigerator Type |
Reach-In |
| Size |
3 section |
| Door Quantity |
3 |
| Exterior Finish |
stainless steel front & sides |
| Compressor HP |
(2) 1/4 HP |
| Energy Efficiency |
ENERGY STAR® |
| Compressor Location |
bottom mounted |
| Interior Finish |
all stainless steel interior |
| Supports |
casters |
| Capacity (Cu. Ft.) |
79 |
| Hinge Location |
left / right |
| Door Style |
swing / full |
What our Experts Think
-
Massive 83-Inch Width – Provides extensive storage capacity for high-volume commercial kitchens.
-
Three Glass Doors – Enhances visibility for quick inventory management while maintaining energy efficiency.
-
Top-Mounted Refrigeration – Keeps the cooling system away from floor debris, improving efficiency and reducing maintenance needs.
-
Stainless Steel & Glass Construction – Durable, corrosion-resistant, and easy to clean, ensuring long-term reliability.
-
Precise Temperature Control – Maintains consistent cooling to keep food fresh and safe in demanding environments.
Q&A
Q: What is the Hoshizaki R3A-FG Reach-In Refrigerator?
A: The Hoshizaki R3A-FG is an 83" wide, top-mount reach-in refrigerator with three glass doors, designed for high-capacity commercial cold storage.
Q: Who is the Hoshizaki R3A-FG ideal for?
A: It is perfect for restaurants, catering businesses, and food service operations that need easy access to refrigerated goods while maintaining visibility for quick inventory checks.
Q: What are the key features of the Hoshizaki R3A-FG?
A: It includes a durable stainless steel exterior, energy-efficient glass doors, a top-mounted refrigeration system for increased storage, and adjustable shelves for organization.
Q: How is the Hoshizaki R3A-FG different from other commercial refrigerators?
A: Its three-door design offers maximum storage capacity, while the glass doors provide visibility, reducing unnecessary door openings and energy loss.
Q: How durable is the Hoshizaki R3A-FG?
A: Built with stainless steel and high-quality components, it ensures long-lasting durability, easy maintenance, and resistance to corrosion in busy commercial environments.
Maintenance Tips
-
Clean Interior & Exterior – Wipe stainless steel and glass surfaces regularly with mild detergent and a soft cloth to maintain cleanliness and appearance.
-
Condenser Coil Maintenance – Every 3–6 months, clean the condenser coils with a vacuum or coil brush to ensure efficient cooling.
-
Monitor Temperature – Check regularly to ensure the refrigerator maintains a consistent temperature (typically 34-40°F) for food safety.
-
Inspect Door Gaskets – Clean and check door seals for cracks or wear to prevent cold air leaks and maintain efficiency.
-
Ensure Proper Airflow – Keep vents and air circulation pathways clear for even cooling throughout the unit.
-
Check & Clear Drain Lines – Regularly inspect and clean drain lines to prevent water buildup and potential leaks.
-
Schedule Professional Maintenance – Have a technician perform routine servicing to ensure long-term performance and address any issues early.
