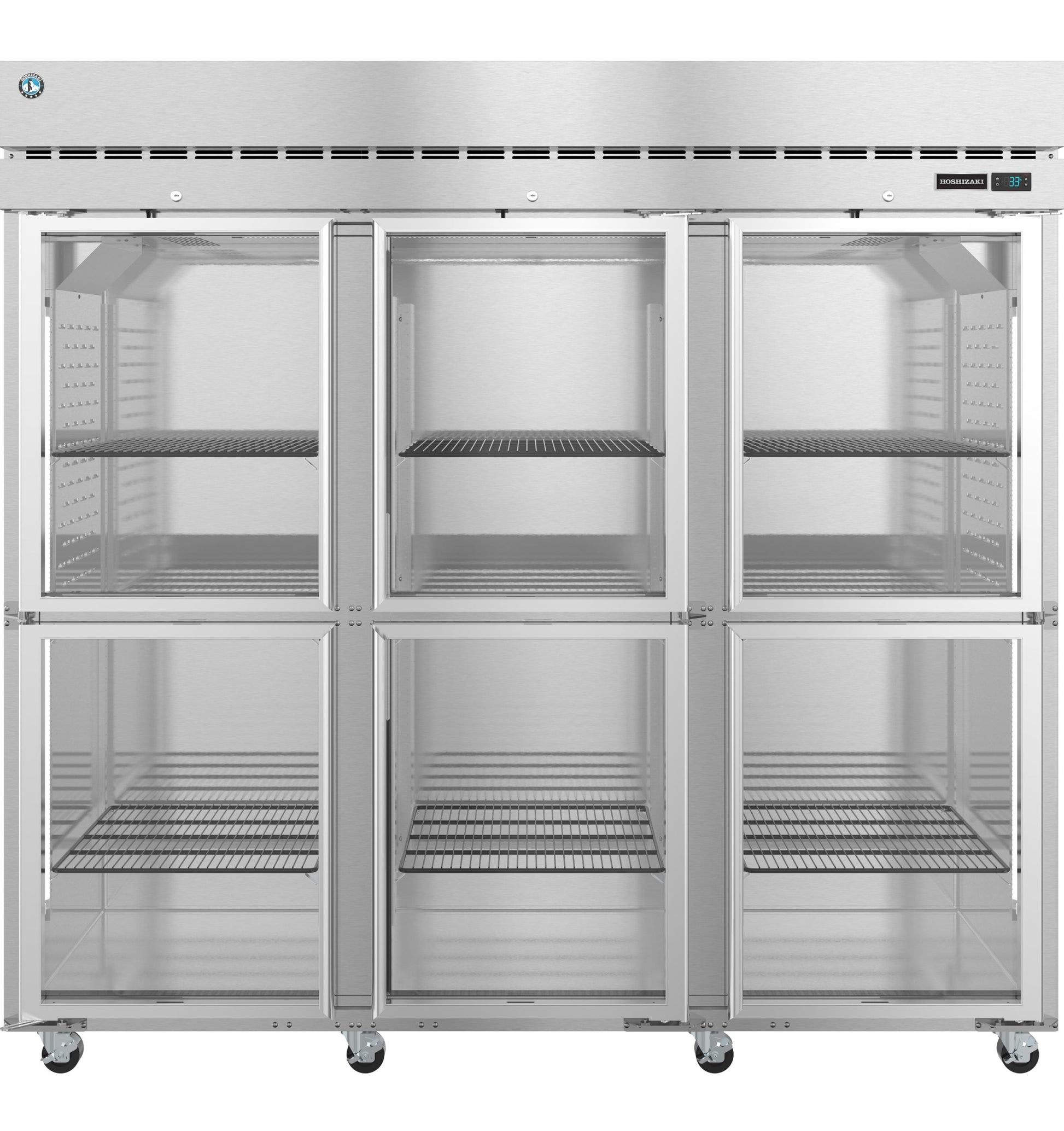

Hoshizaki R3A-HG | 83" Wide 6 Glass Door Top Mount Reach-In Refrigerator - R3A-HG
The R3A-HG Steelheart Series Upright three section refrigerator with half glass doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 79.03 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R3A-HG is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The R3A-HG also includes Interior LED light bars are vertically mounted on each wall, (8) 4″ stem casters (4 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 6.5 kWh/day at 9.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation, ENERGY STAR Qualified and includes a six years parts , five years labor , and seven years compressor
Features
- Dimensions: 82.5″ W x 34.5″ D x 79.5″ H
- Net capacity of 79.03 cubic feet
- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
- One piece, full door length, chrome door handle
- Lockable Half Glass Doors
- Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks
- Interior LED light bars are vertically mounted on each wall
- Solid state control system with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (8) 4″ Stem Casters (4 with brakes) are standard
- Includes 9 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
- Nominal Compres. of 770 BTU/hr at 1/4 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 86″ L x 37.875″ D x 81″ H at 840 lbs
- ENERGY STAR Qualified
Specifications
| Brand |
Hoshizaki |
| Model Number |
R3A-HG |
| Weight |
840 lbs |
| Width |
82.5" |
| Depth |
34.5" |
| Height |
79.5" |
| Door Type |
glass |
| Refrigerator Type |
Reach-In |
| Size |
3 section |
| Door Quantity |
6 |
| Exterior Finish |
stainless steel front & sides |
| Compressor HP |
(2) 1/4 HP |
| Energy Efficiency |
ENERGY STAR® |
| Compressor Location |
bottom mounted |
| Interior Finish |
all stainless steel interior |
| Supports |
casters |
| Capacity (Cu. Ft.) |
79 |
| Hinge Location |
left / right |
| Door Style |
swing / half |
What our Experts Think
-
Massive Storage Capacity – 83" wide with six glass doors for maximum organization.
-
Crystal-Clear Visibility – Glass doors provide easy product identification and merchandising.
-
Top-Mount Refrigeration – Efficient cooling with less exposure to floor debris.
-
Stainless Steel Durability – Corrosion-resistant, easy to clean, and built for heavy use.
-
Precise Temperature Control – Maintains consistent cooling for optimal food preservation.
Q&A
Q: What is the Hoshizaki R3A-HG refrigerator used for?
A: This commercial-grade reach-in refrigerator is ideal for restaurants, grocery stores, catering businesses, and other food service operations that require large-capacity cold storage with easy access.
Q: How much storage space does it offer?
A: The 83-inch-wide design provides ample interior space, divided into three sections with a total of six glass doors for organized food storage.
Q: What type of cooling system does it have?
A: It features a top-mounted refrigeration system, which helps maximize storage space while maintaining a consistent, energy-efficient cooling environment.
Q: Are the doors glass or solid?
A: This model comes with six glass doors, allowing users to see stored items without opening the doors, helping to maintain optimal temperatures.
Q: How durable is the exterior and interior?
A: The stainless steel construction ensures durability, easy cleaning, and a professional look, making it suitable for high-traffic commercial kitchens.
Maintenance Tips
-
Clean Glass Doors & Gaskets: Wipe daily to maintain visibility and a tight seal.
-
Monitor Temperature: Keep between 34-40°F for optimal food preservation.
-
Inspect & Clean Coils: Every 3 months, remove dust for efficient cooling.
-
Check & Clear Drain Lines: Prevent water buildup and leaks.
-
Ensure Proper Airflow: Avoid overloading to maintain consistent refrigeration.
