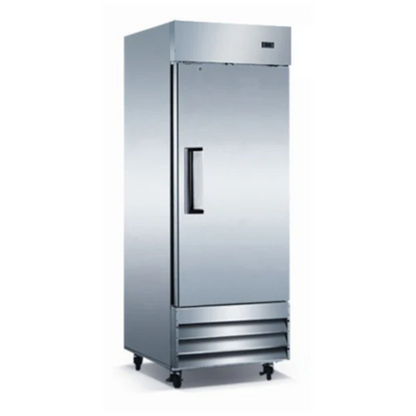

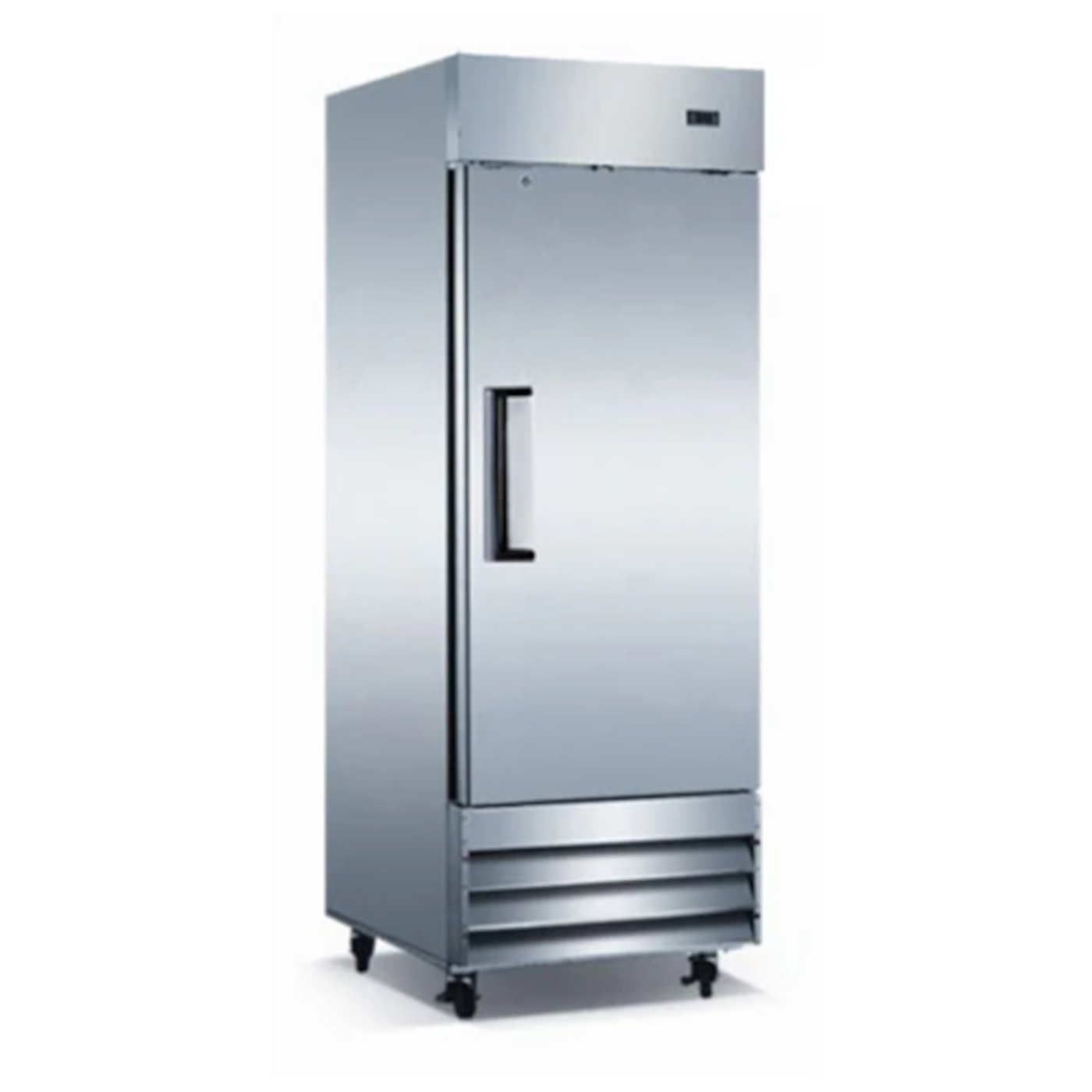

Adcraft USFZ-1D/19 U-Star Narrow Depth Single Door Reach-In Freezer - USFZ-1D/19

Adcraft USFZ-1D/19 U-Star Narrow Depth Single Door Reach-In Freezer - USFZ-1D/19

U-Star's solid door economy reach-in refrigerators and freezers are constructed of heavy duty stainless steel making them strong and durable enough to survive any kitchen environment. Their narrower design is great for tight areas where space is limited. The cooling units are bottom mounted and slide out for easy maintenance and cleaning. All models come with 6" casters and plastic coated wire shelving that is easily removable to adjust the shelf height. The front digital controllers and LED readout makes it easy to adjust the interior temperature.

These models are ETL Listed and ETL Sanitation. They are backed with a 1 year warranty on parts and labor and a 5 year warranty on the compressor.

Features

• 430 series stainless steel exterior
• Painted aluminum interior
• Environmentally-friendly R290 refrigerant
• Self-closing doors
• Precise digital temperature controller with LED display
• Foamed-in-place polyurethane high density cell insulation throughout the entire cabinet
• Bottom mounted cooling unit that slides out
• Removable door gasket
• Recessed door handles
• (4) 6” casters (2 locking and 2 non-locking)
• Refrigeration units use environmentally friendly R290 refrigerant that maintain a temperature range of 32°F–41°F
• Freezer units use environmentally friendly R290 refrigerant and maintain a temperature range of -7°F–0°F
• Bottom-mounted cooling unit slides out for easy cleaning and maintenance and allows for storage area on top of the unit
• Rugged built axial evaporator fans run efficiently with low velocity and high volume air flow
• Electric LED temperature controller provides a digital display of cabinet temperatures and allows for easy temperature adjustments when necessary
• Temperature controller initiates automatic defrost schedule for worry free use
• 7 foot power cord with NEMA 5-15 plug
• Exterior is constructed of 430 stainless steel including the doors
• Interior is constructed of a painted aluminum liner
• The cabinet is insulated throughout with a foamed-in-place high density cell polyurethane insulation
• Stainless steel exterior with aluminum liner on the inside
• Positive self-closing doors with microswitch that shuts the evaporator fans off when the door is open
• Recessed handles are built into the door for easy opening and closing
• Locking door keep items inside secure after hours
• Stainless steel doors are field reversible
• Adjustable plastic coated steel shelves that have a load capacity of up to 90 lbs per shelf
• Incandescent interior lighting activated by door switch
• 6” casters come standard on all stainless steel models. Two locking and 2 non-locking brakes

Specifications

What our Experts Think

• Space-Saving Design: At just 25" deep, this 19 cu. ft. freezer is ideal for kitchens with limited floor space.

• Efficient Cooling: Utilizes an environmentally friendly R290 refrigerant and a bottom-mounted, slide-out refrigeration system for easy maintenance.

• Durable Construction: Features a 430 stainless steel exterior and a painted aluminum interior, ensuring longevity and ease of cleaning.

• Mobility & Storage: Comes with four 6" casters (two locking and two non-locking) and three adjustable, plastic-coated wire shelves for flexible storage options.

Q&A

Q: What is the capacity of the Adcraft USFZ-1D/19 U-Star Narrow Depth Single Door Reach-In Freezer?
A: It offers 19 cubic feet of frozen storage space, ideal for compact commercial kitchens.

Q: What type of refrigeration system does the freezer use?
A: It utilizes a bottom-mounted, self-contained refrigeration system with R290 refrigerant, maintaining temperatures between -7°F and 0°F.

Q: How many shelves does the freezer have, and what is their capacity?
A: The freezer includes three removable plastic-coated wire shelves, each supporting up to 90 lbs.

Q: Is the door design user-friendly?
A: Yes, it features a self-closing, locking solid door with a recessed handle, which is field-reversible for flexibility

Q: What is the voltage and power requirement for the freezer?
A: The freezer operates on 115V/60Hz power with an 8.28-amp draw and includes a 7-foot cord with a NEMA 5-15P plug.

Q: How mobile is the freezer?
A: It is equipped with four 6-inch casters (two locking and two non-locking) for easy mobility within your kitchen.

Q: What materials are used in the freezer's construction?
A: The exterior is made of durable 430 series stainless steel, while the interior features a painted aluminum

Maintenance Tips

• Regular Cleaning: Wipe down the interior and exterior with a damp cloth to remove spills and debris.

• Monitor Temperature: Check the internal temperature regularly to ensure it stays within the ideal range.

• Inspect Seals: Ensure the door seals properly to maintain energy efficiency.

• Defrost Periodically: Allow the unit to defrost periodically to prevent ice buildup.

• Professional Servicing: Schedule regular maintenance checks by a certified technician to keep the refrigeration system in top condition.
