Alpha Tools 1/2" Filter/Regulator Manifold - 1030-0023

Alpha Tools 1/2" Filter/Regulator Manifold - 1030-0023

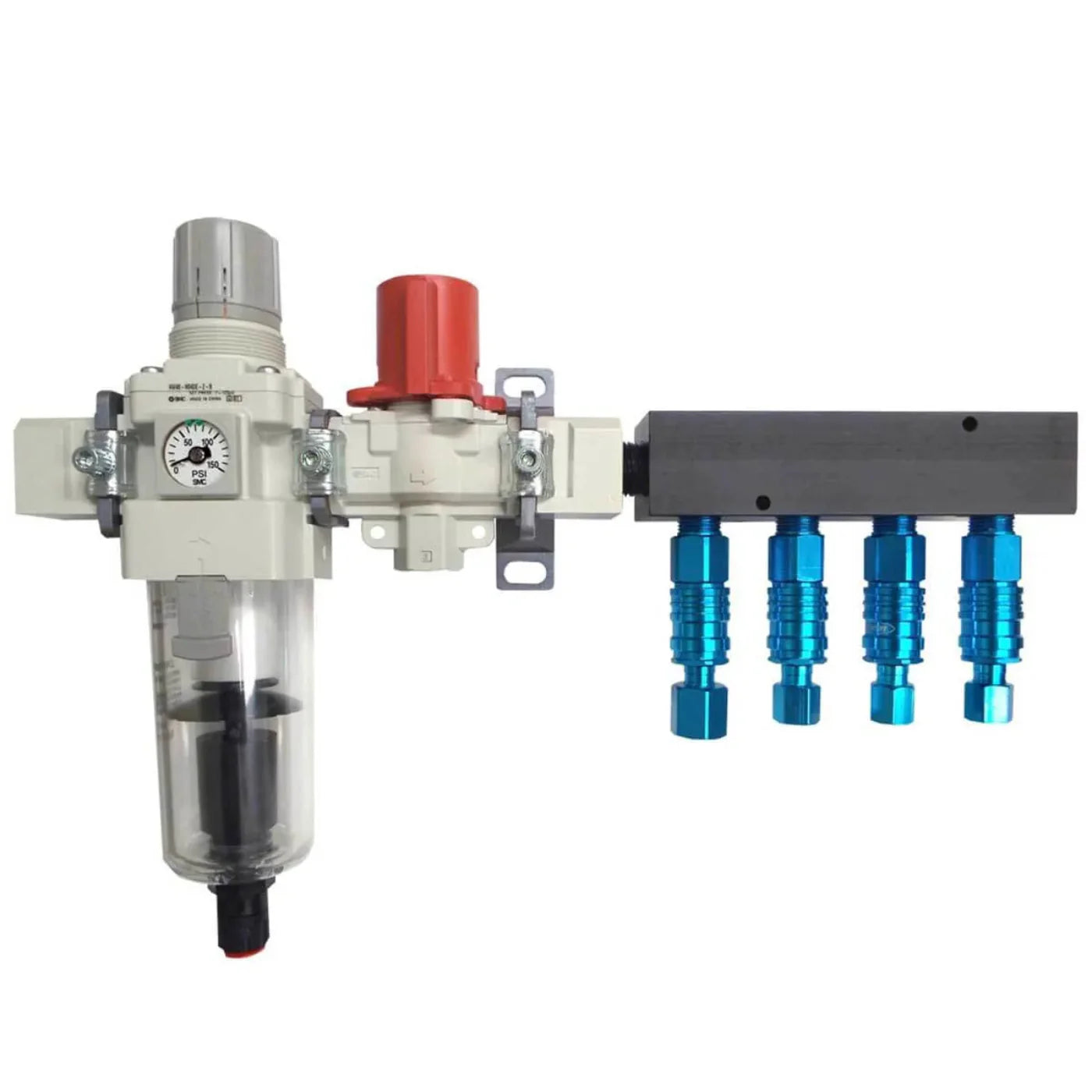

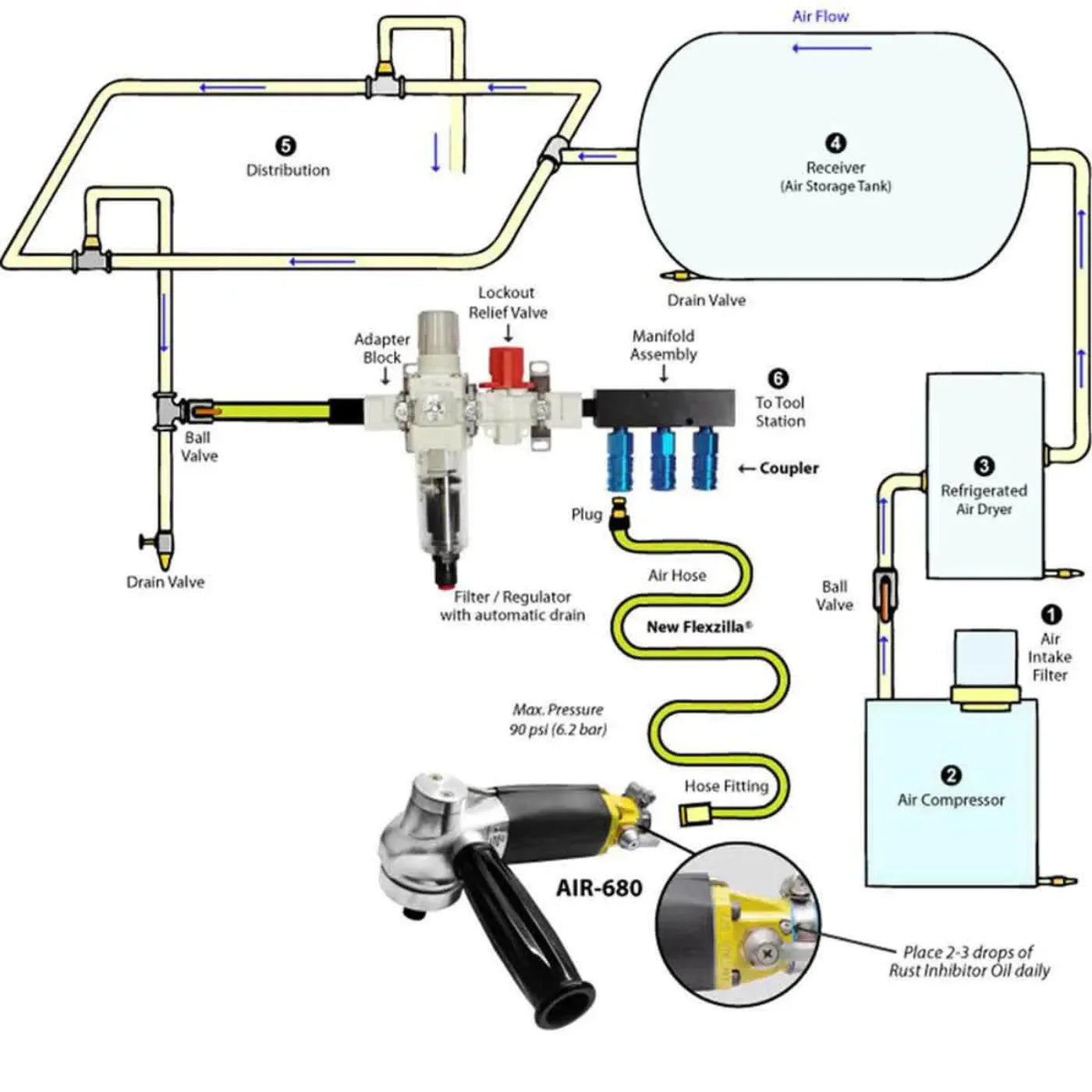

In a proactive step for pneumatic tool longevity, Alpha® has created Filter/Regulator (F/R) manifold systems to help eliminate potential issues caused by rust or contamination in the pipes or connectors feeding the pneumatic tools. The Filter/Regulator also helps prevent pressure drops when using a large volume of air, so the pressure can be set on the tools at 85 PSI, while the central system can run at 125 PSI. The systems, which come in two sizes (53 CFM and 106 CFM), consist of a Filter/Regulator with a shut-off/dump valve and an aluminum manifold with three or more aluminum quick disconnects. The Alpha® F/R Manifold System is designed for installation at the point of use and is configured to adapt to the existing shop piping and increase the life of the tools. Keep your system clean and get the maximum performance from your pneumatic tools!

Features

• Recommended for use with the PSC-150 Pneumatic Stone Cutter and other pneumatic tools!
• 106 CFM, 1/2" Filter/Regulator Manifold
• Includes (3) 1/4" Female NPT Plugs (1) 3/8" Female NPT Plug
• Recommended for 4 couplers
• 1/2 inch NPT Threads

What our Experts Think

• Professional air management system: The Alpha Tools 1030-0023 is a 1/2-inch filter/regulator manifold designed for controlling, cleaning, and distributing compressed air in workshop and fabrication environments
• High-flow capacity: Rated for 106 CFM, making it suitable for multiple pneumatic tools running simultaneously without pressure loss
• Precision pressure control: Allows stable tool pressure around 85–90 PSI while the main line runs higher (up to ~125 PSI) for optimal tool performance
• Built-in filtration system: Removes moisture, rust, and fine contaminants from compressed air to protect pneumatic tools and extend service life
• Multi-outlet manifold design: Integrated aluminum manifold with multiple quick couplers supports single or multi-tool setups in a centralized station
• Durable industrial build: Heavy-duty construction designed for continuous shop or jobsite use, especially in stone fabrication environments
• Tool longevity focus: Reduces wear, clogging, and internal corrosion in air tools by ensuring clean, regulated airflow

Q&A

Q: What is the Alpha Tools 1030-0023 Filter/Regulator Manifold?
A: It is a 1/2-inch heavy-duty pneumatic filter/regulator manifold system designed to clean, regulate, and distribute compressed air for professional air tools.

Q: What is the airflow capacity?
A: It supports up to 106 CFM, making it suitable for high-demand pneumatic tools and multi-tool setups.

Q: What is the main purpose of this system?
A: It filters moisture and contaminants from compressed air while regulating pressure for consistent tool performance and longer tool life.

Q: What pressure does it regulate to?
A: It allows tool-side pressure to be set around 85–90 PSI while the main air line can run up to 125–145 PSI for stable output.

Q: What size connection does it use?
A: It features a 1/2" NPT inlet/outlet connection for integration into shop air systems.

Q: How many tool connections does it support?
A: It typically includes multiple quick-connect ports (up to 4 couplers) for running several pneumatic tools at once.

Q: What tools is it commonly used with?
A: It is ideal for pneumatic stone tools such as cutters, polishers, grinders, and fabrication equipment.

Q: Does it improve tool lifespan?
A: Yes, by removing moisture, oil, and debris from air lines, it helps reduce wear and prevent internal tool damage.

Q: Is it suitable for professional workshops?
A: Yes, it is designed for fabrication shops, stone workers, and industrial environments requiring clean, stable air supply.

Maintenance Tips

• Drain the filter bowl regularly to remove water and condensation buildup.
• Replace or clean the 5-micron filter element on schedule to maintain clean airflow.
• Check and maintain correct regulated pressure (typically 85–90 PSI) for tools to avoid overloading.
• Inspect the regulator knob and gauge for smooth operation and accurate readings.
• Ensure all NPT fittings and couplers are tight to prevent air leaks and pressure loss.
• Clean the exterior and manifold ports to prevent dust and debris contamination.
• Verify the auto dump/relief valve functions properly to release excess moisture.
• Avoid exposure to excessive vibration or impact that may loosen internal seals.
• Use only clean, dry compressed air upstream to extend filter life.
• Periodically check for pressure drops, which may indicate clogging or worn seals.
