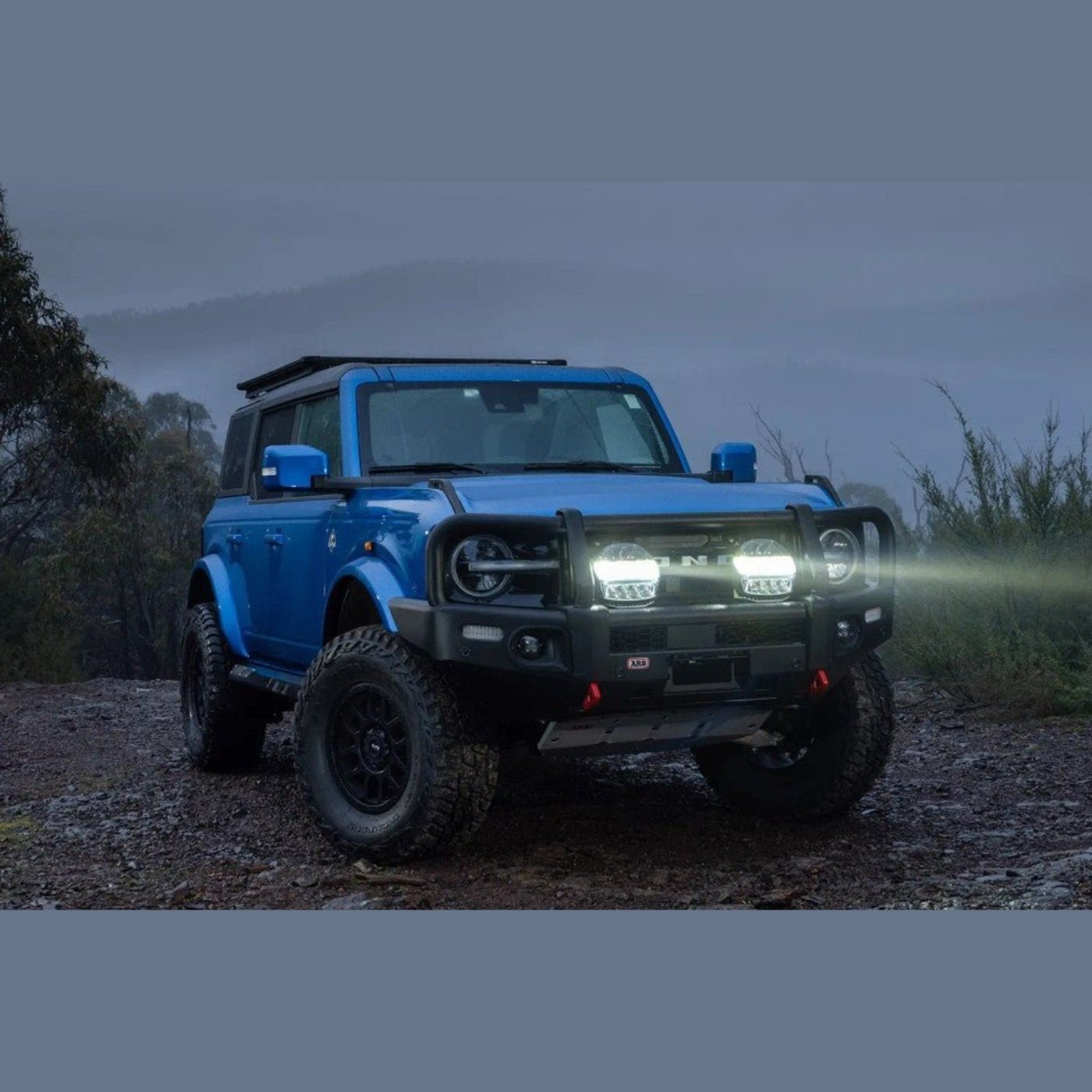

The ARB Intensity IQ driving lights have been developed from the ground up, with performance front of mind, while delivering a design that complements modern vehicle styling and bumper designs.

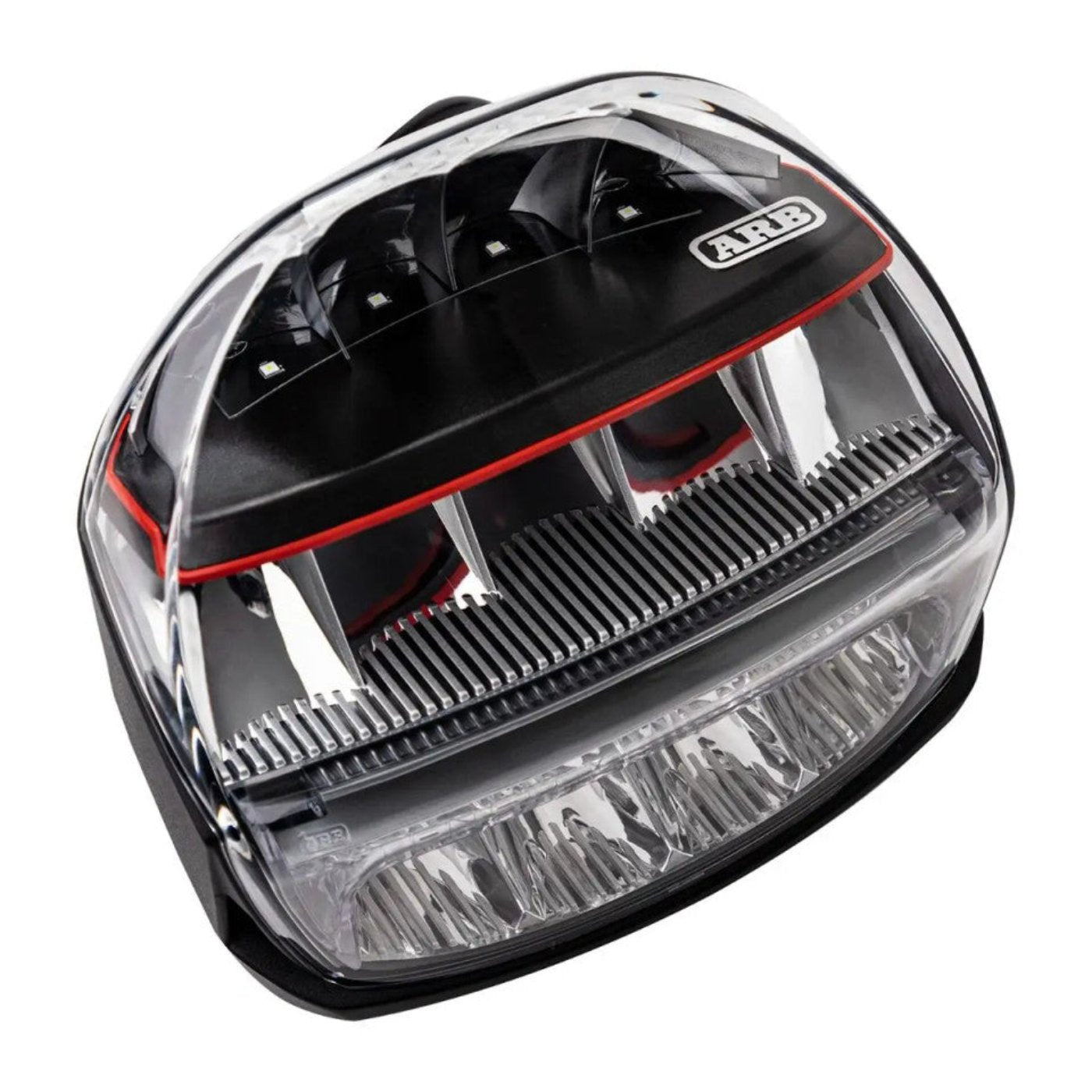

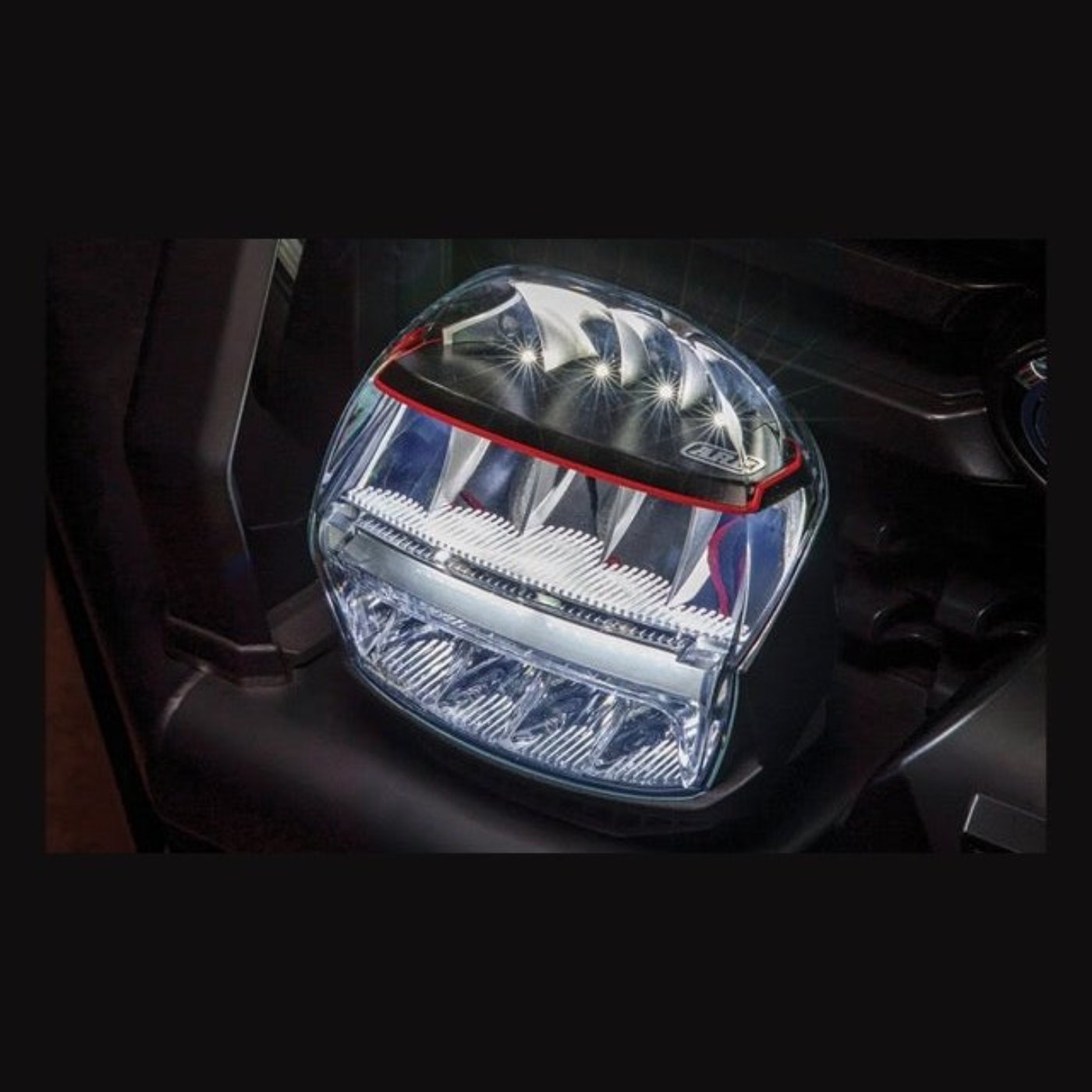

With a subtle introduction of ARB red within the light, the free-form clear front lens, bezel-less design and CNC machined ARB logo provide a modern, classy and premium new look. Packed with unique features, the Intensity IQ sets a new level of driving light design and usability.

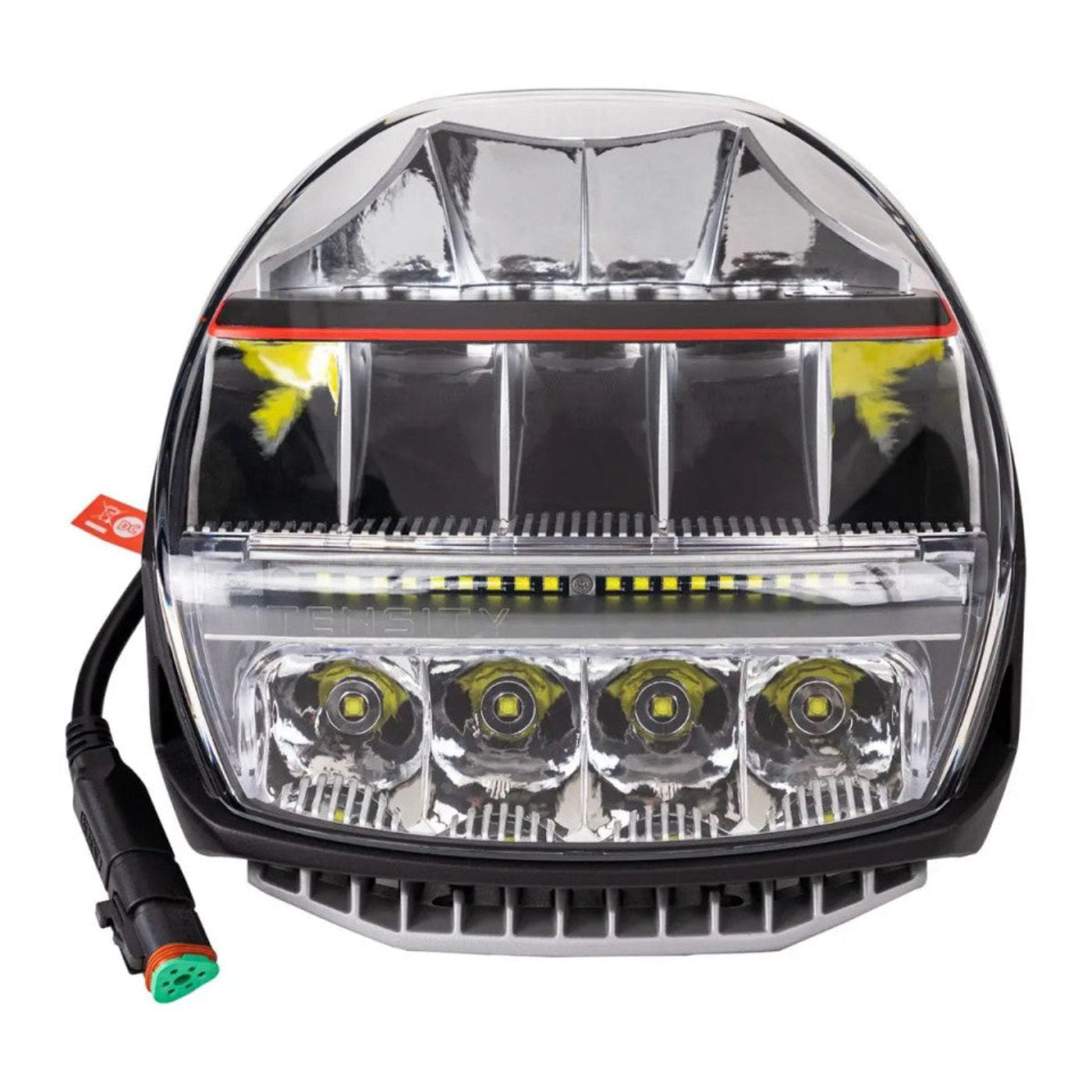

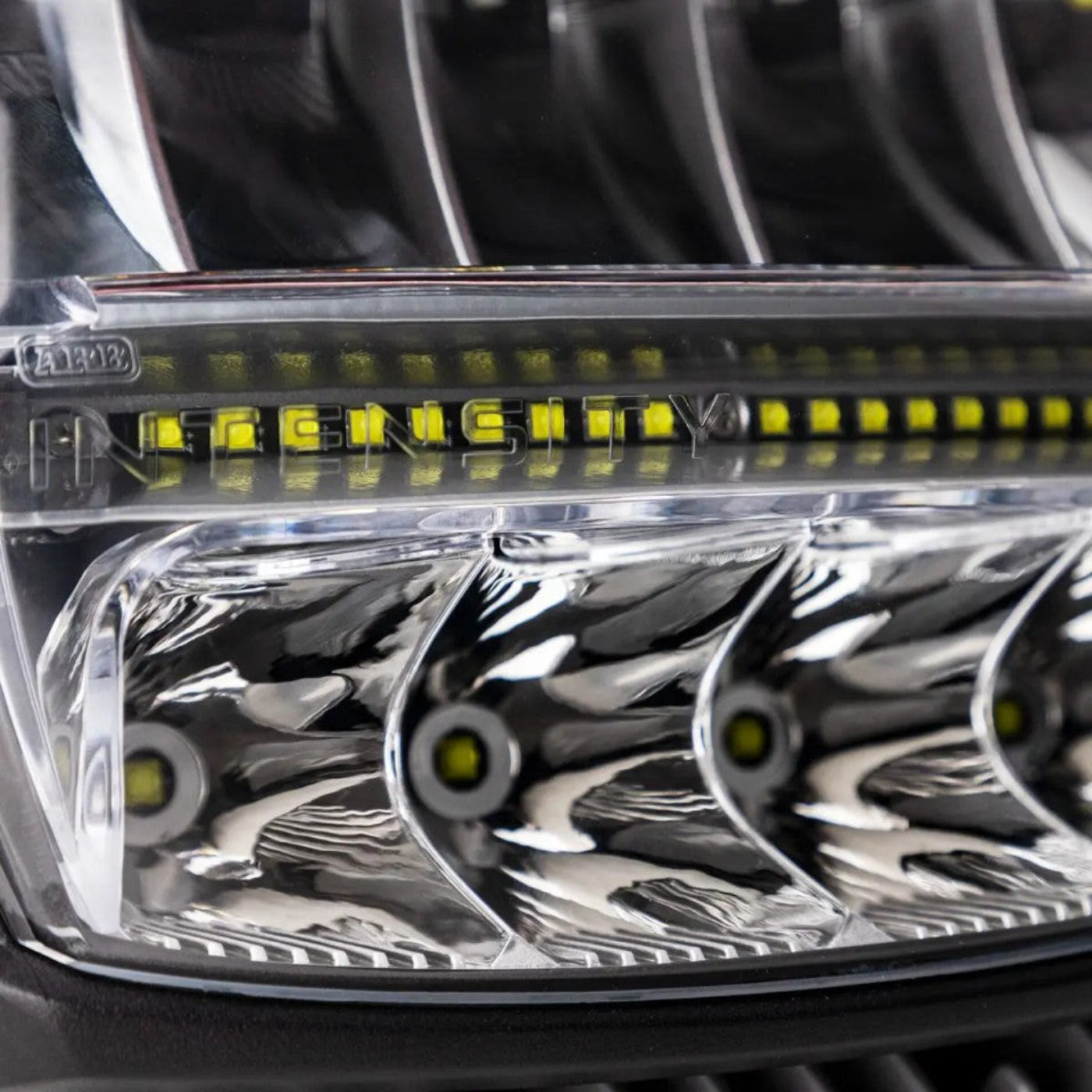

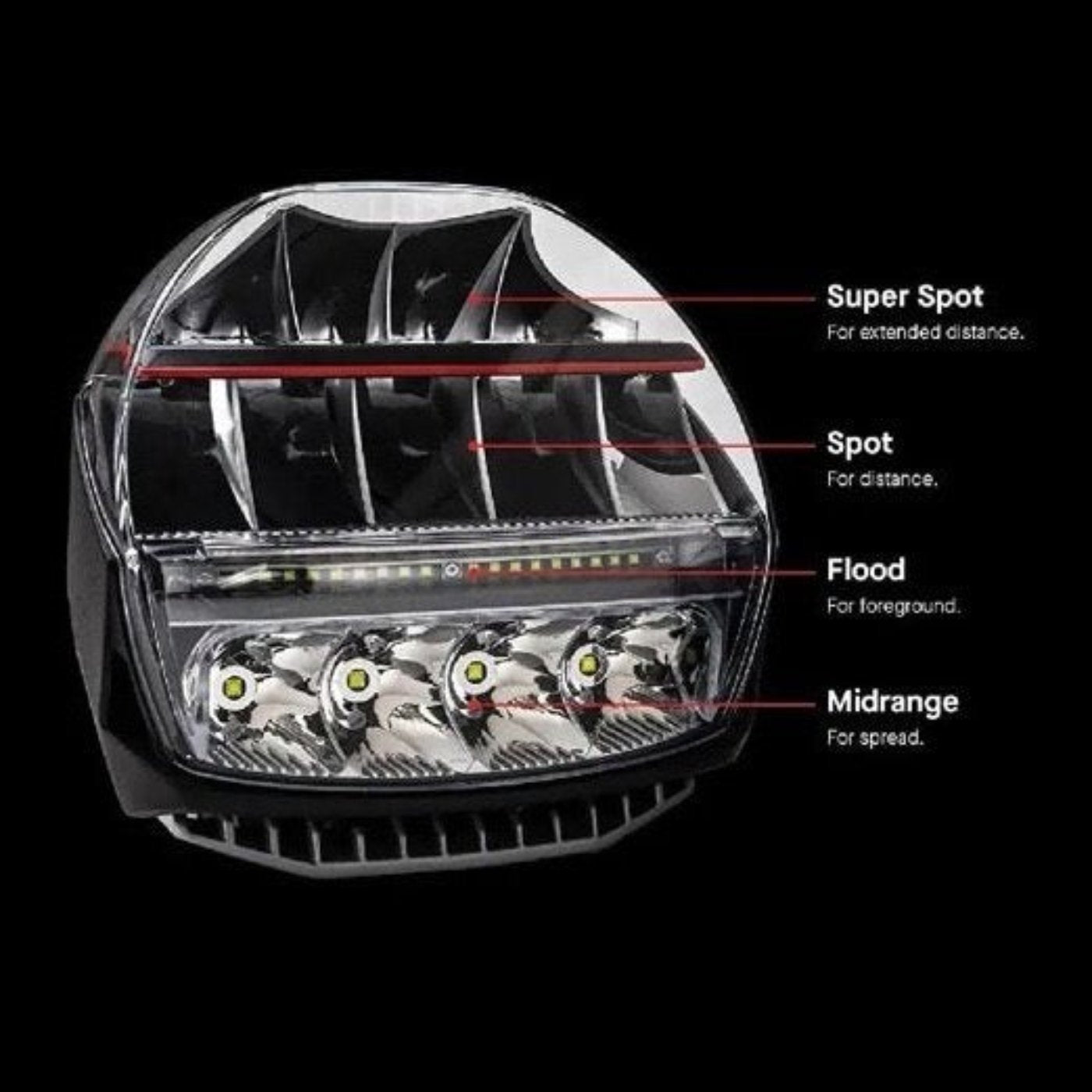

A unique four-optic design (Super Spot, Spot, Flood and Midrange) is employed to provide virtually an unlimited choice of light beams to suit any road condition.
The Super Spot and Spot optic, based on free-form reflector technology, produce an even spot beam for extended distance illumination. The Flood optic has a specially designed lens to maximize the light spread for excellent foreground visibility.
The Midrange optic employs a conventional parabolic reflector to illuminate the midrange area.
Protected by the purpose-driven, virtually indestructible polycarbonate lens, the IQ is contained by a high quality material that will protect your driving light investment.
A physical switch controller that is equally as intuitive accompanies the revolutionary Intensity IQ lights.
Access up to eight different preset configurations at the click of a button, instantly changing the Intensity IQ lights to your needs. The Intensity IQ controller sports a design that is both ergonomic and practical, with users being able to feel and adjust rather than relying on seeing the device itself.

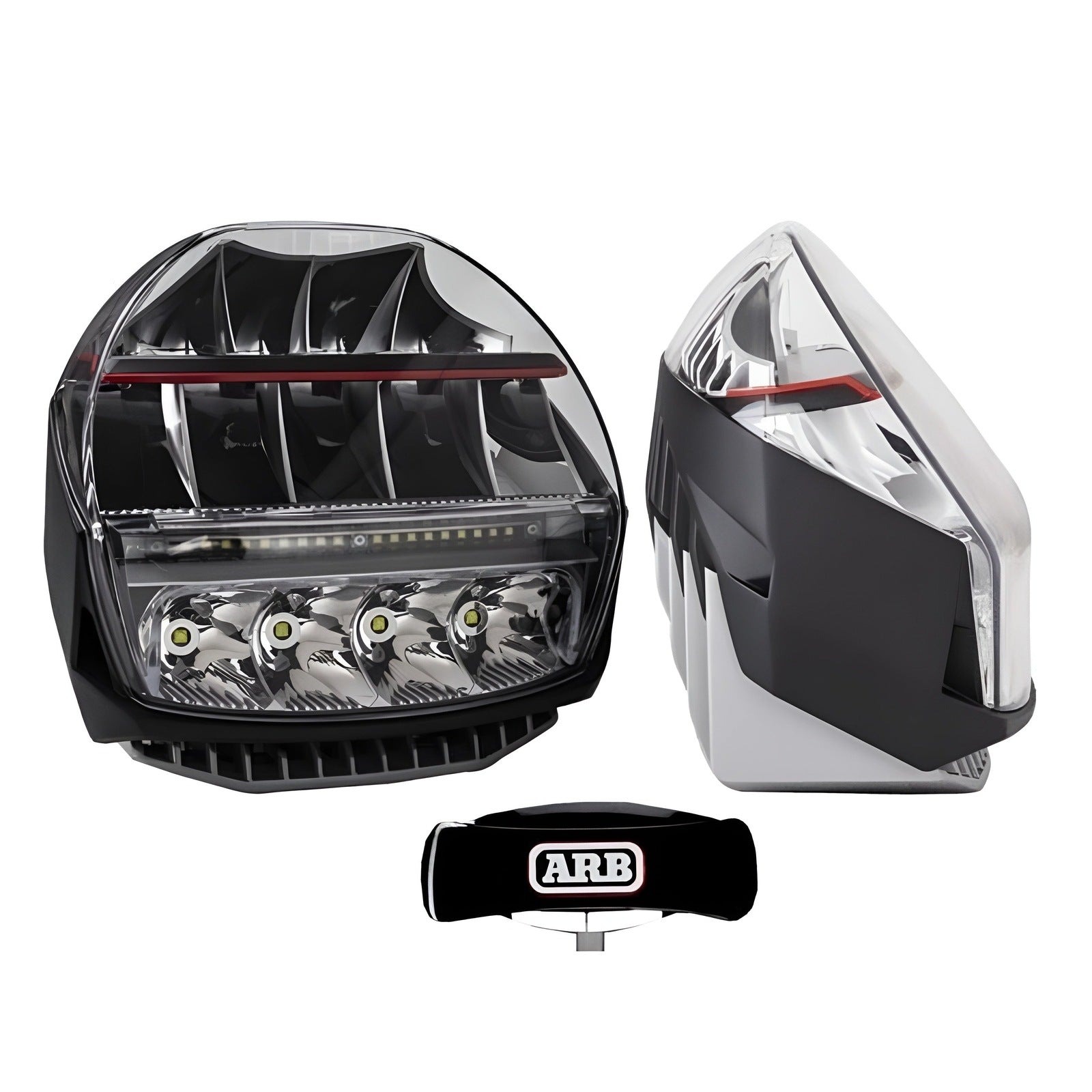

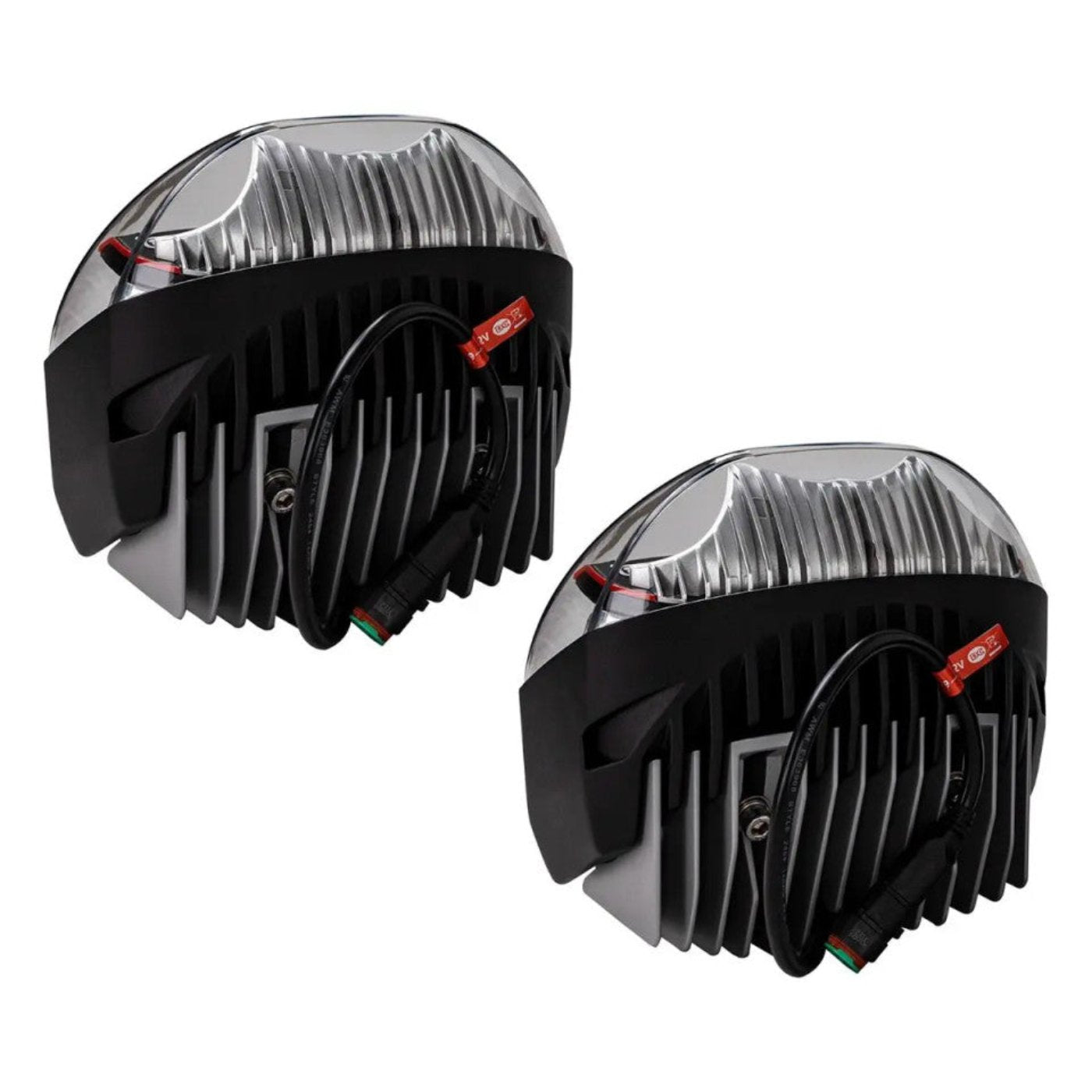

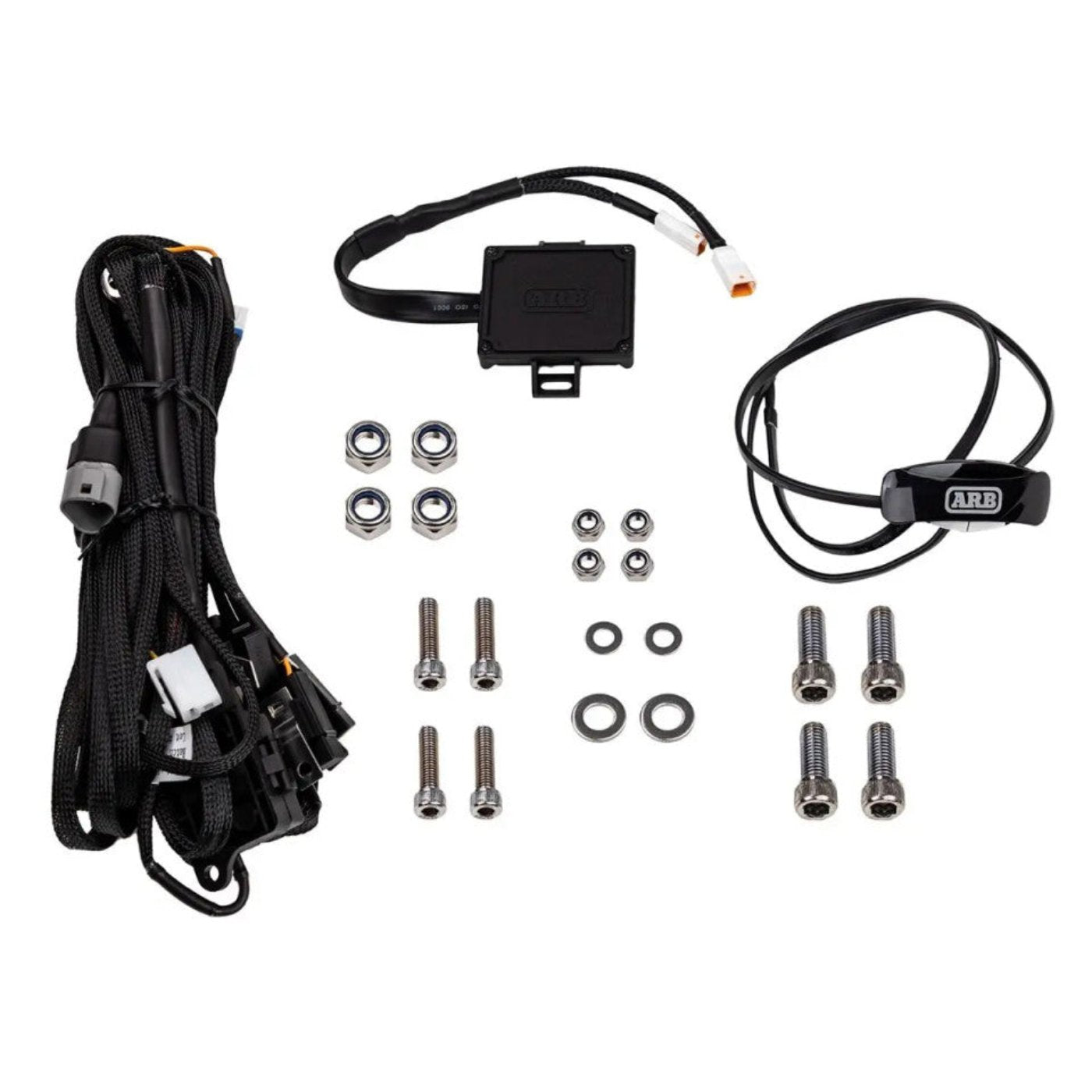

Kit Includes 2 Lights & Wiring Harness
Features
- Durable, UV-resistant powder coat
- Multiple control options; touchpad, ARB LINX, or smartphone app. Compatible with iOS and Android
- Onboard switch with up to eight customizable presets
- Work light and courtesy light functionality
- Pressure equalization breather
- Connect four Intensity IQ lights on one switch
- Up to 50,000+ LED lifespan
Specifications
- Input 11 – 32V
- Power 170 W @ 13.2V
- Current Draw 12.9A @ 13.2V
- Output – Raw Max Spot 7,070 lumens Max Flood 14,060 lumens
- Output – Effective Max Flood 6,666 lumens Max Combo 6,265 lumens Max Spot 6,613 lumens
- Distance @ 1 Lux (1 Pair) Max Spot 1350m / 4429ft Max Combo 1105m / 3625ft Max Flood 900m / 2953ft
- Operating Temperature (°C) -40°C to +80°C
- Operating Temperature (°F) -40°F to +176°F
- Color Temperature 5700 – 6200 Kelvin
- Weight 3.8kg (8.4lbs)
- Dimensions (inches) 8.7″ (w) x 8.5″ (h) x 5.6″ (d)
What Our Experts Think
-
Powerful Illumination: The ARB Intensity IQ LED Driving Lights provide exceptional brightness with a compact design, ensuring enhanced visibility for off-road and nighttime driving.
-
Durable and Reliable: Built with high-quality materials for long-lasting performance in even the harshest environments, these lights are ready for any adventure.
-
Intelligent Technology: Features an intelligent design with improved light output and energy efficiency, offering optimal performance and reduced power consumption.
-
Rugged and Weather-Resistant: Designed to withstand the elements, these lights are fully sealed and IP68-rated, making them resistant to water, dust, and dirt.
-
Easy Installation: Compatible with most vehicles and easy to mount, ensuring a hassle-free setup with adjustable mounting options
Q&A
Q: What are ARB Intensity IQ LED Driving Lights?
A: The ARB Intensity IQ LED Driving Lights are high-performance off-road lights designed to provide superior illumination for nighttime driving and rugged terrains.
Q: What are the key features?
A:
- High-intensity LED technology for exceptional brightness
- SmartIQ technology for customizable light settings
- Durable, impact-resistant construction
- Wide and spot beam options for versatile lighting
- IP68-rated for dust and water resistance
- Easy to install with adjustable mounting options
Q: Are these lights compatible with other accessories?
A: Yes, the ARB Intensity IQ LED lights are designed to work with most off-road accessories and can be integrated into vehicle lighting setups.
Q: Are these lights suitable for off-road use?
A: Yes, these lights are ideal for off-road conditions, providing powerful illumination for improved visibility.
Q: Is professional installation required?
A: While installation is straightforward, professional installation is recommended for optimal performance.
Q: Does it come with a warranty?
A: Check product details for warranty information
Maintenance Tips
-
Regular Cleaning: Keep the lenses clean using a soft cloth and mild soap solution to remove dirt, debris, and bugs.
-
Inspect Wiring: Check connections and wires for wear or corrosion regularly to ensure proper function.
-
Protect from Moisture: Avoid direct exposure to water; use silicone sealant around the housing if necessary.
-
Check Mounting: Ensure that the mounting brackets are secure to prevent vibrations and damage.
-
Storage: When not in use, store in a dry, cool place to prevent damage from extreme temperatures.
-
Lens Protection: Use a protective cover when driving in harsh conditions to prevent scratches and chips.
