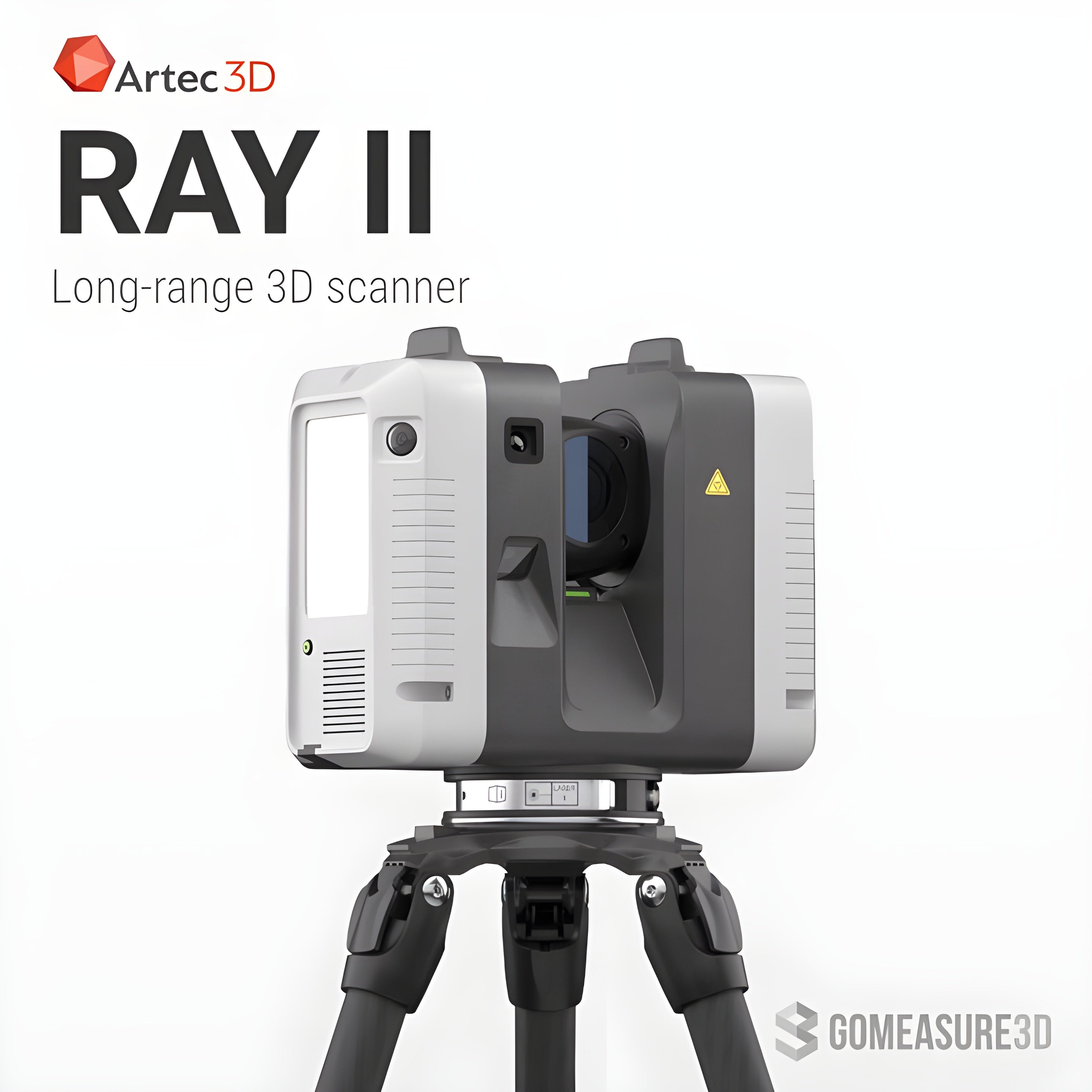

Artec Ray II Long-Range (LIDAR) 3D Scanner (Demo Unit)
Lightning-Fast Long-Range 3D Scanner With High Accuracy 3D Imaging
Features
- User-friendly portable 3D scanner

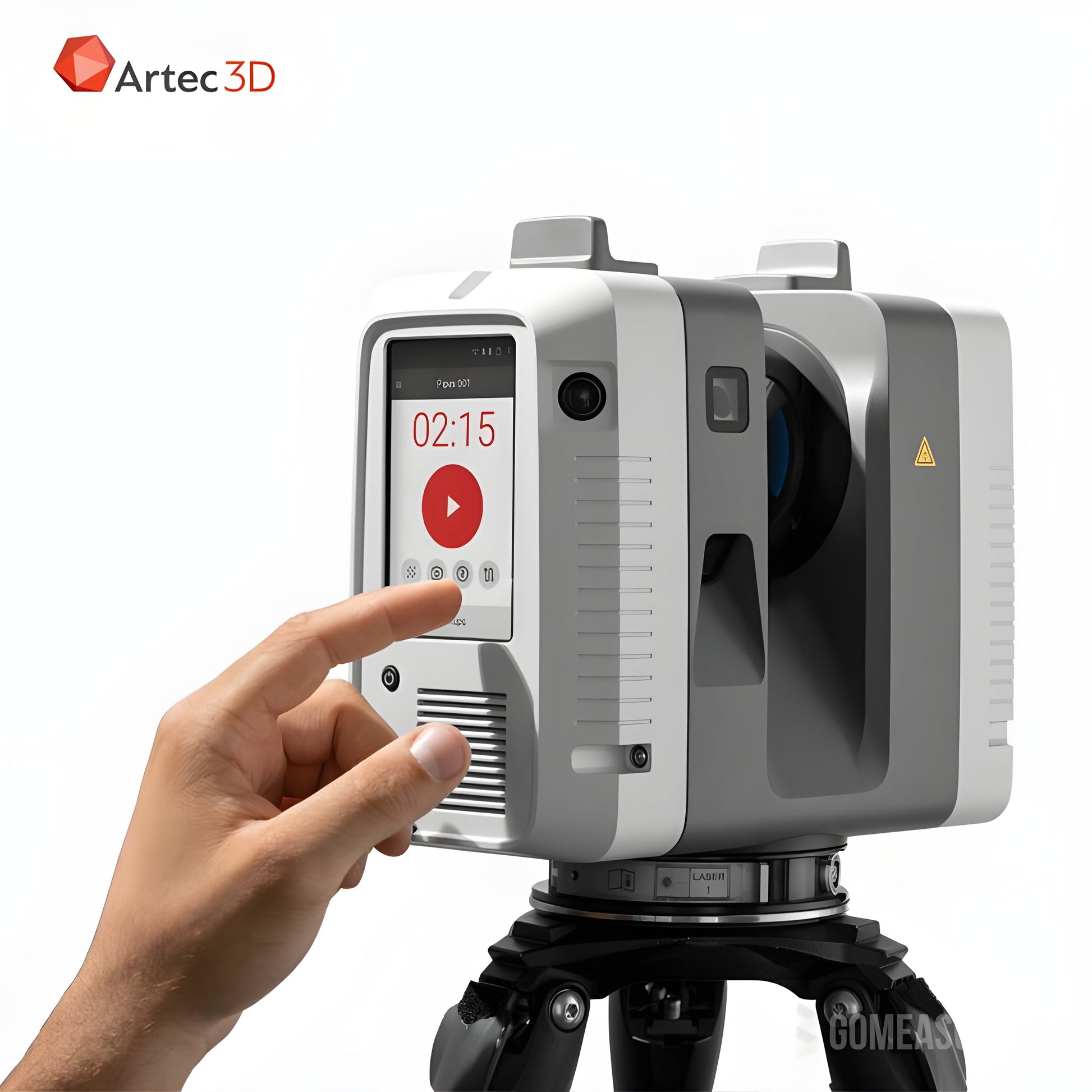

- Built-in touchscreen and intuitive UI for easy 3D scanning
- Equipped with automated targetless field registration
- Real-time scan alignment
- Double-scan feature for the automatic deletion of moving objects
- Rain and dust protection (IP54)
Specifications
| Type |
Long-range 3D Scanner |
| Scanning Range |
0.5 – 130 meters |
| Speed |
Captures a full dome at the highest resolution in 1.7 minutes |
| Resolution |
3 mm at 10 meters |
| Color Capture |
Equipped with a 36 MP 3-camera system for full-color scanning |
| 3D Point Accuracy 10m |
1.9 mm |
| 3D Point Accuracy 20m |
2.9 mm |
| 3D Point Accuracy 40m |
5.3 mm |
| Angular Accuracy |
0.87 mm at 10 meters (or 18 arcseconds) |
| Range Accuracy |
1.0 mm + 10 ppm |
| Range Noise |
0.4 mm at 10 meters; 0.5 mm at 20 meters |
What our Expect Think
-
Same High-Precision LIDAR Scanning – Captures large-scale objects with millimeter accuracy.
-
Cost-Effective Solution – Get premium scanning technology at a reduced price.
-
Extensive 130m Range – Ideal for industrial, construction, and forensic applications.
-
Seamless Software Compatibility – Works with Artec Studio for precise data processing.
Q&A
Q: What is the Artec Ray II Long-Range 3D Scanner (Demo Unit)?
A: This is a certified pre-owned Artec Ray II LIDAR 3D scanner, tested and verified to meet factory standards, offering high-precision long-range scanning at a reduced price.
Q: What is the scanning range?
A: It captures objects from 0.5 to 130 meters with submillimeter accuracy, ideal for large-scale projects.
Q: What condition is the demo unit in?
A: It is fully functional, inspected, and certified by Artec, though it may show minor cosmetic wear.
Q: Who should consider this scanner?
A: Professionals in architecture, engineering, construction (AEC), industrial inspections, heritage preservation, and forensics who want premium performance at a lower cost.
Q: Does it include software?
A: It is compatible with Artec Studio but may require a separate software license.
Maintenance Tips
-
Clean Lenses Regularly – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges.
-
Perform Calibration – Ensure accurate long-range scanning by calibrating the device periodically.
-
Handle with Care – Avoid drops or impacts to prevent internal component damage.
-
Update Software & Firmware – Keep the scanner updated for improved performance and compatibility.
-
Store Properly – Use a protective case when not in use to prevent dust and physical damage
