Autopilot ECLIPSE F90 Master Environmental Controller APE4200

ECLIPSE F90 Master Environmental Controller

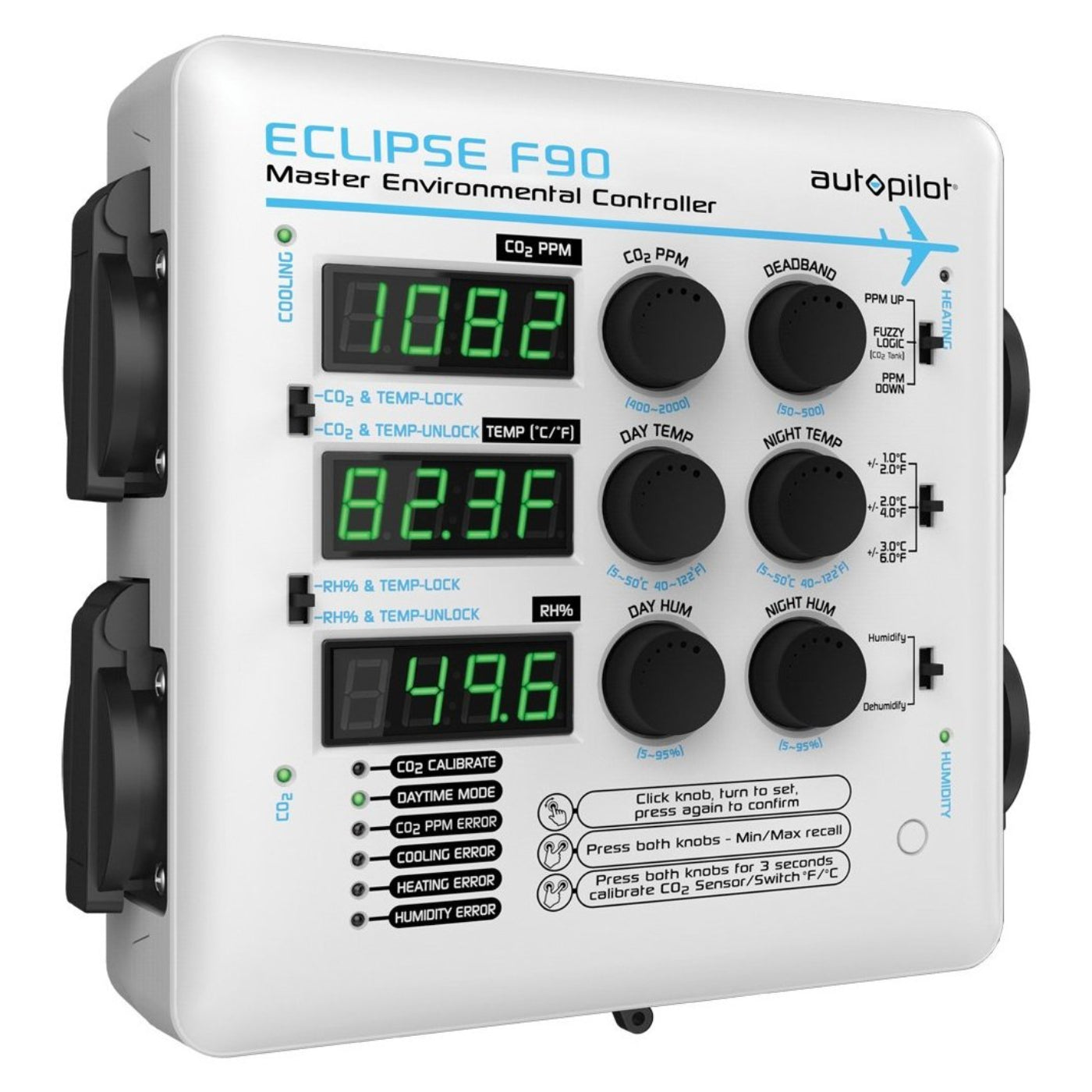

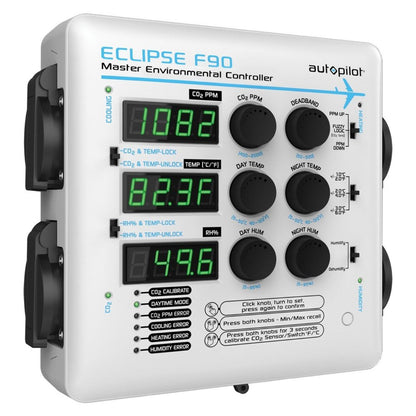

The Autopilot ECLIPSE F90 Master Environmental Controller allows growers to precisely control and monitor temperature, humidity, and CO2 from one centralised unit. Its three digital screens continuous display current temperature, relative humidity, and CO2 levels. LED lights indicate active modes and inform the user of any errors.

Features

The ECLIPSE F90's modern and eye-pleasing enclosure features four separate power outlets for external devices: Cooling, Heating, Humidify/Dehumidify, and CO2 ppm. All four outlets feature heavy duty protective covers that prevent atmospheric moisture from entering the device through any unused outlets. A built-in data logger records minimum and maximum temperature, humidity and CO2 ppm levels.

It’s also equipped with an optional high temp shutdown feature for use with CO2 generators that is designed to save a crop in the event of an exhaust fan or AC failure. This mode allows the user to set an emergency temperature limit that will turn off the CO2 generator until the grow room temperature is reduced by 10°F.

The Eclipse F90’s sensitive and intelligent remote combination probe features a highly accurate temp/humidity and low-drift dual beam CO2 sensor. The probe can be placed up to 15 feet from the controller, and has been designed to resist EMI/EFI from electronic ballasts.

The controller can be mounted to a wall or grow tent. Two mounting kits are included with each controller.

Specifications

• 4 outlets control temperature (heating & cooling), humidity and CO₂ ppm

• Easily controls AC during the day and heating/dehumidification at night

• Fuzzy Logic setting for compressed CO₂ tank and regulator setups

• Standard CO₂ setting for use with CO₂ generators (LP/NG)

• High temp shutdown feature for use with CO₂ generators

• Separate day/night temperature and humidity set points

• Records high and low temp, humidity and CO₂ levels

• 2/4/6°F  temperature deadband option

• 5% relative humidity non-adjustable deadband

• 15' remote sensor probe with photocell

• LED mode and error indicators

• Internal battery keeps settings during unexpected power failure

• 14.5 max operating amperage, 120V

• ETL-listed

What Our Experts Think

• Comprehensive Environment Control: Manages CO2, temperature, humidity, and lighting in one streamlined system.
• Advanced Programming: Features customizable day/night settings for precise environmental adjustments.
• Digital Precision: High-accuracy sensors ensure optimal growing conditions at all times.
• User-Friendly Interface: Large LCD display and intuitive controls make programming and monitoring simple.
• Integrated Safety Features: Includes alarms and safety shutoffs for added peace of mind.
• Versatile Applications: Suitable for small to large grow operations, offering scalable performance.
• Energy Efficiency: Optimized to reduce energy usage while maintaining peak growing conditions.
• Durable Construction: Designed to withstand demanding grow room environments with reliable long-term performance.

Q&A

Q: What is the Autopilot ECLIPSE F90 Master Environmental Controller?
A: The ECLIPSE F90 is a comprehensive environmental controller designed to manage and automate critical grow room conditions such as temperature, humidity, CO2, and lighting.

Q: What are its key features?
A: It features a touchscreen interface, dual-zone control, integrated data logging, programmable schedules, and real-time monitoring for precision environmental management.

Q: What systems can it control?
A: It manages HVAC systems, CO2 levels, lighting schedules, and humidity levels, ensuring optimal conditions for plant growth.

Q: What makes the F90 unique?
A: The dual-zone control allows you to manage two independent grow environments simultaneously, offering versatility for multi-room setups.

Q: Is it easy to use?
A: Yes, the intuitive touchscreen and customizable programming make it user-friendly for both beginners and experienced growers.

Q: Does it include monitoring capabilities?
A: Yes, it offers real-time monitoring and alerts for temperature, humidity, and CO2 levels to help maintain optimal conditions.

Q: Is it compatible with various grow setups?
A: Absolutely, it is suitable for use in grow tents, greenhouses, and larger commercial setups.

Q: Does it log environmental data?
A: Yes, the built-in data logger tracks environmental metrics, enabling you to analyze and optimize growing conditions over time.

Maintenance Tips

• Sensor Calibration: Periodically calibrate all connected sensors (CO2, temperature, humidity) to maintain accurate readings and optimal performance.
• Clean Air Vents: Use a soft cloth or compressed air to clean the controller's vents, preventing dust buildup and ensuring proper ventilation.
• Check Connections: Inspect all cables, plugs, and power connections regularly for wear or damage. Ensure secure connections for reliable operation.
• Update Firmware: Check for and install firmware updates to ensure the controller is running the latest software.
• Inspect Probes and Accessories: Clean and test all probes and connected accessories for consistent and accurate measurements. Replace damaged or worn components as needed.
• Avoid Moisture: Ensure the controller is protected from water and high humidity to prevent electrical damage.
• Test Functions: Regularly test the controller's relays and outputs to confirm they trigger the connected devices correctly.
• Follow Maintenance Guidelines: Refer to the user manual for specific maintenance schedules and troubleshooting recommendations.
