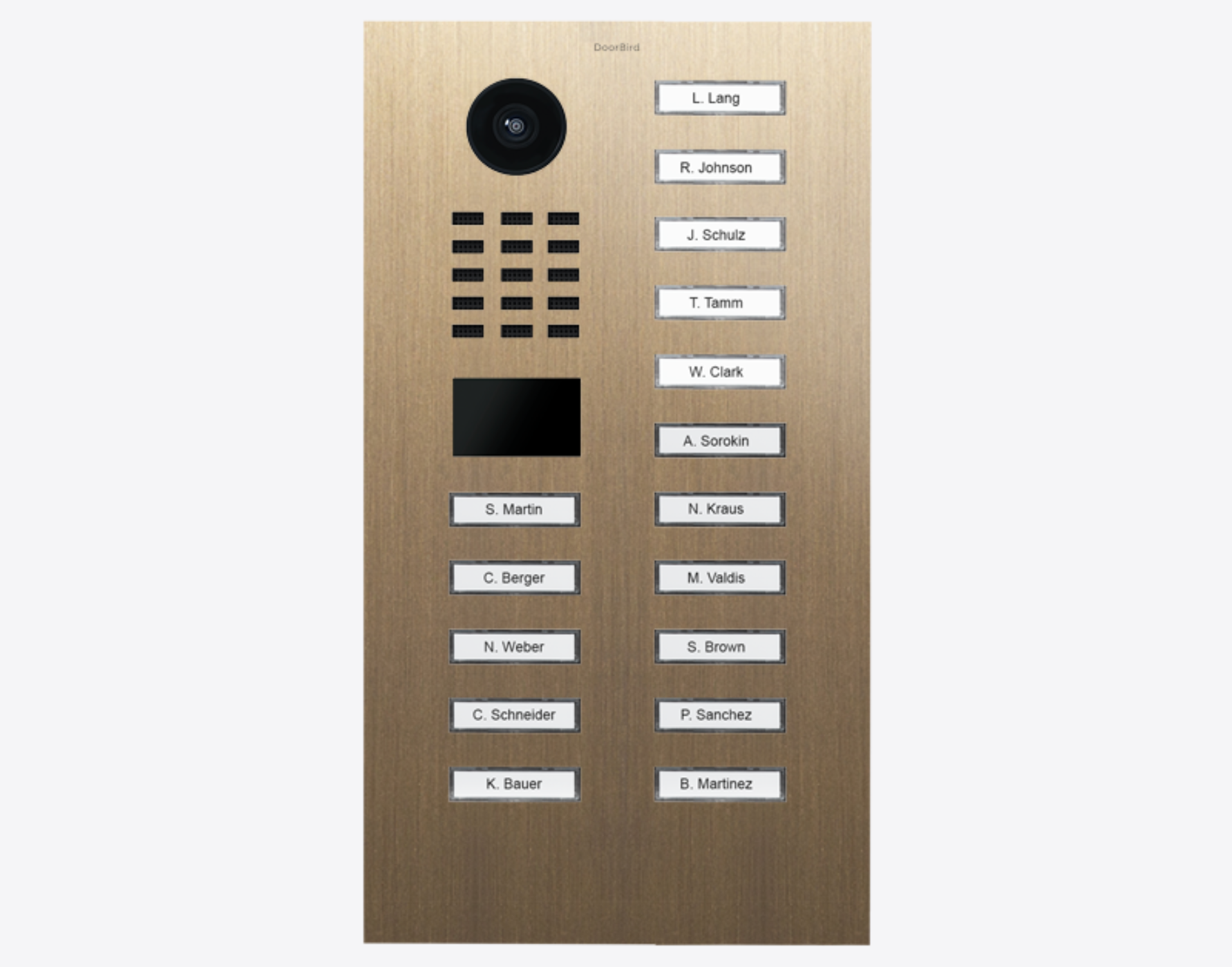

DoorBird D2116V IP Video Door Station, 16 Call Buttons in Real Burnished Brass - 423909939

DoorBird D2116V IP Video Door Station, 16 Call Buttons in Real Burnished Brass - 423909939

For multi-tenant buildings and businesses with 16 units, 16 call buttons

Real burnished brass
(GTIN/EAN: 4260423909939, P/N: 423909939)

Features

• Surface- and flush-mount possible, housings sold separately
• LAN connection (PoE capable)
• 2-way audio
• Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
• 4D motion sensor, RFID reader
• 2 freely configurable bistable switching relays
• Open API
  Local interface for integration with third-party systems and SIP
• Video and audio call
  On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
• Smart Transmission Mode (STM)
  Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
• Smart Home & NVR compatible
  Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
• Automatic door buzzer
  For use in medical offices and office environments
• Individual action schedules, e.g.:
  RFID card “abc” has only access on Wednesday from 9 am until 11 am
  4D motion sensor switches on external lamp between 9 pm and 6 am
• Geofencing
  Automatic door and gate opening when returning home
• Night vision
  With 12 Infrared LEDs
• HDTV Video
  Ultra wide-angle, hemispheric lens, 180°
• Light sensor
  For night vision mode
• Microphone
  Clear voice transmission
• Noise reduction and echo cancellation (AEC, ANR)
• RFID reader
  Configurable remotely via App (e.g. time frame)
• Motion sensor with 4D technology
  Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
• Call button
  With backlit nameplate
• Easy connection to the network
  Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
• Two freely configurable bi-stable switching relays
  Two doors or gates can be controlled via App
  Status configurable via App: temporary or permanent circuit


What our Experts Think

• Enterprise-grade multi-tenant access system (up to 500 units)
  The DoorBird D2116V (Real Burnished Brass, SKU 423909939) is designed for large residential complexes, office buildings, and gated communities, serving as a centralized IP video door station for high-density access control.
• High-capacity 16-call-button interface
  The 16 direct call buttons allow each button to represent an individual apartment, office, or tenant group—making it ideal for mid-to-large scale buildings where structured entry routing is essential.
• Full smart building integration hub
  Supports LAN (PoE), SIP, and open API integration, enabling connection to building management systems, access control platforms, and smart security ecosystems.
• Advanced access & automation features
  Includes RFID access control, keypad input, configurable relays, and 4D motion detection, allowing flexible entry rules, automation triggers, and secure delivery or visitor workflows.
• High-definition surveillance coverage
  Equipped with an ultra-wide (~180°) camera, night vision, and IR illumination, ensuring full visibility of entrance activity day and night for high-traffic environments.
• Premium Real Burnished Brass finish
  The solid brass surface develops a natural patina over time, giving each installation a unique evolving appearance while maintaining long-term durability in public-facing entrances.
• Expert verdict
  A flagship building access infrastructure system, not a standard intercom. The D2116V Real Burnished Brass is best suited for large residential towers, commercial complexes, and managed properties requiring centralized control across 16 direct call endpoints and up to 500 units total system integration capacity.

Q&A

Q: What is the DoorBird D2116V IP Video Door Station used for?
A: The DoorBird D2116V is a premium IP video intercom system for very large multi-tenant buildings and commercial properties, supporting up to 16 separate units with individual call buttons, enabling secure visitor access management and centralized communication.

Q: How does it improve security in large buildings?
A: It includes 720p HD ultra-wide 180° camera, night vision (IR LEDs), 4D motion detection, RFID access control, and encrypted IP communication, allowing tenants to verify visitors before granting access and manage entry remotely via app or SIP systems.

Q: What makes the Real Burnished Brass version special?
A: The Real Burnished Brass finish provides a luxury architectural metal surface that naturally develops a patina over time, while maintaining a robust stainless steel construction designed for outdoor durability and weather resistance.

Q: Can it be controlled remotely?
A: Yes. Users can answer calls, view live video, talk to visitors, and unlock doors from anywhere using iOS/Android apps, SIP phones, or integrated smart building systems.

Q: What connectivity does it use?
A: It connects via LAN with Power over Ethernet (PoE), ensuring stable power and network reliability for large-scale installations.

Maintenance Tips

• Clean brass surface & lens regularly: Gently wipe the camera, microphone, and brass panel with a soft microfiber cloth to maintain clear HD video and preserve the burnished finish. Avoid abrasive or acidic cleaners.
• Prevent tarnish buildup: Clean and dry the brass surface periodically to control oxidation and maintain consistent appearance over time.
• Maintain call button performance: Keep all 16 buttons free from dust, dirt, and moisture to ensure accurate tenant selection and reliable operation.
• Stable PoE/LAN network: Use a high-quality wired Ethernet connection for uninterrupted intercom, access control, and multi-unit communication.
• Firmware updates: Keep system software updated to improve security, stability, and scalability for large residential deployments.
• Inspect sealing & mounting: Regularly check gaskets and enclosure integrity to prevent water ingress, dust buildup, and weather damage.
• Clean camera & sensor zones: Ensure motion detection and video capture remain unobstructed for accurate visitor identification.
• Test system functions monthly: Verify call routing, relay outputs, audio quality, and all 16 tenant buttons for full operational readiness.
• Ensure stable power supply: Maintain continuous PoE power to prevent downtime in high-traffic environments.
