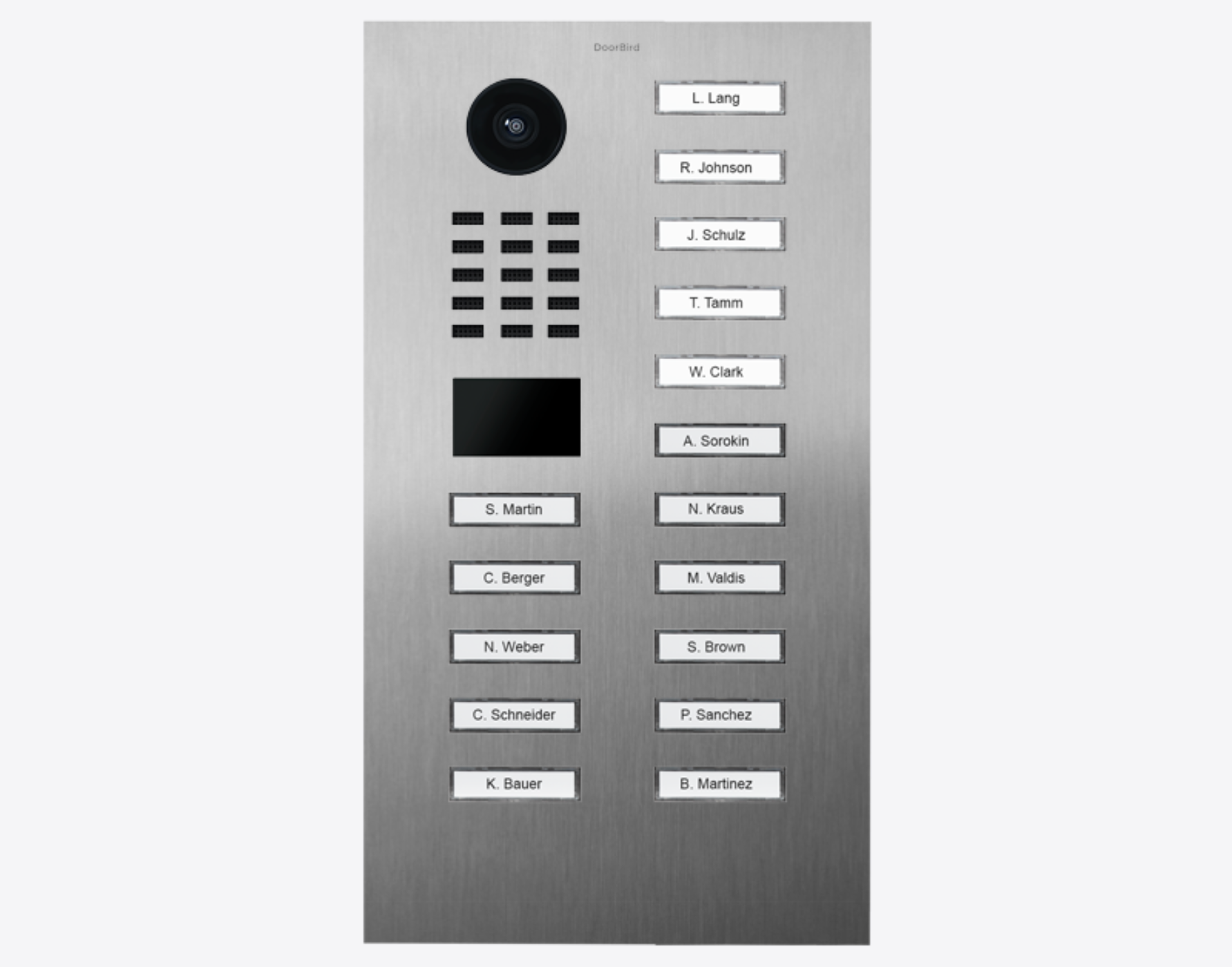

DoorBird D2116V IP Video Door Station, 16 Call Buttons in Stainless Steel V4A - 423909892

DoorBird D2116V IP Video Door Station, 16 Call Buttons in Stainless Steel V4A - 423909892

For multi-tenant buildings and businesses with 16 units, 16 call buttons

Stainless steel V4A (salt-water and grinding dust resistant), brushed
(GTIN/EAN: 4260423909892, P/N: 423909892)

Features

• Surface- and flush-mount possible, housings sold separately
• LAN connection (PoE capable)
• 2-way audio
• Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
• 4D motion sensor, RFID reader
• 2 freely configurable bistable switching relays
• Open API
  Local interface for integration with third-party systems and SIP
• Video and audio call
  On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
• Smart Transmission Mode (STM)
  Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
• Smart Home & NVR compatible
  Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
• Automatic door buzzer
  For use in medical offices and office environments
• Individual action schedules, e.g.:
  RFID card “abc” has only access on Wednesday from 9 am until 11 am
  4D motion sensor switches on external lamp between 9 pm and 6 am
• Geofencing
  Automatic door and gate opening when returning home
• Night vision
  With 12 Infrared LEDs
• HDTV Video
  Ultra wide-angle, hemispheric lens, 180°
• Light sensor
  For night vision mode
• Microphone
  Clear voice transmission
• Noise reduction and echo cancellation (AEC, ANR)
• RFID reader
  Configurable remotely via App (e.g. time frame)
• Motion sensor with 4D technology
  Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
• Call button
  With backlit nameplate
• Easy connection to the network
  Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
• Two freely configurable bi-stable switching relays
  Two doors or gates can be controlled via App
  Status configurable via App: temporary or permanent circuit


What our Experts Think

• High-capacity multi-tenant access control (16-call-button system)
  The DoorBird D2116V (Stainless Steel V4A, SKU 423909892) is designed for large residential buildings, commercial properties, and gated communities, enabling up to 16 individual call points from a single entrance station.
• Marine-grade stainless steel durability (V4A)
  Built in V4A stainless steel, this model offers enhanced resistance to corrosion, salt air, and harsh environmental exposure, making it suitable for coastal or high-traffic installations where long-term durability is critical.
• Full HD smart surveillance with wide coverage
  Equipped with an ultra-wide angle HD camera, night vision (IR illumination), and two-way audio, ensuring clear identification of visitors and reliable communication at busy entrances.
• Advanced access control ecosystem
  Includes RFID reader, 4D motion detection, and configurable relays, enabling automation for doors, gates, lighting, and time-based access rules in professional building environments.
• Professional integration readiness
  Supports SIP, open API, and PoE-based LAN connectivity, making it compatible with building management systems, NVR platforms, and smart security infrastructures.
• Flexible installation for large projects
  Designed for surface or flush mounting (with separate housings), allowing installers flexibility across modern architectural and retrofit scenarios.
• Expert verdict
  A heavy-duty, enterprise-ready IP video intercom built for demanding environments. The V4A version stands out for maximum corrosion resistance, making it especially suitable for large multi-tenant buildings, commercial complexes, and coastal or harsh-weather installations requiring 16-point structured access control with long-term reliability.

Q&A

Q: What is the DoorBird D2116V IP Video Door Station used for?
A: The DoorBird D2116V is a high-end IP video intercom for large multi-tenant buildings and commercial properties, designed to manage access for up to 16 individual units with dedicated call buttons and remote video communication.

Q: How does it improve security in large buildings?
A: It provides 720p HD ultra-wide 180° video, infrared night vision, 4D motion detection, RFID access control, and encrypted IP communication, allowing tenants to verify visitors and control entry remotely via smartphone or SIP systems.

Q: What makes the Stainless Steel V4A version special?
A: The V4A stainless steel (brushed) variant is engineered for extreme durability, offering high resistance to saltwater, corrosion, and environmental wear, making it ideal for coastal areas and harsh outdoor installations.

Q: Can it be controlled remotely?
A: Yes. Users can answer calls, view live HD video, speak with visitors, and unlock doors from anywhere using mobile apps, SIP phones, or smart home integrations.

Q: What connectivity does it use?
A: It connects via LAN with Power over Ethernet (PoE) for stable power delivery and reliable network performance in large installations

Maintenance Tips

• Clean V4A stainless steel & lens regularly: Wipe the camera, microphone, and housing with a soft microfiber cloth to maintain clear HD video and corrosion-resistant finish. Avoid abrasive or chlorine-based cleaners.
• Maintain call button reliability: Ensure all 16 buttons remain free from dust, dirt, and moisture for accurate tenant selection and consistent operation.
• Stable PoE/LAN connection: Use a high-quality wired Ethernet connection for uninterrupted intercom, access control, and multi-unit communication.
• Firmware updates: Keep system software updated to improve cybersecurity, stability, and scalability in large residential or commercial installations.
• Inspect sealing & mounting: Regularly check gaskets and enclosure integrity to prevent water ingress, dust buildup, and long-term corrosion exposure.
• Clean camera & sensor areas: Ensure motion detection and video capture remain unobstructed for accurate visitor identification.
• Test system functions monthly: Verify call routing, relay outputs, audio clarity, and all 16 tenant buttons for full operational readiness.
• Ensure stable power supply: Maintain continuous PoE power to prevent downtime in high-traffic entry systems.
