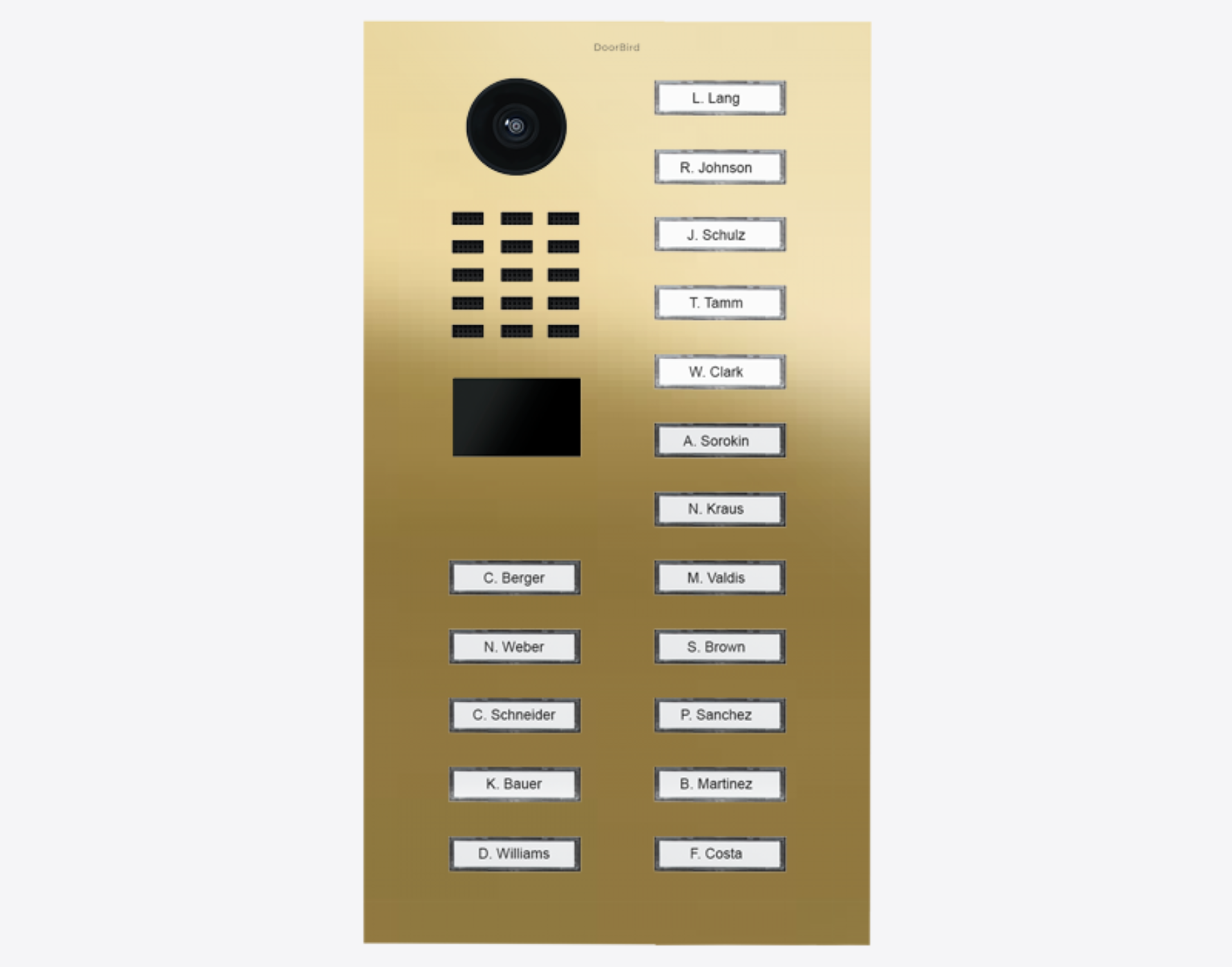

DoorBird D2117V IP Video Door Station, 17 Call Buttons in Brass - 423910515

DoorBird D2117V IP Video Door Station, 17 Call Buttons in Brass - 423910515

For multi-tenant buildings and businesses with 17 units, 17 call buttons

Brass-finish as PVD coating, stainless steel V4A, high-gloss polished
(GTIN/EAN: 4260423910515, P/N: 423910515)

Features

• Surface- and flush-mount possible, housings sold separately
• LAN connection (PoE capable)
• 2-way audio
• Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
• 4D motion sensor, RFID reader
• 2 freely configurable bistable switching relays
• Open API
  Local interface for integration with third-party systems and SIP
• Video and audio call
  On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
• Smart Transmission Mode (STM)
  Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
• Smart Home & NVR compatible
  Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
• Automatic door buzzer
  For use in medical offices and office environments
• Individual action schedules, e.g.:
  RFID card “abc” has only access on Wednesday from 9 am until 11 am
  4D motion sensor switches on external lamp between 9 pm and 6 am
• Geofencing
  Automatic door and gate opening when returning home
• Night vision
  With 12 Infrared LEDs
• HDTV Video
  Ultra wide-angle, hemispheric lens, 180°
• Light sensor
  For night vision mode
• Microphone
  Clear voice transmission
• Noise reduction and echo cancellation (AEC, ANR)
• RFID reader
  Configurable remotely via App (e.g. time frame)
• Motion sensor with 4D technology
  Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
• Call button
  With backlit nameplate
• Easy connection to the network
  Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DooBird A1071” (PoE, network data)
• Two freely configurable bi-stable switching relays
  Two doors or gates can be controlled via App
  Status configurable via App: temporary or permanent circuit


What our Experts Think

• High-density multi-tenant access control (17 call buttons)
  The DoorBird D2117V (Brass, SKU 423910515) is designed for large residential buildings, offices, and managed properties, supporting 17 direct call buttons for structured entry routing across multiple tenants or units.
• Enterprise-grade entry management system
  Each button can be assigned to a separate apartment, office, or tenant group, making it ideal for mid-to-large scale buildings where clear visitor routing is essential at a single main entrance.
• Premium brass architectural finish
  The brushed brass PVD coating on stainless steel provides a luxury façade appearance while maintaining high resistance to weathering, corrosion, and heavy public use—ideal for prominent building entrances.
• Full HD video with wide entrance coverage
  Equipped with an ultra-wide (~180°) HD camera, infrared night vision, and two-way audio, ensuring reliable identification of visitors and clear communication at all times.
• Advanced smart access features
  Includes RFID access control, 4D motion detection, and configurable relays, enabling automation for doors, gates, lighting, and time-based entry permissions in professional installations.
• Professional IP integration (no ecosystem lock-in)
  Supports LAN (PoE), SIP, and open API, allowing seamless integration into building management systems, NVR setups, and smart security platforms.
• Flexible installation for real-world projects
  Designed for surface or flush mounting (with separate housings), making it suitable for both new construction and retrofit commercial or residential deployments.

Q&A

Maintenance Tips

• Clean brass surface & lens regularly: Gently wipe the camera, microphone, and brass housing with a soft microfiber cloth to maintain clear HD video and preserve the finish. Avoid abrasive or acidic cleaners.
• Prevent brass tarnish buildup: Clean and dry the surface periodically to control oxidation and maintain a consistent appearance.
• Maintain call button reliability: Ensure all 17 call buttons remain free from dust, dirt, and moisture for accurate tenant selection and smooth operation.
• Stable PoE/LAN connection: Use a high-quality wired Ethernet connection for uninterrupted intercom, access control, and multi-unit communication.
• Firmware updates: Keep software updated to improve security, system stability, and scalability in large residential installations.
• Inspect sealing & mounting: Regularly check gaskets and enclosure integrity to prevent water ingress, dust buildup, and weather-related wear.
• Clean camera & sensor zones: Ensure motion detection and video view remain unobstructed for accurate visitor identification.
• Test system functions monthly: Verify call routing, relay outputs, audio clarity, and all 17 tenant buttons for full operational readiness.
• Ensure stable power supply: Maintain continuous PoE power to prevent downtime in high-traffic entry systems.
