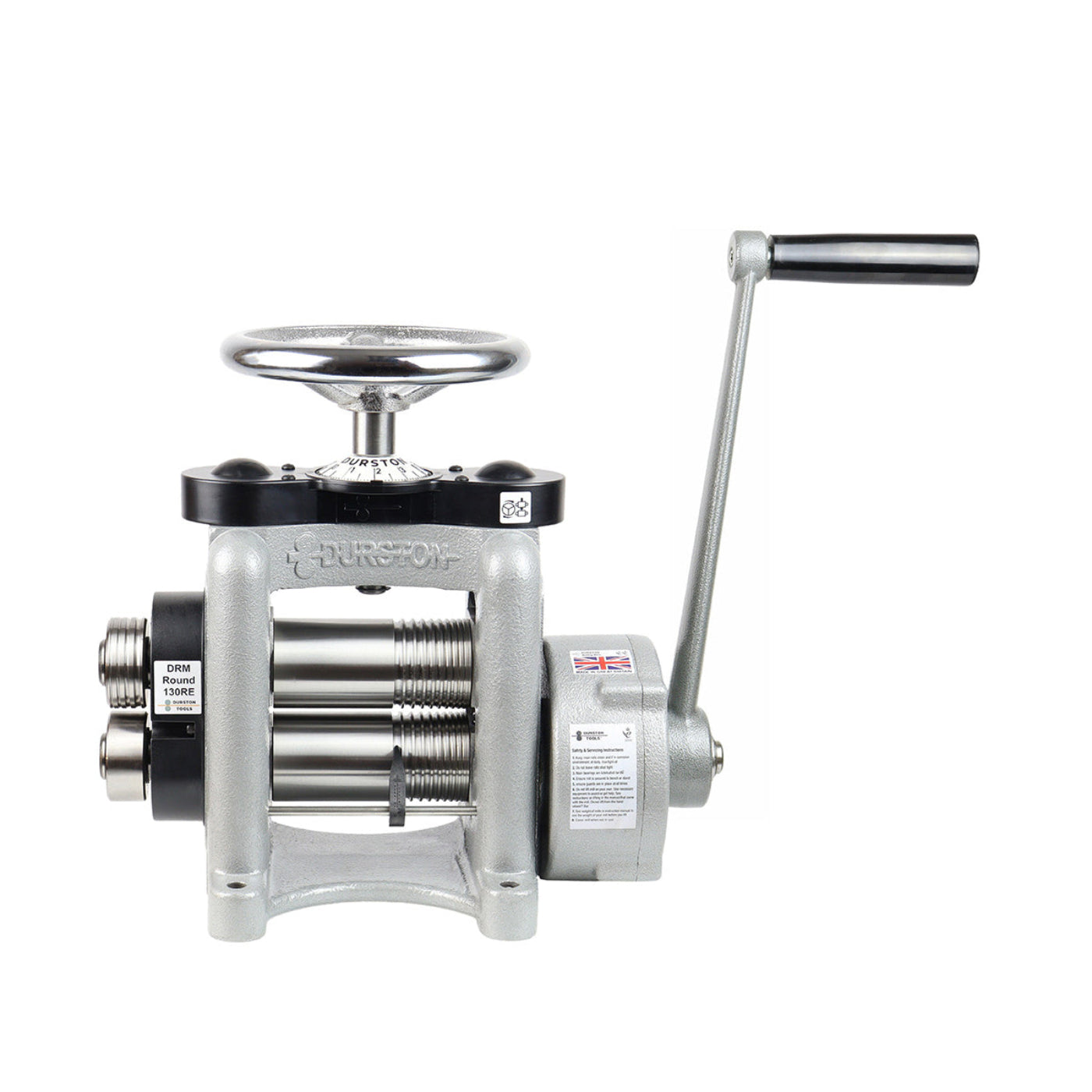

Durston 1044 DRM 130RE Round Wire Combination Rolling Mill - 128.127
The Durston DRM 130RE Round Wire Combination Rolling Mill represents a significant advancement in rolling mill design. Traditional wire rolling mills use a modified hexagon groove profile — easy to manufacture and structurally sound — but the resulting wire still requires draw plate finishing to achieve a true round cross-section. Advances in metallurgy have allowed Durston to engineer wire rollers in a full round profile, so round wire can be produced directly from the mill with minimal cleanup. This also simplifies subsequent drawing through any shaped draw plate to achieve alternate wire profiles.
The DRM 130RE features a 50% flat / 50% round wire combination roller layout, making it a versatile tool for professional jewelers and metalsmiths who work with both flat sheet and round wire in a single workflow.
The 130 mm precision hardened rolls include 10 round wire grooves ranging from 1 mm to 10 mm, plus a 75 mm flat rolling area, for a total roll width of 130 mm. The mill handles flat materials up to 6 mm thick and round wire up to 10 mm in diameter. Side extension rollers add four half-round profiles — 4 mm × 1.25 mm, 3 mm × 1 mm, 2 mm × 0.75 mm, and 1.5 mm × 0.5 mm — providing even greater versatility for half-round wire and profile work.
Round Wire Groove Sizes: 1 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, and 6 mm.
Adjustment is handled via a top-mounted calibrated wheel for precise, repeatable gap settings. The solid cast iron body delivers ultimate rigidity and long-term durability, while 64RC induction hardened rolls ensure a lifetime of professional results. Made in Great Britain.
Features
- Full round wire groove profile — produce true round wire directly from the mill with minimal cleanup
- 50% flat rolling / 50% round wire combination layout for versatile metalworking
- 10 round wire grooves: 1 mm – 10 mm range across 130 mm hardened rolls
- 75 mm flat rolling area for sheet and strip work up to 6 mm thick
- 5-to-1 self-lubricating gearbox for maximum rolling efficiency
- Side extension rollers with four half-round profiles for additional wire and profile options
- Top-mounted calibrated adjustment wheel for precise, repeatable gap control
- Solid cast iron body with 64RC induction hardened rolls
- Made in Great Britain
Specifications
| Roller Length |
130 mm |
| Roller Diameter |
60 mm |
| Roll Size |
130 mm × 60 mm |
| Flat Rolling Area |
75 mm |
| Sheet Thickness Capacity |
6 mm (max) |
| Max Wire Capacity |
10 mm |
| Number of Round Grooves |
10 (1 mm – 10 mm) |
| Gear Ratio |
5-to-1, self-lubricating |
| Side Extension Profiles |
4 half-round: 4 × 1.25 mm, 3 × 1 mm, 2 × 0.75 mm, 1.5 × 0.5 mm |
| Body Construction |
Solid cast iron |
| Roll Hardness |
64RC induction hardened |
| Net Weight |
100 lbs (45 kg) |
| Country of Origin |
Great Britain |
What our Experts Think
-
Precision combination rolling for wire + sheet: The Durston 1044 DRM 130RE (128.127) is a professional 130mm combination rolling mill designed for both flat sheet reduction and wire shaping, making it a core studio workhorse for jewelry production.
-
Powerful 5:1 reduction gearbox: The integrated reduction system significantly reduces rolling effort while improving control and consistency—ideal for repeated gauge reductions and smooth finishing passes.
-
True dual-function roll design: Features a 75mm flat rolling zone plus precision wire grooves, enabling efficient transition between sheet work and wire production without tool changes.
-
Expanded wire forming capability: Includes 10 round wire grooves (approx. 1–6mm range) for staged reduction, supporting controlled progression before final drawplate finishing.
-
Extension roller versatility: Built-in side extension rollers provide half-round profiles (4, 3, 2, 1.5mm), expanding shaping options for rings, bezels, and decorative wire elements.
-
Industrial Durston build quality: Solid cast iron frame and induction-hardened rolls ensure long-term rigidity, wear resistance, and consistent alignment under heavy workshop use.
-
Studio efficiency upgrade: Designed to reduce setup time and streamline workflow by combining multiple forming functions into a single compact, high-precision machine.
Q&A
Q: What is the Durston DRM 130RE Rolling Mill used for?
A: It is a professional combination rolling mill designed for sheet reduction, wire rolling, and half-round shaping in jewellery making and metal fabrication.
Q: What does the “Round” (R) design mean?
A: The “R” version features round wire grooves on the main roller, allowing controlled reduction of wire sizes before finishing. It is ideal for producing consistent wire stock.
Q: What is the roller width and capacity?
A: It has a 130mm roller width with a flat rolling section (about 75mm) and supports sheet reduction up to around 6mm thickness.
Q: What wire grooves does it include?
A: The main roller includes 10 round wire grooves ranging from 10mm down to 1mm, enabling step-by-step wire reduction.
Q: Does it support half-round wire shaping?
A: Yes, it includes side extension rolls with 4 half-round profiles (approx. 4mm to 1.5mm) for shaping D-wire and half-round profiles.
Q: Does it have a reduction gearbox?
A: Yes, it features a 5:1 reduction gearbox, which makes rolling smoother and reduces physical effort, especially for thicker material.
Q: What materials can it be used with?
A: It is suitable for gold, silver, copper, brass, aluminum, and other non-ferrous metals commonly used in jewellery production.
Q: Is it suitable for professional use?
A: Yes, it is built with solid cast iron construction and induction-hardened rolls, making it a durable, production-grade tool for studio environments.
Q: What makes this model stand out overall?
A: Its strength is the combination of round wire grooves + flat rolling + half-round extensions in a single geared system, offering maximum versatility for serious jewellery work.
Maintenance Tips
-
Clean rollers after every use: Remove metal dust from both flat and round grooves to prevent scoring and maintain precision rolling.
-
Light lubrication on gears: Keep the 5:1 reduction gearbox lightly greased for smooth, low-effort operation and reduced wear.
-
Protect induction-hardened rolls: Apply a thin anti-rust oil when idle, then wipe clean before use to avoid contamination of metal.
-
Use gradual reductions: Avoid heavy single-pass rolling to reduce strain on gears, bearings, and roller alignment.
-
Keep extension grooves clean: Regularly clear half-round extension profiles (4–1.5mm) to ensure accurate wire shaping.
-
Check alignment regularly: Ensure rollers remain parallel to prevent uneven wire deformation or “fins.”
-
Only use clean, annealed metal: Dirty or hardened stock can damage grooves and reduce finish quality.
-
Store in dry conditions: Cover when not in use and protect from humidity to prevent corrosion on cast body and steel components.
