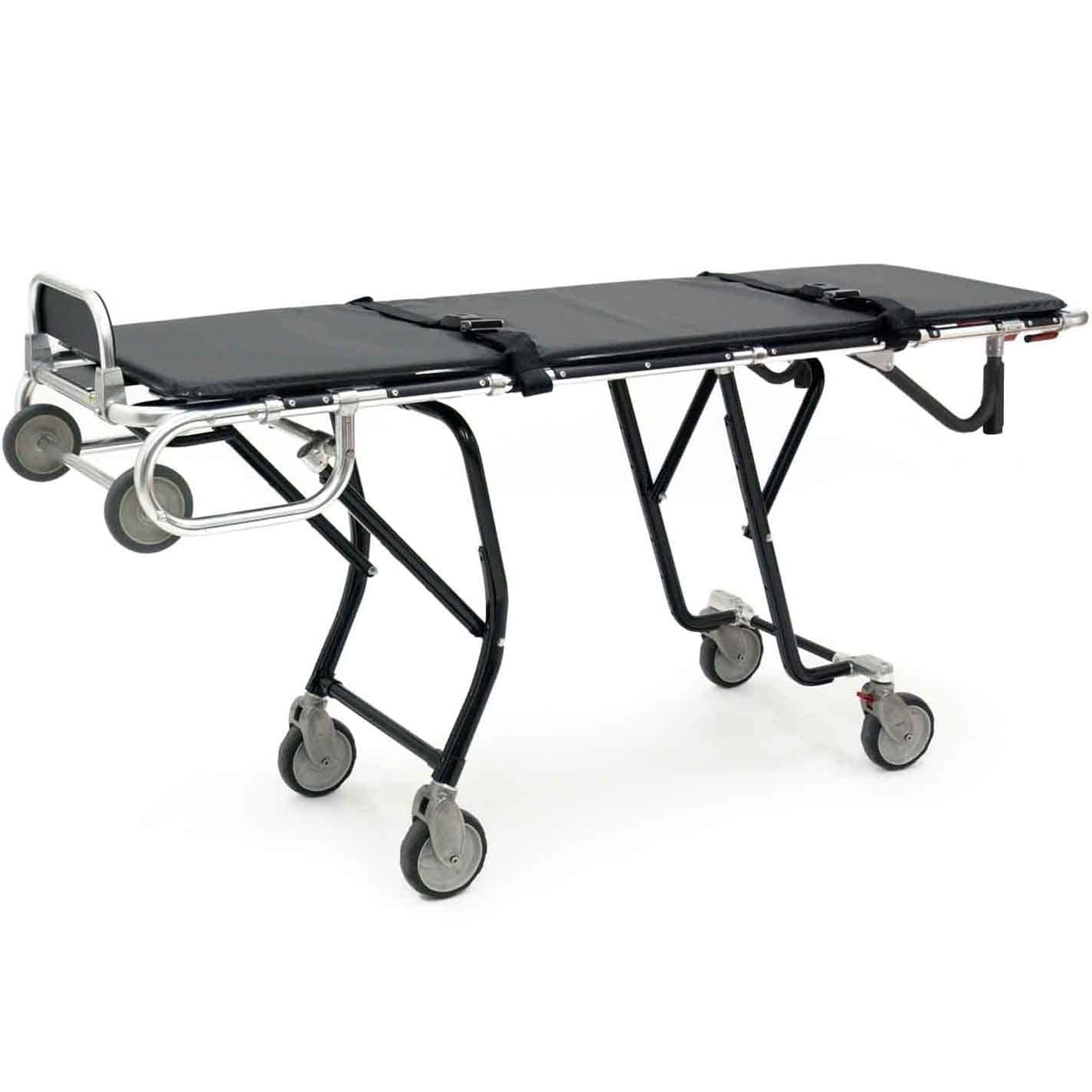

Ferno 24H-miniMAXX High Loading Level Mortuary Cot - FNO-0032504
The Ferno 24H-miniMAXX High Loading Level Mortuary Cot includes the Model 372 Cot Mattress (#0311360) and (2x) Model 430 Two-Piece Restraints - 5 Feet - Black (#0313892).
The 24H-miniMAXX has all the advantages of the 24-miniMAXX mortuary cot, with a higher loading height specially designed for high-floor vehicles.
It features true independent legs with multi-level adjustment, 6" wheels, dual hand controls, and a distinguished, durable gloss-black powder-coated finish. An industry-leading 1,000 lb load capacity allows users to handle large bodies with ease. The narrow bed surface provides increased maneuverability and allows two 24H-miniMAXX cots to be placed side-by-side in the rear of most vehicles. It is compatible with most Ferno covers and pouches.
Specifications
Specifications
| Load Height |
32 in (81 cm) |
| Length |
76 in (193 cm) |
| Width |
23.625 in (60 cm) |
| Height (Max) |
40 in (100 cm) |
| Height (Min) |
14 in (34 cm) |
| Weight |
76 lb (34 kg) |
| Load Limit |
1000 lb (454 kg) |
Configurations
Configurations
-
#0032504: Standard (No Side Arms or Side-Lift Handles).
-
#0032505: With Side Arms.
-
#0032506: With Side-Lift Handles (1 Pair).
Accessories
Accessories
The following accessories are compatible and commonly purchased with the 24H-miniMAXX High Loading Level Mortuary Cot:
-
#0314042: Mattress.
-
#0314154: Cover - Aria Cabernet.
-
#0800555: Rolling Wheel Assembly Kit.
-

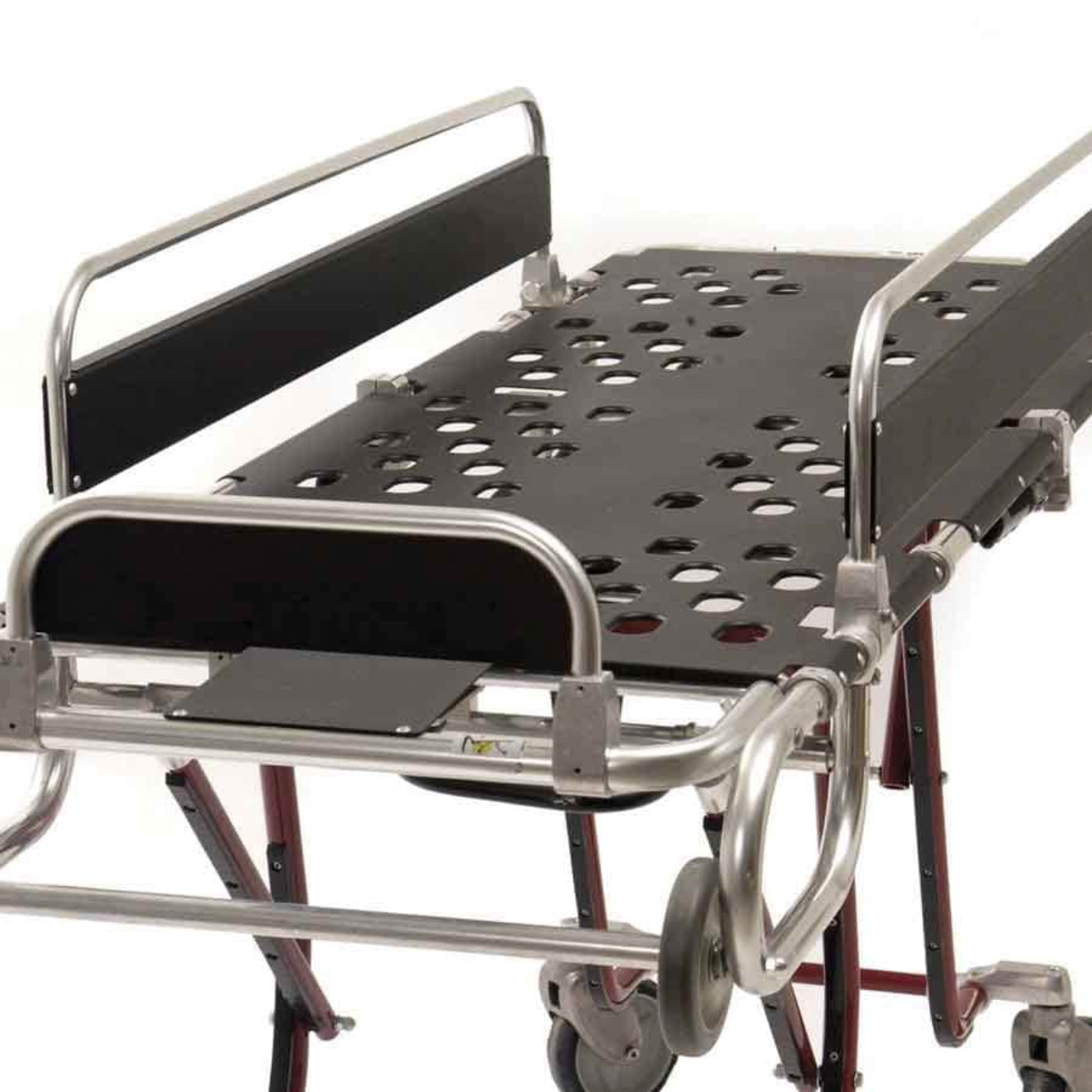

#0821997: Side-Arm Kit (Pair).
-

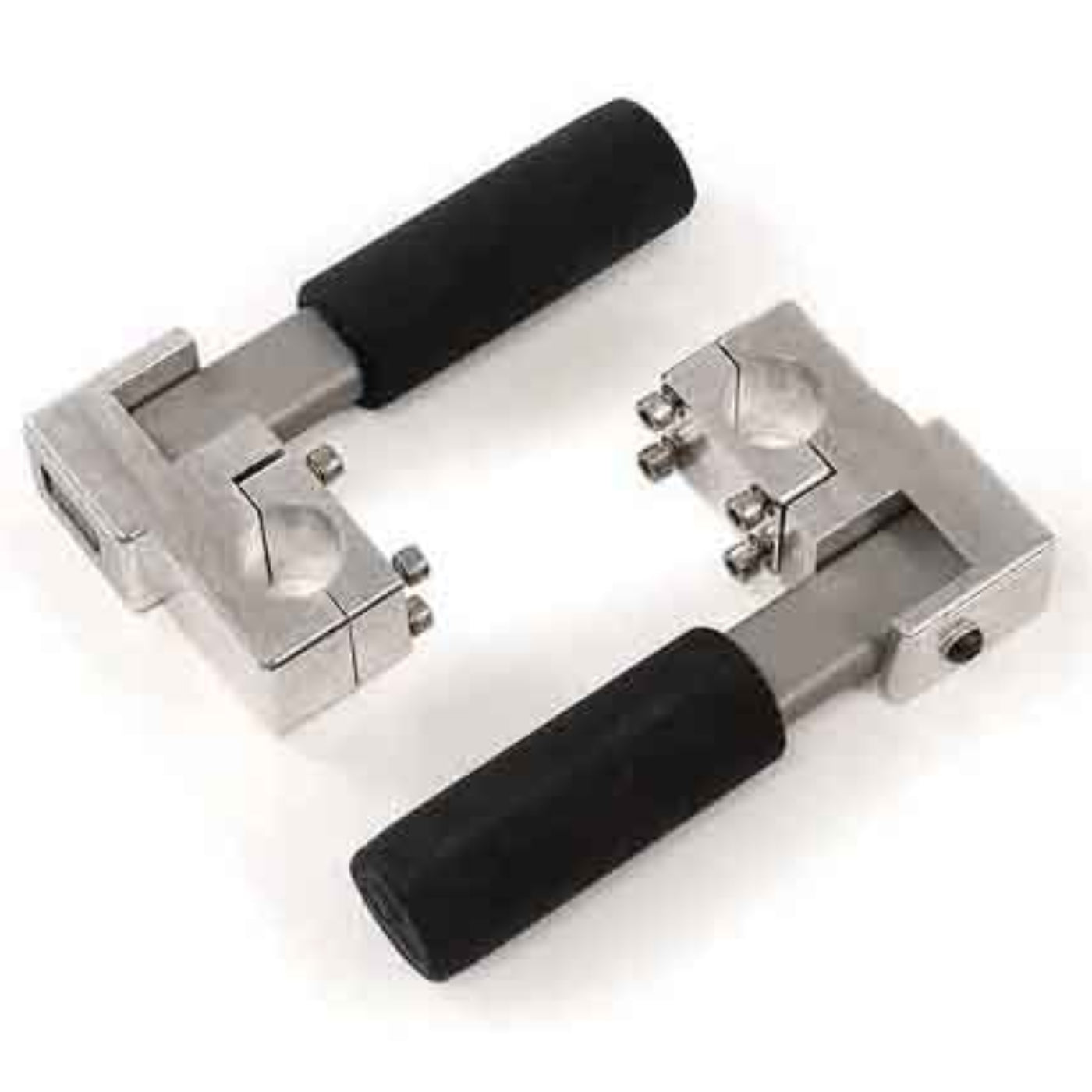

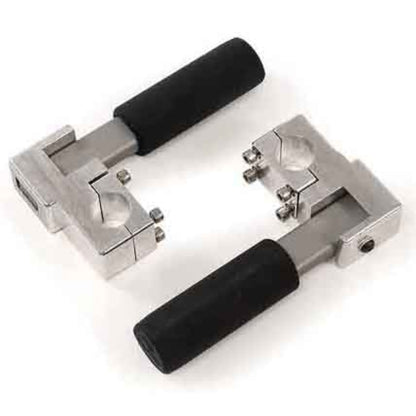

#0821998: Side-Lift Handles (Pair).
Literature
Literature
Ferno Mortuary Catalog
Ferno Model 24-MAXX, 24-miniMAXX, and 24-H miniMAXX Mortuary Cots User Manual
What our Experts Think
-
High-floor compatibility: 32″ loading height makes lifting and transferring remains easier in trucks or hearses with elevated floors.
-
Heavy-duty capacity: Supports up to 1,000 lb (454 kg), safely handling larger or heavier remains.
-
Space-efficient design: Narrow 23.6″ bed profile allows two cots side-by-side in larger vehicles.
-
Smooth control: Multi-level adjustable legs and dual hand controls enable precise, one-person operation.
-
Durable construction: 6″ wheels and a powder-coated steel frame provide long-lasting performance in demanding conditions.
-
Complete transport solution: Includes mattress and restraints; compatible with most Ferno covers and accessories.
-
Reliability guaranteed: Built for professional mortuary use, backed by a strong warranty on hard goods
Q&A
Q: What is the Ferno 24H‑miniMAXX Cot?
A: A high-leg, multi-level mortuary cot designed for safe and efficient body transport, ideal for high-floor vehicles.
Q: What is the load capacity?
A: Supports up to 1,000 lb (≈ 454 kg).
Q: What are the key features?
A: Adjustable height with 7 levels, dual hand controls, 6″ wheels, and a durable powder-coated finish.
Q: What is the loading height?
A: Approximately 32″ (≈ 81 cm), higher than standard cots for easier access.
Q: What are its dimensions and weight?
A: Length: 76″ (193 cm), Width: 23.6″ (60 cm), Max height: 40″ (100 cm), Min height: 14″ (34 cm), Weight: ~76 lb (34 kg).
Q: What accessories are included?
A: 1″ mattress and two 7-foot two-piece black restraint straps.

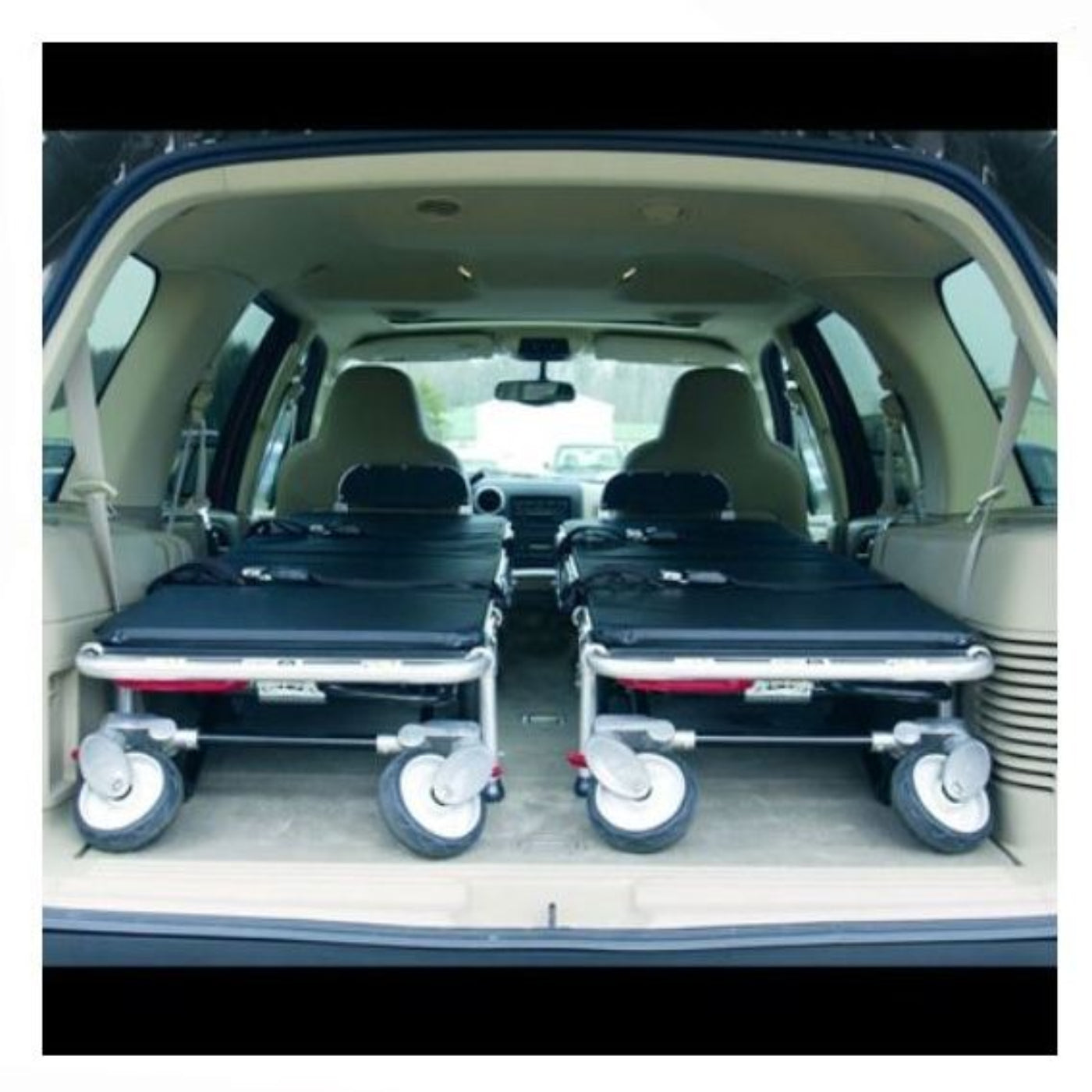

Q: Can two cots fit side-by-side?
A: Yes, its narrow profile allows two cots to be positioned side-by-side in a vehicle.
Q: How durable is it?
A: Powder-coated steel construction ensures long-term corrosion resistance and reliability.
Q: Are optional accessories available?
A: Yes, including side arms, side-lift handles, rolling-wheel kits, and replacement mattresses.
Maintenance Tips
-
Clean and disinfect: Wipe the frame, mattress, and handles with a mild disinfectant after each use; avoid harsh chemicals that can damage the finish.
-
Lubricate moving parts: Apply grease or synthetic lubricant to leg pivots and springs; keep upper leg pivot points free from lubricant.
-
Inspect frame & locks: Regularly check leg locks, handles, and level adjustments; ensure all locks engage fully before use.
-
Maintain wheels: Keep 6″ wheels spinning freely, bearings lubricated, and brakes functioning properly.
-
Use correct rolling posture: Only move the cot when level; avoid rolling in raised loading position to prevent tipping.
-
Store properly: Keep in a cool, dry area to prevent corrosion and maintain durability.
-
Replace soft goods: Use Ferno-approved replacement parts for mattresses, restraints, and side arms to maintain safety and warranty.
