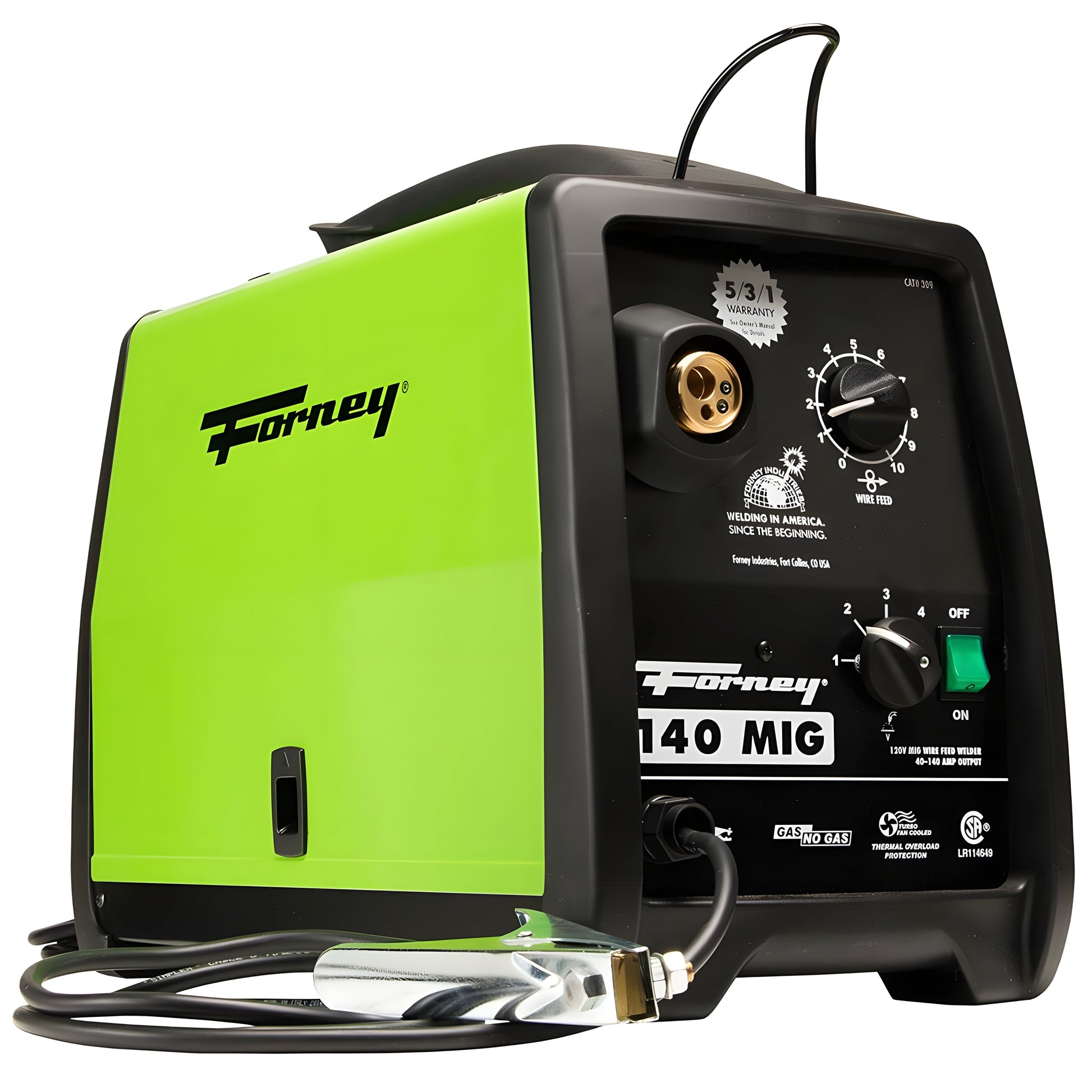

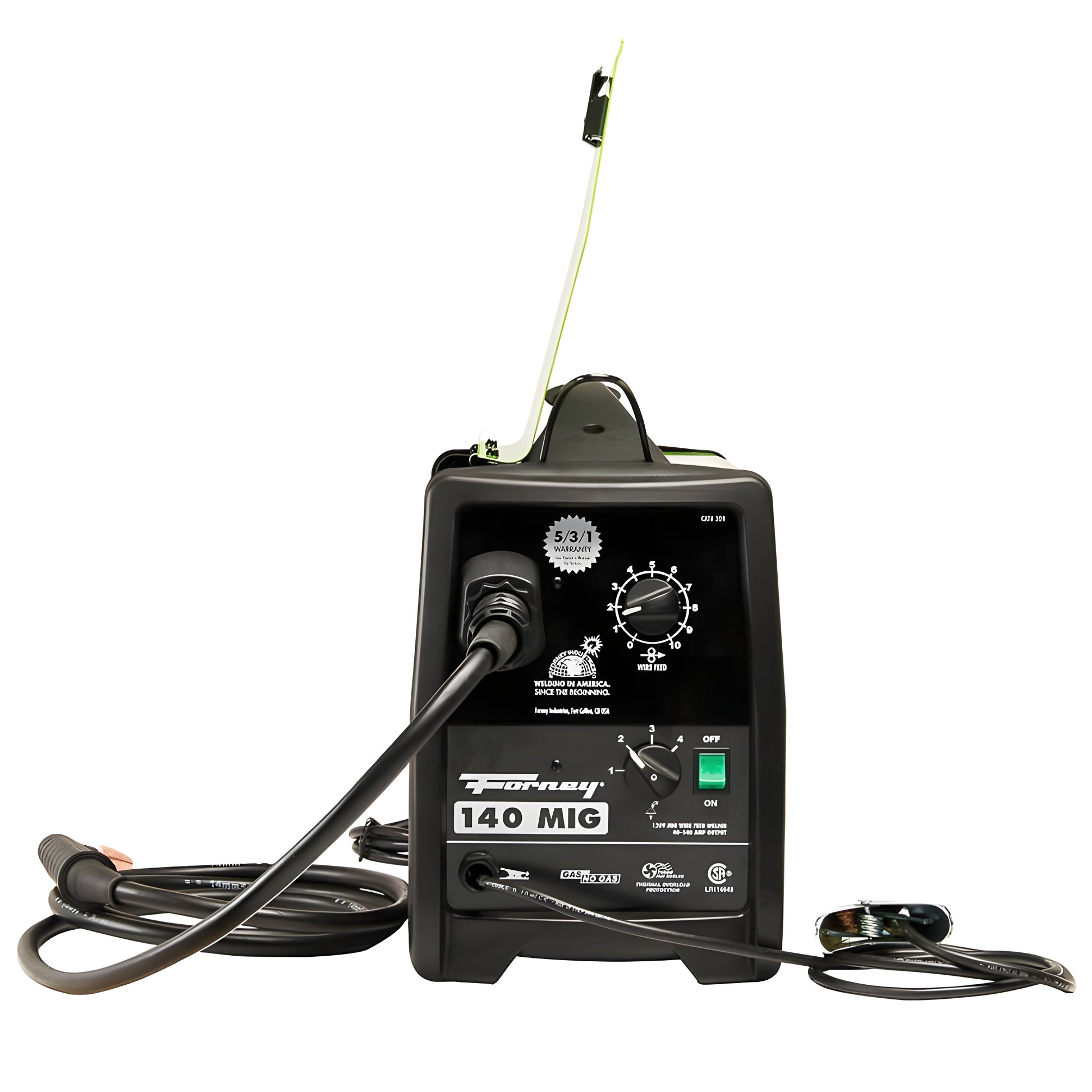

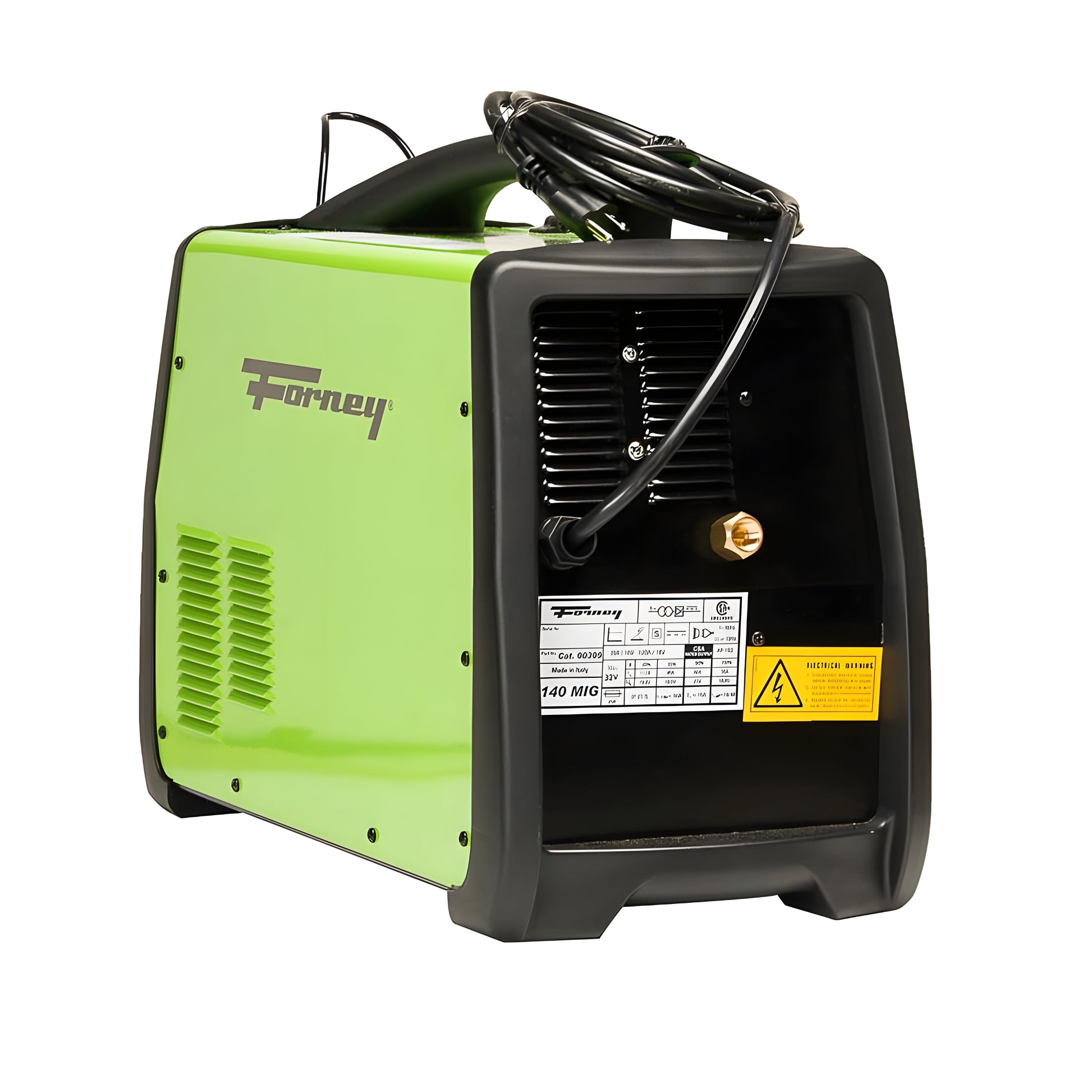

Forney 140 MIG Welder - 309
Easy to use
- Euro connect torch with Tweco style consumables
- Fast disconnect to swap out torch, clean liner
- 10' MIG gun
Improved Design
- Integrated feet
- Torch wrap included for cable organization
- Torch with built in strain relief which extends cable life
- 115A, 19.75V @ 20% Duty Cycle
- 90A, 18.5V @ 35% Duty Cycle
- 60A, 21V @ 60% Duty Cycle
- 55A, 16.75V @ 100% Duty Cycle
Power
- High-duty cycle of 115A@20%, 90A@35%, 60A@60%, 55A@100%
- Runs off of household 120V power
Better wire feeding
- Upgraded cast aluminum wire drive system
- Dual geared idler and drive roll with better de-spooler
More space
- Larger cabinet for easy access to 4" (1-2 lb.) and 8" (10-11 lb.) spools
Applications
- DIY
- Metal Fabrication
- Maintenance & Repair
- Farm & Ranch
- Automotive
Specifications
- Processes: MIG (GMAW); Flux Cored (FCAW)
- Input Power: 120V
- Amperage Range: 30-140A
- Wire Diameter Range: .024" - .035"
- Plate Thickness Range: 24 ga. - 1/4"
- Weight: 62 lbs. out of the box
- Dimensions: 19" x 9.5" x 16.5"
Includes
- MIG gun with 10' lead
- 10' ground cable & clamp
- Gas hose and regulator
What Our Experts Think
-
Compact & Portable: Lightweight design makes it easy to transport and store.
-
User-Friendly: Simple controls and wire feed adjustment, ideal for beginners and hobbyists.
-
Solid Performance: Delivers up to 140 amps for welding mild steel up to 1/8" thick.
-
Versatile Welding: Works with flux-core and MIG welding for different types of projects.
-
Durable Construction: Built to last with a sturdy frame for long-term use.
Q&A
Q: What is the Forney 140 MIG Welder - 309?
A: A compact and user-friendly MIG welder, perfect for beginners and light-duty tasks.
Q: What materials can it weld?
A: Primarily designed for mild steel and stainless steel, with the ability to weld aluminum using a spool gun (sold separately).
Q: What is the amperage range?
A: 30–140A, ideal for welding thin to medium-thickness materials.
Q: What power input does it require?
A: 120V, making it suitable for standard household outlets.
Q: What is the duty cycle?
A: 20% at 140A, perfect for light welding tasks with occasional use.
Q: Can it weld aluminum?
A: Yes, but requires a separate spool gun for aluminum welding.
Q: Is it easy to use?
A: Yes, it features simple controls and an adjustable wire feed speed for ease of use.
Maintenance Tips
-
Inspect Cables & Connections: Check for frayed wires, loose connections, and damaged insulation to ensure safe operation.
-
Clean Drive Rollers & Wire Feed System: Remove dust and debris to prevent wire feeding issues and ensure smooth operation.
-
Monitor & Replace Contact Tips & Nozzles: Worn tips affect arc stability—replace them as needed for consistent weld quality.
-
Check Ground Clamp: Ensure a clean and secure ground connection to avoid erratic arcs.
-
Inspect Gas Flow & Hoses: Look for leaks and ensure proper shielding gas flow for clean welds.
-
Follow Duty Cycle Limits: Prevent overheating by operating within the recommended duty cycle.
-
Keep Ventilation Openings Clear: Prevent dust buildup in cooling vents to maintain proper airflow and cooling.
-
Store in a Dry, Clean Area: Protect from moisture and contaminants to extend machine life.
-
Perform Routine Maintenance: Regularly inspect fans, wire feed mechanisms, and internal components for dust and wear.
