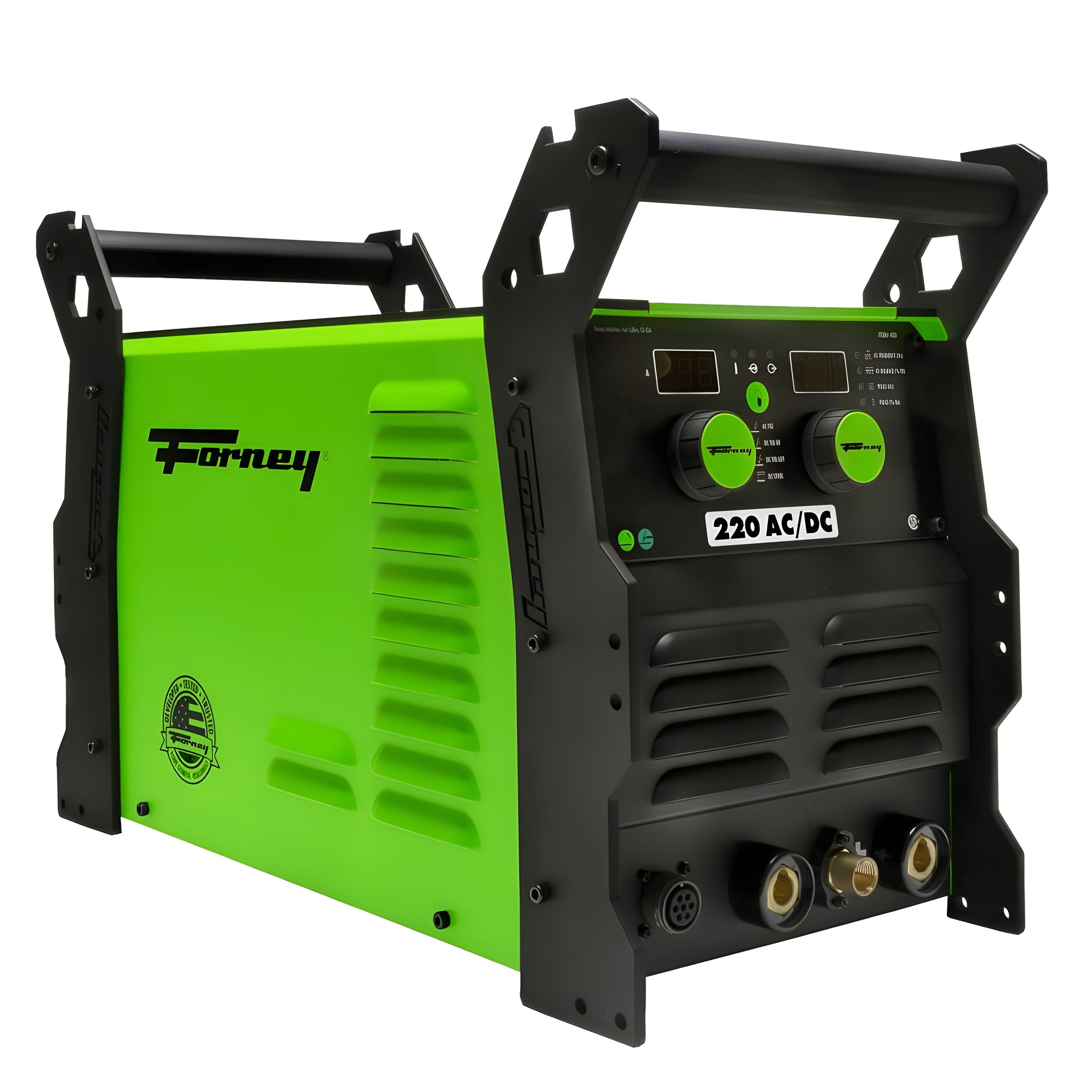

Forney 220 AC/DC TIG Welder Package - 420032277004207

Forney 220 AC/DC TIG Welder Package - 420032277004207

The Forney 220 AC/DC TIG welder is an ideal TIG machine for a wide variety of users. Perfect for beginners to professionals, this powerful machine features dual-voltage with 120V/230V input power. The ability to weld up to 1/2” and 220 AMPs of welding power makes machine a great tool for professionals. The intuitive controls allow for quick set-up and simple operation. This machine features amperage control settings as low as 5 AMPs, features pulse capabilities and allows users to weld with low frequency. What’s more, the ability to use AC and DC power makes welding anything from mild steel to aluminum a breeze!

Features

• Stable Arc at 5 AMPs
• Pulse Welding
• High Frequency Starts
• Ability to Turn Off High Frequency
• TIG Torch/Foot Pedal Combination
• Dual-Voltage
• Digital Gauges

Specifications

Processes

• SMAW (Stick)
• GTAW- DC-P (TIG/Pulsed TIG)

Output Power

TIG

• 120V: 40% @ 130 AMP
• 230V: 35% @ 220 AMP

Stick

• 120V: 40% @ 85 AMP
• 230V: 35% @ 200 AMP

Input Power

• 120V @ 24.8 AMP
• 230V@ 32 AMP

Welding Capacity

• Up to 1/2 inch

Wire/Electrode Diameter

• Stick: 1/16" (1.6 mm) to 5/32" (4.0 mm)
• TIG: .40" (1.02 mm) to 1/8" (3.2 mm)

Unit Weight of Welder Out of Display Box

• 54 lbs. (24.54 kg)

Unit Dimensions of Welder Out of Display Box

• H: 15.5" (393.7 mm)
• L: 23.25" (263.53 mm)
• W: 10.375" (590.55 mm)

For Use On

• Solid Steel
• Cast Iron/Steel
• Stainless Steel
• Aluminum

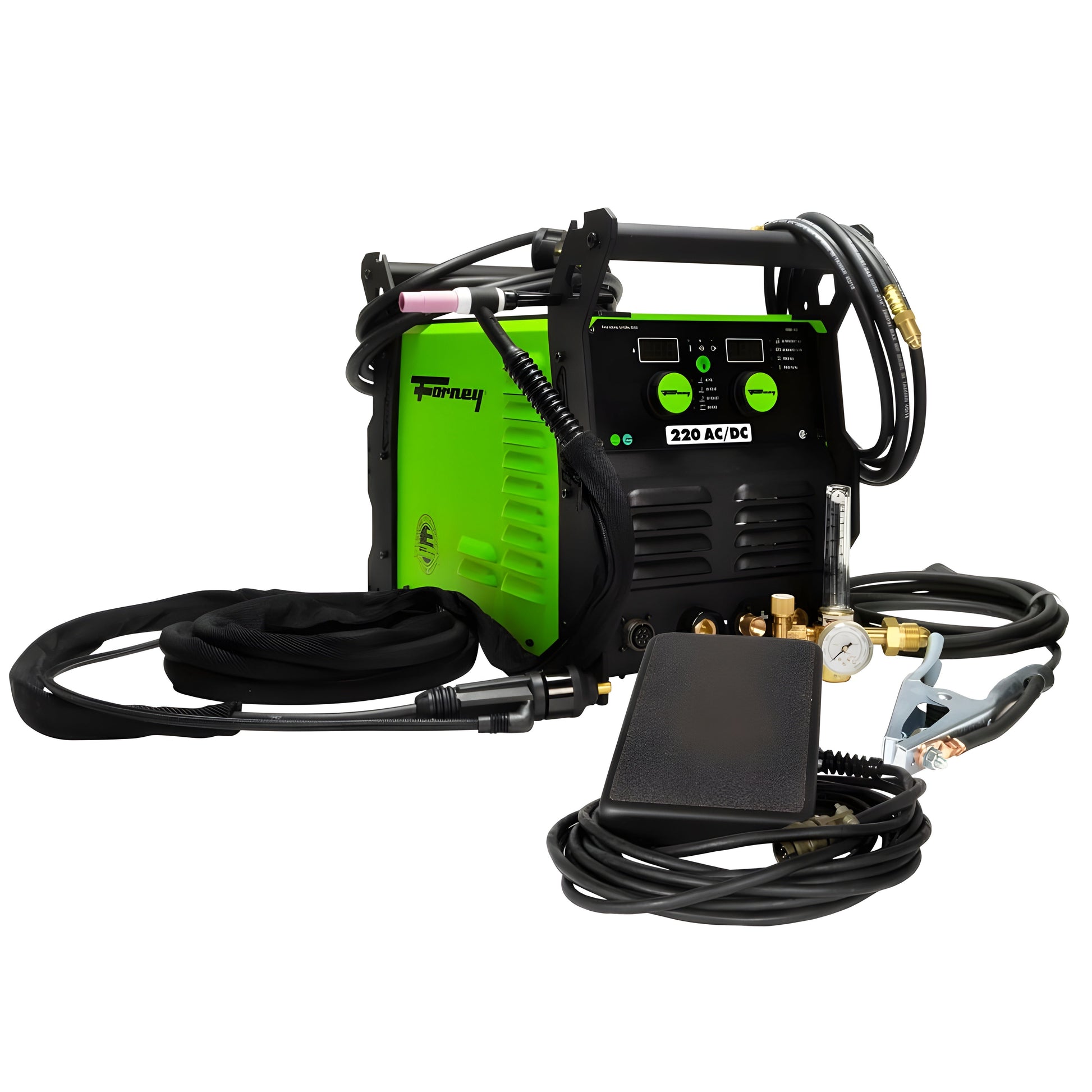

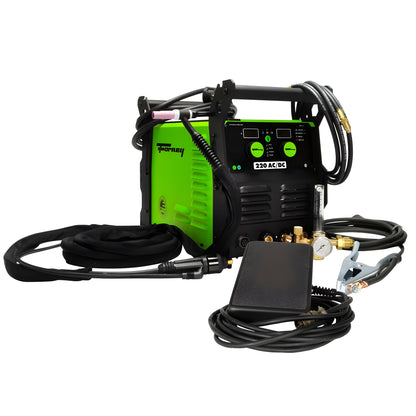

Included Accessories

• 12.5' (3.81 m) 150 AMP 17 Series TIG Torch with Flexible Neck
• 12.5' (3.81 m) 7 Pin Foot Pedal
• 15’ (4.57 m) Ground Clamp with Cable
• 15’ (4.57 m) Electrode Holder with Cable
• 15’ (4.57 m) Input Power Cable
• Flowmeter with Hose

What Our Experts Think

• AC/DC Functionality: Offers both AC and DC TIG welding capabilities for versatile welding on a variety of metals.
• Powerful Output: Delivers up to 220 amps for handling thicker materials with precision.
• Comprehensive Package: Includes everything you need, including the TIG torch, ground clamp, and more.
• Precision Welding: Ideal for fine, detailed welds with high control over the arc.
• Durable & Reliable: Built to withstand demanding environments and deliver consistent results.

Q&A

Q: What is the Forney 220 AC/DC TIG Welder Package?
A: A high-performance TIG welder that supports both AC and DC for welding a variety of materials, including aluminum and steel.

Q: What is the amperage range?
A: 10–220A, providing flexibility for welding thin and thick materials.

Q: What processes does it support?
A: TIG welding with both AC (for aluminum) and DC (for steel, stainless steel, and other metals).

Q: What is the duty cycle?
A: 40% at 220A, ensuring reliable performance for sustained welding sessions.

Q: Does it come with everything needed to start welding?
A: Yes, it comes as a complete package with a TIG torch, ground clamp, foot pedal, and more.

Q: What type of power input is required?
A: 220V power supply, suitable for more demanding welding tasks.

Q: Is it suitable for both beginners and experienced welders?
A: Yes, it features user-friendly controls and settings that cater to both beginners and professionals.

Q: Does it come with a warranty?
A: Yes, the Forney 220 AC/DC TIG Welder Package is backed by a Forney warranty—check the manufacturer's details for full terms.

Maintenance Tips

• Inspect Cables & Connections: Regularly check for frayed wires, loose connections, and damaged insulation to ensure safe operation.
• Clean Torch & Consumables: Keep the torch, electrode holder, and gas nozzle free from debris to maintain a stable arc.
• Check Gas Flow & Hoses: Inspect hoses for leaks and ensure proper shielding gas flow for clean welds.
• Monitor Tungsten Electrodes: Sharpen or replace electrodes as needed for precise welding.
• Maintain Proper Cooling: Follow the recommended duty cycle and ensure adequate airflow around the welder to prevent overheating.
• Secure Ground Clamp: Ensure a clean and tight ground connection to avoid arc instability.
• Store in a Dry, Clean Area: Protect from moisture, dust, and contaminants to prevent internal damage.
• Schedule Routine Maintenance: Inspect internal components, fans, and circuit boards for dust buildup or wear.
