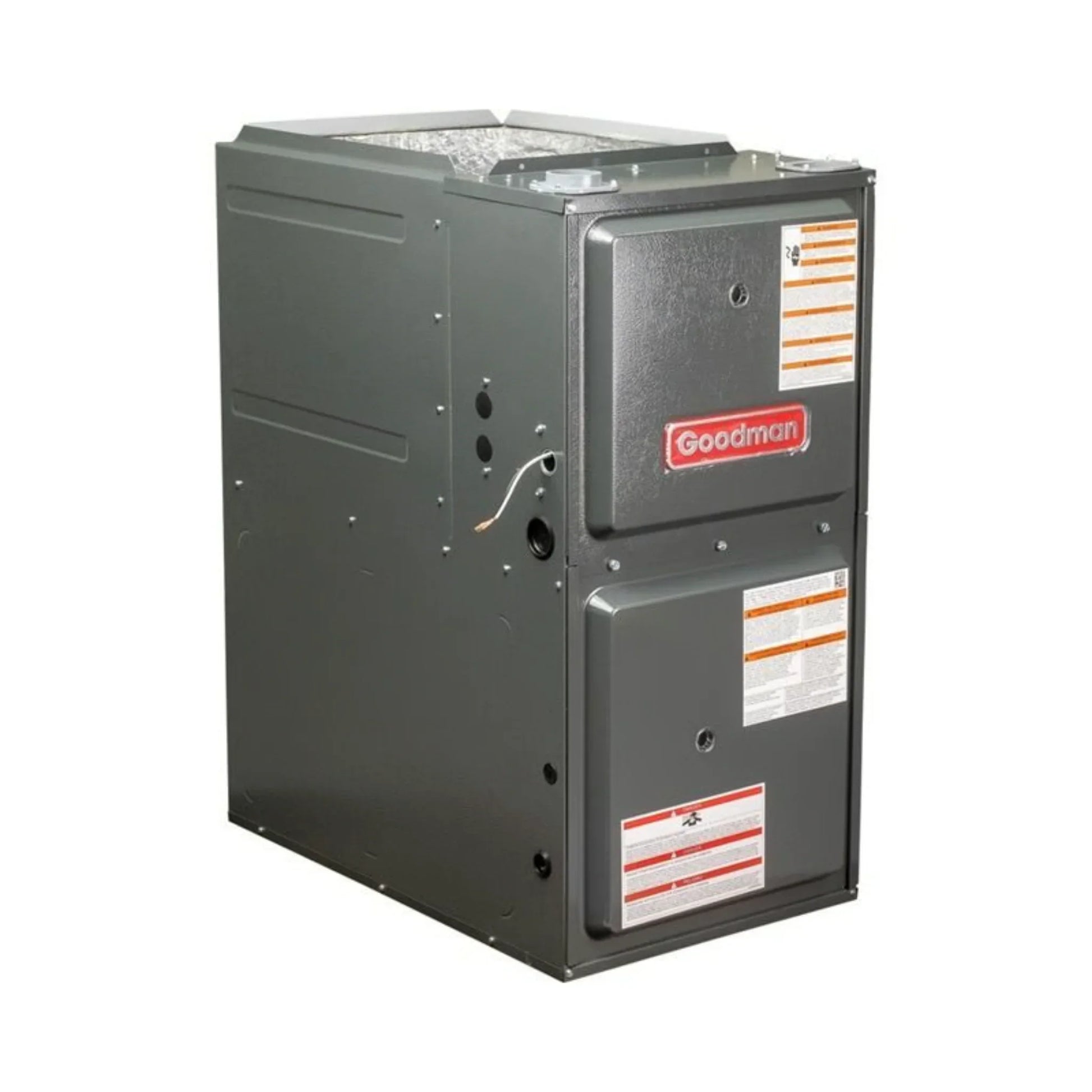

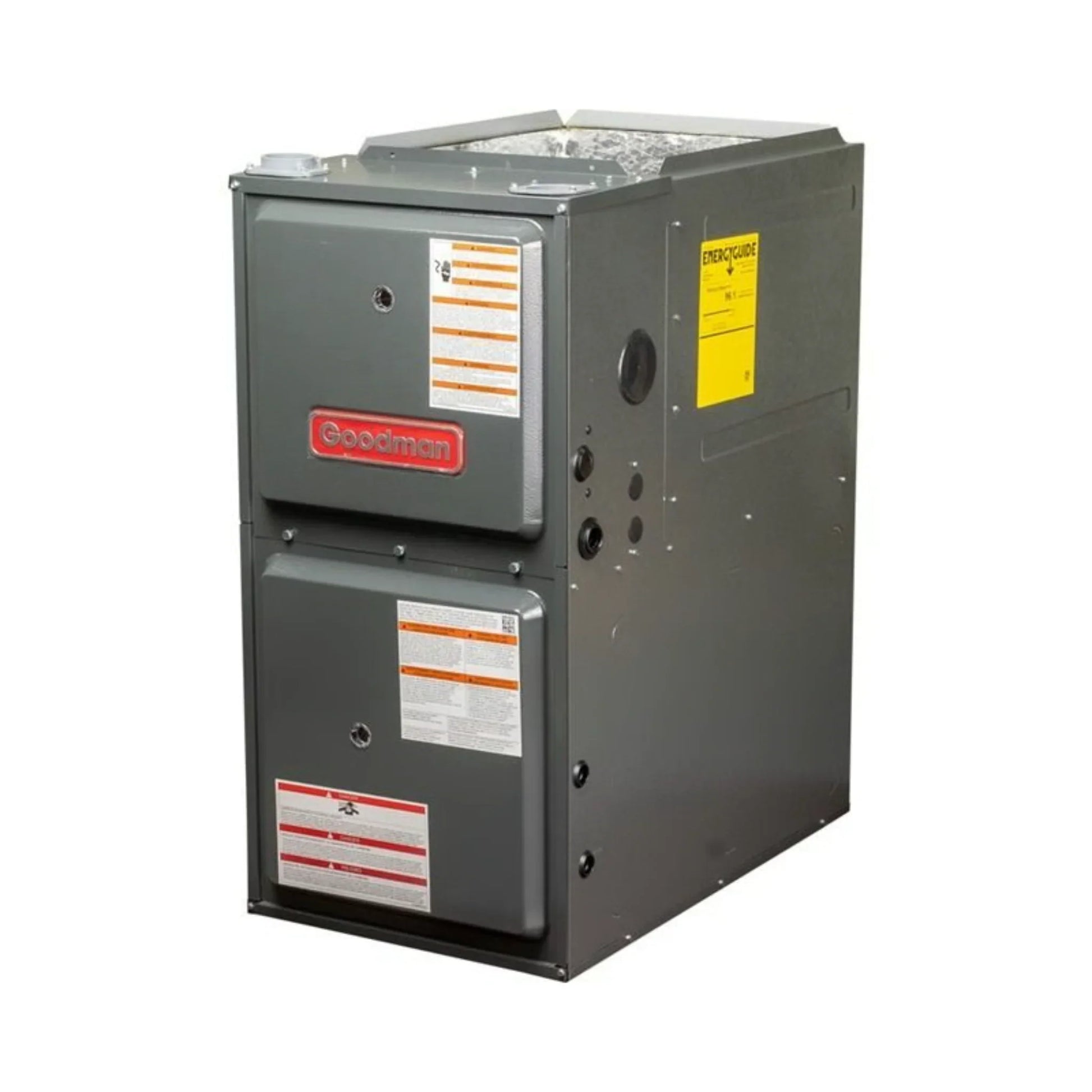

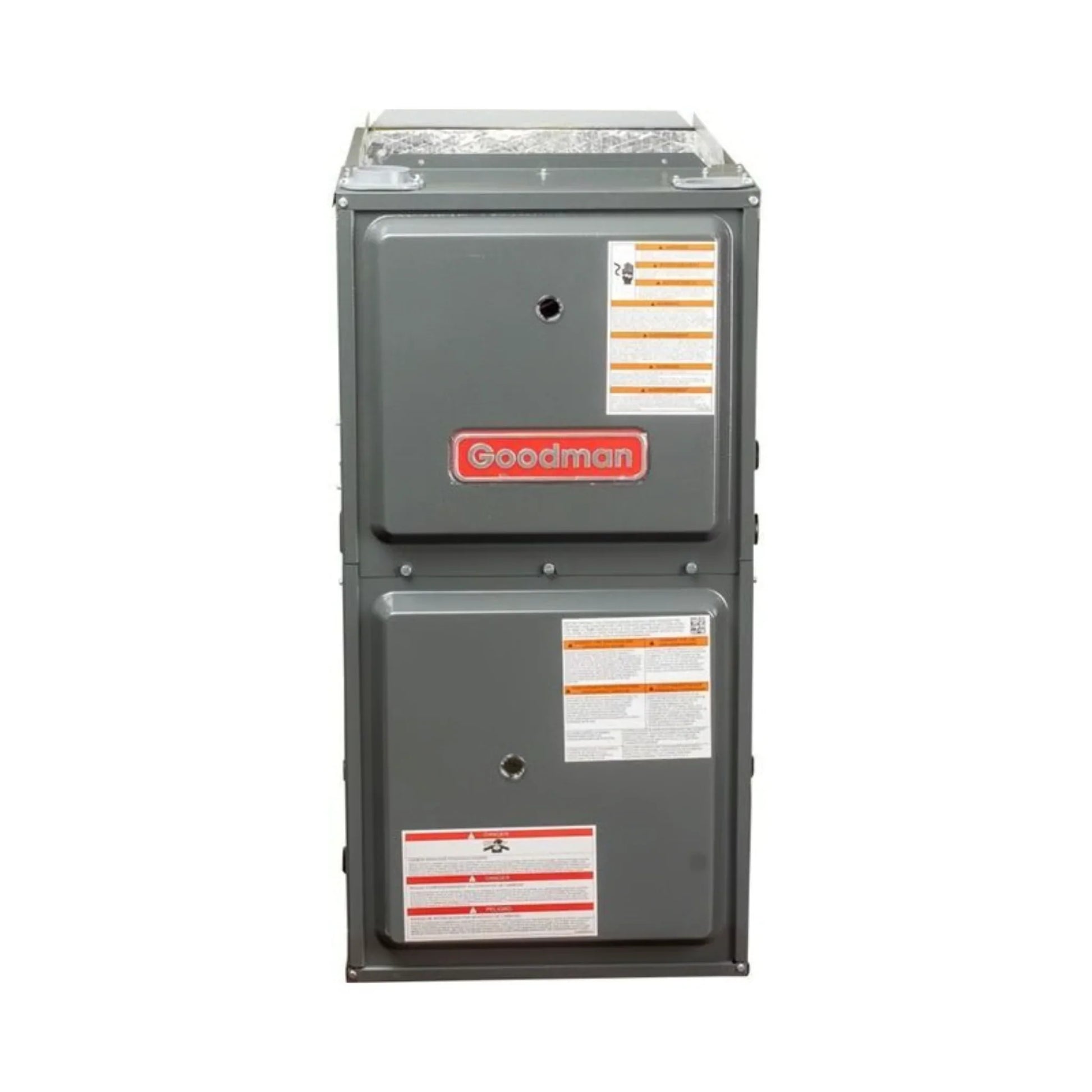

Goodman - 60,000 BTU 96% Gas Furnace - 17.5" Width - Upflow / Horizontal - Single Stage - 115V - R32 - GR9S960603BN
The GR9S960603BN Goodman gas furnace features high-quality construction and efficient operation at a great value. The GR9S960603BN single-stage, 9-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GR9S960603BN.
Features
- This furnace is ideal to heat a small to medium house (depending on climate)
- 60,000 BTU 96% efficient natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
Specifications
| Goodman 96% 60,000 BTU Single Stage Gas Furnace - 17.5" Width - Upflow / Horizontal |
| SKU |
GR9S960603BN |
| Weight (in lbs) |
118.000000 |
| AHRI Certificate Number |
215224972 |
| Airflow Direction |
Upflow/Horizontal |
| Exhaust Flue Requirement |
Plastic / PVC |
| R-32 Compliant |
Yes |
| Brand/Manufacturer |
Goodman |
| Product Features |
New Refrigerant Compliant |
| Furnace Efficiency / AFUE |
96% |
| Heating BTU |
60,000 |
| Blower Motor |
9 Speed - ECM |
| Maximum CFM |
1200 |
| Configuration |
Upflow/Horizontal |
| Energy Star |
Yes |
| Filter Size |
16" x 25" |
| Electrical |
115 V. 1 Phase 60 Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
10.1 Amps |
| Burner Stages |
Single |
| Fuel Type |
Propane, Natural Gas |
| Height |
34.5" |
| Width |
17.5" |
| Depth |
28.75" |
Manual
What our Experts Think
-
Efficient 60 k BTU Heating: With 96 % AFUE, this furnace turns nearly all fuel into usable heat—slashing energy waste and lowering heating costs compared to standard efficiency models.
-
Right‑Sized Output: 60,000 BTU capacity is ideal for small to medium homes, delivering consistent warmth without oversized operation.
-
Single‑Stage Simplicity: Single‑stage gas valve provides reliable, predictable heat delivery with fewer components—translating to straightforward maintenance and long‑term durability.
-
Flexible Installation: Supports upflow or horizontal orientation, allowing placement in attics, crawlspaces, closets, or basements with tight clearances.
-
Compact 17.5″ Width: Narrow cabinet design fits well in space‑constrained mechanical areas without sacrificing performance.
-
Standard 115 V Power: Common 115‑volt operation ensures easy electrical compatibility in most residential installs.
-
Service‑Friendly Layout: Accessible panels and intuitive internal layout make servicing and routine maintenance simpler for HVAC technicians.
-
Modern R‑32 Compliance: Built to integrate with R‑32 refrigerant system standards, ensuring compatibility with modern HVAC pairings.
Q&A
Q: What heating capacity and efficiency does this furnace deliver?
A: The Goodman GR9S960603BN delivers 60,000 BTU input heat with 96% AFUE efficiency, converting nearly all fuel into usable warmth to cut heating costs.
Q: What type of furnace is it?
A: It’s a single‑stage gas furnace with a multi‑speed ECM blower motor (9 speeds) for quieter, efficient airflow and better comfort control.
Q: What installation orientations are supported?
A: Designed for upflow or horizontal (left/right) installation, providing flexibility for basements, attics, or closets.
Q: What refrigerant compliance and venting does it use?
A: Compatible with R‑32 systems and requires PVC/plastic venting due to its high‑efficiency design.
Q: What durability and performance features are included?
A: Features include heavy‑duty aluminized steel primary and stainless‑steel secondary heat exchangers, Silicon Nitride igniter, self‑diagnostic control board, and color‑coded terminals for easier service.
Q: What are the electrical and physical specs?
A: Operates on 115 V single‑phase power, supports up to 1200 CFM airflow, and measures approximately 17.5″ W × 28.75″ D × 34.5″ H.
Q: What fuel types are supported?
A: Factory set for natural gas and convertible to propane (LP) with the correct kit.
Maintenance Tips
-
Replace or clean air filters every 1–3 months to maintain airflow and prevent dust buildup on the heat exchanger and blower.
-
Inspect the heat exchanger annually for cracks or corrosion to ensure safe and efficient operation.
-
Clean burners, pilot assembly, and ignition system for proper single-stage combustion.
-
Check the blower motor and fan assembly for dust, debris, and lubrication needs.
-
Inspect venting and flue pipe for obstructions or leaks to ensure safe exhaust of combustion gases.
-
Test gas valve and thermostat for accurate temperature control.
-
Verify 115V electrical connections and inspect wiring for wear or corrosion.
-
Keep surrounding area clear to maintain airflow and reduce fire hazards.
-
Schedule annual professional HVAC service for full inspection, cleaning, and safety testing.
