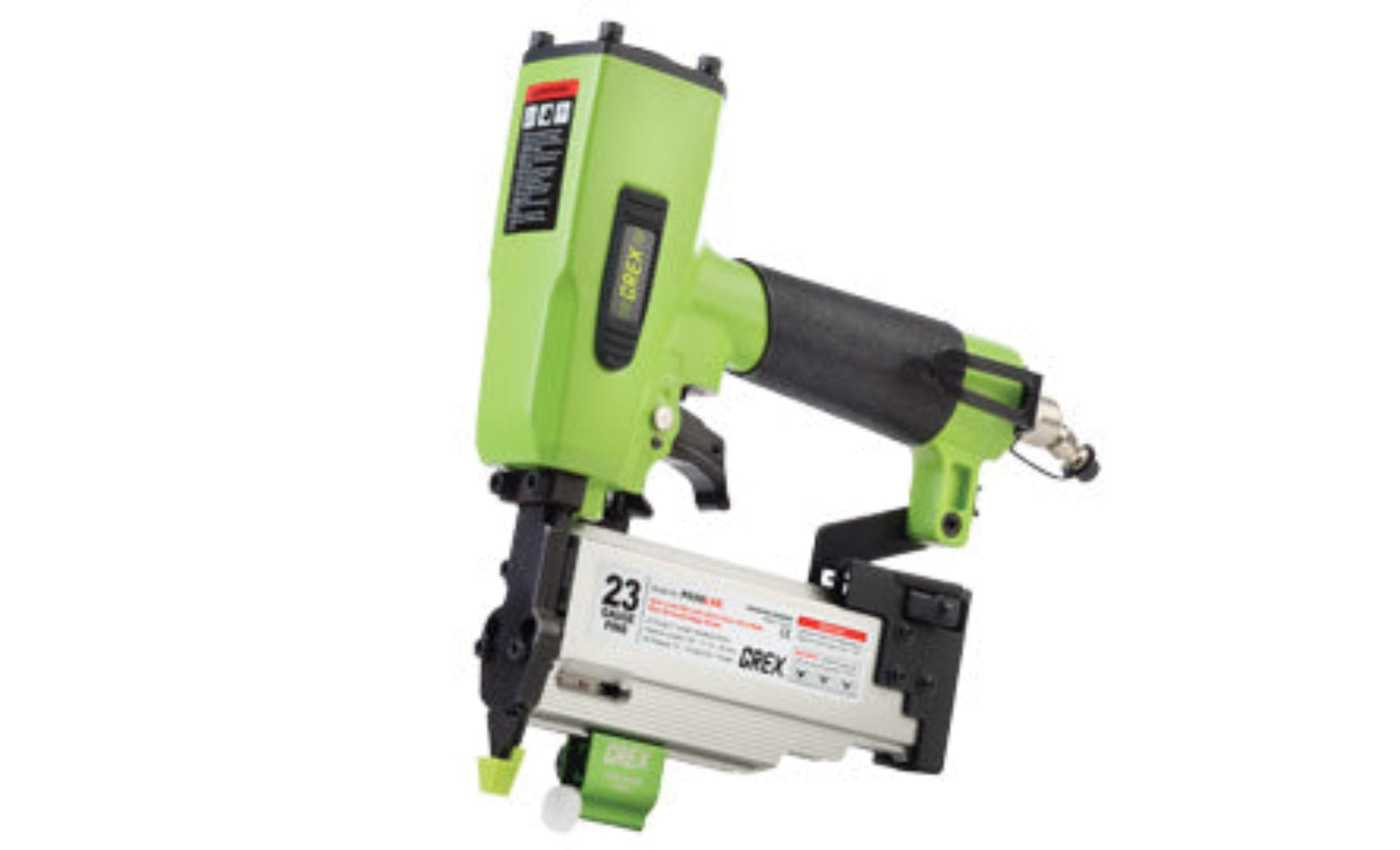

GREX 23 Ga 2" Headless Pinner, 1 Touch OverRide LockOut - P650LXE

GREX 23 Ga 2" Headless Pinner, 1 Touch OverRide LockOut - P650LXE

Fulfilling a higher demand 1) to accommodate smaller compressors; 2) for convenience and safety; and 3) for long headless pins and more hardwood applications we took the best and made it even better.

Announcing the GREX P650LXE, combining a larger motor with an Auto Lock-Out featuring the new patent pending One-Touch Over-Ride, 2" headless pin capability, a steel belt hook, and a contact safety. Adding an "X" (Extra Power) to the P650LXE means: Extra power even with smaller compressors, extra convenience, and most importantly an extra safety. Adding the "L" (Auto Lock-Out) to the GREX P650LXE means: Less rework, less down time, and less tool and project damage. Now drive longer fasteners into harder woods with smaller compressors and a more robust motor. The "E" refers to the new patent pending Edge Guide directly integrated on to the tool.

The adjustable on-board Edge Guide enables you to work faster and with more precision when assembling drawer boxes, cabinets boxes or similar. Drive nails at a consistent distance from a referenced edge. Its easy to adjust, set and operate. When not needed, the Edge Guide can be conveniently directly stored on the tool for convenient access when needed.

The GREX P650LXE Auto Lock-Out features a new patent pending One-Touch Over-Ride. Now tack or finish a project using the 10 “reserve” headless pins with one touch to the One-Touch Over-Ride button.

Auto Lock-Out was added to prevent dry-firing and to assist in difficult, more critical jobs such as overhead crown molding. Dry-firing can cause damage to the tool and might cause damage to an exquisite, expensive project. To prevent dry-firing, the Auto Lock-Out locks the GREX P650LXE with approximately 10 pins remaining in the magazine. High up on a ladder fastening overhead, with a single touch, press the One-Touch Over-Ride button and safely use the remaining pins to tack a project-piece in place.

What’s more, the high tolerance precision machined hardened steel driver, Posit-Lock nose cover and nose guide assembly aligns and seats the headless pin for optimal drive performance. What is Posit-Lock - it's tight tolerance, durability and functionality that reduces jams to a minimum.

The P6 Series comes in five different designs: P630, P635, P650, P650L and the P650LXE.

GREX, demanded by Pros, for more than 20 years has helped professionals rise to the top of their trade. Now explore.

What our Experts Think

• Professional‑Level Headless Pinning – Drives 23 ga headless pins (3/8″ – 2″) for nearly invisible joints in finish work, trim, cabinetry, and lightweight assemblies.

• One‑Touch Over‑Ride Lock‑Out – Auto lock‑out stops dry firing as pins run low, reducing damage; override lets you safely use the last pins without interruption.

• Extra Power for Tough Jobs – Larger motor delivers stronger drive even with smaller compressors and into harder woods.

• Integrated Edge Guide – On‑board adjustable edge guide speeds up work and enhances precision for consistent placement.

• Precision Build & Low Jams – High‑tolerance hardened steel driver with Posit‑Lock nose cover reduces jams and improves reliability.

• User‑Friendly Features – Lightweight aluminum body, swivel air coupler, no‑mar tip, fastener window, and belt hook support comfortable all‑day use.

Q&A

Q: What is this tool?
A: A 23‑gauge pneumatic headless pinner for precision woodworking and finish applications, driving headless pins up to 2″ long for tight, nearly invisible joints.

Q: What makes it powerful and reliable?
A: A larger motor drives pins into hardwoods and, combined with a patent‑pending auto lock‑out, prevents dry‑firing that can damage tools or projects.

Q: What is the One‑Touch OverRide feature?
A: When the tool locks out with ~10 pins left, a One‑Touch OverRide button lets you use the remaining reserve pins without reloading mid‑task.

Q: How does the Edge Guide help?
A: The on‑board adjustable Edge Guide enables consistent pin placement relative to an edge, and stores right on the tool when not needed.

Q: What fastener range does it support?
A: Drives 23 ga headless pins from 3/8″ to 2″, and the patented magazine self‑adjusts for 14 different lengths.

Q: What ergonomic and usability features are included?
A: Lightweight aluminum body, no‑mar rubber tip, fastener indicator window, drop‑in loading, swivel air coupler, rear exhaust silencer, and steel belt hook for comfortable, all‑day work.

Q: Ideal applications?
A: Great for overhead work, light wood assembly, finish/trim, molding, dowel/joint pinning, framing, cabinetry, and detail woodworking.

Maintenance Tips

• Oil the Air Inlet Daily – Before use, add a few drops of pneumatic tool oil to the air inlet to lubricate internal seals and moving parts, reducing wear and improving reliability.

• Clean After Each Use – Blow out or brush dust, wood chips, and debris from the nose, magazine, and feed path to prevent jams and ensure smooth nailing.

• Inspect Driver & Nose Assembly – Check the driver blade and nose tip regularly; replace worn parts to keep clean penetration and avoid misfires.

• Use Dry, Filtered Air – Connect through a compressor filter / moisture trap to keep water and contaminants out of the tool’s internals.

• Check O‑Rings & Springs – Periodically inspect internal seals, O‑rings, and return springs; replace if cracked or damaged to maintain consistent performance.

• Store Properly – Disconnect from the air supply and remove all fasteners before storing in a dry, clean location; apply a light tool oil film on metal surfaces if unused for extended periods.
