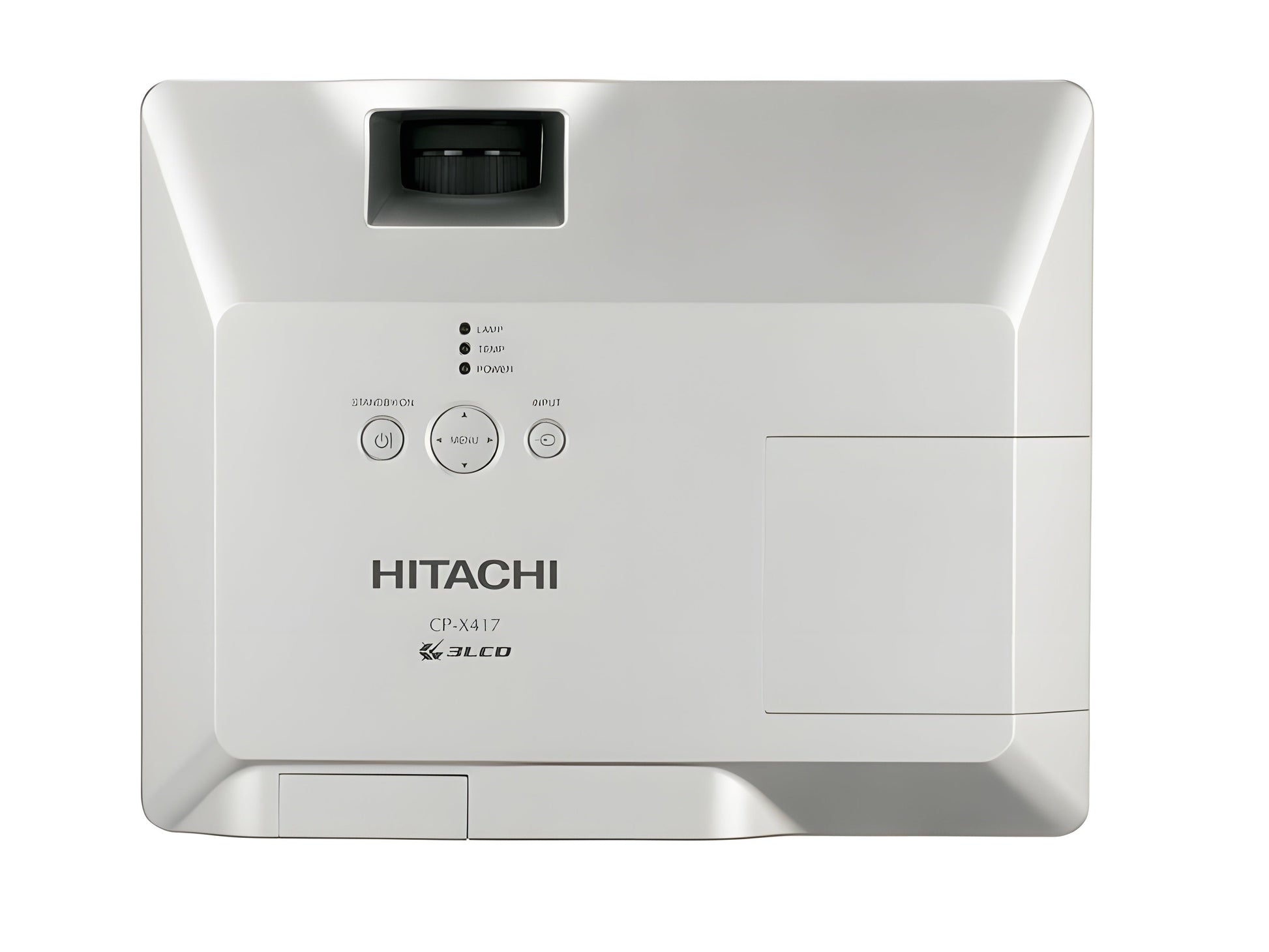

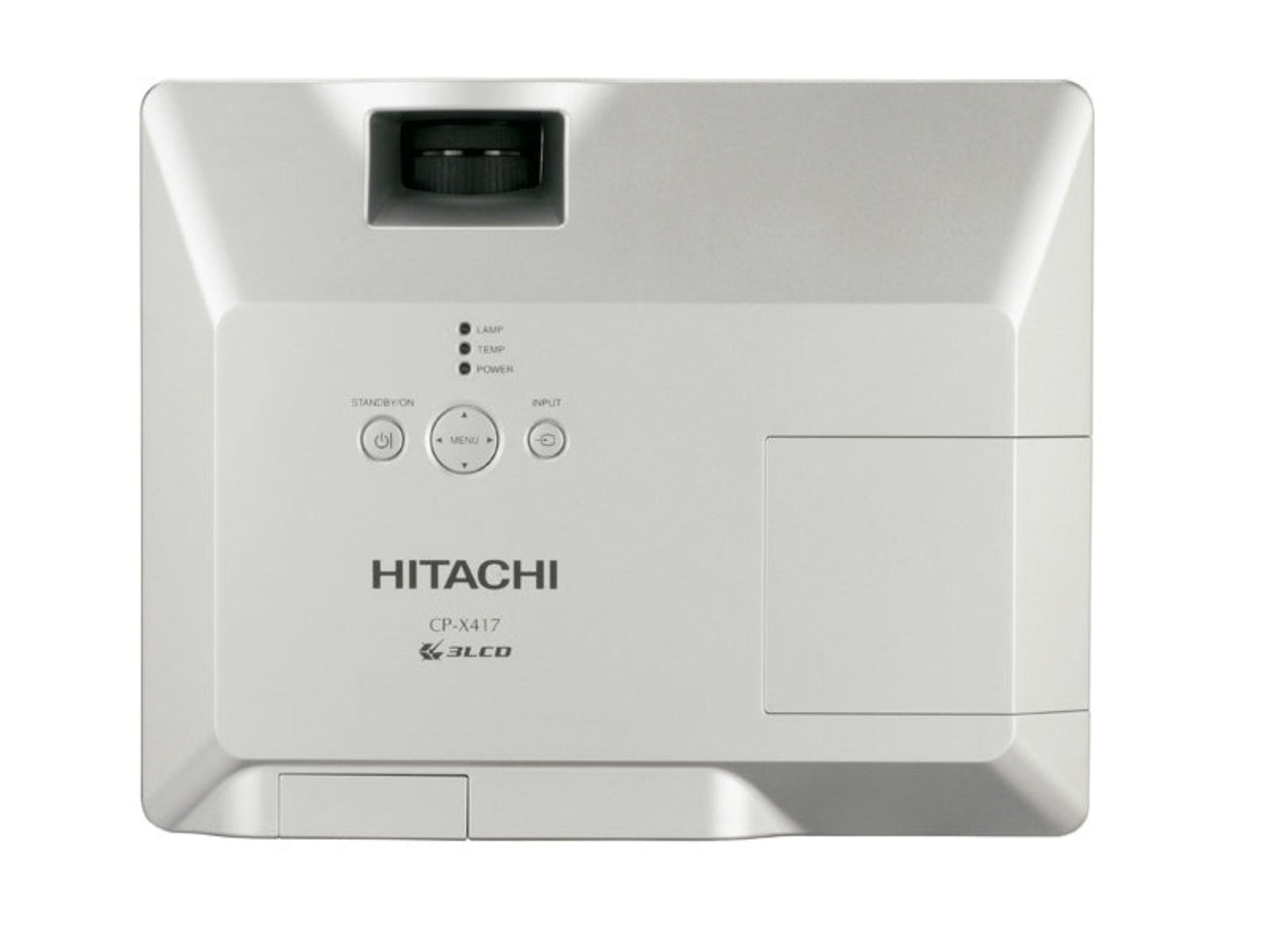

Hitachi CP-X417 LCD Projector - CPX417
The Hitachi CP-X417 3LCD projector offers wireless connectivity and networking, allowing end-users to monitor multiple projectors from a remote location. The CP-X417 features built-in networking, allowing for the monitoring and managing of one or more projectors from a remote location. With Hitachi's proprietary PJ Man software, users can easily monitor the status of the projector (or many projectors), as power on/off, input source, lamp/filter hours and condition are all on display. Moreover, the software allows for control over these functions. Additionally, users can schedule power on/off events on an hourly, daily and weekly basis. Events can be applied to an individual or group of Hitachi projectors. Other features such as e-mail alerts for scheduled maintenance or error conditions, as well as password protection, give the user a new level of control at no extra charge. Weighing only 8.8 pounds, the Hitachi CP-X417 boasts 3,000 ANSI lumens of brightness and native XGA resolution. The CP-X417's 802.11 b/g wireless feature allows users to connect and present with 4 PCs simultaneously. Additionally, the CP-X417 offers two RGB inputs and one RGB output, as well as component, composite and S-Video inputs. A built-in 7-watt audio output is also available. Customizability is another strong feature of the CP-X417. Hitachi's proprietary My Screen software allows users to display preset images that appear upon powering up the projector. Additionally, the CP-X417's remote control contains Hitachi's My Buttons feature, giving users the ability to customize the buttons on the remote to suit their needs. The CP-X417 features a side-mounted high-performance filter and top door lamp for easy maintenance. Additional security features include a transition detector (a built-in sensor that recognizes when the projector has been moved), as well as a Kensington slot and security bar. The CP-X417 also has a low fan noise of 29 dB in Whisper Mode and a lamp life of 3,000 hours in Whisper Mode.
Features
- 3000 LUMENS
- XGA 1024 X 768
Specifications
| Custom Aspect Ratio |
4:3 (XGA) |
| Native Resolution |
1024 x 768 |
| Contrast Ratio |
400:1 |
| Throw Distance |
3.4 - 29.3 ft |
| Lens |
F1.6 - 1.8 |

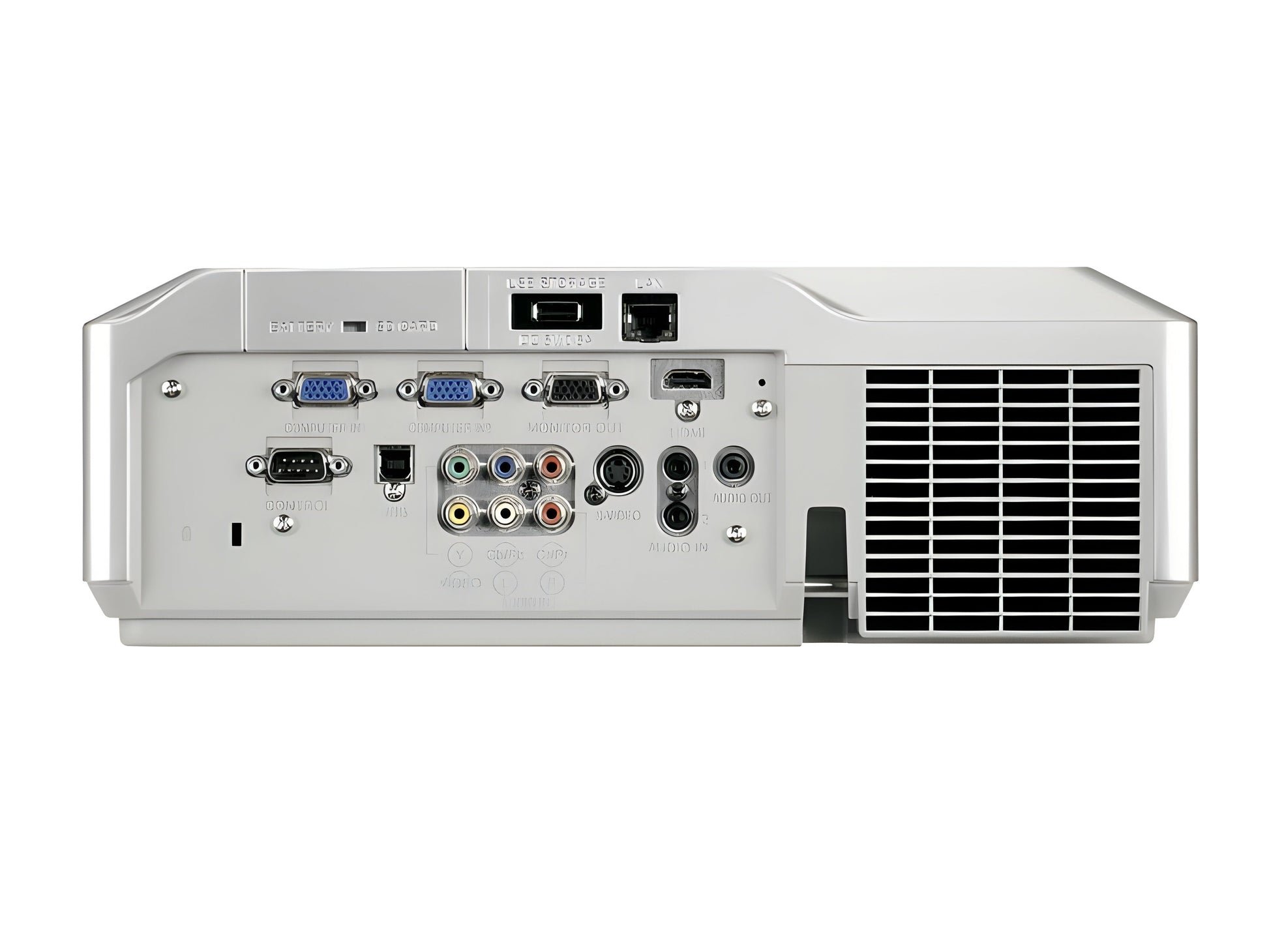

| Inputs |
2 x RGB D-Sub 15pin, 1 x Component, 1 x Composite, 1 x S-Video |
| Outputs |
1 x RGB D-Sub 15pin |
| Display Technology |
LCD |
| Wireless Networking |
Yes |
| Speakers |
1 x 7W Mono |
| Economode |
2400 lumens; Lamp life: 3000 hours; Noise: 29 dB |
| Audible Noise |
35.0 dB |
| Lamp Life |
2000 hours |
| Aspect Ratio |
4:3 (XGA) |
| Image Size Diagonal |
30 - 300 in. |
| Lens Shift |
No |
| Data / Video Signals |
Native: XGA (1024 x 768) Supports: Up through UXGA PC and MAC compatible, DTV: 480i, 576i, 480p, 720p, 1080i NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N |
| Digital Keystone |
Horizontal & Vertical |
| Unit Weight |
8.4 lbs |
| Projector Methods |
Front, Rear, Ceiling |
| Dimensions (WxDxH) |
10.6 x 4.6 x 13.4 in. |
| Power Consumption |
320W |
What Our Experts Think
-
High Brightness: 3000 ANSI lumens deliver clear and sharp images, even in well-lit rooms.
-
3LCD Technology: Ensures vibrant colors and detailed visuals for presentations and media.
-
XGA Resolution (1024 x 768): Provides crisp image quality for business, education, and home use.
-
Versatile Connectivity: Supports multiple inputs, including VGA, composite, and S-Video.
-
User-Friendly Controls: Intuitive interface with remote operation for easy adjustments.
Q&A
Q: What type of projector is the Hitachi CP-X417?
A: It is a high-brightness LCD projector designed for business, education, and professional presentations.
Q: What is the brightness level?
A: The CP-X417 delivers 3,000 ANSI lumens for clear and vivid projections, even in bright rooms.
Q: What is the native resolution?
A: It features XGA (1024x768) resolution, ensuring sharp and detailed image quality.
Q: What connectivity options are available?
A: The projector includes VGA, composite video, S-Video, component video, and audio inputs for flexible connectivity.
Q: Is it portable?
A: Yes, it has a compact design, making it easy to transport and set up.
Q: What is the lamp life?
A: The lamp lasts up to 3,000 hours in standard mode and up to 4,000 hours in eco mode.
Maintenance Tips
-
Clean Air Filters Regularly – Prevent overheating by cleaning or replacing filters as needed.
-
Keep the Lens Clear – Use a microfiber cloth to gently remove dust or fingerprints.
-
Ensure Proper Ventilation – Keep vents unobstructed for effective cooling.
-
Use Genuine Replacement Lamps – Extend lifespan and maintain brightness with authentic Hitachi lamps.
-
Power Down Correctly – Always turn off the projector using the power button and let it cool before unplugging.
