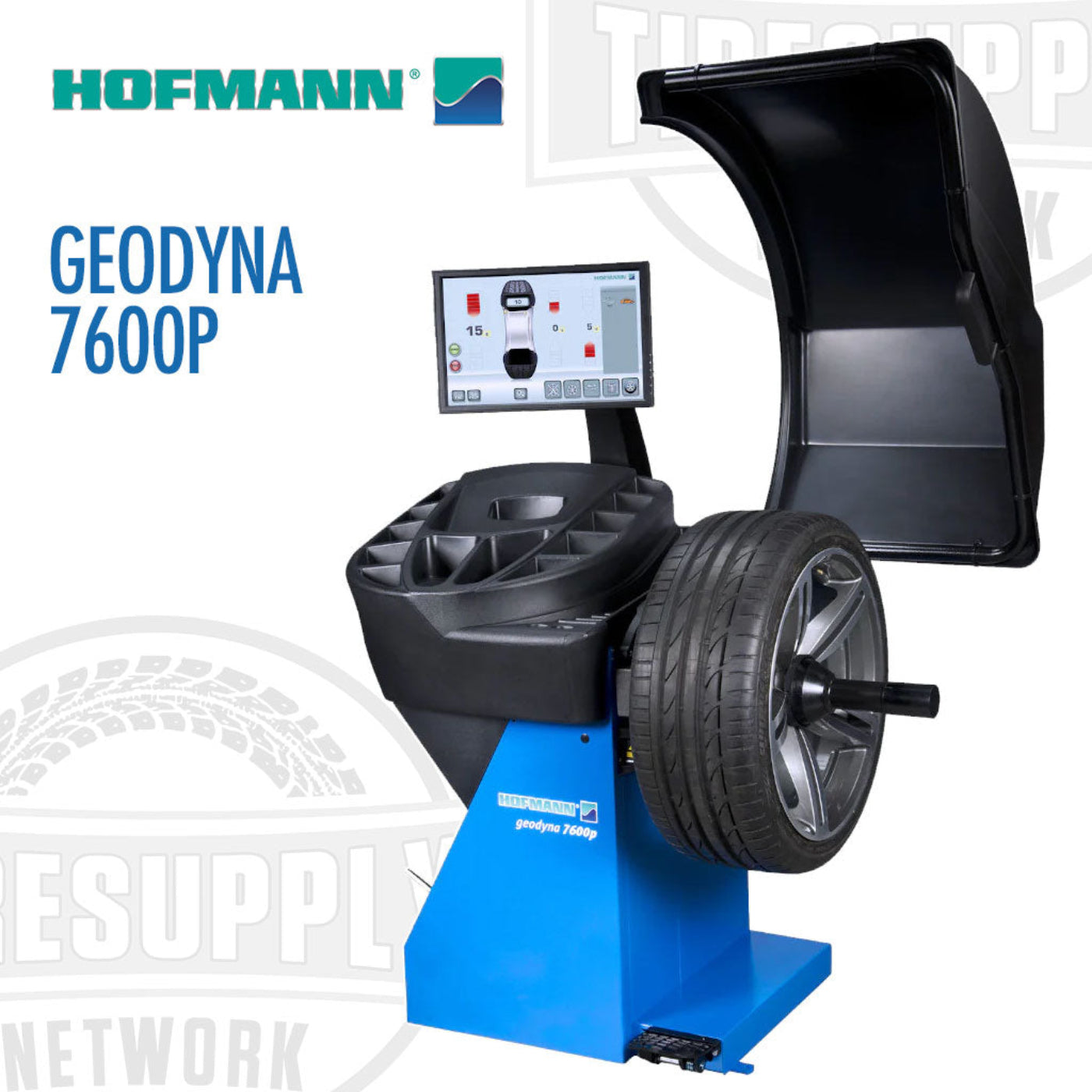

Hofmann | Geodyna 7600P Wheel Balancer with Touchscreen Monitor  - EEWB765AP

The wheel balancer for tire shops, car dealerships, and garages with medium to high tire service volume: with touchscreen monitor and easyWEIGHT pinpoint indicator light – an accurate, fast, and easy solution to position adhesive weights on the wheel.

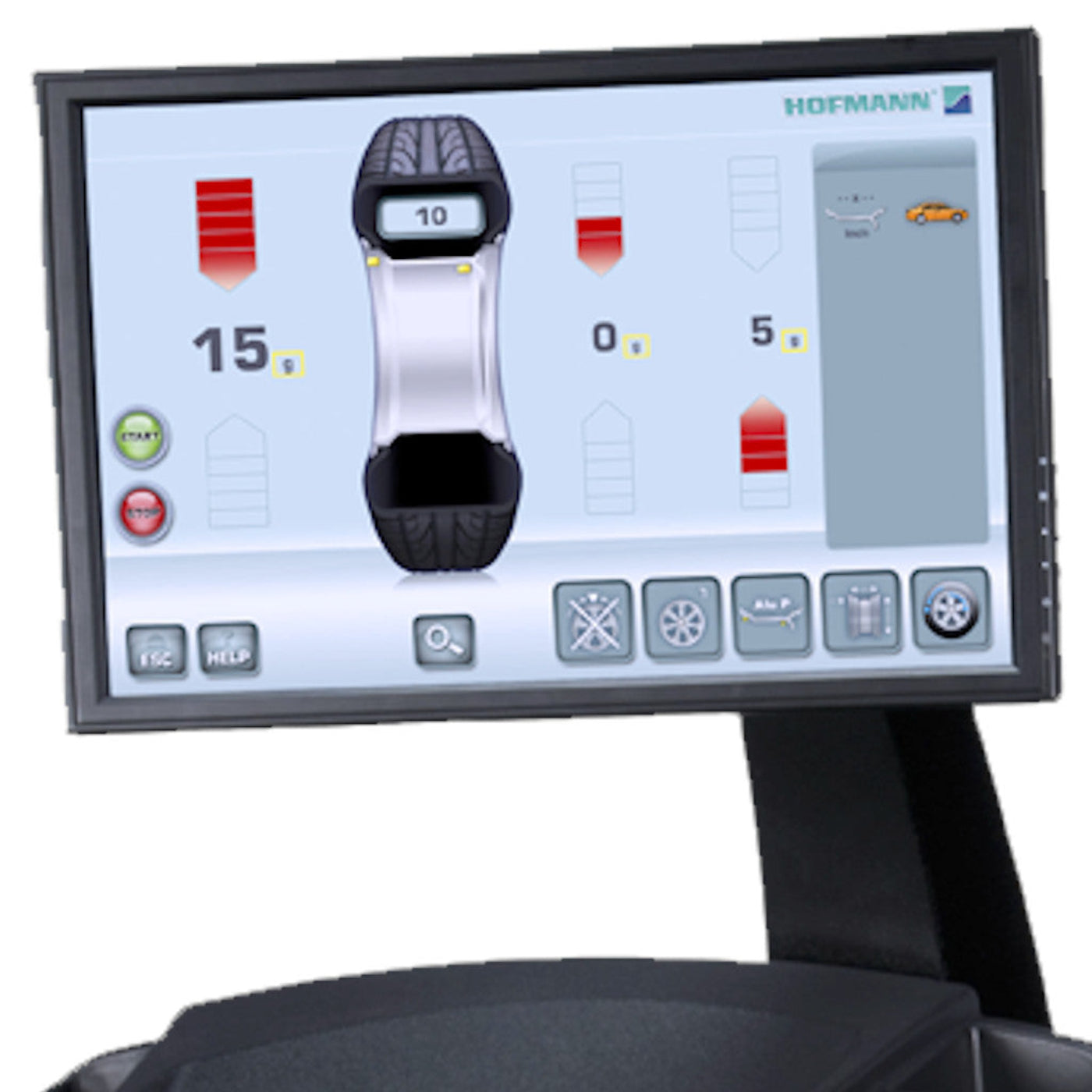

Intuitive User Interface: New touchscreen, user-friendly interface on a flat panel, resistive touch display. Fast and intuitive selection of the cycle modes.

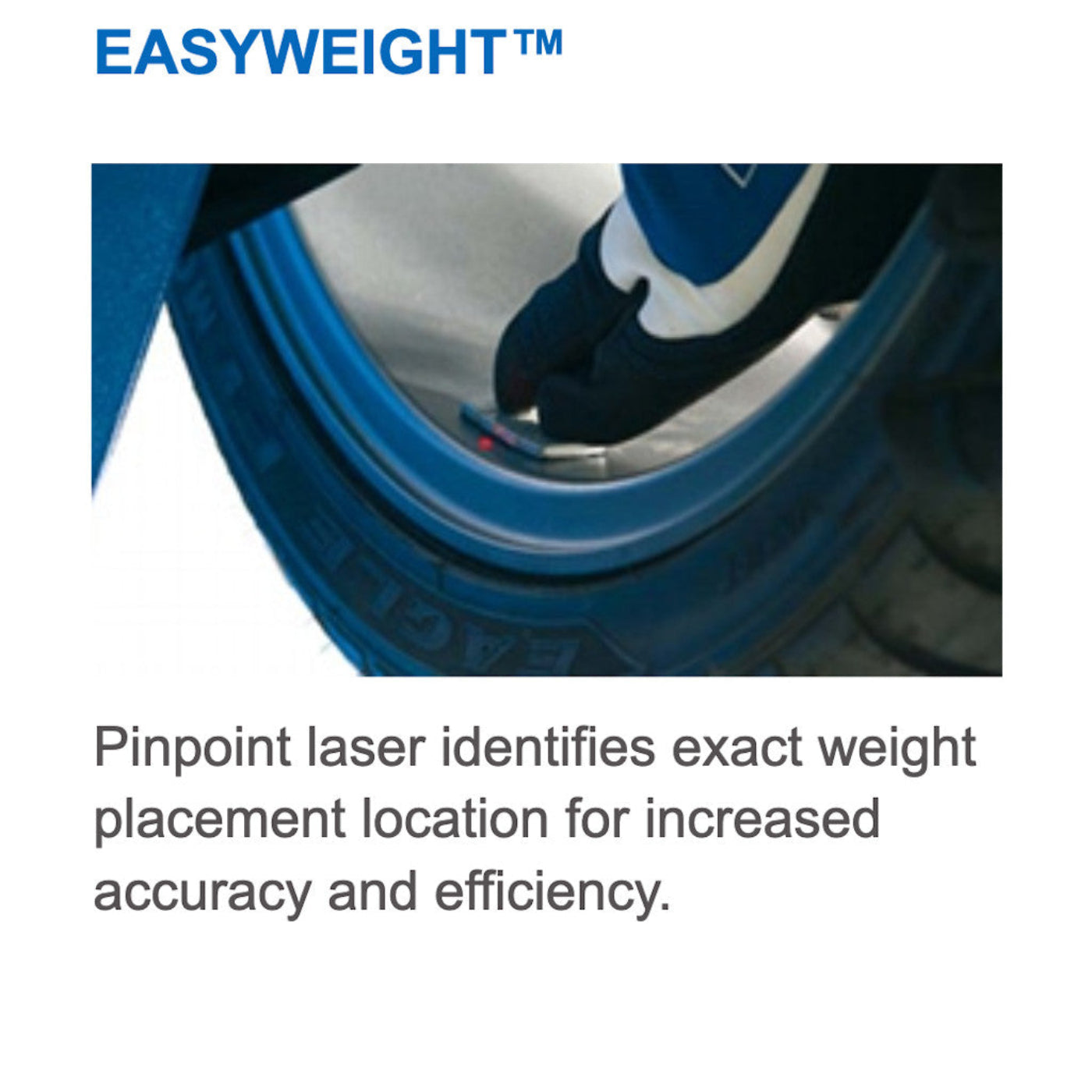

easyWEIGHT Pinpoint Indicator Light: The accurate, fast and easy solution to position adhesive weight on the wheel.

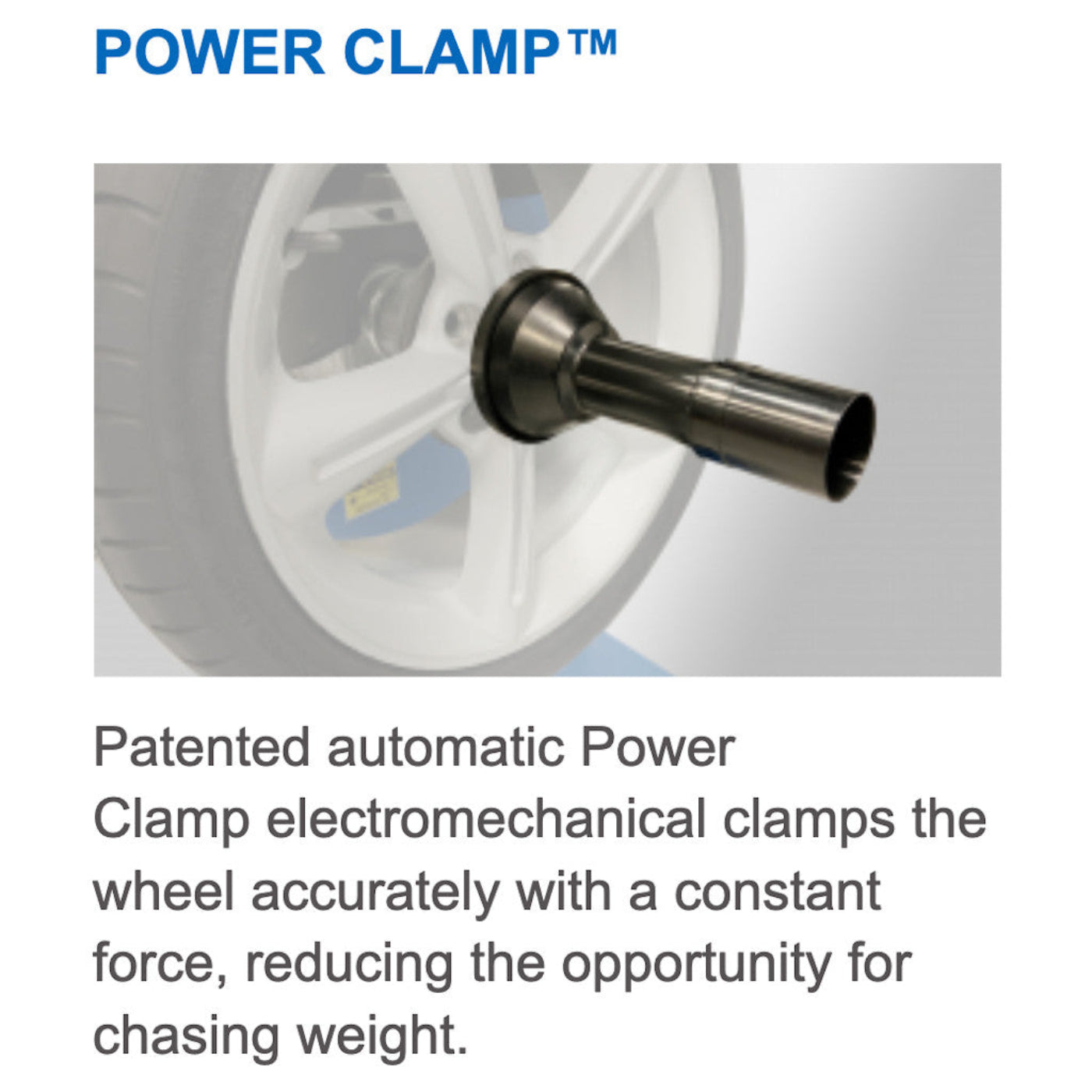

Power Clamp: The electromechanical power clamp always clamps the wheel accurately with a constant force, which is most important for every balancing operation.

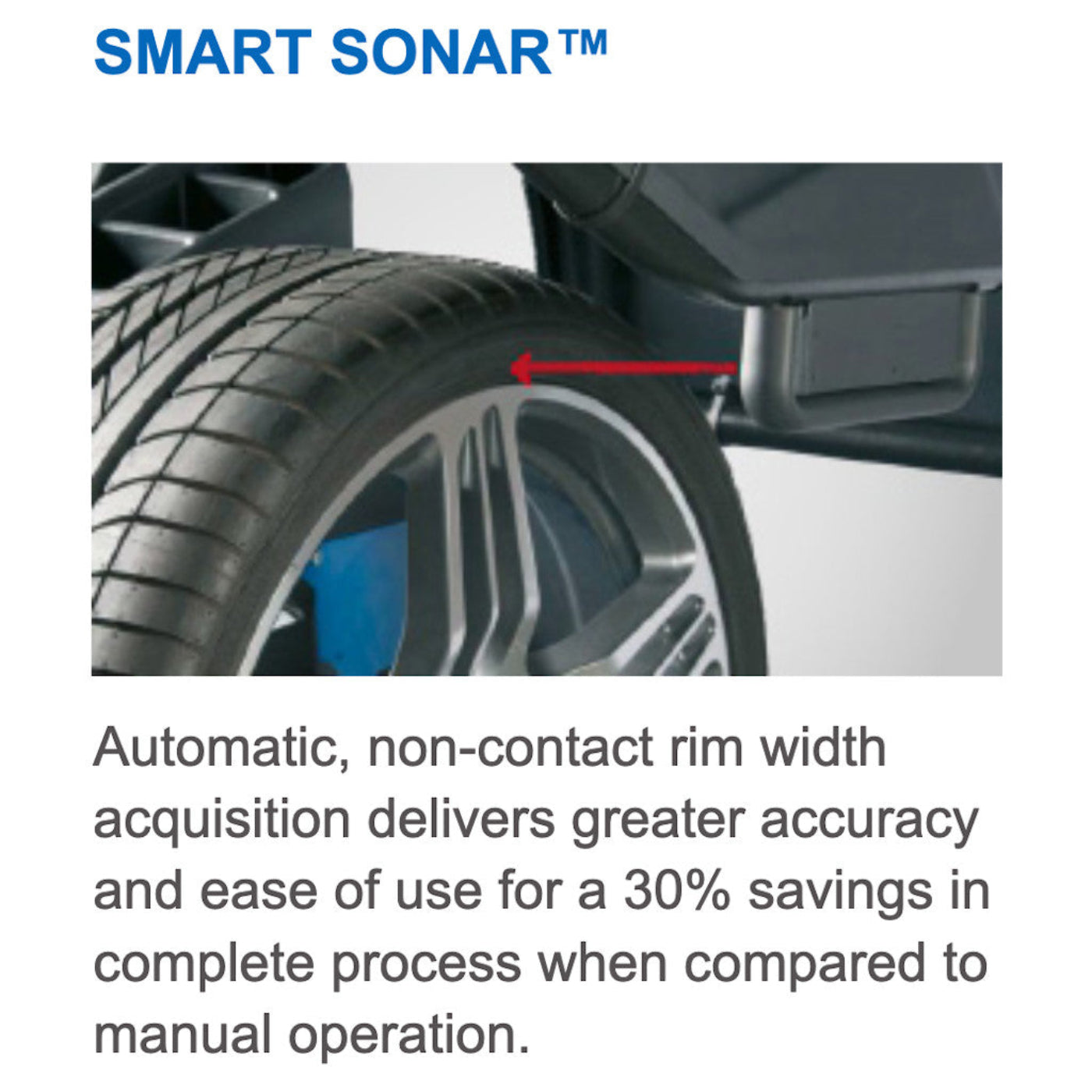

Data Entry: The Smart Sonar automatically detects rim width and the measuring run is started as soon as the wheel guard has been completely lowered. 30% time savings compared to manual input.

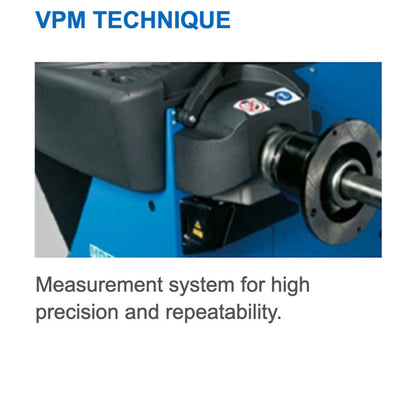

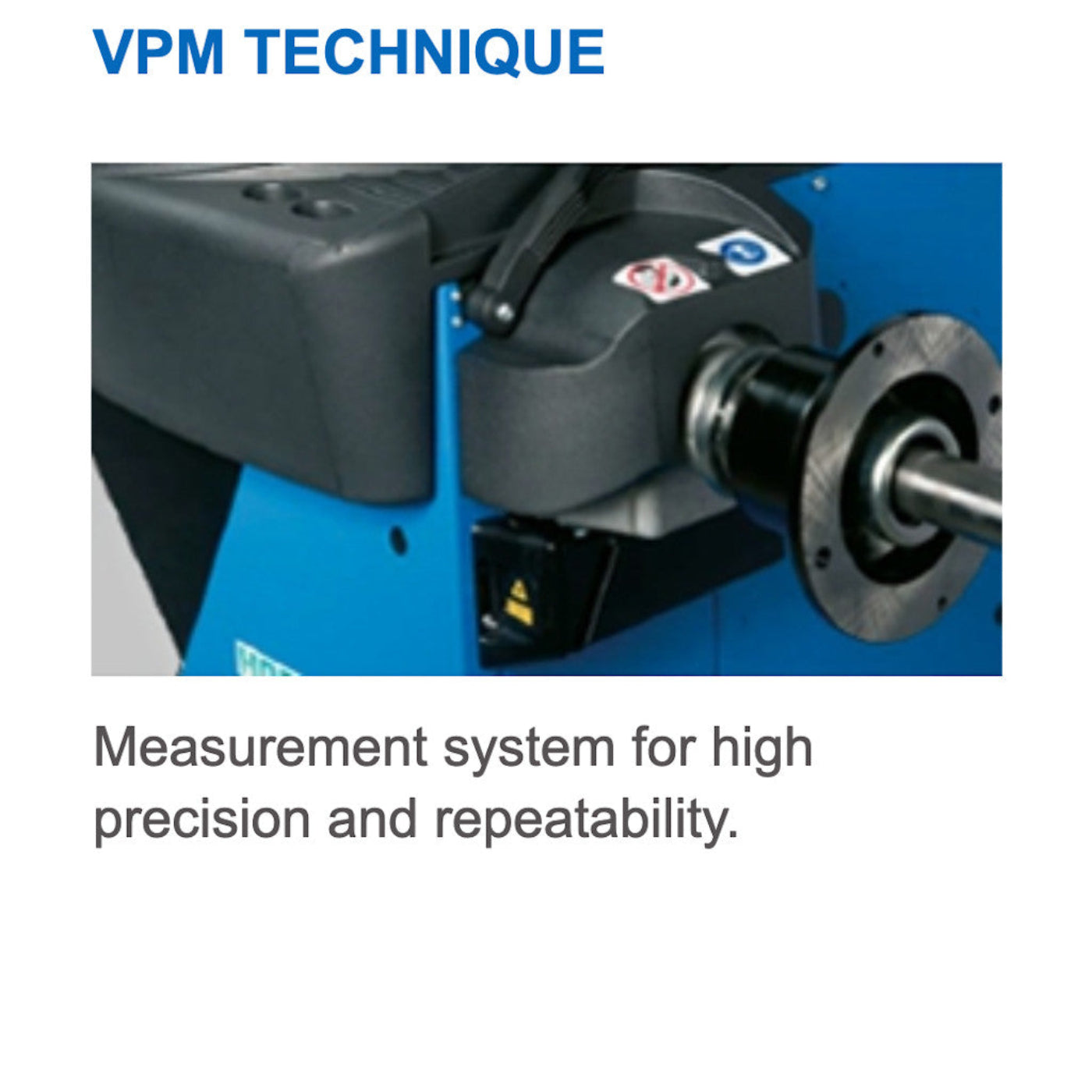

VPM Measurement Technique: The Geodyna 7600 series comes with the patented Virtual Plane Measurement (VPM) technique which ensures accurate balancing results, while being insensitive to ambient conditions

EZ-Collets Mobile App: Helps service technicians identify the best tools for their wheel balancing jobs. Using the EZ-Collets mobile app, service professionals can select a vehicle to find and compare options for the best collet, flange, or quick plate for the wheel. The app also provides information about the tire and rim for the vehicle.

The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.

Accessories Included
  • Plastic Pressure Cup, Ring Protector
  • Calibration Weight and Spacer 2”
  • Four Cone Set
  • Rim Width Calipers
  • Weight Pliers
  • Set of 4 Storage Pegs
Specifications
TECHNICAL DATA Geodyna 7600P
Hofmann Part Number EEWB765AP
Vehicles Supported Cars, Light Trucks, SUVs, Off-Road Vehicles
Display Technology Touchscreen Video Display
User Interface Touchscreen
Measuring Speed Less than 200 rpm
Balancing Accuracy 0.035 oz / 1g
Angular Resolution ±0.35°
Start/Stop Time - Check Spin 4.5 seconds
Wheel Clamping Power Clamp
Rim Diameter Range 8″ - 32″ (203 - 813 mm)
Offset Range 1″ - 20″
Rim Width Range 1″ - 20″
Data Entry - Diameter & Offset Semi-Automatic, Gauge Arm
Data Entry - Wheel Width Automatic, Non-Contact smartSonar
Rim Diameter Range 8″ - 25″
Rim Width Range 3″ - 15″
smartSonar Rim Gauge 13″ - 26″
SAPE Working Range 1.3″ - 12.9″ (33 - 328 mm)
Maximum Wheel Diameter 42″ (1067 mm)
Maximum Wheel Width 3″ - 20″ (76.2 - 508 mm)
Maximum Wheel Weight 154 lbs (70 kg)
Diameter of Shaft 40 mm

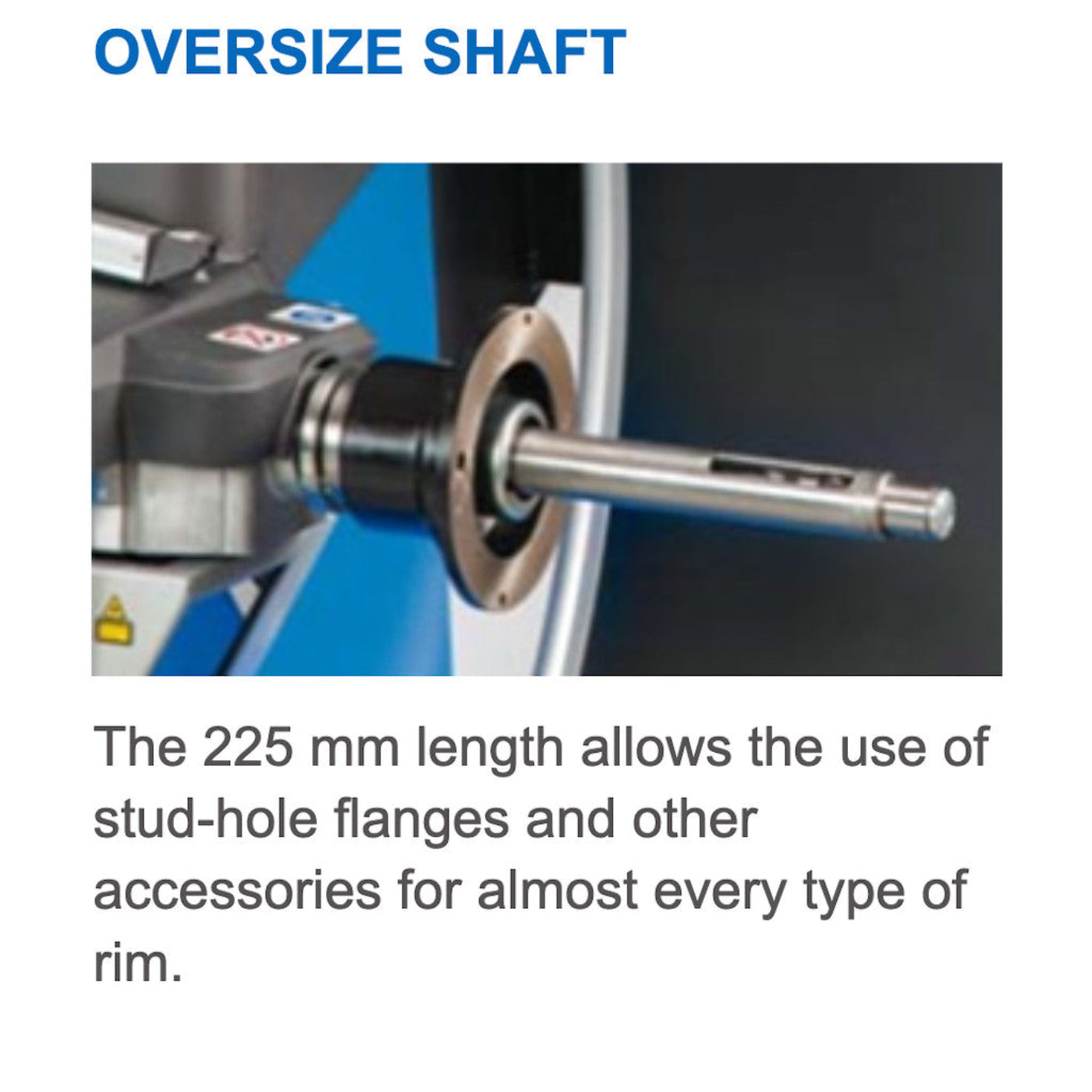

Length of Shaft 8.86″ (225 mm)
Main Shaft Lock Electromechanical
Wheel Braking After Measurements Automatic
Power Requirements 115 V, 1 Ph, 50/60 Hz, 5 Amp
Dimensions (Wheel Guard Open) 54″ L x 35″ W x 72″ H
Net Weight 253 lbs (115 kg)
Cycle Start Automatic After Closing Wheel Guard

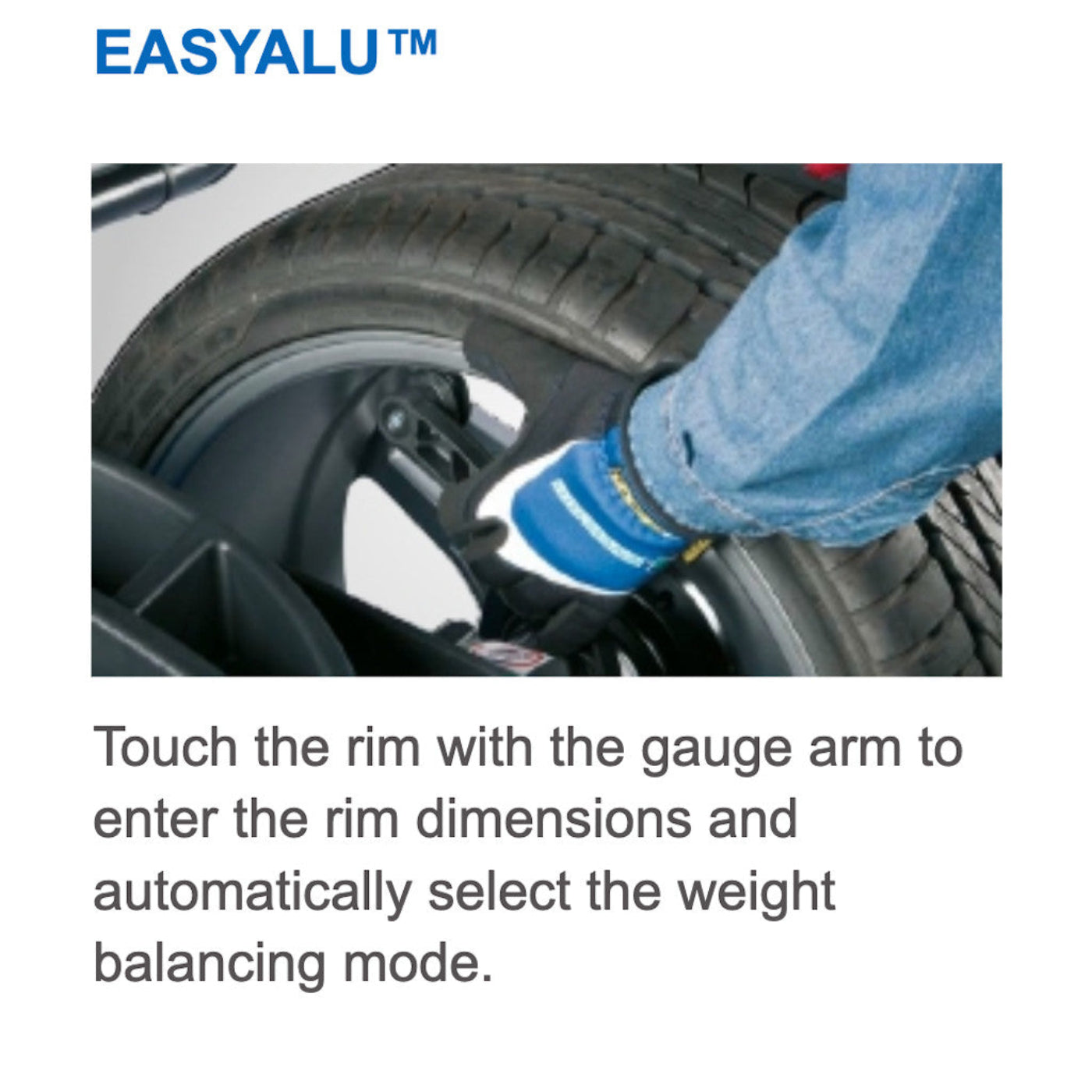

Balancing Program Selection Semi-Automatic, easyALU
Spoke Position Detection Manual
Multiple User Capability No

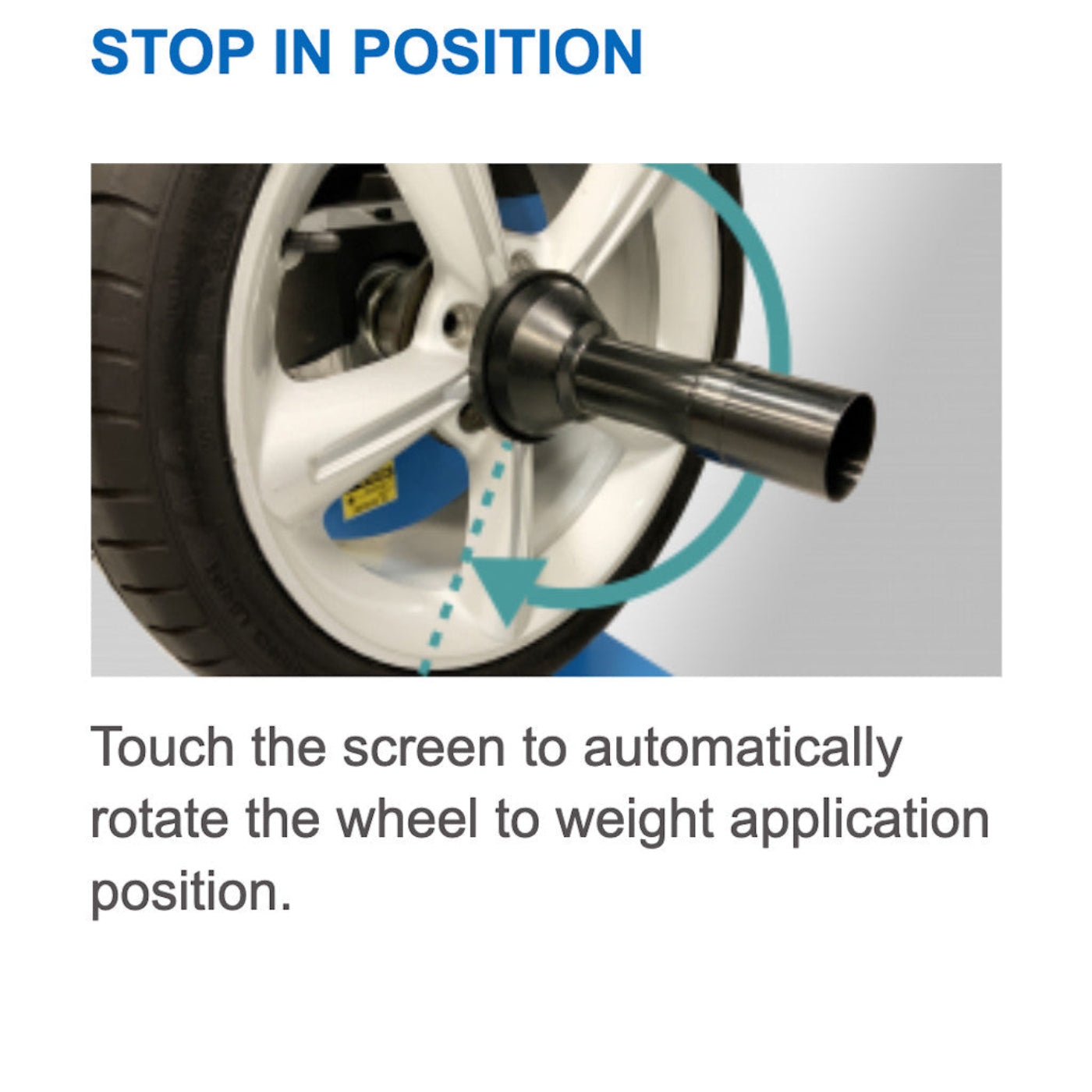

Stop In Position Yes

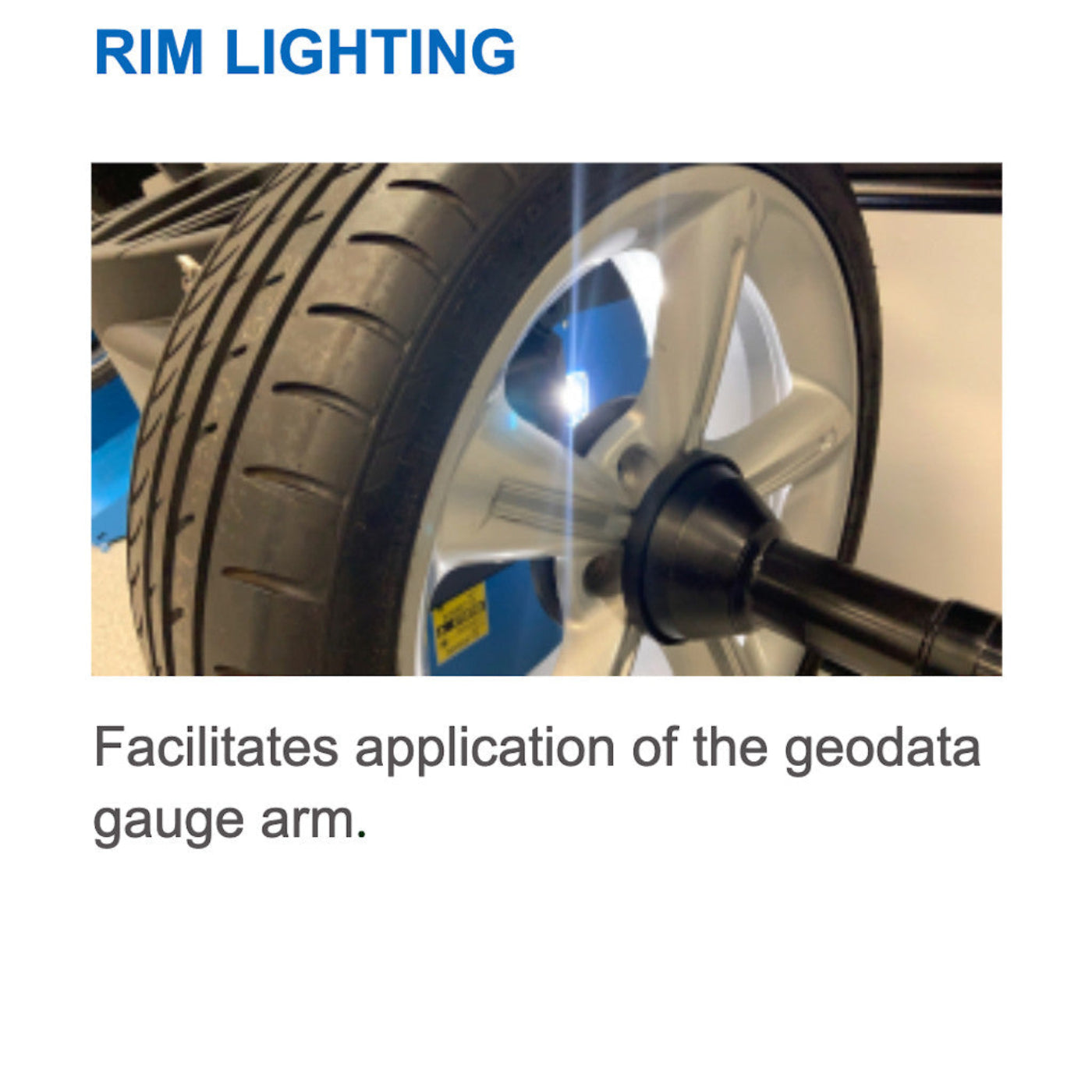

Rim Lighting Yes

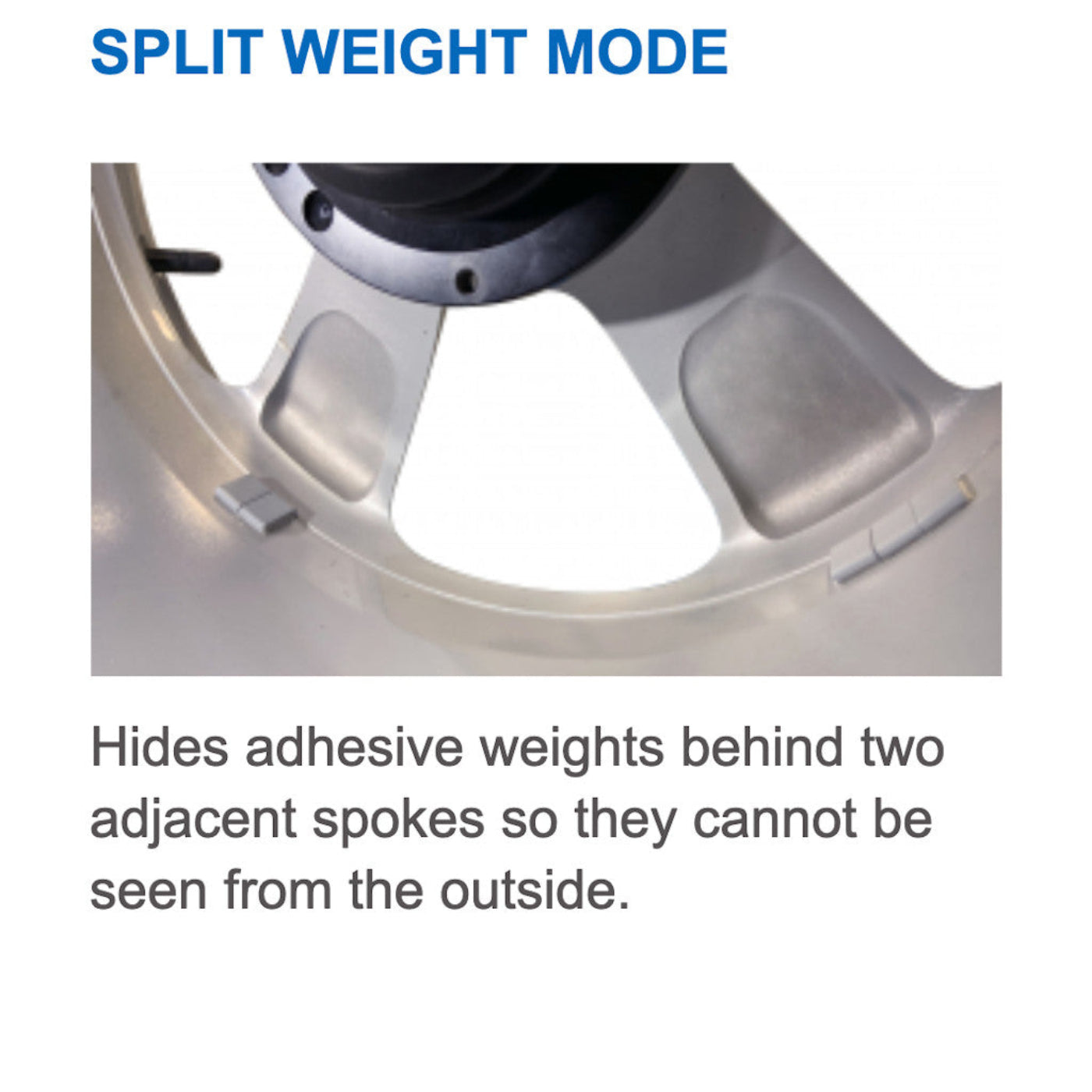

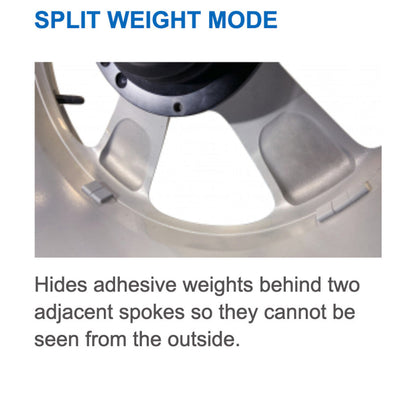

Split Weight Yes
Minimization Yes
Optimization Yes
Job Counter Yes
Network No
What Our Experts Think
  • Advanced Touchscreen TechnologyTouchscreen monitor for easy, intuitive operation and quick adjustments.
  • Fast & Accurate Balancing – Delivers precise wheel balancing for a variety of wheel sizes and types.
  • Efficient Performance – Optimized for high-speed balancing, making it ideal for busy tire shops.
  • User-Friendly Interface – Simple to operate with a highly responsive touchscreen interface.
  • Durable & Reliable – Built to last with robust construction, perfect for professional use.
Q&A

Q: What is the Hofmann Geodyna 7600P Wheel Balancer?
A: A professional-grade wheel balancer with a touchscreen monitor, designed for fast and accurate balancing of passenger and light truck wheels.

Q: What are the key features of the Geodyna 7600P?
A: It features a high-resolution touchscreen, automatic wheel measurement, and intuitive user interface for easy operation and precision.

Q: What types of wheels can it balance?
A: It is designed to balance passenger and light truck wheels, making it ideal for high-volume shops.

Q: How does the touchscreen improve performance?
A: The touchscreen monitor simplifies the user experience, allowing for quick access to balancing data and settings adjustments.

Q: Is it easy to use?
A: Yes, the touchscreen interface and automated functions make it highly user-friendly for both novice and experienced operators.

Q: What are the benefits of using this wheel balancer?
A: Fast, accurate balancing, user-friendly touchscreen, automatic wheel data input, and reliable performance for efficient service in professional shops.

Maintenance Tips
  • Keep Touchscreen Clean – Use a microfiber cloth to clean the screen for clear visibility and easy navigation.
  • Calibrate Regularly – Perform calibration according to the manufacturer's schedule to ensure accurate results.
  • Inspect Clamps & Attachments – Check all parts for wear and secure them to maintain proper functionality.
  • Lubricate Moving Parts – Apply the recommended lubricant to moving parts to minimize friction and wear.
  • Software Updates – Install firmware and software updates to optimize performance and accuracy.
  • Ensure Stable Power – Use a surge protector to avoid electrical issues that may damage the unit.
