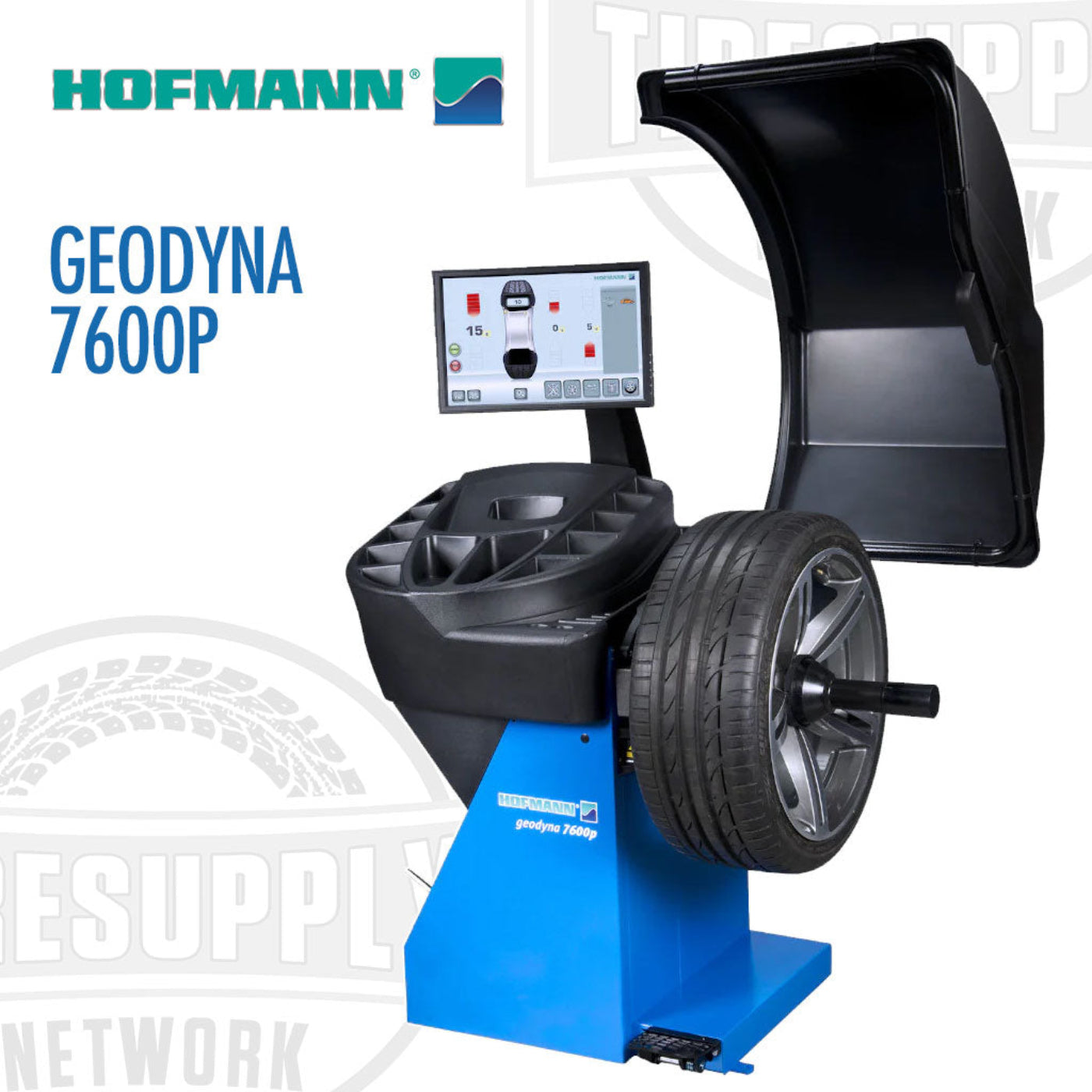

The wheel balancer for tire shops, car dealerships, and garages with medium to high tire service volume: with touchscreen monitor and easyWEIGHT pinpoint indicator light – an accurate, fast, and easy solution to position adhesive weights on the wheel.

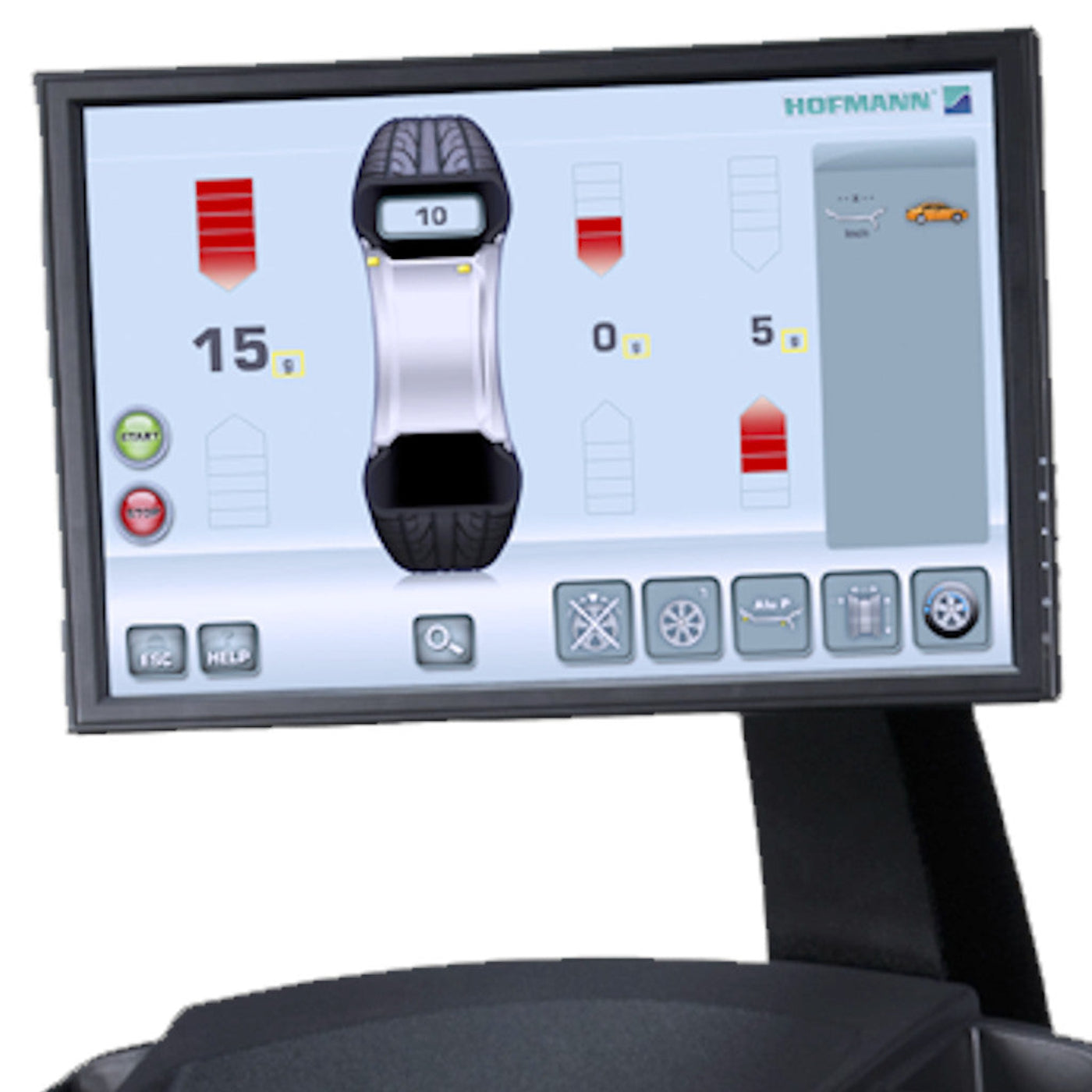

Intuitive User Interface: New touchscreen, user-friendly interface on a flat panel, resistive touch display. Fast and intuitive selection of the cycle modes.

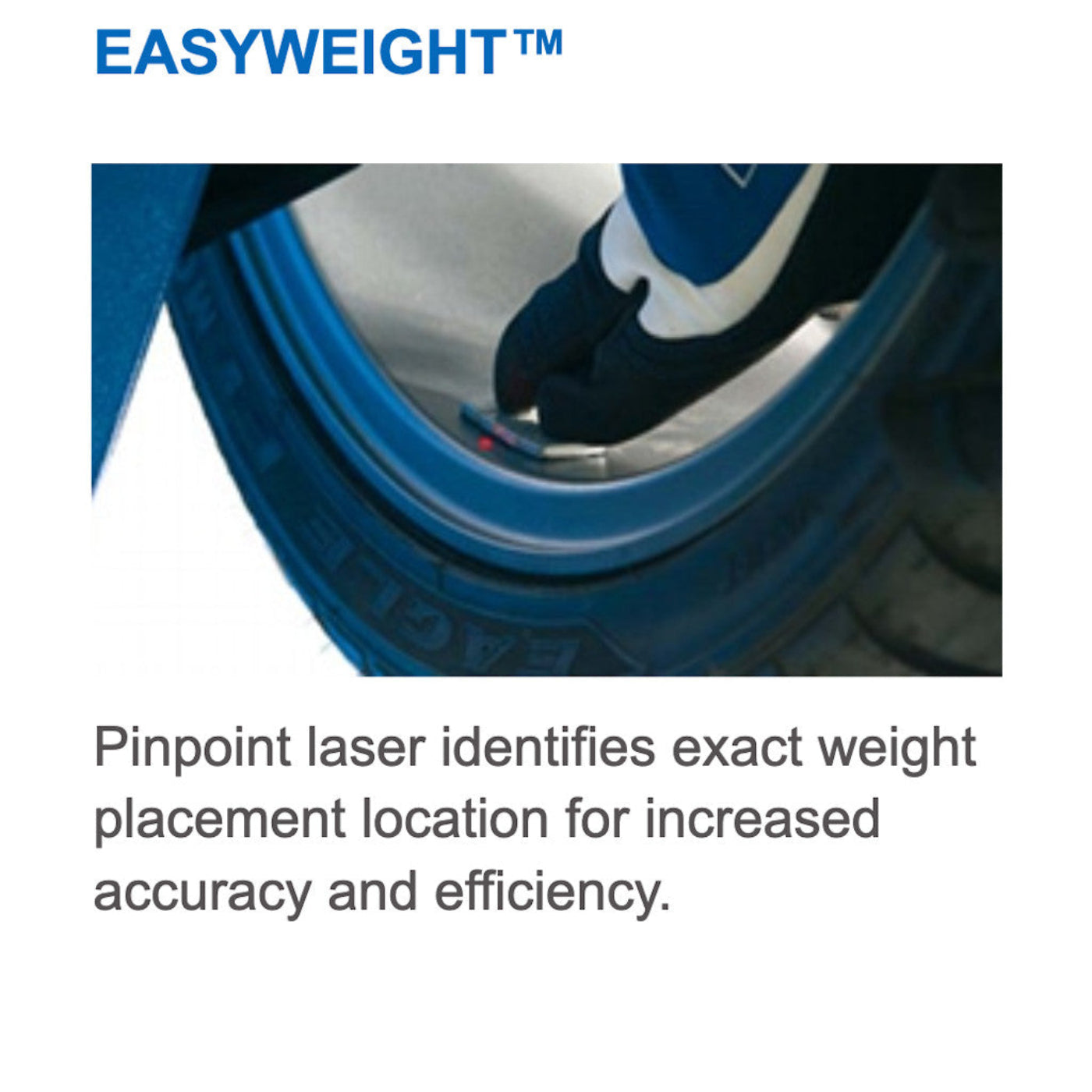

easyWEIGHT Pinpoint Indicator Light: The accurate, fast and easy solution to position adhesive weight on the wheel.

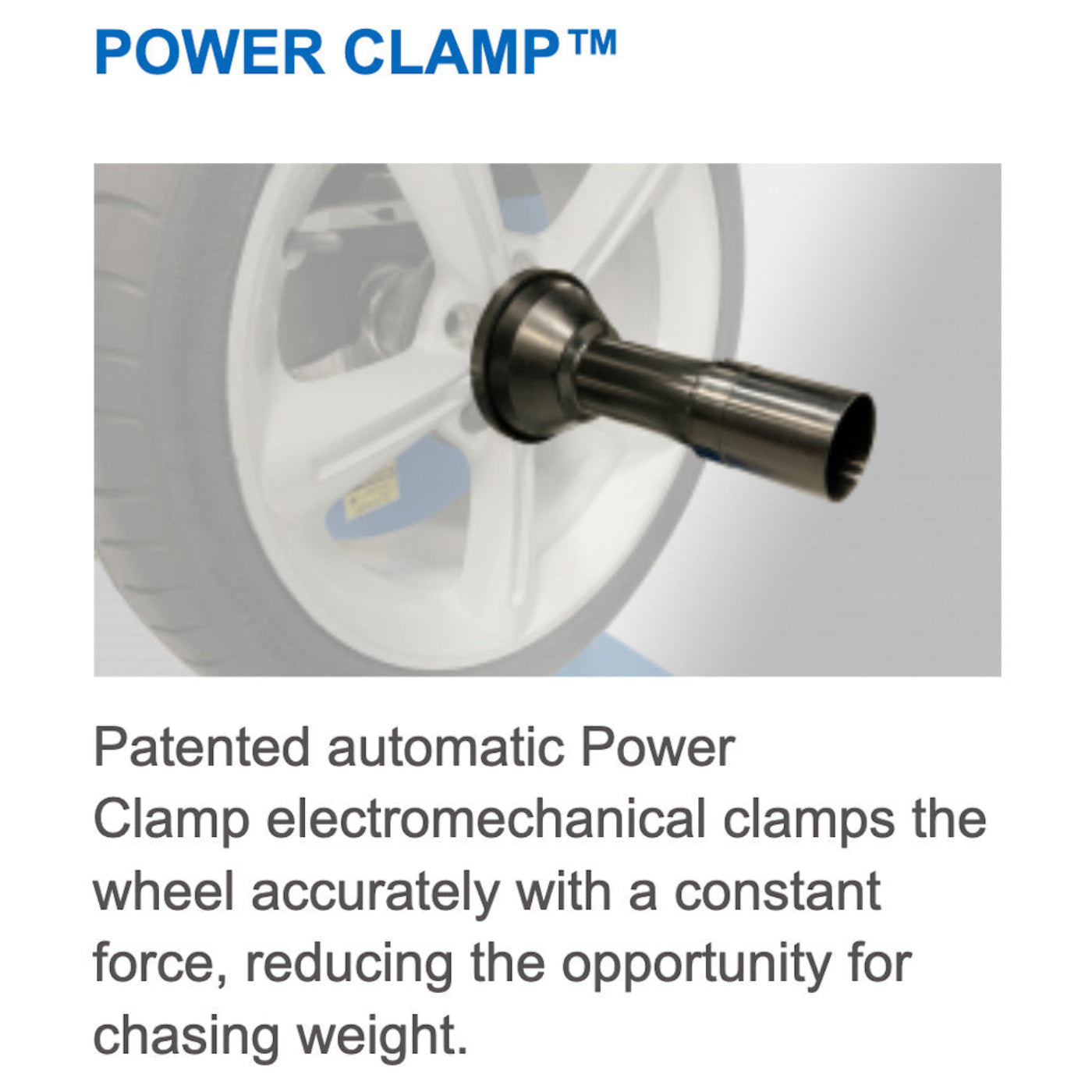

Power Clamp: The electromechanical power clamp always clamps the wheel accurately with a constant force, which is most important for every balancing operation.

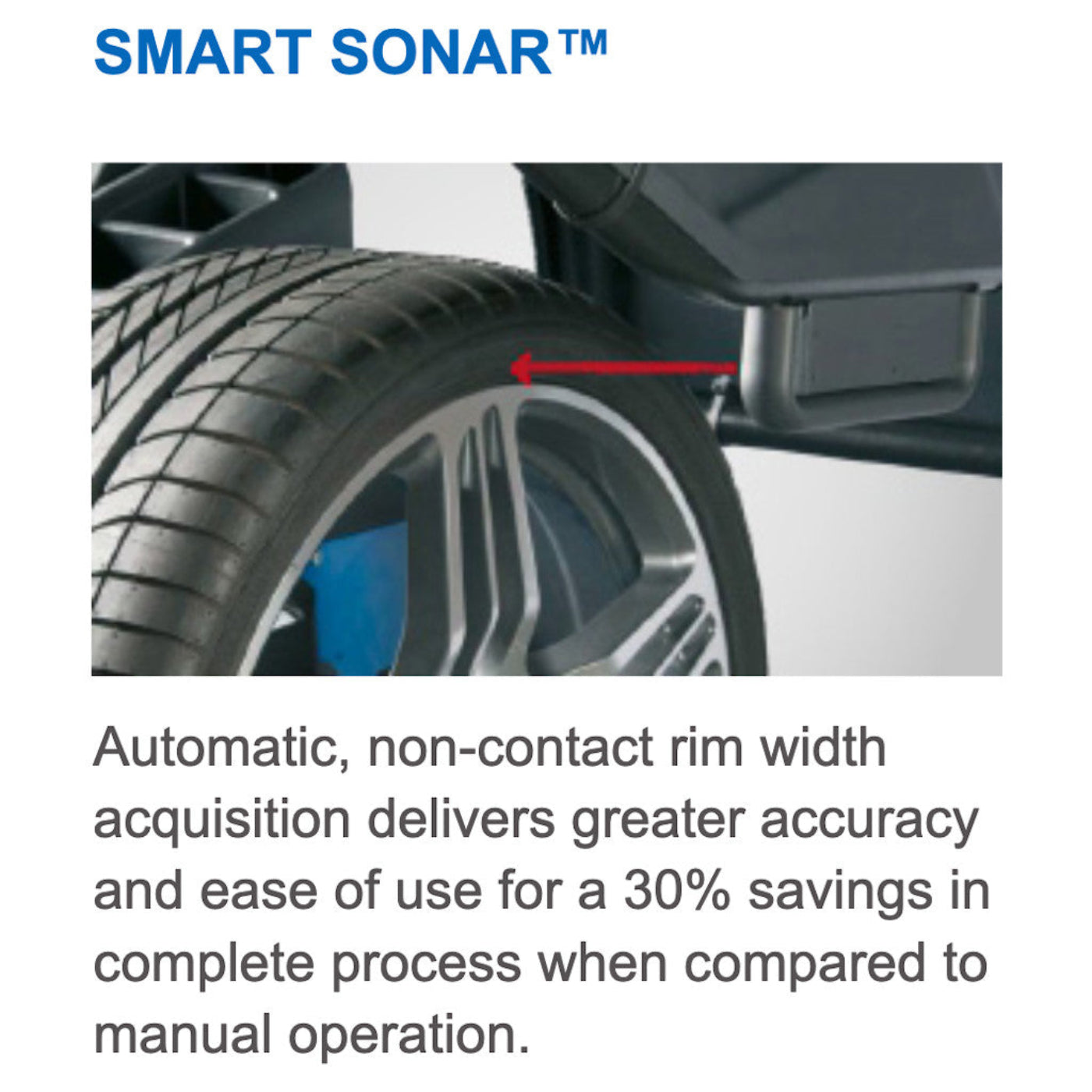

Data Entry: The Smart Sonar automatically detects rim width and the measuring run is started as soon as the wheel guard has been completely lowered. 30% time savings compared to manual input.

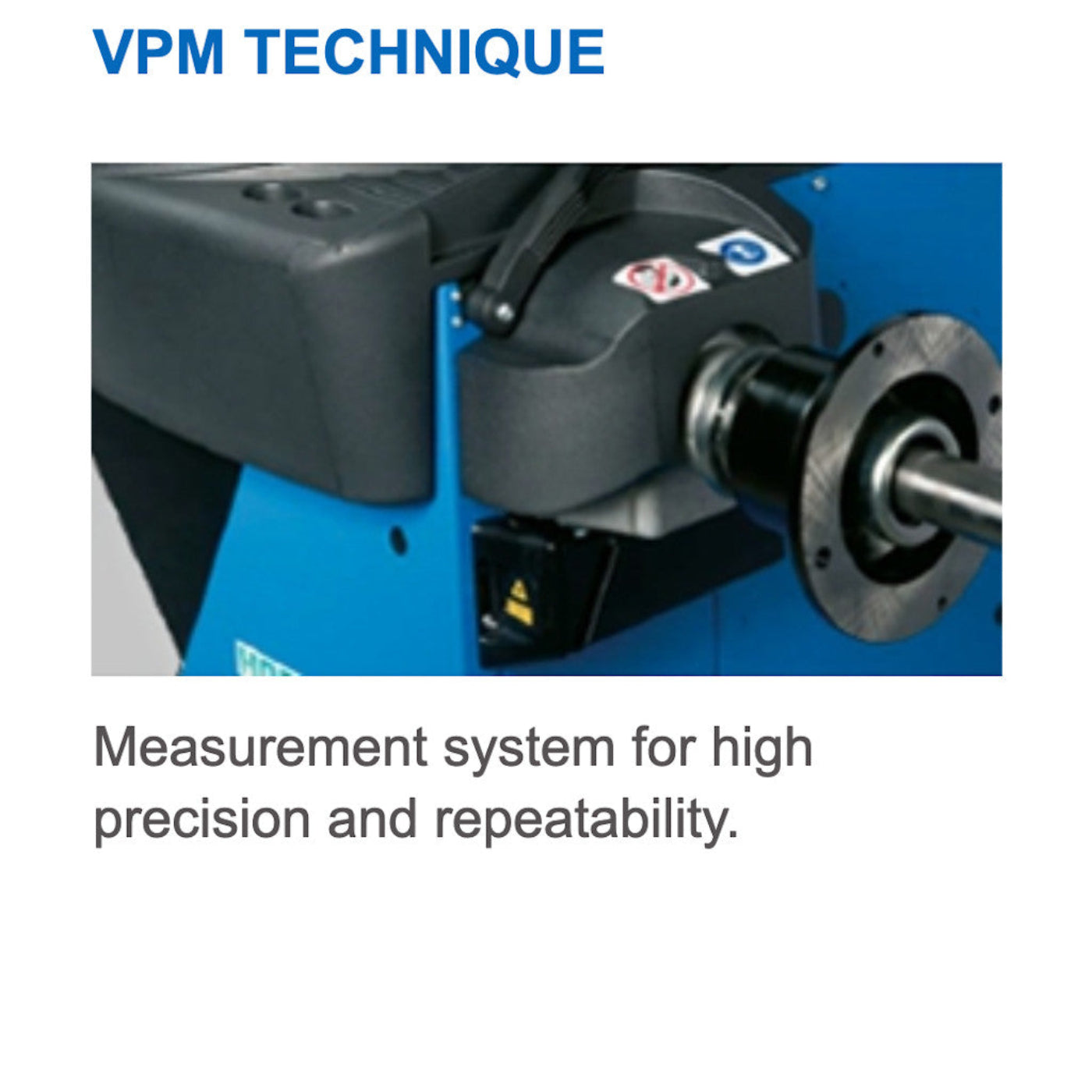

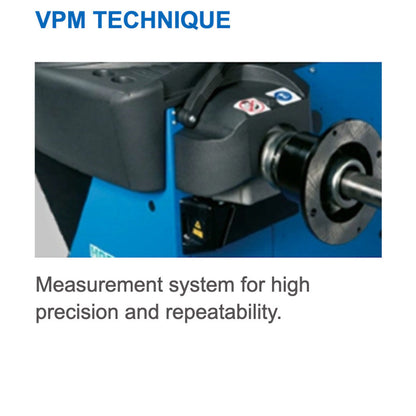

VPM Measurement Technique: The Geodyna 7600 series comes with the patented Virtual Plane Measurement (VPM) technique which ensures accurate balancing results, while being insensitive to ambient conditions
EZ-Collets Mobile App: Helps service technicians identify the best tools for their wheel balancing jobs. Using the EZ-Collets mobile app, service professionals can select a vehicle to find and compare options for the best collet, flange, or quick plate for the wheel. The app also provides information about the tire and rim for the vehicle.
The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.
TECHNICAL DATA | Geodyna 7600P |
---|---|
Hofmann Part Number | EEWB765AP |
Vehicles Supported | Cars, Light Trucks, SUVs, Off-Road Vehicles |
Display Technology | Touchscreen Video Display |
User Interface | Touchscreen |
Measuring Speed | Less than 200 rpm |
Balancing Accuracy | 0.035 oz / 1g |
Angular Resolution | ±0.35° |
Start/Stop Time - Check Spin | 4.5 seconds |
Wheel Clamping | Power Clamp |
Rim Diameter Range | 8″ - 32″ (203 - 813 mm) |
Offset Range | 1″ - 20″ |
Rim Width Range | 1″ - 20″ |
Data Entry - Diameter & Offset | Semi-Automatic, Gauge Arm |
Data Entry - Wheel Width | Automatic, Non-Contact smartSonar |
Rim Diameter Range | 8″ - 25″ |
Rim Width Range | 3″ - 15″ |
smartSonar Rim Gauge | 13″ - 26″ |
SAPE Working Range | 1.3″ - 12.9″ (33 - 328 mm) |
Maximum Wheel Diameter | 42″ (1067 mm) |
Maximum Wheel Width | 3″ - 20″ (76.2 - 508 mm) |
Maximum Wheel Weight | 154 lbs (70 kg) |
Diameter of Shaft | 40 mm |

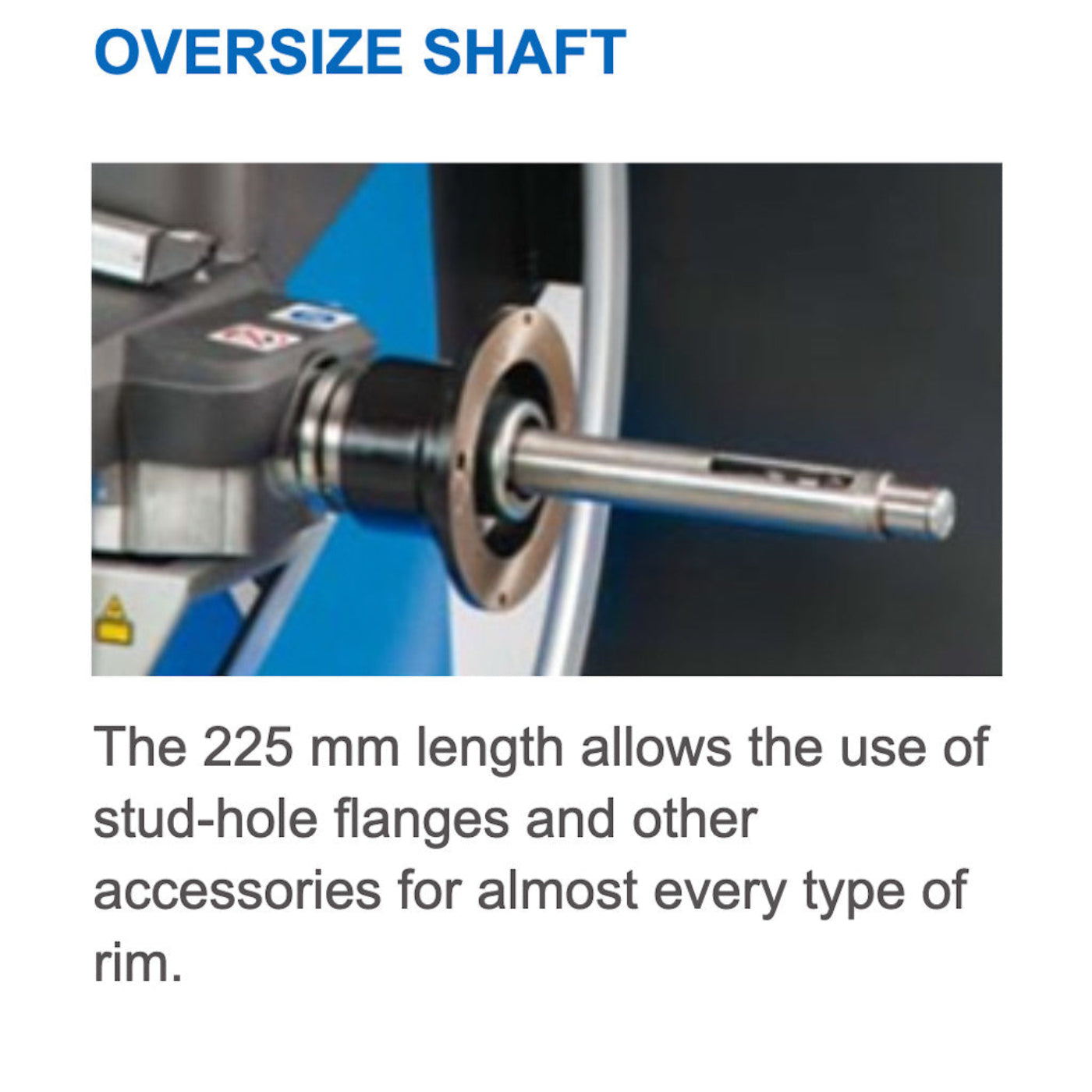

Length of Shaft | 8.86″ (225 mm) |
Main Shaft Lock | Electromechanical |
Wheel Braking After Measurements | Automatic |
Power Requirements | 115 V, 1 Ph, 50/60 Hz, 5 Amp |
Dimensions (Wheel Guard Open) | 54″ L x 35″ W x 72″ H |
Net Weight | 253 lbs (115 kg) |
Cycle Start | Automatic After Closing Wheel Guard |

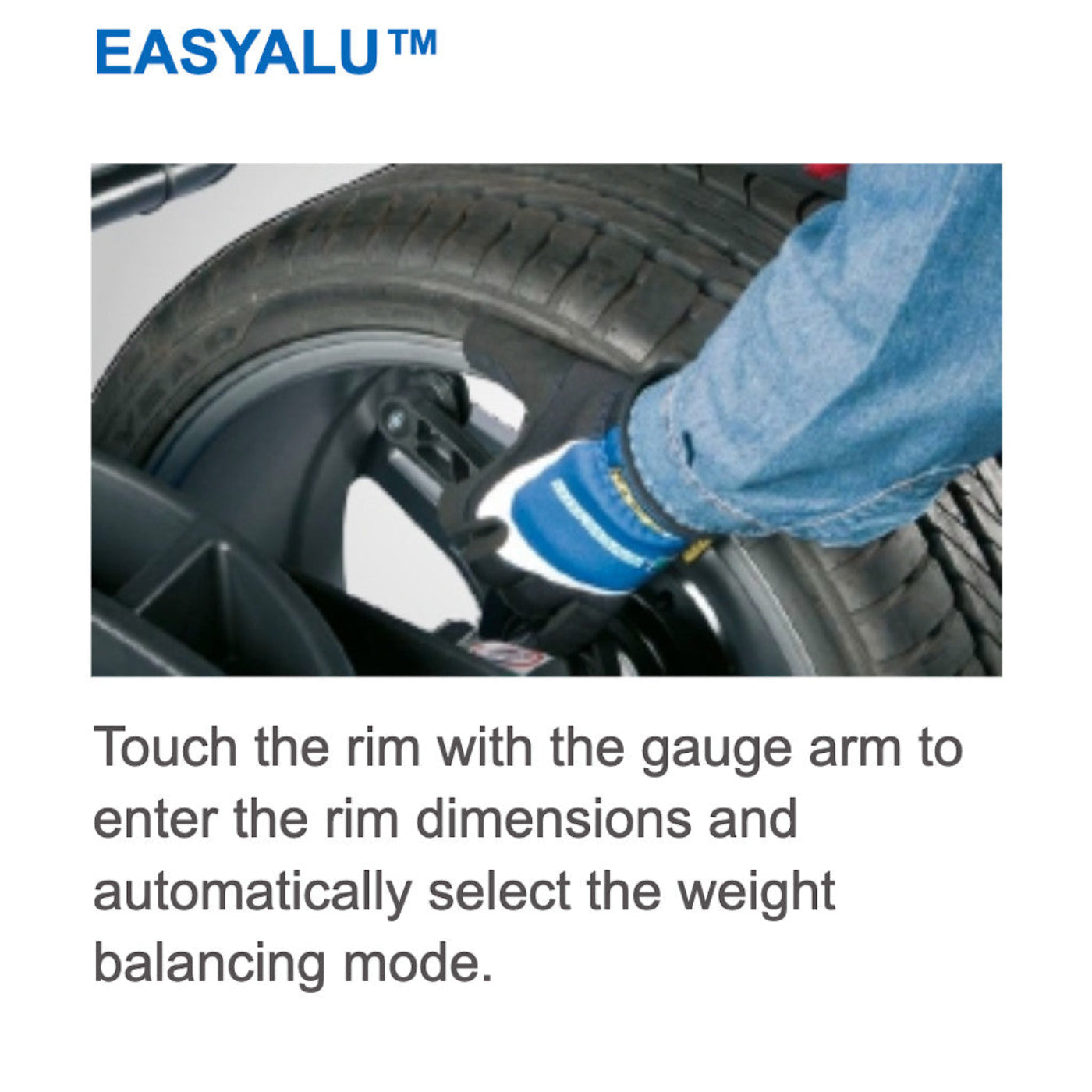

Balancing Program Selection | Semi-Automatic, easyALU |
Spoke Position Detection | Manual |
Multiple User Capability | No |

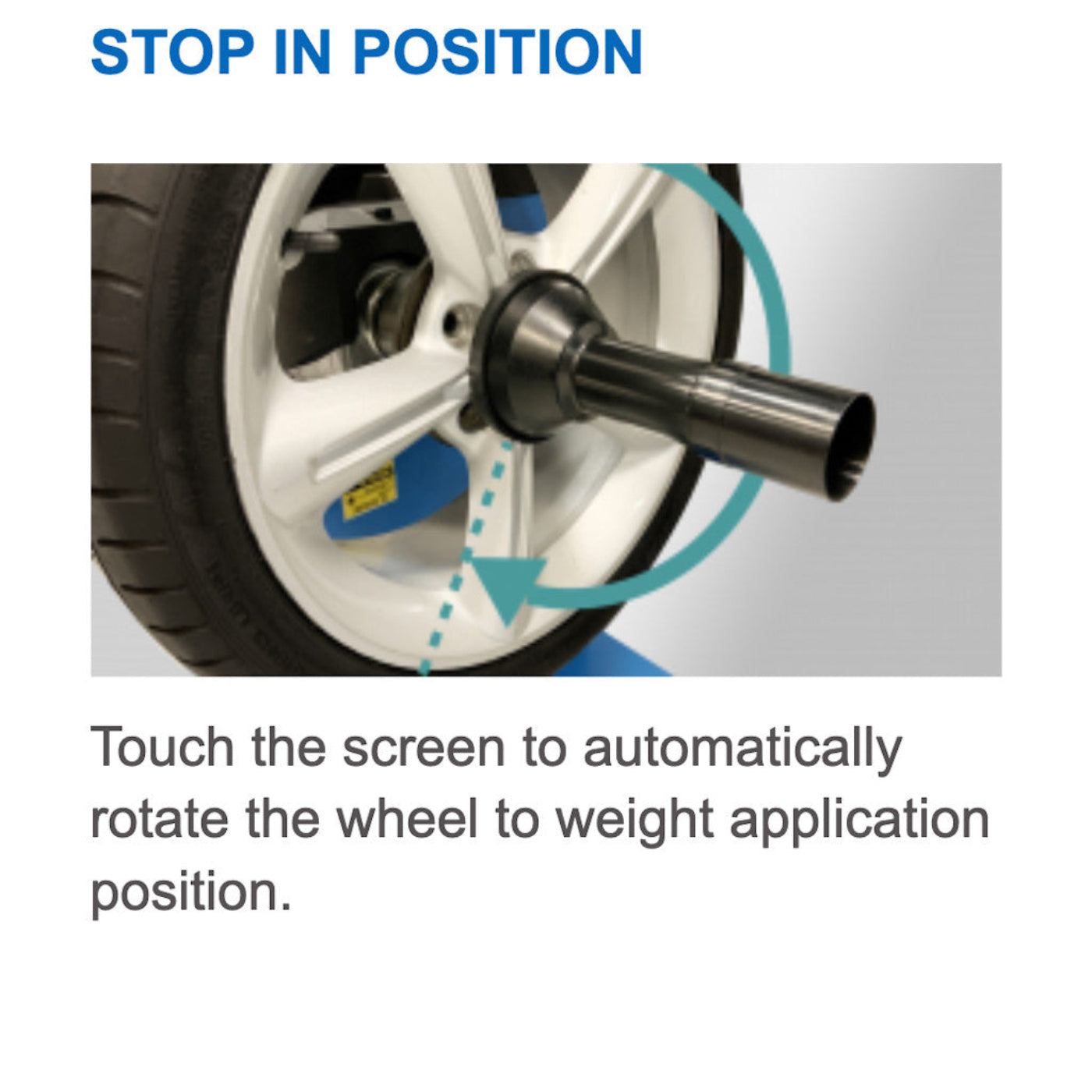

Stop In Position | Yes |

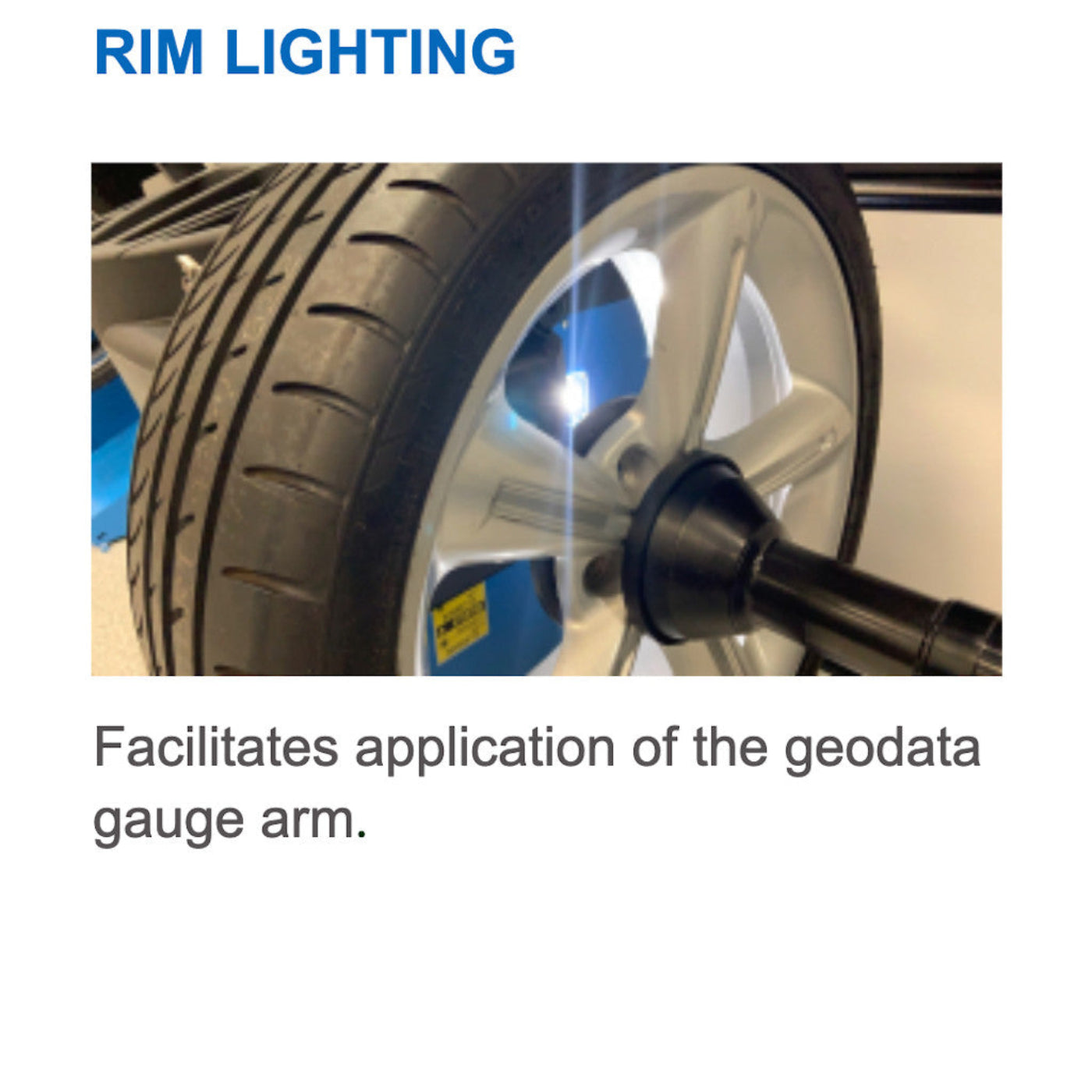

Rim Lighting | Yes |

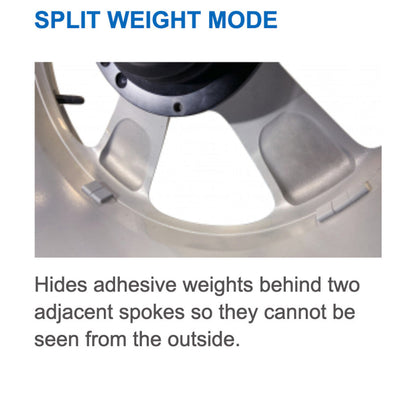

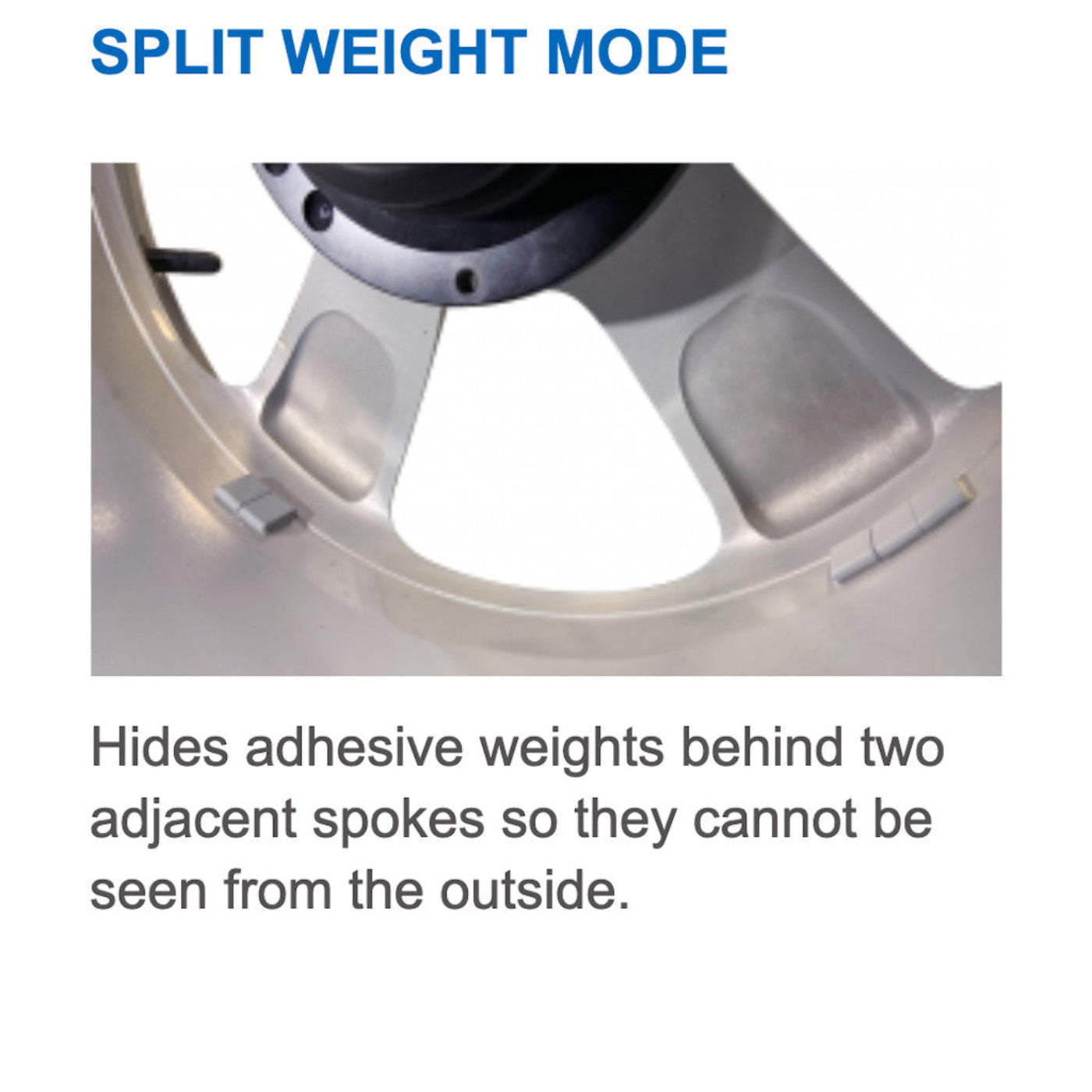

Split Weight | Yes |
Minimization | Yes |
Optimization | Yes |
Job Counter | Yes |
Network | No |
The Hofmann Geodyna 7600P Wheel Balancer is a professional-grade machine designed for precision and efficiency in automotive service centers.
Q: What are the key features of the Hofmann Geodyna 7600P Wheel Balancer?
A: The Geodyna 7600P features a high-resolution touchscreen monitor, automatic wheel data entry, and laser-guided weight placement for precise balancing. It offers quick cycle times, advanced diagnostic functions, and an intuitive user interface for efficient operation.
Q: How does the automatic data entry improve efficiency?
A: The system automatically detects wheel dimensions, reducing manual input errors and speeding up the balancing process.
Q: What types of wheels can this balancer accommodate?
A: It supports passenger car and light truck wheels with rim diameters from 12” to 30” and rim widths from 1” to 20”.
Q: Does this balancer have automatic weight placement?
A: Yes, it features laser-guided weight positioning for accurate and efficient balancing.
Q: What diagnostic functions are included?
A: The Geodyna 7600P detects wheel runout, rim defects, and imbalance issues, helping improve vehicle performance and reducing vibrations.
Q: Is the touchscreen user-friendly?
A: Yes, the intuitive high-resolution touchscreen provides step-by-step instructions for easy operation.
Q: What are the power requirements for this machine?
A: It operates on a 230V power supply.
Q: Is this wheel balancer suitable for high-volume shops?
A: Yes, its fast cycle times, automation, and precision make it ideal for professional automotive service centers.
Q: Does this product come with a warranty?
A: Yes, the Hofmann Geodyna 7600P includes a manufacturer’s warranty for reliability and peace of mind.
