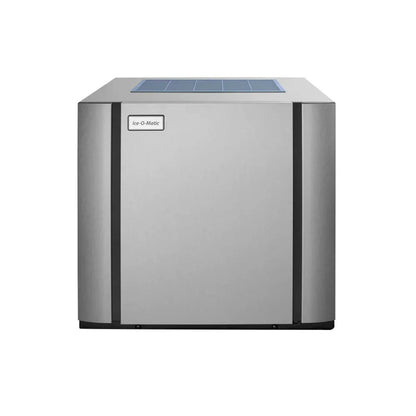

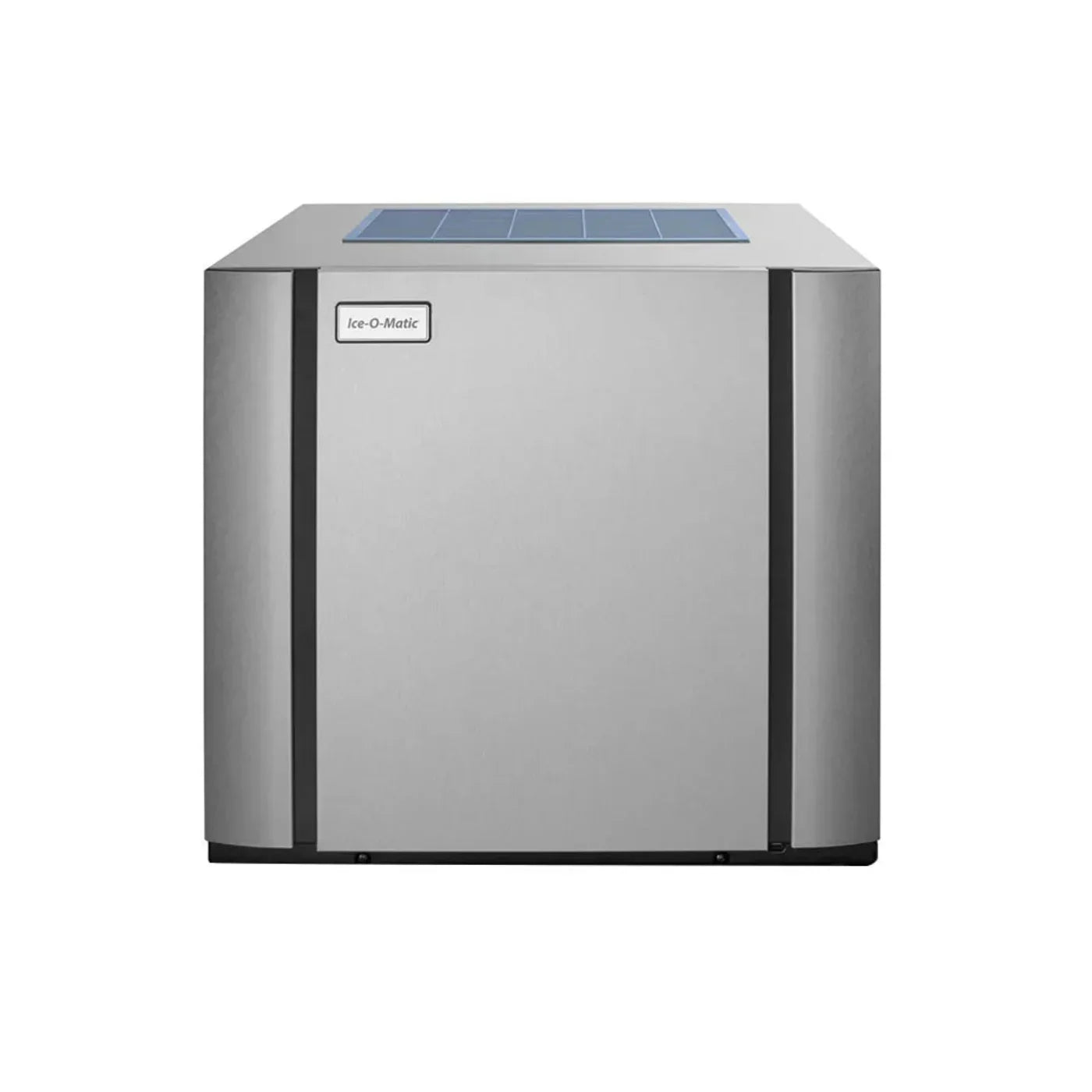

Ice-O-Matic 30" Elevation Series Full Cube Ice Machine Head Without Storage Bin, 896 lb/24 hr, 208/230v/1ph - CIM0836FA

Ice-O-Matic 30" Elevation Series Full Cube Ice Machine Head Without Storage Bin, 896 lb/24 hr, 208/230v/1ph - CIM0836FA

The Ice-O-Matic CIM0836FA is an air-cooled ice machine designed to efficiently produce up to 896 lbs of full-size cube ice daily. With features like dishwasher-safe parts and 1-touch sanitizing and descaling, it is perfect for businesses requiring low maintenance and high productivity. The Agion antimicrobial protection ensures fresh, clean ice with every cycle. This NSF listed unit is made in the USA and ideal for locations where space and reliable ice production are essential.

Key Features

• Ice Production: Produces up to 896 lb. of full-size cube ice per day.

• Cleaning Ease: Dishwasher-safe water distribution tube and foodzone parts simplify cleaning.

• Sanitization: 1-touch sanitizing and descaling with indicator LEDs for cleaning reminders.

• Antimicrobial Protection: Agion antimicrobial protection prevents bacterial buildup.

• Dimensions: Width: 30.25 inches, Depth: 24.25 inches, Height: 27 inches—designed to fit tight spaces.

• Exhaust Design: Side and top exhaust discharge for efficient air circulation.

• Electrical Data: Operates at 208-230V, 1 Phase, 60 Hz with a power usage of 5 kWh per 100 lbs.

• Customizable Features: NSF listed, BPA-free, made in the USA, and R-404A refrigerant.

• Shipping Weight: 220 lbs per unit, suitable for efficient transport and storage.

What Our Experts Think

• High Daily Output: Produces up to 896 lbs of full-size cube ice per day, suitable for medium to high-volume establishments.

• Air-Cooled System: Features a self-contained air-cooled condenser with dual exhaust (top/side), simplifying installation and reducing heat load in the environment.

• Compact Design: Measures 30.25" W x 24.25" D x 26.9" H, fitting into spaces where larger units might not.

• User-Friendly Controls: Equipped with one-touch sanitize and descaling controls, streamlining maintenance tasks.

• Antimicrobial Protection: Incorporates PURE ICE antimicrobial protection, inhibiting the growth of bacteria and mold.

• Energy Efficient: Designed to be up to 20% more energy-efficient than previous models, helping to reduce operational costs.

• Warranty Coverage: Offers a 3-year parts and labor warranty, with extended coverage on the evaporator and compressor when enrolled in the filter program.

Q&A

Q: What is the Ice-O-Matic CIM0836FA?
A: The CIM0836FA is a 30-inch Elevation Series air-cooled full cube ice machine head designed for commercial use, capable of producing up to 896 pounds of full-size (7/8" x 7/8" x 7/8") ice per 24 hours at 70°F air and 50°F water conditions. At 90°F air and 70°F water, it produces approximately 711 pounds per day .

Q: What are the dimensions of the CIM0836FA?
A: The unit measures 30.25" W x 24.25" D x 26.9" H, making it suitable for various commercial settings .

Q: Is a storage bin included?
A: No, the CIM0836FA is an ice machine head only; a compatible storage bin must be purchased separately.

Q: What type of cooling system does it use?
A: The CIM0836FA utilizes an air-cooled system with a self-contained condenser and dual exhaust (top/side), designed for installations with adequate ventilation .

Q: What type of ice does it produce?
A: It produces full-size cube ice, which is ideal for beverages and bagged ice applications due to its slow melt rate and large surface area .

Q: What are the electrical requirements?
A: The CIM0836FA operates on a 208-230 volt, 60 Hz, single-phase electrical connection, drawing approximately 11.8 amps .

Q: Is it energy-efficient and easy to maintain?
A: Yes, the unit is designed for energy efficiency and features PURE ICE built-in antimicrobial protection, LED status display, one-touch sanitize/descaling controls, and dishwasher-safe food zone components for easy cleaning .

Maintenance Tips

• Descale and Sanitize Every 6 Months: Utilize the machine's one-touch cleaning and descaling controls to remove mineral buildup and microbial growth.

• Replace Water Filters Biannually: Ensures clean ice and protects internal components.

• Clean Condenser Coils Quarterly: Use a soft brush or compressed air to maintain efficient airflow.

• Inspect Ice Production Regularly: Reduced output may indicate the need for maintenance or filter replacement.

• Clean External Surfaces Weekly: Wipe down with a mild detergent to prevent dust and debris accumulation.

• Schedule Annual Professional Maintenance: Have a certified technician perform comprehensive checks to ensure optimal performance.
