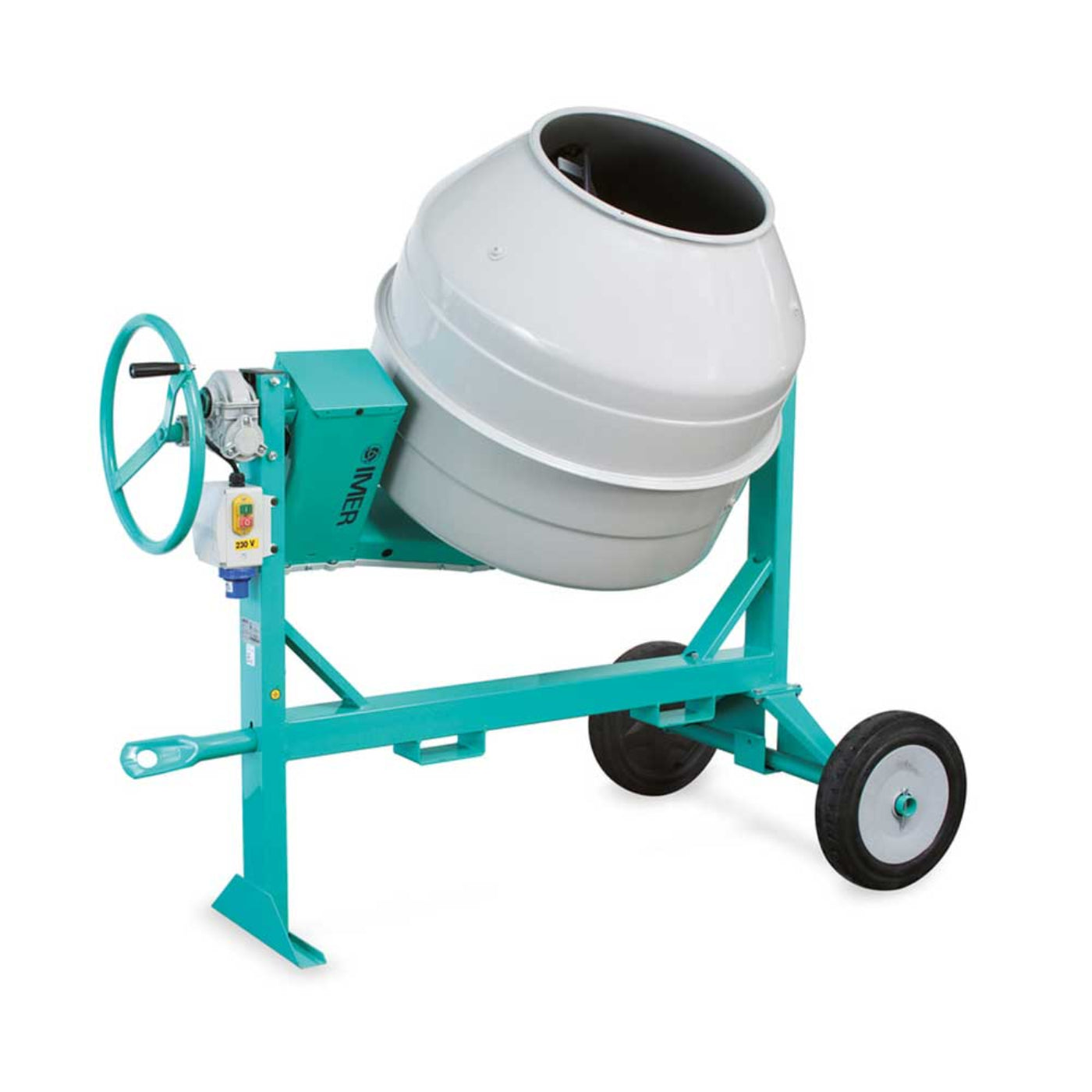

Imer Multi-Mix 350 Concrete Mixer - 1105802
Multi-Mix 350 is IMER’s New Portable Mixer for Mortar, Stucco, Grout or Concrete - Big Brother to the Wheelman II and Minuteman II Mixers. Designed and built to solve the typical problems of traditional concrete mixers. The transmission system inserted in the arm and the convenient worm screw tilting system make it noiseless and lightweight, and at the same time sturdy and reliable..
Features
- 1-1/2 hp 110v industrial grade motor with oil bath gear drive
- 15" pneumatic wheels
- 12 cu ft capacity, steel drum with 9.5 cu ft output
- Aggressive paddles to mix fast and complete
- Forklift pockets
- Slide out transport bar
Specifications
| Model |
1105802 |
| Power |
120V Electric |
| Motor Power Rating |
2 hp |
| Drum Capacity |
12 cu ft |
| Batch Output |
9.5 cu ft |
| Drum Diameter |
34-3/4" |
| Wheel Size |
15" |
| Dimensions l/w/h |
63-1/4" x 32-1/2" x 63" |
| Weight |
385 lb |
What our Experts Think
- Heavy-duty portable mixing power - Designed for mortar, stucco, grout, and concrete, delivering consistent batch mixing for professional construction jobs.
- High-capacity performance output - Features a 12 cu ft drum with approx. 9.5 cu ft batch output, making it suitable for medium-to-large jobsite pours.
- Strong industrial motor system - Equipped with a 1.9–2 HP 110V electric motor, providing reliable torque for continuous mixing under load.
- Smooth, low-maintenance gearbox drive - Uses a sealed direct-drive gearbox system, reducing noise, wear, and routine maintenance needs.
- Jobsite-friendly mobility design - Built with heavy-duty wheels, compact frame, and transport features, allowing easy movement across rough terrain.
- Consistent, high-quality mixing action - Internal paddle design ensures fast, uniform blending of materials with minimal segregation.
- Professional durability focus - Reinforced steel drum and frame construction engineered for daily contractor use and harsh site conditions.
Q&A
Q: What is the Imer Multi-Mix 350 used for?
A: It is a professional portable mixer designed for mixing mortar, stucco, grout, and concrete on construction job sites.
Q: What is its drum capacity?
A: It has a 12 cu ft drum with a practical batch output of about 9.5 cu ft, ideal for medium-to-large jobsite batches.
Q: What motor does it use?
A: It is powered by a 120V electric motor rated around 1.9–2 HP for consistent mixing performance.
Q: Is it portable or towable?
A: It is a non-towable portable mixer with wheels, forklift pockets, and a transport bar for easy jobsite movement.
Q: What makes its mixing system efficient?
A: It uses aggressive internal paddles and a direct-drive gearbox system for fast, uniform mixing with reduced maintenance.
Q: Is it noisy during operation?
A: No, its sealed gearbox and internal transmission design reduce noise for quieter operation compared to traditional mixers.
Q: How does it discharge material?
A: It features a worm-gear tilt system with a locking mechanism that allows controlled dumping at any angle.
Q: What are its main dimensions and weight?
A: It weighs about 385 lbs (175 kg) and has a compact frame roughly 63" long and 32.5" wide.
Q: What type of work is it best for?
A: Ideal for contractors needing consistent batch mixing for flooring, masonry, tile installation, and general concrete work.
Q: Why choose the Multi-Mix 350?
A: It combines high capacity, portability, and low-maintenance operation, making it a reliable all-purpose mixer for professional construction use.
Maintenance Tips
-
Clean drum immediately after use: Remove leftover mortar, concrete, or grout before it hardens to prevent buildup and imbalance.
-
Wash paddles thoroughly: Keep internal mixing blades clean to maintain consistent mixing quality and avoid hardened material wear.
-
Check gearbox (sealed unit): The direct-drive, oil-bath gearbox is maintenance-free but should be inspected for leaks or unusual noise.
-
Inspect tilt mechanism: Ensure the worm screw tilting system moves smoothly and locks securely to prevent accidental discharge.
-
Tighten frame & fasteners: Regularly check bolts, handles, and support structure to maintain stability on job sites.
-
Wheel & mobility check: Inspect wheels and transport bar for wear to ensure safe movement on rough terrain.
-
Electrical safety check: Inspect 110V motor cable and switch before each use, especially in wet construction environments.
-
Store dry & clean: Keep mixer covered and dry to prevent rust on steel drum and frame components.
