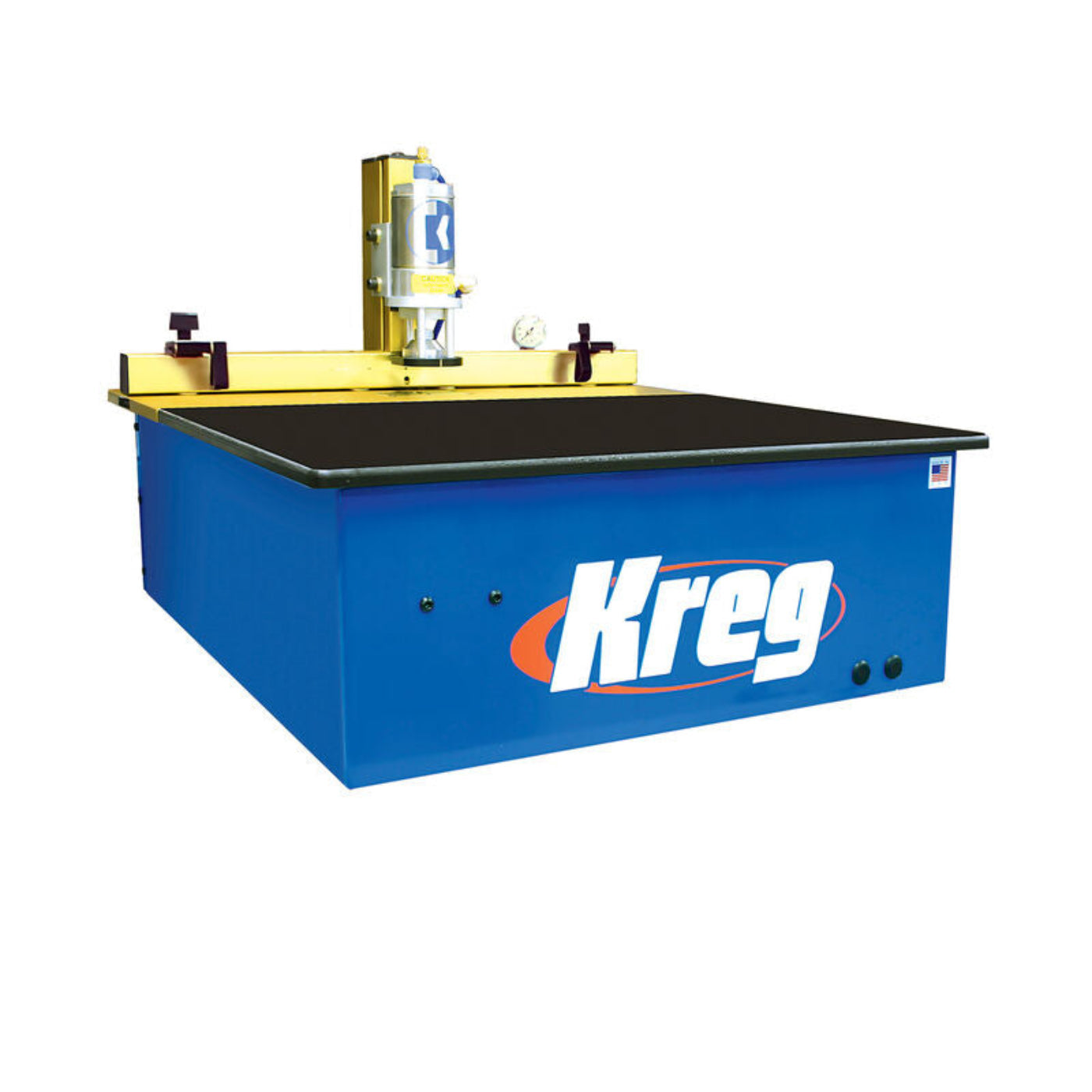

KREG Bench Top Single-Spindle Pneumatic Pocket-Hole Machine - DK1100 TP

KREG Bench Top Single-Spindle Pneumatic Pocket-Hole Machine - DK1100 TP

The DK1100 series of machines are the standard in the industry for drilling a single pocket hole at a time. We’ve packed a ton of functional features into these machines that set them apart from the competition. Choose from electric- or pneumatic-powered, freestanding or bench-mounted to fit the way you build.

Each DK1100 machine is built with industrial-grade motors that provide the power to run day after day – quickly, quietly, and reliably – in even the most high-production environments. For most shops, this translates into previously unheard of productivity and efficiency.

This model is identical to the DK1100 FP, but comes in a much smaller frame. It features a table height of 8", making it easy to build into your workbench or relocate from time to time. Requires a compressor able to produce 8 CFM at 120 PSI (50% duty cycle).

Convenient Swing Stops.

Quickly position two pocket holes across rails of various widths by placing it against one stop, drilling the hole, and then repeating with the rail against the other stop. For drilling pocket holes in panels, the stops simply swing out of the way.

Adjustable Fence.

Adjustments couldn’t be easier, as the fence adjusts directly from the top side of the machine to let you center a screw in 1/2"- to 1 1/2"-thick material. The clamp hold-down also adjusts to allow materials up to 4"-thick to be drilled.

Quick Drill Bit Changes.

Changing drill bits is a quick and easy process. Simply loosen the collet with the provided Allen wrench, replace with a new bit, and you are back in production in less than 60 seconds.

Long-Lasting Motors.

The industrial-grade motors used in Kreg machines are built for long-lasting service. Kreg machines are designed to minimize stress on moving parts, greatly reducing the likelihood of failure.

What our Experts Think

• Compact Pneumatic Power – Bench‑top pneumatic pocket‑hole machine with a 1¼ HP motor delivers fast, consistent drilling ideal for small to mid‑sized shops.

• High Productivity in Small Footprint – Table‑height design (~8″) makes it easy to integrate into workbenches or relocate when needed.

• Precision & Versatility – Adjustable fence centers pocket holes in boards from ½″ to 1 ½″ thick, and pneumatic clamping handles up to 4″ material.

• Speed & Efficiency – ~1‑second cycle time keeps workflow moving with minimal downtime.

• Easy Bit Changes – Quick‑release collet lets you swap drill bits in under a minute.

• Durable Industrial‑Grade Build – Hardened‑steel guides and robust motor are designed for long‑lasting service and reduced wear.

Q&A

Q: What is the KREG DK1100 TP?
A: A bench‑top single‑spindle pneumatic pocket‑hole drilling machine that boosts joinery speed and precision for woodworking, cabinetry, furniture, and production‑level projects.

Q: How does it work?
A: Uses a 1¼‑HP pneumatic motor with pneumatic clamping and a foot pedal, letting you drill consistent pocket holes at a ~1‑second cycle time.

Q: What are the power requirements?
A: Requires an air compressor capable of 8 CFM at 120 PSI to run the pneumatic motor efficiently.

Q: What material thickness can it handle?
A: Adjustable to center pocket holes in material from ½″ to 1½″ thick, and the clamp holds materials up to ~4″ thick.

Q: Is it durable and built to last?
A: Built with industrial‑grade components and hardened‑steel drill guides that extend bit life and reduce wear.

Q: What are its size & weight specs?
A: Compact benchtop unit ~19″ H × 24″ W × 24″ D with a table height of 8″, weighing ~77 lbs — ideal for built‑in or standalone shop use.

Q: Who is this machine for?
A: Perfect for woodworkers, cabinet makers, and production shops needing fast, repeatable pocket‑hole joins with consistent precision.

Maintenance Tips

• Clean Chips & Dust After Use – Regularly remove wood chips and dust from the drill guide, clamping area, and around the work surface to keep drilling smooth and accurate.

• Lubricate Pneumatic Drill – Periodically apply light pneumatic tool oil at the air inlet before use to lubricate internal components and maintain smooth operation. Always disconnect the air supply first.

• Inspect & Tighten Hardware – Check and tighten all bolts, clamps, and fasteners routinely to maintain alignment and safety during drilling.

• Check Drill Bit Condition – Replace or re‑sharpen worn stepped drill bits promptly to ensure clean pocket holes and reduce stress on the machine.

• Drain Moisture from Air Line – Drain the air filter/regulator’s moisture trap regularly to prevent water from entering the pneumatic system, protecting internal parts.

• Protect From Moisture & Corrosion – Store the machine in a dry, well‑ventilated shop; avoid moisture exposure that can lead to rust or degraded pneumatic seals.
