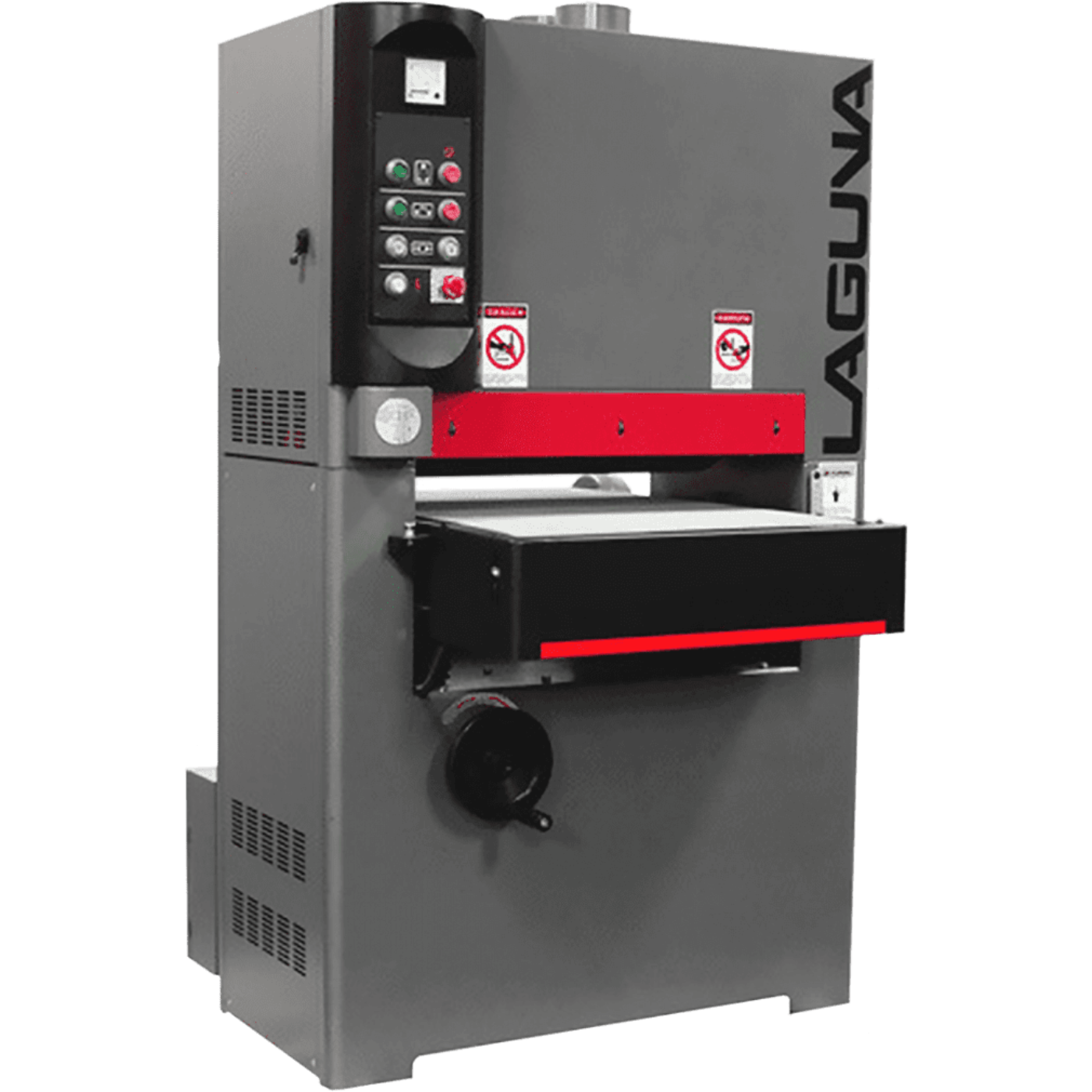

Laguna Tools Industrial Compact 37" Metal Wide Belt Sander - MW37C - MSANWB37X60-1K-10-0197-1

Specifications

• Machine Width: 37"

• Max Sanding Width: 36.5"

• Sanding Belt Size: 37" x 60"

• Net Weight: 1971 lbs

• Ship Weight: 2247 lbs

• Voltage: 220V, 3 Phase, 60hz

• Foot Print: 48 3/8" x 51 1/2"

• Conveyor Height at Lowest Setting: 31.9" (Table Height 37.4")

• Cabinet Steel: YES

• Operating Air Pressure: 60 PSI

• Fully CSA: YES

Motors:

• Main Motor: 10HP (Single Phase)

• Feed Speed: 1HP (Single Phase)

• Table Lifting Motor: 0.33 (Single Phase)

Sanding:

• Sanding Drum Diameter: 8"

• Length of Sanding Drum: 36.5"

• Sanding Drum RPM: 1720

• Speed Settings: 2 (Low/High): 20 fpm / 30 fpm

• Sanding Belt Oscillation: YES

• Sanding Belt Motor Break: YES

Dust Collection:

• Dust Port Size: 5" x 3"

• Number of Dust Ports: 3

Additional Features:

• Programmable Logic Control (PLC): YES (Digital Readout)

• Automatic Thickness Control: YES (Thicknessor)

• Max Sanding Height: 6"

• Min Sanding Height: 1/8"

Additional Notes:

• This sander also features a conveyor motor with variable speed control.

• The main motor comes equipped with overload protection.

• The machine has 3 cast iron platens for even sanding pressure.

• It includes an emergency stop button for safety.

Video

What Our Experts Think

• The Laguna Tools Industrial Compact 37" Metal Wide Belt Sander – MW37C delivers high-precision metal sanding in a compact, durable machine.

• Features a 10 HP main motor and 1 HP feed motor for reliable, continuous operation.

• 37" x 60" sanding belt with a maximum sanding width of 36½" for large parts.

• Equipped with digital readouts, auto-thickness control, and belt oscillation for consistent finishes.

• Heavy-duty steel construction ensures long-lasting performance in industrial environments.

Q&A

Q: What motor does it use?
A: 10 HP main motor with 1 HP feed motor.

Q: What is the sanding belt size?
A: 37" x 60", with max width 36½".

Q: What is it designed for?
A: Metal deburring, sanding, and surface finishing for industrial applications.

Q: Any special features?
A: Includes digital readouts, auto-thickness sensing, and belt oscillation for precision.

Maintenance Tips

• Clean the belt and machine regularly to remove debris and maintain finish quality.

• Check belt tension and tracking for consistent sanding results.

• Lubricate moving parts such as table lifts and feed mechanisms.

• Keep dust extraction ports clear for optimal airflow.

• Inspect platen and drums to ensure flat, even surfaces for precision work.
