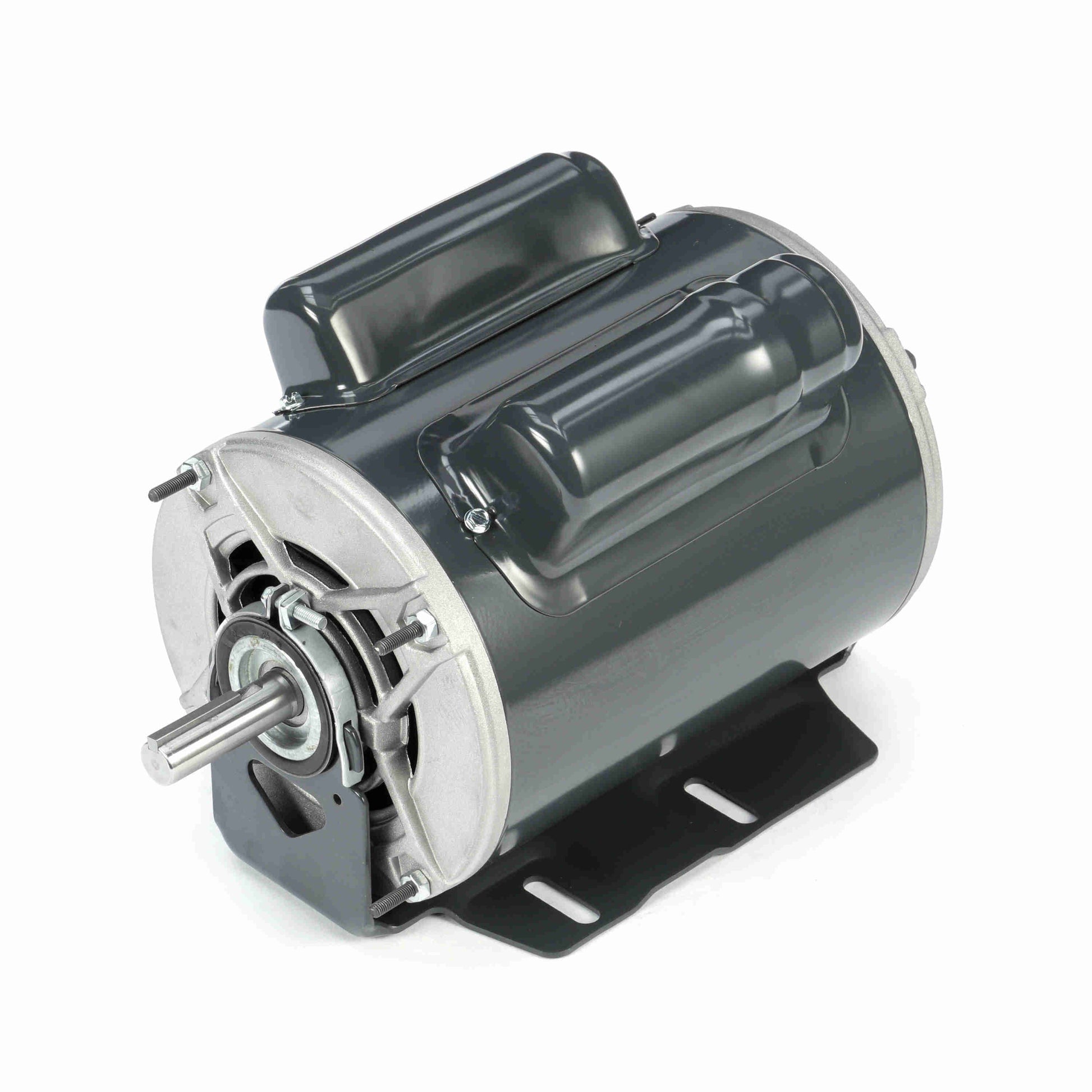

Marathon MC475 56 Frame 1 hp Electric Motor 1725 RPM 115 VAC Belt Drive - MC475
This Marathon MC475 belt drive motor is designed for versatile use across HVAC systems and various electrical applications. This single-phase, two-speed motor operates at 1 hp and can reach a maximum speed of 1725 RPM. The motor runs at 115 VAC and has an amperage of 10.8 and 7.4. The 56 frame with an open drip proof (ODP) enclosure ensures optimal cooling and protection. It features a resilient ring mounting and a ball bearing system for durability.
- Single-phase belt drive motor with two-speed operation
- Runs at 1 hp with a max speed of 1725 RPM
- 56 frame with open drip proof (ODP) enclosure
The Marathon MC475 motor is suitable for HVAC/R applications and fan and blower operations. Its capacitor start allows for reliable performance in multiple settings. With its resilient base mounting and ball bearing system, the motor ensures a long lifespan and smooth operation.
Specifications
-
MPN: MC475
-
Brand: Marathon Electric
-
Manufacturer: Marathon
-
Electrical Type: Cap Start
-
Horsepower: 1 1/3
-
RPM: 1725
-
Frame: 56
-
Diameter: 6.5 inches
-
Enclosure: ODP (Open Drip Proof)
-
Phase: Single
-
Voltage: 115
-
Rotation: REV (Reversible)
-
Material: Rolled Steel
-
Mounting: Resilient Base
-
Amperage: 10.8/7.4
-
Shaft Type: Single
-
Speeds: 2
What Our Experts Think
-
1 HP belt drive electric motor built for reliable industrial and commercial use.
-
1725 RPM speed ensures efficient, consistent operation.
-
115 VAC single-phase design for easy installation.
-
56 frame provides compatibility with standard mounts and equipment.
-
Ideal for fans, blowers, pumps, and light industrial machinery.
Q&A
Q: What is the horsepower of this motor?
A: 1 HP, suitable for light-to-medium duty equipment.
Q: What voltage does it operate on?
A: 115 VAC, single-phase.
Q: What type of drive does it have?
A: Belt drive for smooth and reliable power transmission.
Q: What is the motor speed?
A: 1725 RPM for efficient performance in industrial applications.
Maintenance Tips
-
Keep motor and belt clean and free of debris.
-
Check belt tension and alignment regularly.
-
Inspect wiring and connections for safety.
-
Lubricate bearings according to manufacturer’s recommendations.
