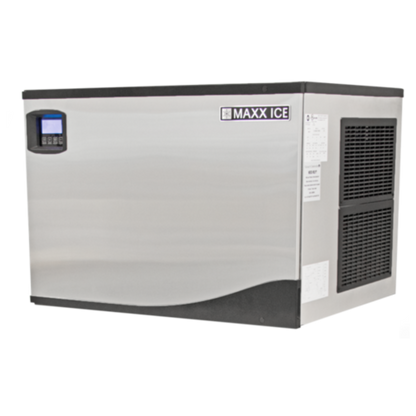

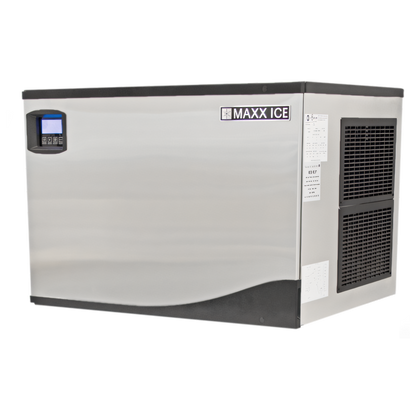

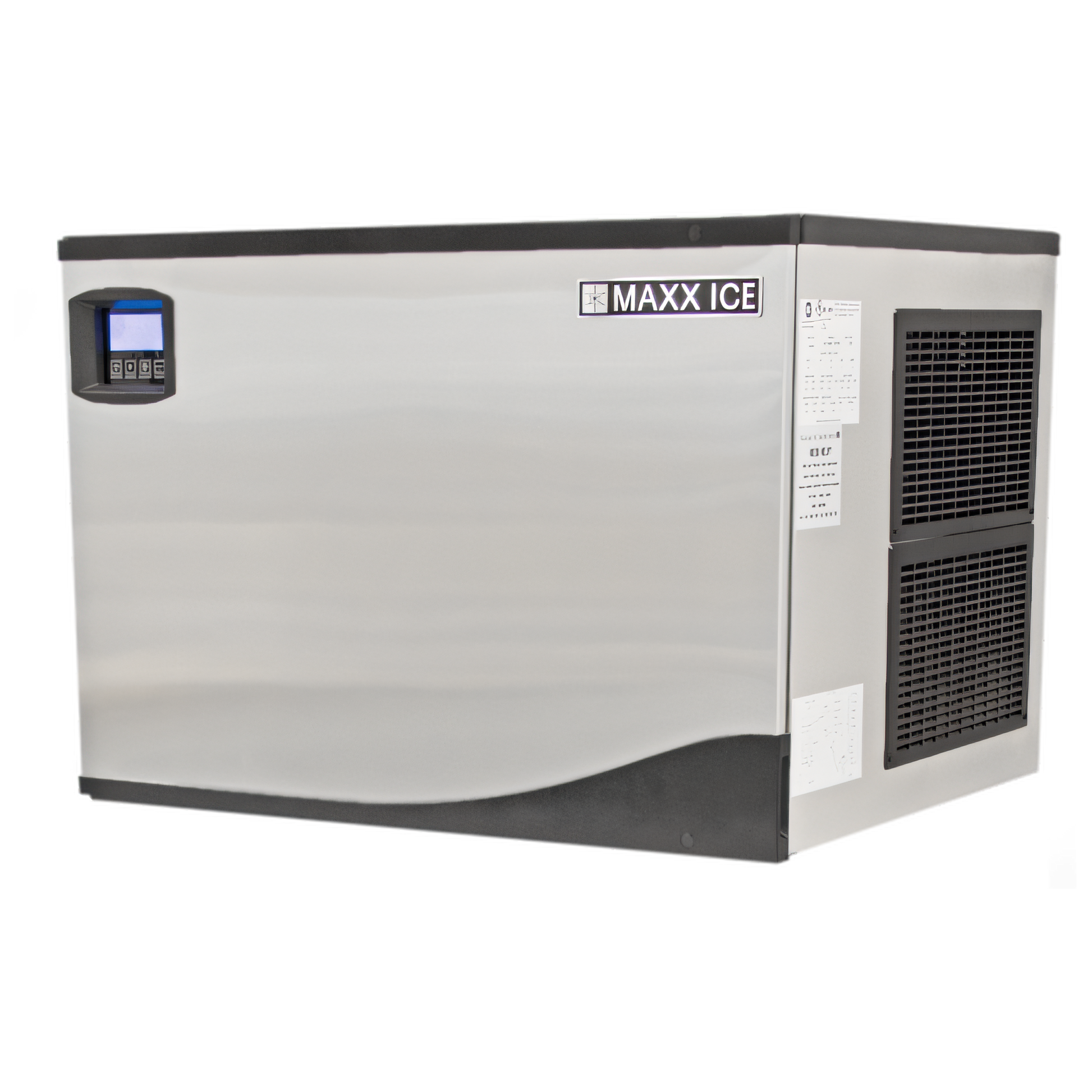

Maxximum MIM1000NH Maxx Ice Ice Machines
Maxx Ice Modular Ice Maker, cube-style (half dice), air-cooled, self-contained condenser, digital display & controls, automatic cleaning, overflow prevention, approximately 1005 lb. production/24 hours, LED light, stainless steel exterior with black trim, R404a refrigerant, 230v/60/1-ph, 11.1 amps, NEMA L14-20, hard wired, NSF, cULus Classified, CE
Specifications
| Manufacturer |
Maxximum |
| Brand Name |
Maxx Ice |
| Certifications |
NSF, CE, cULus Classified |
| Height |
26.7 in |
| Width |
30.0 in |
| Depth |
24.6 in |
| Shipping Weight |
208.0 lbs |
| Ice Type |
Half size / Half dice cubes |
| Width (side-to-side) |
30 β 39" wide |
| Condenser Type |
Air-cooled |
| Production per 24 hr |
1001 β 1100 lb (approximately 1005 lb / 455 β 499 kg) |
| Refrigeration |
Self-contained refrigeration |
| Specifications (Full) |
Maxx Ice Modular Ice Maker, cube-style (half dice), air-cooled, self-contained condenser, digital display & controls, automatic cleaning, overflow prevention, approx. 1005 lb/24 hrs, LED light, stainless steel exterior with black trim, R404a refrigerant, 230v/60/1-ph, 11.1 amps, NEMA L14-20, hard wired, NSF, cULus Classified, CE |
Documents
What our Experts Think
-
High-Capacity Production: Produces up to 1,005 lbs of half-dice ice per day, perfect for high-demand environments like restaurants, bars, and hotels.
-
Energy & Water Efficient: Designed to consume up to 40% less water and produce ice faster, cutting down operational costs.
-
Space-Saving Design: With a 30" width, this model fits into tight spaces while delivering powerful performance. It is also compatible with most ice storage bins.
-
Durable & Long-Lasting: The stainless steel exterior ensures durability, while the hinged front panel makes cleaning and maintenance easy.
-
User-Friendly Controls: The digital display allows for real-time monitoring of ice production and machine status, simplifying operation and maintenance.
Q&A
Q: What is the Maxximum MIM1000NH?
A: The Maxximum MIM1000NH is a modular, air-cooled ice machine designed for high-volume commercial use. It produces up to 1,005 lbs of half-dice ice cubes daily, making it perfect for restaurants, bars, and hotels.
Q: What are the key features?
A: The MIM1000NH features a stainless steel exterior, a hinged front panel for easy maintenance, and a digital controller for simple operation. It also includes automatic cleaning cycles and bin overflow protection.
Q: What is the ice cube size?
A: The MIM1000NH produces half-dice ice cubes measuring 0.5" x 0.875" x 0.875".
Q: What are the dimensions and weight?
A: The unit measures 30" W x 24.6" D x 26.7" H and weighs 194 lbs.
Q: What is the warranty?
A: The MIM1000NH comes with a 1-year parts and labor warranty, plus an additional 2-year parts warranty for the compressor and evaporator.
Q: Is installation easy?
A: Yes, the unit features a hinged front panel for easy access, and it is compatible with most 30" ice storage bins and beverage dispensers.
Maintenance Tips
-
Regular Cleaning: Clean the exterior weekly with a non-abrasive cloth to avoid buildup and maintain its appearance.
-
Ice Making System Cleaning: Perform a deep clean every 6 months or more often if local water quality demands. Use a nickel-safe ice machine cleaner, following the manufacturer's instructions. Ensure all ice is removed before cleaning.
-
Sanitization: After cleaning, sanitize the interior with a solution of 1 oz household bleach and 2 gallons of hot water. Wipe down all surfaces and allow them to air dry.
-
Condenser Maintenance: Regularly inspect and clean the condenser to prevent dust and debris from blocking airflow. Use a soft brush or vacuum to clean it.
-
Water Quality: Always use filtered water to prevent mineral buildup and ensure clean, high-quality ice. Avoid using deionized water.
-
Drainage System: Ensure the proper setup of the bin drain, purge drain, and water condenser drain by connecting them to a floor drain. Avoid using condensate pumps for machines producing over 200 lbs of ice daily.
-
Professional Servicing: Schedule professional servicing annually to check for wear and maintain optimal performance.
