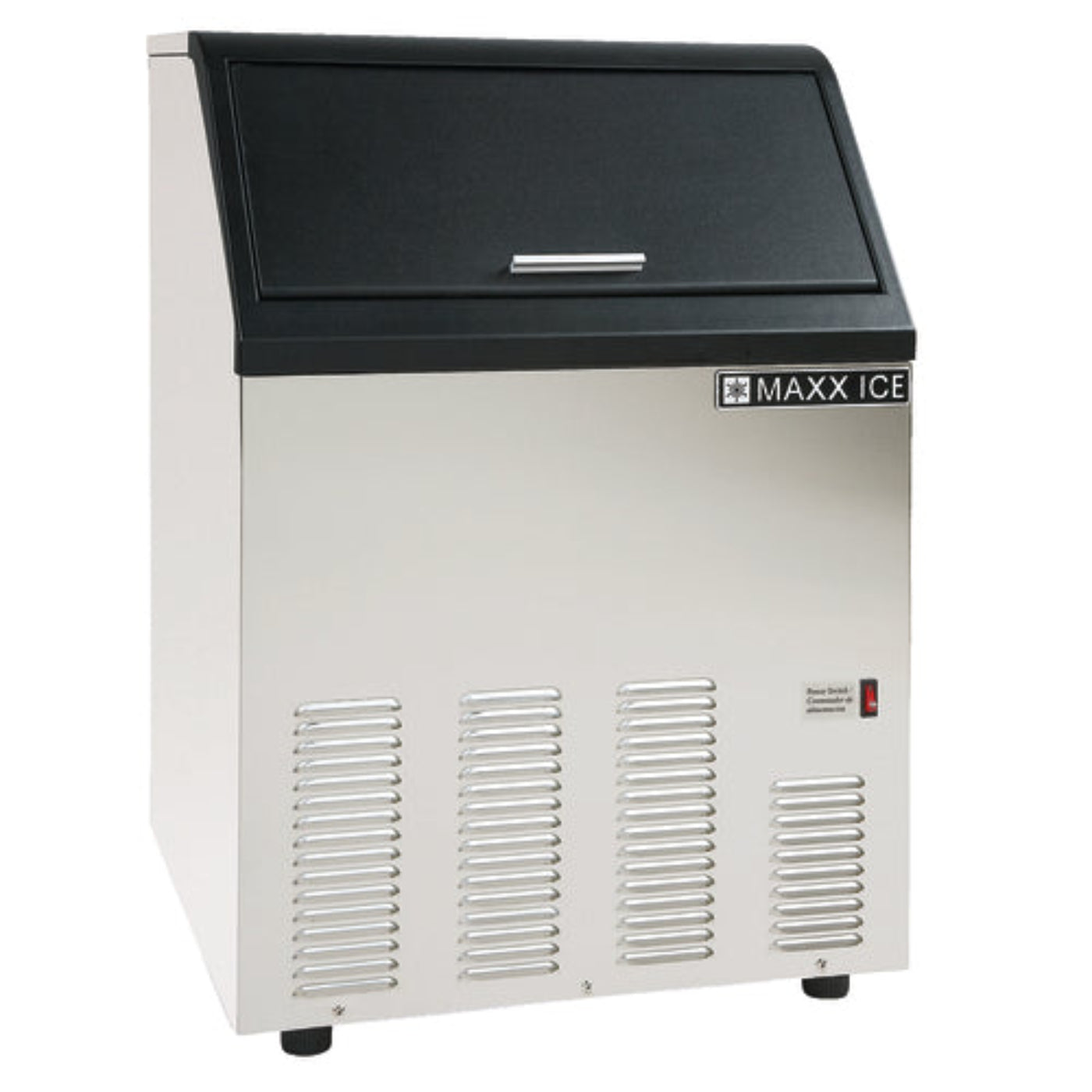

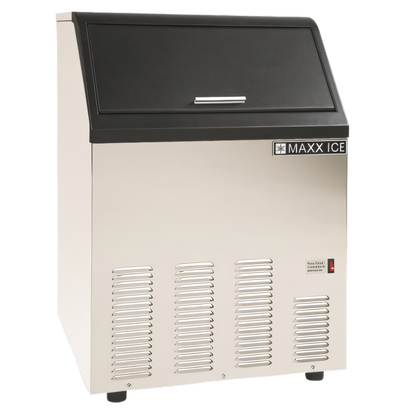

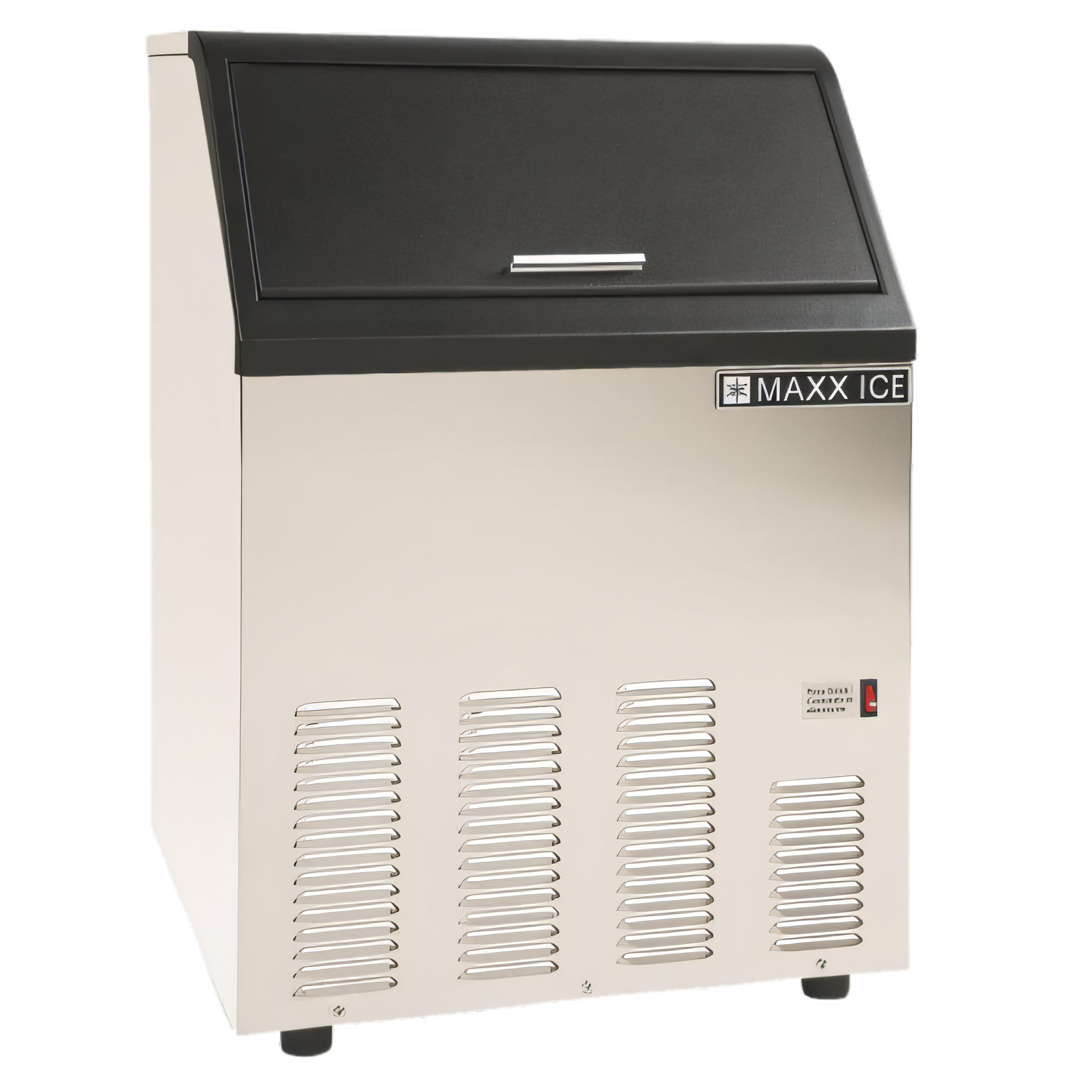

Maxximum MIM130 Maxx Ice Ice Machines
Maxx Ice Ice Maker With Bin, cube-style (bullet), air-cooled, self-contained condenser, approximately 130 lb. production/24 hours, 35 lb. built-in storage capacity, automatic overfill prevention, polyethylene storage bin liner, stainless steel construction, R134a refrigerant, cETLus, ETL-Sanitation, CE
Specifications
| Manufacturer |
Maxximum |
| Brand Name |
Maxx Ice |
| Certifications |
CE, cETLus, ETL-Sanitation |
| Height |
32.7 in |
| Width |
22.0 in |
| Depth |
21.0 in |
| Shipping Weight |
129.0 lbs |
| Condenser Type |
Air-cooled |
| Cube Type |
Half size / half dice |
| Production per 24 hr |
101 – 200 lb (46 – 90 kg) |
| Bin Storage Capacity |
0 – 50 lb (35 lb built-in) |
| Finish |
Stainless steel |
| Additional Specifications |
Maxx Ice Ice Maker with Bin, cube-style (half dice), air-cooled, self-contained condenser, automatic overfill prevention, stainless steel construction, approximately 125 lb. production/24 hours |
Documents
What our Experts Think
-
High Daily Output: Produces up to 130 lbs of bullet-shaped ice cubes daily, making it ideal for medium-volume establishments.
-
Integrated Storage: Includes a 35-lb capacity storage bin with a polyethylene liner, keeping ice clean and easily accessible.
-
Compact & Versatile: Designed for both freestanding and built-in installations, fitting into tight spaces with ease.
-
Durable Construction: Features a stainless steel exterior with black trim for a professional look and easy maintenance.
-
User-Friendly Controls: Equipped with a digital control system, including self-cleaning mode and automatic shutoff for added convenience.
-
Energy Efficient: The air-cooled compressor operates efficiently within a 50°F to 100°F ambient temperature range, ensuring low energy use.
-
Sanitary Design: The front-breathing design allows for installation against walls, maximizing space without sacrificing ventilation.
Q&A
Q: What is the ice production capacity of the Maxximum MIM130?
A: The Maxximum MIM130 produces up to 130 pounds of bullet-shaped ice cubes per day.
Q: What is the storage capacity of the built-in bin?
A: It has a built-in storage bin with a 35-pound capacity.
Q: What are the dimensions of the unit?
A: The unit measures 22" (W) x 21" (D) x 32.7" (H).
Q: What type of ice does it produce?
A: The MIM130 produces bullet-shaped ice cubes measuring 1" x 1.25" x 1.5".
Q: What type of refrigeration system does it use?
A: It uses an air-cooled compressor with R-134a refrigerant.
Q: Is it suitable for both freestanding and built-in installations?
A: Yes, the MIM130 is designed for both freestanding and built-in installations.
Q: Does it have a self-cleaning feature?
A: Yes, the unit includes a built-in self-cleaning mode for easy maintenance.
Q: What are the electrical requirements?
A: The MIM130 operates on 115V, 60Hz, 1-phase power, drawing 7.5 to 11.8 amps.
Q: What certifications does it have?
A: The unit is ETL and cETLus certified, meeting safety and sanitation standards.
Maintenance Tips
-
Regular Cleaning: Use the built-in cleaning mode to clean the machine. Add a nickel-safe cleaner to the water tank and run the cleaning cycle. Repeat the cycle with water to rinse the system.
-
Sanitize Interior: After cleaning, sanitize the bin using a bleach-water solution (1 oz. bleach in 2 gallons of hot water). Wipe down all surfaces and rinse thoroughly.
-
Clean Condenser: Every 3 months, unplug the machine, remove the front cover, and clean the condenser fins with a vacuum and brush attachment. Be careful not to damage the fins.
-
Prevent Contamination: Do not store anything other than ice in the storage bin to avoid contamination and potential clogging.
-
Use Filtered Water: To avoid mineral buildup, use filtered water. If water is hard, consider using softened water, but avoid using deionized water.
-
Dispose of First Batch: After cleaning, discard the first batch of ice to ensure cleanliness.
-
Professional Servicing: Schedule professional maintenance at least twice a year to keep the ice machine running at peak performance.
