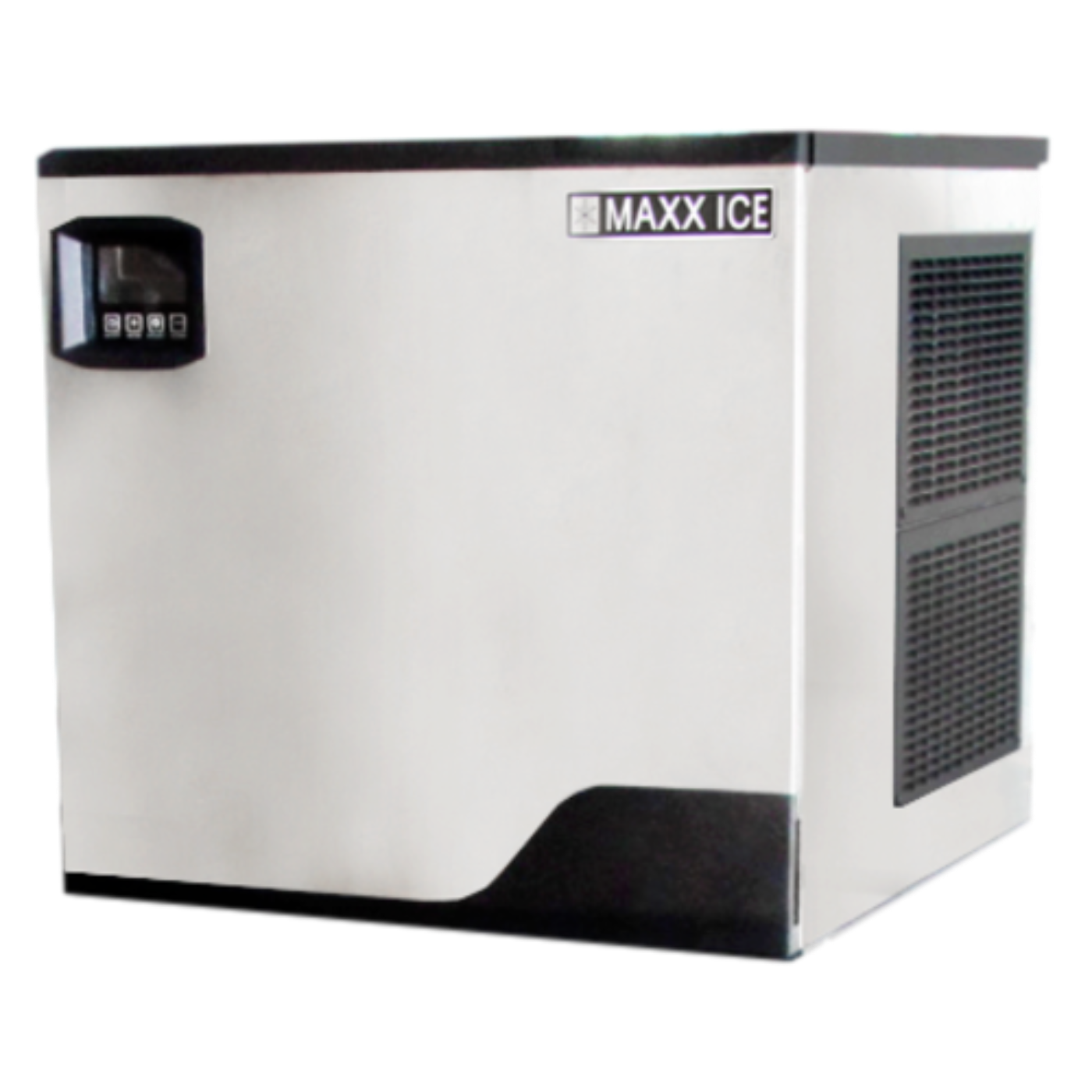

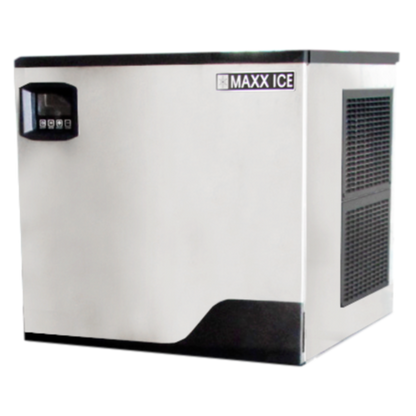

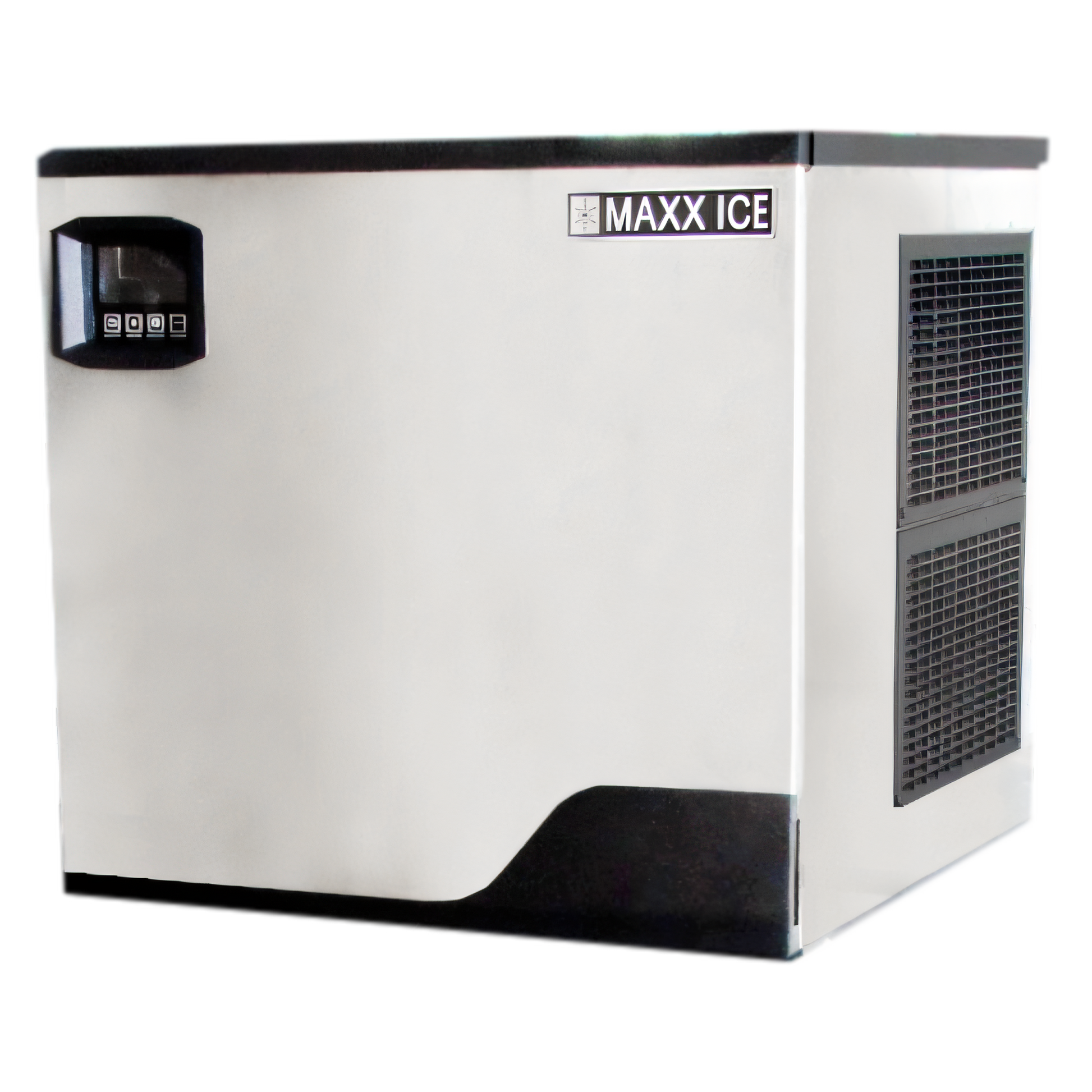

Maxximum MIM360N Maxx Ice Ice Machines
Maxx Ice Modular Ice Maker, cube-style (full dice), 22"W, air-cooled, self-contained condenser, programmable digital controls & display, automatic cleaning, overflow prevention, approximately 373 lb. production/24 hours, LED light, stainless steel exterior with black trim, NSF, cULus Classified, CE, ENERGY STAR
Specifications
| Manufacturer |
Maxximum |
| Brand Name |
Maxx Ice |
| Certifications |
NSF, CE, cULus Classified, ENERGY STAR |
| Height |
21.0 in |
| Width |
22.0 in |
| Depth |
24.6 in |
| Shipping Weight |
111.5 lbs |
| Energy Efficiency |
ENERGY STAR® |
| Production per 24 hr |
301 – 400 lb (137 – 182 kg) |
| Width (side - side) |
20 – 29" wide |
| Refrigeration |
Self-contained refrigeration |
| Condenser Type |
Air-cooled |
| Ice Type |
Full size / dice cubes |
| Additional Specifications |
Maxx Ice Modular Ice Maker, cube-style (full dice), 22"W, air-cooled, self-contained condenser, programmable digital controls & display, automatic cleaning, overflow prevention, LED light, stainless steel exterior with black trim, NSF, cULus Classified, CE, ENERGY STAR |
Documents
What our Experts Think
-
High Capacity: Produces up to 373 lbs of ice per day, making it ideal for high-demand locations such as restaurants, hotels, and bars.
-
Energy Efficient: Uses up to 40% less water and 20% faster ice production, helping reduce energy and water consumption.
-
Compact Design: At only 22" wide, it fits in tight spaces, and its stackable design allows for greater ice production when needed.
-
User-Friendly Controls: Equipped with an intuitive digital controller that displays machine status and temperature, simplifying operation and monitoring.
-
Easy Maintenance: Front panel design makes cleaning and servicing simple, ensuring long-lasting, reliable performance.
-
Durable Performance: Air-cooled compressor and automatic cleaning cycle help maintain consistent ice output and extend the machine's lifespan.
Q&A
Q: What type of ice does the Maxximum MIM360N produce?
A: The Maxximum MIM360N produces full-dice ice cubes measuring 0.875" x 0.875" x 1", ideal for beverages and food display.
Q: What is the daily ice production capacity?
A: It produces up to 373 lbs (169 kg) of ice per day under optimal conditions (70°F air and 50°F water).
Q: Is the MIM360N energy-efficient?
A: Yes, it's Energy Star rated, consuming up to 40% less water and producing ice up to 20% faster than similar units.
Q: What are the installation requirements?
A: The MIM360N requires a gravity drain line and a 115V electrical connection. A 2-inch clearance from the wall is recommended for proper ventilation.
Q: Is the MIM360N easy to maintain?
A: Yes, it features a hinged front panel for easy access, automatic cleaning cycle, and bin overflow prevention.
Maintenance Tips
-
Regular Cleaning: Clean the ice-making system using a nickel-safe cleaner. Run the cleaning cycle multiple times, ensuring thorough rinsing after each cleaning session.
-
Check Water Distribution Tube: If ice production is low, inspect the water distribution tube for blockages. Clear any debris using a toothpick.
-
Condenser Maintenance: Clean the condenser regularly with a soft brush or vacuum to remove dust and debris, ensuring efficient cooling.
-
Sanitize the Interior: Sanitize the water tank, ice-making components, and storage bin using a bleach solution, then allow the surfaces to dry completely.
-
Exterior Cleaning: Wipe down the machine's exterior with mild detergent and warm water to maintain its appearance, avoiding abrasive cleaners.
-
Ice Bin Care: Regularly clean and dry the ice storage bin to prevent contamination and excess moisture.
-
Monitor Machine Alerts: Pay attention to any error codes or alerts on the machine’s digital controller to address issues promptly.
