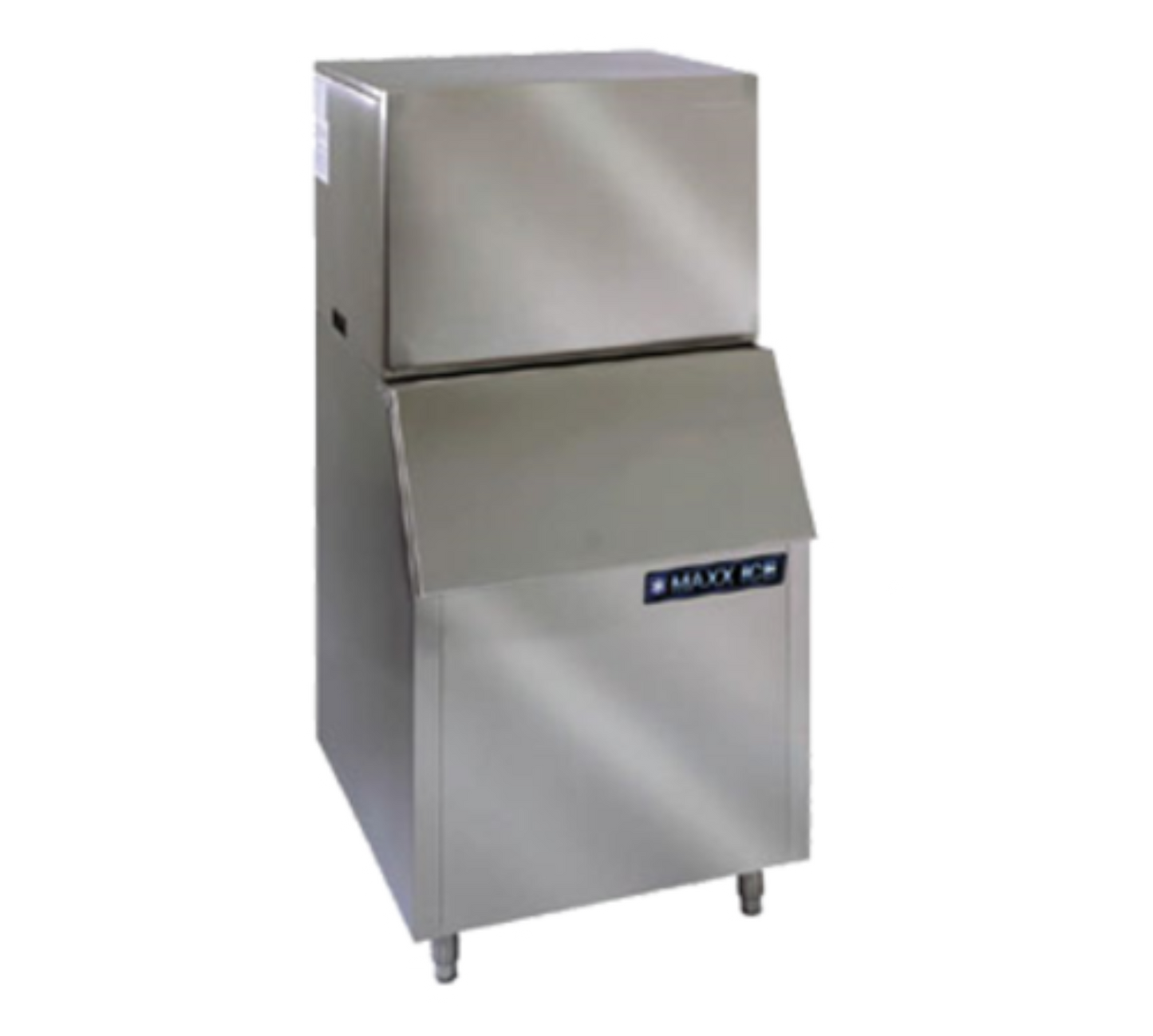

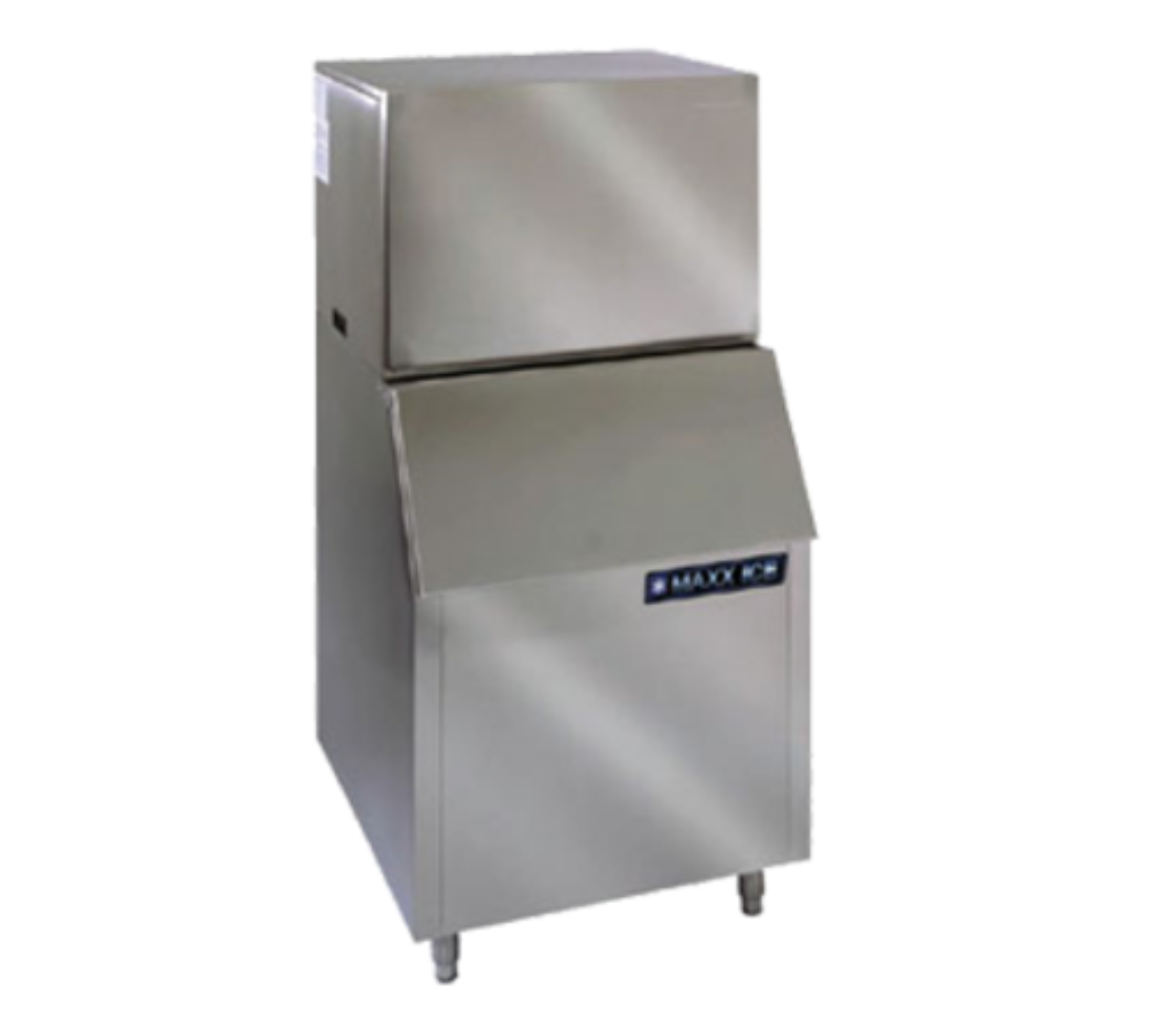

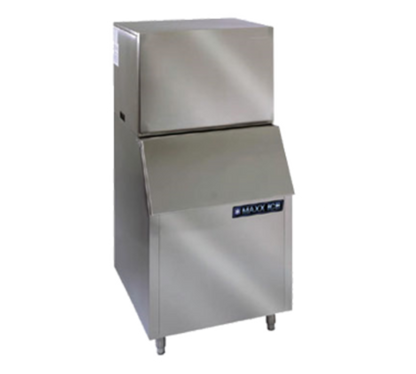

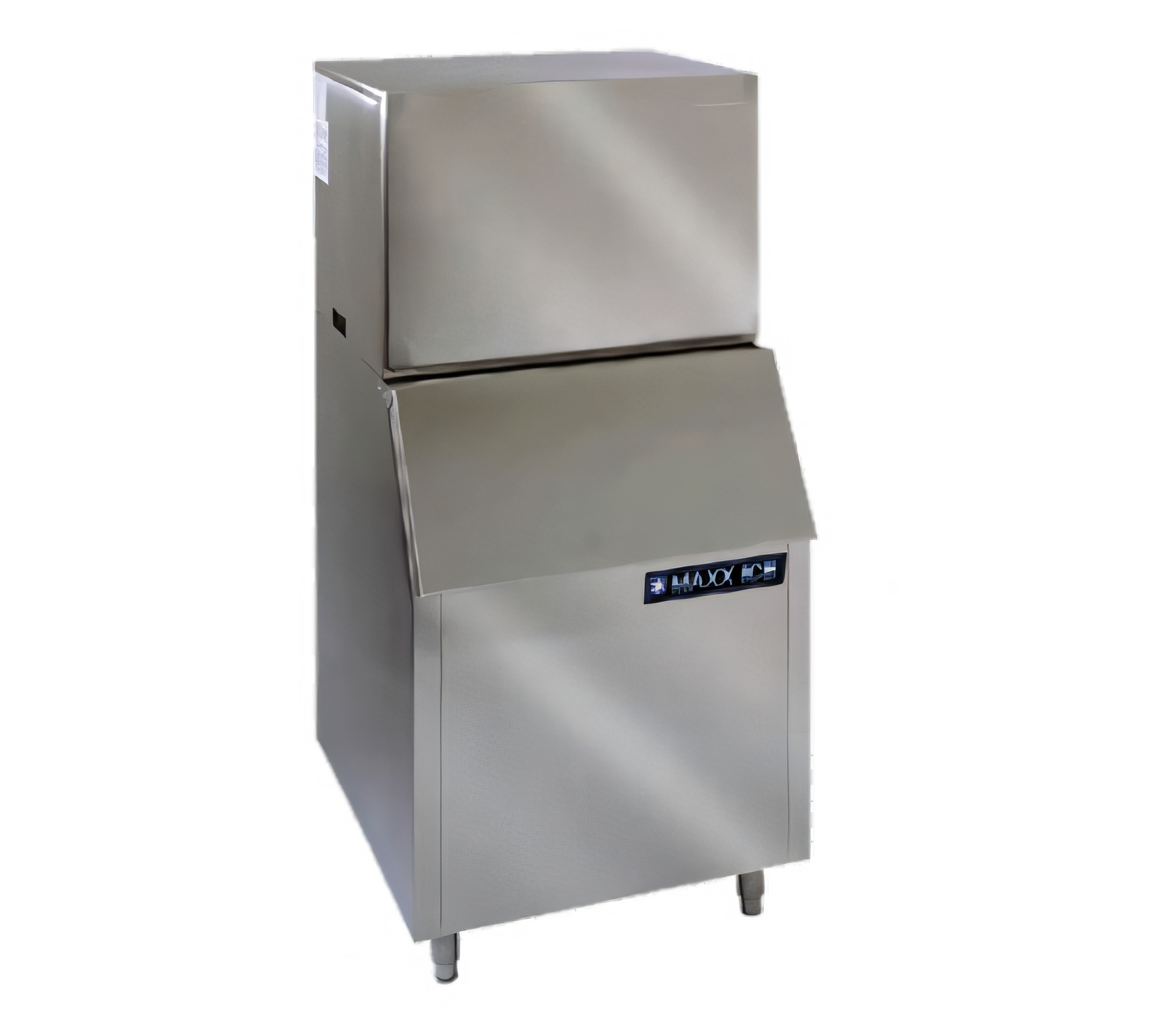

Maxximum MIM452 Maxx Ice Ice Machines
Maxx Ice Modular Ice Maker, cube-style (full dice), air-cooled, self-contained condenser, automatic cleaning, approximately 460 lb. production/24 hours, on/off switch, vertical evaporator, stainless steel exterior, R404a refrigerant, ETL-Sanitation, cULus Classified, CE, ENERGY STAR
Specifications
| Manufacturer |
Maxximum |
| Brand Name |
Maxx Ice |
| Certifications |
CE, cULus Classified, ETL-Sanitation, ENERGY STAR |
| Height |
21.0 in |
| Width |
30.0 in |
| Depth |
24.0 in |
| Shipping Weight |
148.0 lbs |
| Width (Side to Side) |
30 – 39" wide |
| Production per 24 hr |
401 – 500 lb (183 – 227 kg) |
| Condenser Type |
Air-cooled |
| Ice Type |
Full size / Dice cubes |
| Refrigeration |
Self-contained refrigeration |
| Energy Efficiency |
ENERGY STAR® |
| Specifications |
Maxx Ice Modular Ice Maker, cube-style (full dice), air-cooled, self-contained condenser, automatic cleaning, approx. 460 lb. production/24 hr, on/off switch, vertical evaporator, stainless steel exterior, R404a refrigerant, ETL-Sanitation, cULus Classified, CE, ENERGY STAR |
Documents
What our Experts Think
-
High Production Capacity: Produces up to 460 lbs of full-dice ice per day, ideal for high-demand environments like restaurants, bars, and hotels.
-
Energy Efficient: Designed to minimize energy consumption, helping reduce operational costs while maintaining excellent performance.
-
Durable Construction: Built with a stainless steel exterior that resists corrosion, ensuring durability and ease of cleaning.
-
User-Friendly Maintenance: Features a hinged front panel for easy access, simplifying maintenance and cleaning tasks.
-
Flexible Installation: Compatible with most 30" ice storage bins, and its stackable design allows for increased ice production in high-volume settings.
-
Automatic Cleaning Cycle: Includes an automatic cleaning function and overflow protection to reduce manual intervention and ensure reliable ice production.
Q&A
Q: What type of ice does the Maxximum MIM452 produce?A: The Maxximum MIM452 produces full-dice ice cubes measuring 0.875" x 0.875" x 1", ideal for beverages and food display.
Q: What is the daily ice production capacity?
A: It produces up to 460 lbs (209 kg) of ice per day under optimal conditions (70°F air and 50°F water).
Q: Is the MIM452 energy-efficient?
A: Yes, it's Energy Star rated, consuming approximately 7.1 kWh per 100 lbs of ice produced.
Q: What are the installation requirements?
A: The MIM452 requires a gravity drain line and a 115V electrical connection. A 2-inch clearance from the wall is recommended for proper ventilation.
Q: Is the MIM452 easy to maintain?
A: Yes, it features an automatic cleaning cycle, a hinged front panel for easy access, and bin overflow protection.
Maintenance Tips
-
Exterior: Use a soft cloth dampened with a mild detergent and warm water solution. Rinse with clean water and wipe with a soft towel to avoid water spots.
-
Interior (Water Tank and Ice Storage Bin): Sanitize using a solution of 1 oz of household bleach mixed with 2 gallons of hot water. Wipe down the water tank and inside the ice storage bin, then rinse thoroughly with clean water.
-
Preparation: Remove all ice cubes from the storage bin.
-
Cleaning Solution: Add 8 oz of nickel-safe ice machine cleaner to the water tank.
-
Cleaning Cycle: Turn on the machine and press the "Clean" button to initiate the cleaning cycle.
-
Rinsing: Repeat the cleaning cycle three times without adding cleaning solution to ensure thorough rinsing.
-
Sanitization: After cleaning, sanitize the water tank and ice storage bin with the bleach solution mentioned above.
-
Restart: Discard the first batch of ice produced after cleaning and sanitizing.
-
Frequency: Clean the condenser once or twice a year to remove lint and debris.
-
Method: Use a vacuum with a soft brush attachment to gently clean the condenser fins. Avoid touching the fins directly to prevent damage.
