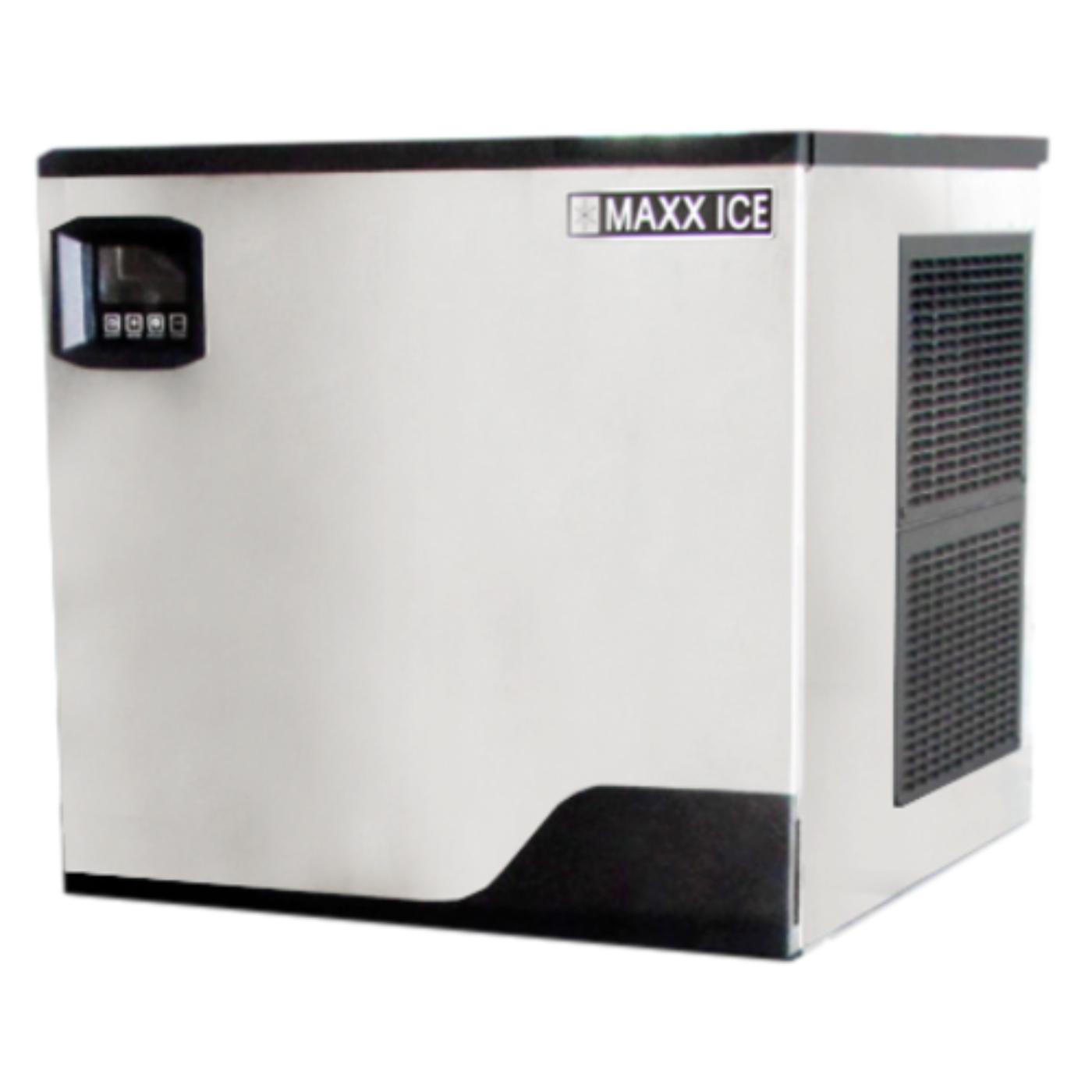

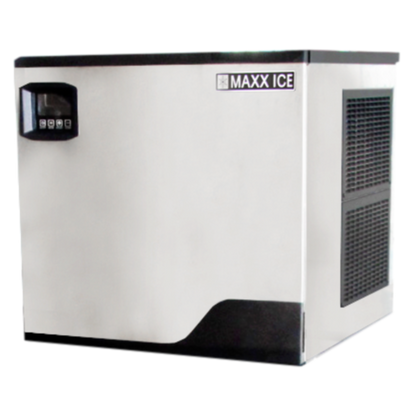

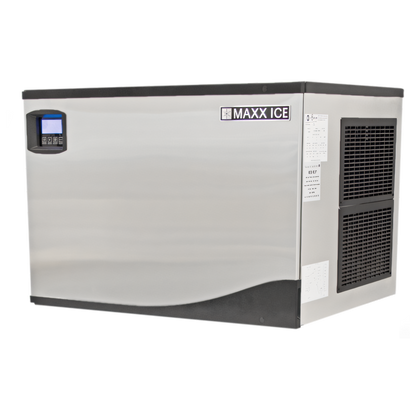

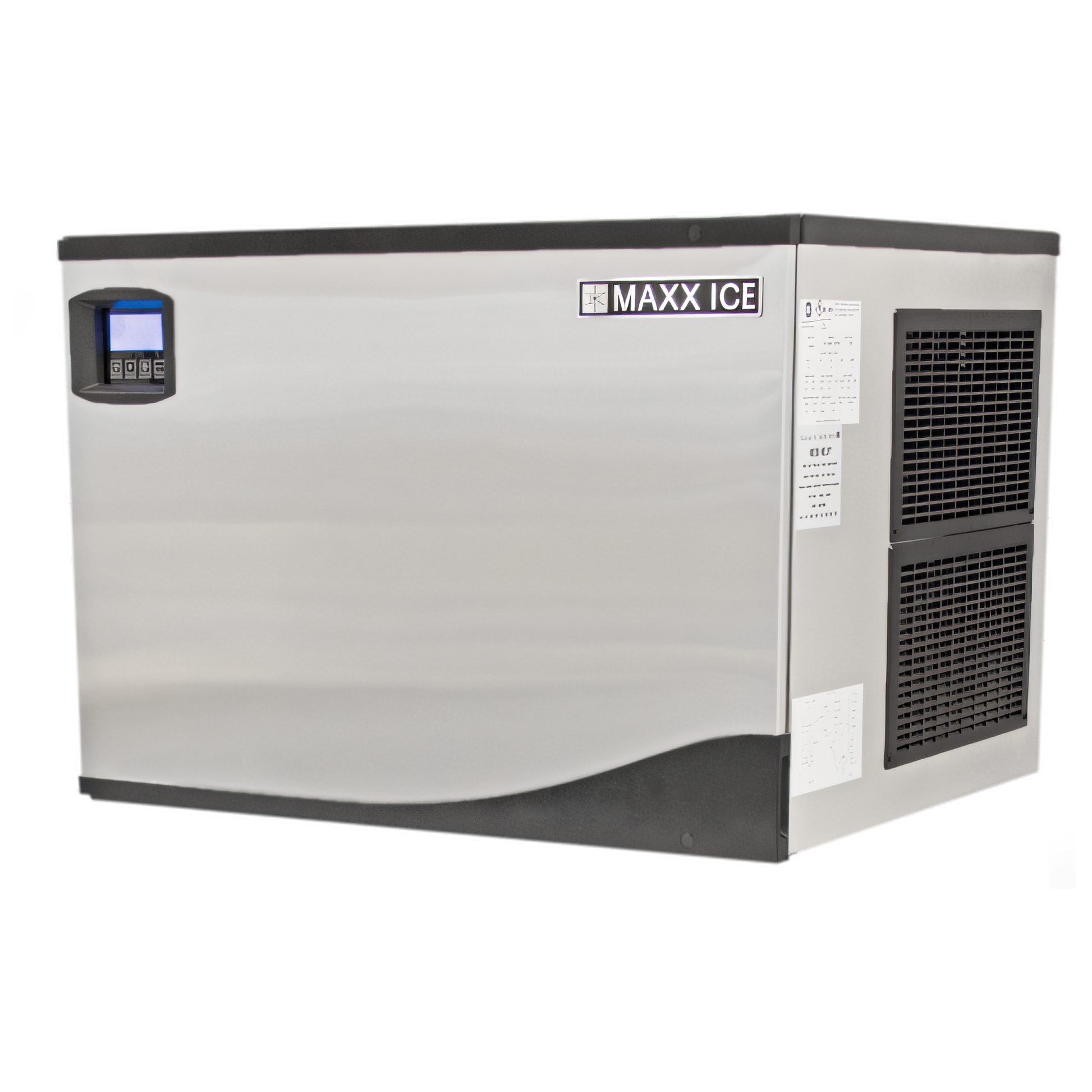

Maxximum MIM500N Maxx Ice Ice Machines
Maxx Ice Modular Ice Maker, cube-style (full dice), air-cooled, self-contained condenser, digital, approximately 521 lb. production/24 hours, slab cube ice type, stainless steel with black trim, R404a refrigerant, NSF, cULus Classified, CE, ENERGY STAR
Specifications
| Manufacturer |
Maxximum |
| Brand Name |
Maxx Ice |
| Certifications |
NSF, CE, cULus Classified, ENERGY STAR |
| Height |
21.0 in |
| Width |
30.0 in |
| Depth |
24.6 in |
| Shipping Weight |
148.0 lbs |
| Ice Type |
Full size / Dice cubes |
| Width (side-to-side) |
30 – 39" wide |
| Condenser Type |
Air-cooled |
| Production per 24 hr |
501 – 600 lb (approximately 521 lb / 228 – 272 kg) |
| Refrigeration |
Self-contained refrigeration |
| Energy Efficiency |
ENERGY STAR® certified |
| Specifications (Full) |
Maxx Ice Modular Ice Maker, cube-style (full dice), air-cooled, self-contained condenser, digital controls, approx. 521 lb/24 hrs, slab cube ice type, stainless steel with black trim, R404a refrigerant, NSF, cULus Classified, CE, ENERGY STAR |
Documents
What our Experts Think
-
High Daily Output: Produces up to 521 lbs of full-dice ice per day, ideal for high-demand environments like large restaurants, hotels, and event venues.
-
Energy and Water Efficient: Designed to use up to 40% less water and produce ice up to 20% faster than many competitors, reducing operational costs.
-
Durable Construction: Built with a stainless steel exterior and black trim, offering both durability and an attractive, professional look.
-
User-Friendly Digital Controls: Features an intuitive digital controller for easy monitoring and operation, simplifying the process of managing the machine’s status and temperature.
-
Easy Maintenance: The hinged front panel design allows for quick access for cleaning and servicing, ensuring long-lasting performance.
-
Flexible Installation: Can be stacked with an adapter to increase ice production, providing flexibility for businesses with varying needs.
-
Ample Storage Compatibility: Pairs with 30" ice storage bins to provide sufficient storage capacity for high-volume ice production.
Q&A
Q: What type of ice does the Maxximum MIM500N produce?
A: The Maxximum MIM500N produces full-dice ice cubes measuring 0.875" x 0.875" x 1", ideal for beverages and food display.
Q: What is the daily ice production capacity?
A: It produces up to 521 lbs (236 kg) of ice per day under optimal conditions (70°F air and 50°F water).
Q: Is the MIM500N energy-efficient?
A: Yes, it's Energy Star rated, consuming up to 40% less water and producing ice up to 20% faster than similar units.
Q: What are the installation requirements?
A: The MIM500N requires a gravity drain line and a 115V electrical connection. A 2-inch clearance from the wall is recommended for proper ventilation.
Q: Is the MIM500N easy to maintain?
A: Yes, it features a hinged front panel for easy access, automatic cleaning cycle, and bin overflow prevention.
Maintenance Tips
-
Preparation: Remove all ice cubes from the storage bin.
-
Cleaning Solution: Add 8 oz of nickel-safe ice machine cleaner to the water tank.
-
Cleaning Cycle: Turn on the machine and press the "Clean" button to start the cleaning cycle.
-
Rinsing: Repeat the cleaning cycle three times without adding cleaning solution to ensure thorough rinsing.
-
Sanitization: After cleaning, sanitize the water tank and ice storage bin with the bleach solution mentioned above.
-
Restart: Discard the first batch of ice produced after cleaning and sanitizing.
