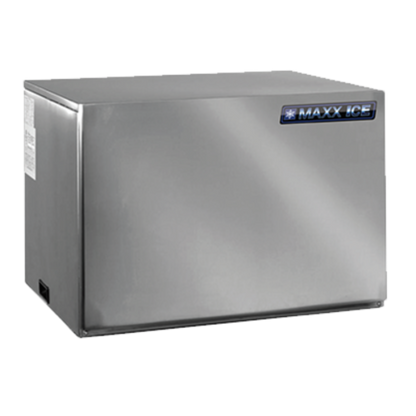

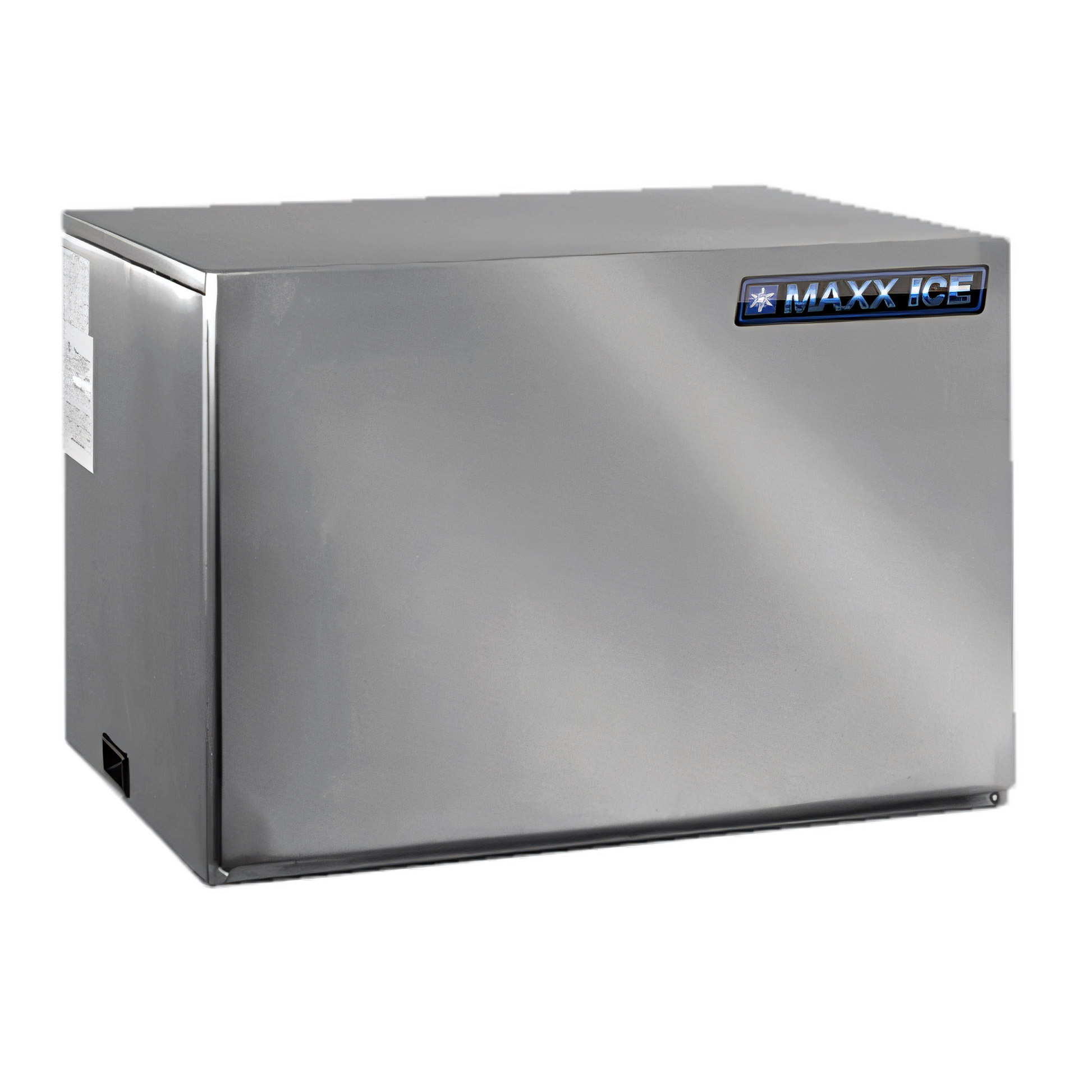

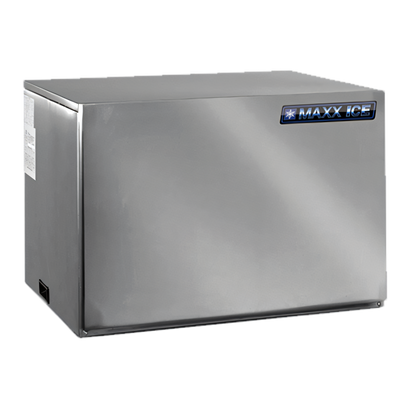

Maxximum MIM600 Maxx Ice Ice Machines
Maxx Ice Modular Ice Maker, cube-style (full dice), air-cooled, self-contained condenser, approximately 602 lb. production/24 hours, slab cube ice type, stainless steel construction, 230v/60/1-ph, 9.85 amps, hard wired, ETL-Sanitation, cULus, CE
Specifications
| Manufacturer |
Maxximum |
| Brand Name |
Maxx Ice |
| Certifications |
CE, cULus, ETL-Sanitation |
| Height |
21.0 in |
| Width |
30.0 in |
| Depth |
24.0 in |
| Shipping Weight |
165.0 lbs |
| Ice Type |
Full size / Dice cubes |
| Width (side-to-side) |
30 – 39" wide |
| Production per 24 hr |
601 – 700 lb (approximately 602 lb / 273 – 317 kg) |
| Refrigeration |
Self-contained refrigeration |
| Condenser Type |
Air-cooled |
| Specifications (Full) |
Maxx Ice Modular Ice Maker, cube-style (full dice), air-cooled, self-contained condenser, approx. 602 lb/24 hrs, slab cube ice type, stainless steel construction, 230v/60/1-ph, 9.85 amps, hard wired, ETL-Sanitation, cULus, CE |
Documents
What our Experts Think
-
High Daily Output: Produces up to 602 lbs of full-dice ice per day, ideal for high-demand environments like large restaurants, hotels, and event venues.
-
Energy Efficient: Utilizes R-404A refrigerant and meets Energy Star guidelines, helping reduce energy consumption and lower operational costs
-
Durable Construction: Built with a stainless steel exterior, ensuring longevity and ease of cleaning.
-
User-Friendly Design: Features a hinged front panel for easy access and service, simplifying maintenance tasks.
-
Automatic Features: Equipped with an automatic cleaning cycle, automatic shut-off, and bin overflow protection, reducing manual intervention and ensuring reliable ice production.
-
Stackable Design: Can be stacked with an adapter to increase ice production in high-volume kitchens, offering flexibility in ice production capacity.
-
Compatible Storage Bins: Pairs with Maxx Ice BIN650 and BIN950 30" ice storage bins, providing ample storage capacity for high-volume ice production.
Q&A
Q: What type of ice does the Maxximum MIM600 produce?
A: The Maxximum MIM600 produces full-dice ice cubes measuring 0.875" x 0.875" x 0.875", ideal for beverages and food display.
Q: What is the daily ice production capacity?
A: It produces up to 602 lbs (273 kg) of ice per day under optimal conditions (70°F air and 50°F water).
Q: Is the MIM600 energy-efficient?
A: Yes, it's Energy Star rated, consuming up to 40% less water and producing ice up to 20% faster than similar units.
Q: What are the installation requirements?
A: The MIM600 requires a gravity drain line and a 230V electrical connection. A 2-inch clearance from the wall is recommended for proper ventilation.
Q: Is the MIM600 easy to maintain?
A: Yes, it features a hinged front panel for easy access, automatic cleaning cycle, and bin overflow prevention.
Maintenance Tips
-
Preparation: Remove all ice cubes from the storage bin.
-
Cleaning Solution: Add 8 oz of nickel-safe ice machine cleaner to the water tank.
-
Cleaning Cycle: Turn on the machine and press the "Clean" button to start the cleaning cycle.
-
Rinsing: Repeat the cleaning cycle three times without adding cleaning solution to ensure thorough rinsing.
-
Sanitization: After cleaning, sanitize the water tank and ice storage bin with the bleach solution mentioned above.
-
Restart: Discard the first batch of ice produced after cleaning and sanitizing.
