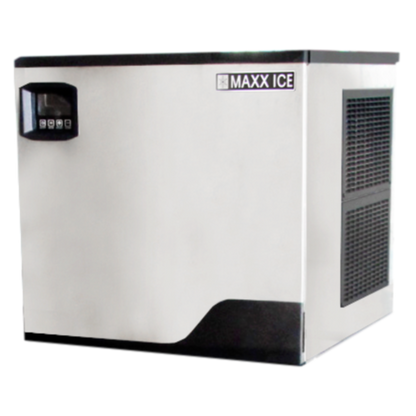

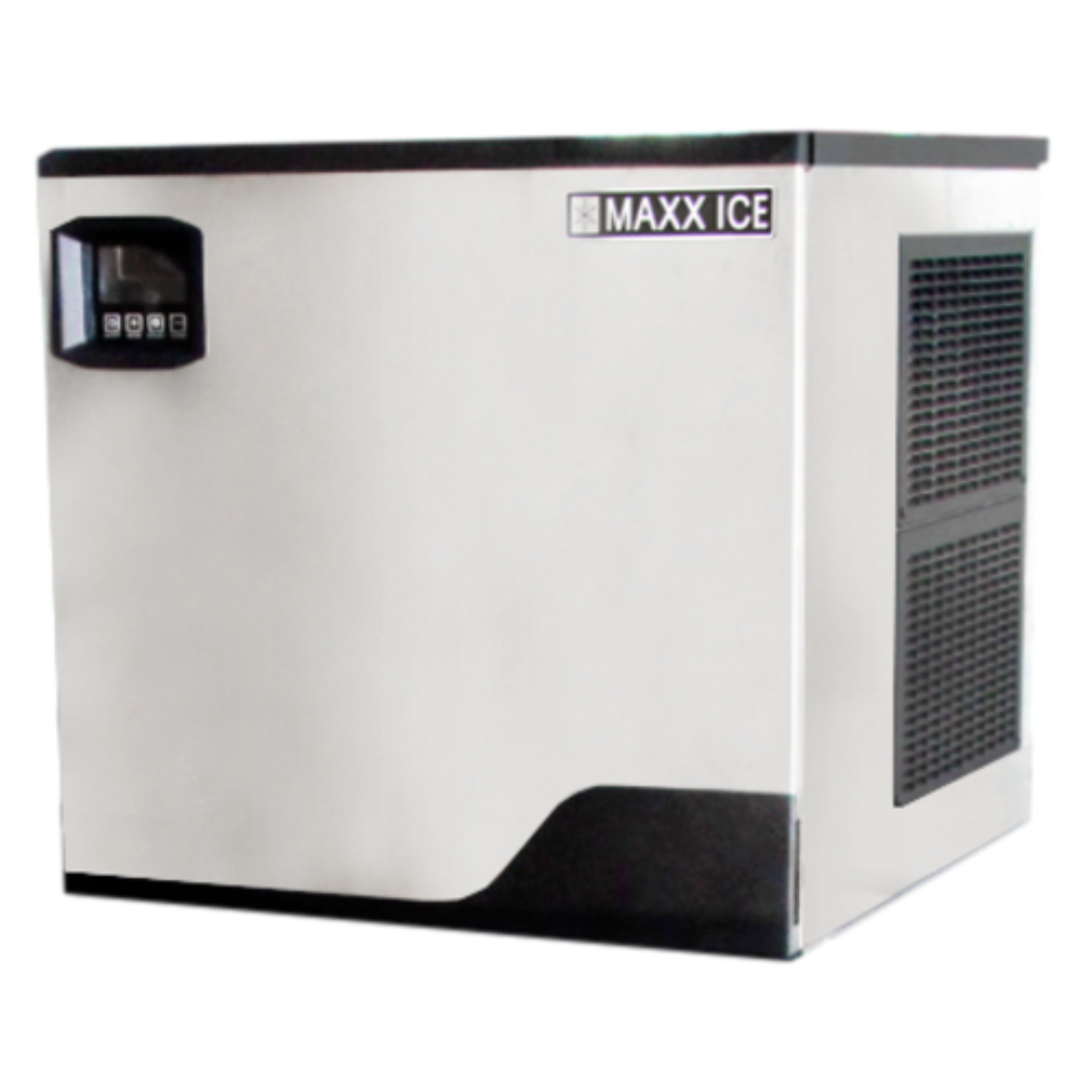

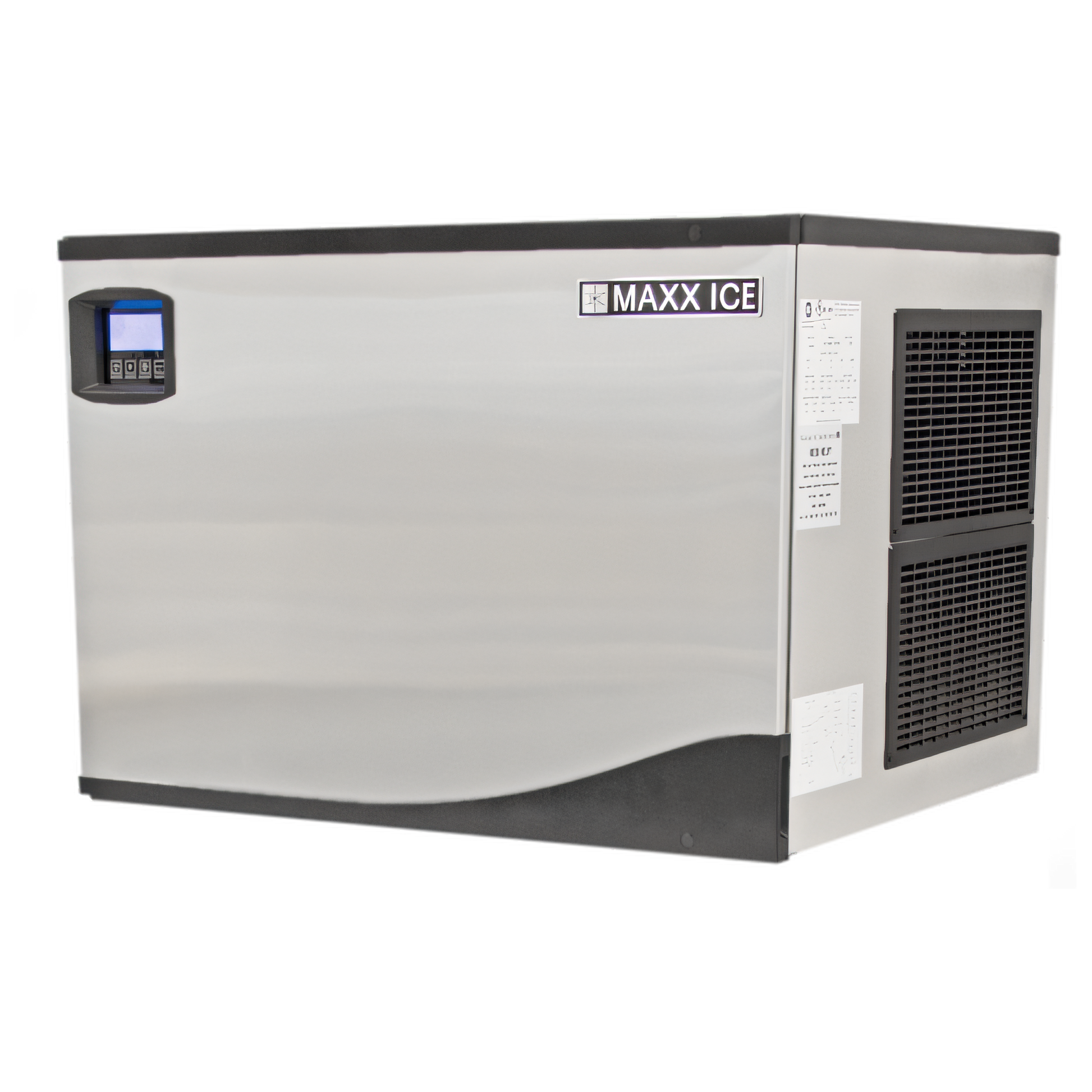

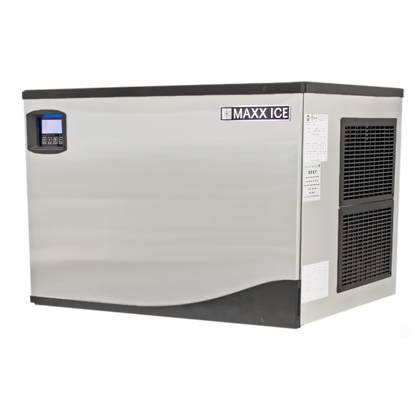

Maxximum MIM650N Maxx Ice Ice Machines
Maxx Ice Modular Ice Maker, cube-style (full dice), air-cooled, self-contained condenser, programmable digital controls & display, automatic cleaning, overflow prevention, approximately 650 lb. production/24 hours, on/off switch, LED light, vertical evaporator, stainless steel exterior with black trim, R404a refrigerant, 230v/60/1-ph, 8.0 amps, NEMA L14-20, hard wired, NSF, cULus Classified, CE
Specifications
| Manufacturer |
Maxximum |
| Brand Name |
Maxx Ice |
| Certifications |
NSF, CE, cULus Classified |
| Height |
21.0 in |
| Width |
30.0 in |
| Depth |
24.6 in |
| Shipping Weight |
165.0 lbs |
| Width (side-to-side) |
30 – 39 in |
| Ice Type |
Full size / dice cubes |
| Production per 24 hr |
601 – 700 lb (approx. 273 – 317 kg) |
| Condenser Type |
Air-cooled |
| Refrigeration |
Self-contained refrigeration |
| Specifications |
Maxx Ice Modular Ice Maker, cube-style (full dice), air-cooled, self-contained condenser, programmable digital controls & display, automatic cleaning, overflow prevention, approx. 650 lb production/24 hours, on/off switch, LED light, vertical evaporator, stainless steel exterior with black trim, R404a refrigerant, 230v/60/1-ph, 8.0 amps, NEMA L14-20, hard wired, NSF, cULus Classified, CE |
Documents
What our Experts Think
-
Heavy-Duty Ice Production: Delivers up to 650 lbs of ice per day, making it ideal for high-volume commercial settings.
-
Modular Design: Easily pairs with separate storage bins for flexibility in setup and serviceability.
-
Air-Cooled Efficiency: Built with an energy-saving, air-cooled system that keeps performance high and costs low.
-
Built to Last: Rugged stainless steel exterior ensures durability in demanding environments.
-
Reliable Operation: Features electronic controls and diagnostics for simplified use and consistent performance.
-
NSF & ETL Listed: Fully certified to meet commercial health and safety standards.
-
Ideal for Large Operations: Perfect for hotels, restaurants, event venues, and institutions needing nonstop ice output.
Q&A
Q: What is the Maxximum MIM650N Maxx Ice Machine?
A: The Maxximum MIM650N is a commercial modular ice maker capable of producing up to 650 lbs of full-dice ice per day. It is designed for high-demand environments such as restaurants, bars, and hotels.
Q: Is it energy and water efficient?
A: Yes, the MIM650N is designed to be energy-efficient, using up to 40% less water and producing ice 20% faster than competing models.
Q: What certifications does it hold?
A: It is NSF, cULus Classified, and CE certified, meeting stringent health, safety, and environmental standards.
Q: What are the installation requirements?
A: The machine operates on 230V/60Hz/1-phase power and requires a hardwired connection with a NEMA L14-20 plug. Professional installation is recommended for optimal performance.
Maintenance Tips
-
Weekly: Clean the stainless steel exterior with mild detergent and warm water; avoid abrasive cleaners.
-
Biweekly: Sanitize the ice bin using a bleach solution (1 oz. bleach per 2 gallons of hot water). Rinse thoroughly and discard the first batch of ice produced afterward.
-
Monthly: Inspect and clean the condenser coil with a vacuum or brush to remove dust and debris.
-
Every 3–6 Months: Run an automatic cleaning cycle using a nickel-safe ice machine cleaner to remove mineral scale. Follow with multiple rinse cycles without cleaner.
-
Ongoing: Use filtered water to reduce mineral buildup and improve ice quality. Regularly check water inlet and drain lines for blockages.
