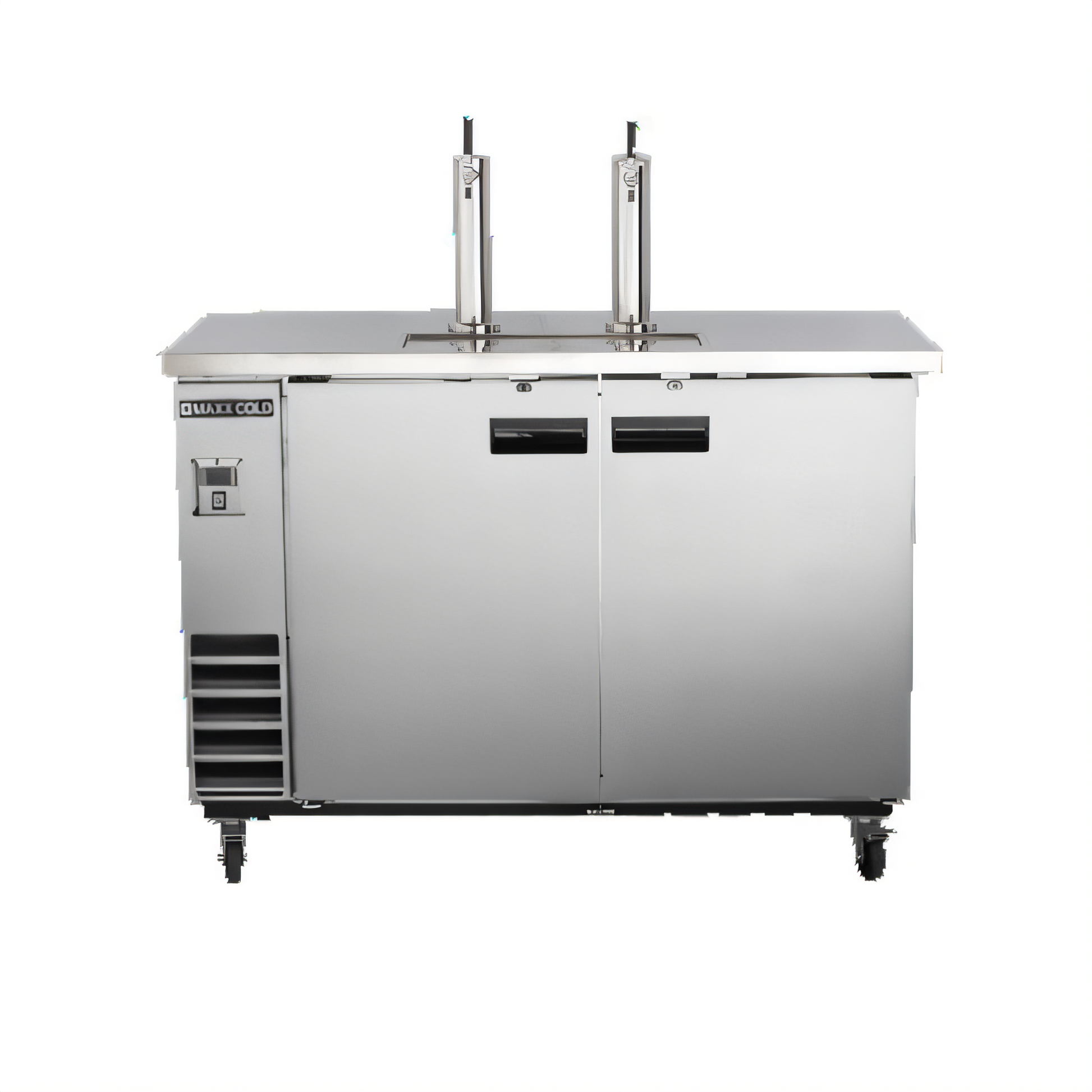

Maxximum MXBD60-2SHC Maxx Cold Back Bar Coolers
Maxx Cold X-Series Keg Cooler with Dual Towers, two-section, self-contained side mounted compressor, 60"W, 14.2 cu. ft., (2) keg capacity, solid-state controls, 33° to 41°F temperature range, LED display, integrated condensate evaporator, (2) solid hinged locking doors, stainless steel top, (2) 3" dia. stainless steel draft towers, stainless steel exterior, white powder coated steel interior with stainless steel floor plate, R290a Hydrocarbon refrigerant, cETLus, ETL-Sanitation
Specifications
| Manufacturer |
Maxximum |
| Brand Name |
Maxx Cold |
| Certifications |
cETLus, ETL-Sanitation |
| Height |
55.98 in |
| Width |
61.06 in |
| Depth |
24.4 in |
| Shipping Weight |
304.0 lbs |
| Barrel Style |
1/2 barrel (full keg) |
| Faucet Qty |
1 faucet per column |
| Exterior Finish |
All black exterior |
| Keg Capacity |
1 – 2 kegs |
| Width (side-to-side) |
60" – 72" |
| Top Style |
Flat top |
| Column Qty |
2 columns / towers |
| Specifications |
Maxx Cold X-Series Keg Cooler with Dual Towers, two-section, self-contained, side mounted compressor, 60"W, 14.2 cu. ft. capacity, (2) keg capacity, solid-state controls, 33° to 41°F temperature range, LED display, integrated condensate evaporator, (2) solid hinged locking doors, stainless steel top, (2) 3" dia. stainless steel draft towers, painted black steel exterior, white powder coated steel interior with stainless steel floor plate, R290a refrigerant, cETLus, ETL-Sanitation |
Documents
What our Experts Think
-
High Capacity: Offers 14.2 cu. ft. of storage, perfect for holding up to two 1/2-barrel kegs, making it ideal for high-volume establishments like bars and restaurants.
-
Dual Taps: Comes with two 3" stainless steel insulated beer towers, allowing for the dispensing of two different beverages at once.
-
Efficient Cooling: Equipped with a self-contained forced-air refrigeration system, keeping both the cabinet and towers at optimal temperatures between 34°F and 41°F.
-
Durable Construction: Built with a stainless steel exterior and top, and a white powder-coated steel interior with a stainless steel floor plate, ensuring long-lasting durability and easy cleaning.
-
User-Friendly Design: Features recessed drawer handles with locks, adjustable heavy-duty wire shelves, and four 4" casters (two with brakes) for ease of mobility.
-
Maintenance-Friendly: Includes a slide-out condensing unit for easy cleaning and servicing, plus an integrated condensate evaporator that eliminates the need for a drain line.
-
Energy Efficient: Uses R-134A hydrocarbon refrigerant, promoting energy efficiency and reducing environmental impact.
Q&A
Q: What is the storage capacity of the Maxximum MXBD60-2SHC?A: The Maxximum MXBD60-2SHC offers 14.2 cubic feet of refrigerated storage, accommodating up to two 1/2 barrel kegs.
Q: What is the temperature range of this back bar cooler?
A: It maintains temperatures between 34°F and 41°F (1°C to 5°C), perfect for keeping beverages cold.
Q: What are the dimensions of the MXBD60-2SHC?
A: The unit measures 61.06" (W) x 24.4" (D) x 50.98" (H).
Q: What is the construction material of the MXBD60-2SHC?
A: The exterior is made of durable, easy-to-clean stainless steel, and the interior features white powder-coated steel with a stainless steel floor plate.
Q: What type of beer towers are included?
A: It comes with two 3" diameter polished stainless steel insulated beer towers, each for a different beverage.
Q: Does it have an automatic defrost system?
A: Yes, the MXBD60-2SHC has an automatic defrost system to prevent ice buildup.
Q: What type of refrigeration system does it use?
A: The cooler uses R290A hydrocarbon refrigerant and features an integrated condensate evaporator, eliminating the need for a drain line.
Q: What are the electrical specifications?
A: The MXBD60-2SHC operates on 115V, 60Hz, 1-phase power, drawing 3.0 amps and consuming 290 watts.
Maintenance Tips
-
Regular Cleaning: Clean interior and exterior surfaces daily to prevent buildup and ensure hygiene.
-
Inspect Door Seals: Check gaskets for wear or leaks. Replace if damaged to maintain cooling efficiency.
-
Clean Condenser Coils: Clean coils every 3-6 months to prevent dust and debris buildup, ensuring proper cooling.
-
Monitor Temperature: Regularly check the cooler’s temperature with a thermometer to ensure it stays within the ideal range.
-
Defrost as Needed: Periodically defrost the unit to avoid ice buildup and maintain performance.
-
Ensure Proper Airflow: Keep the area around the cooler clear for optimal ventilation and cooling.
-
Schedule Professional Maintenance: Arrange for annual professional servicing to keep the unit running smoothly.
