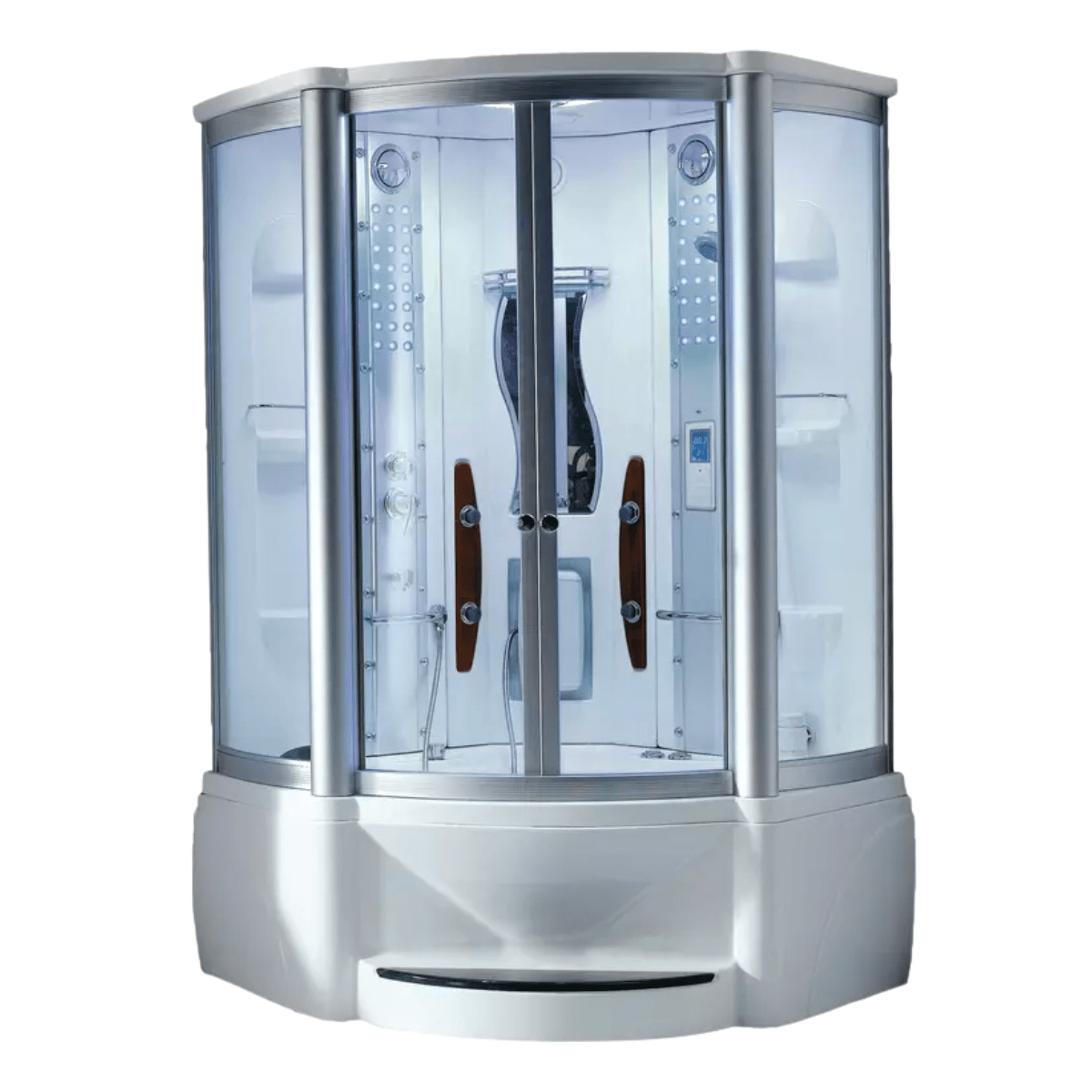

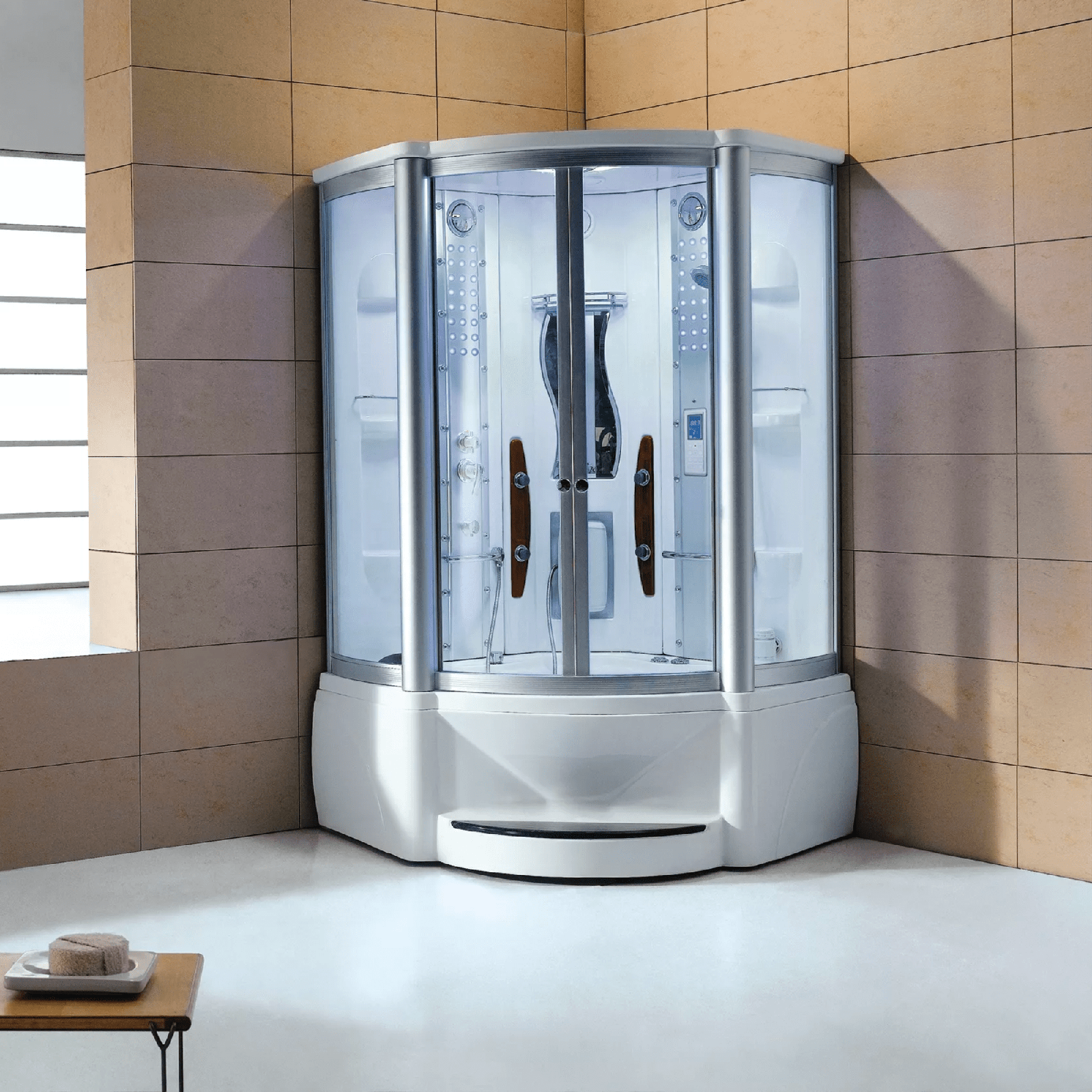

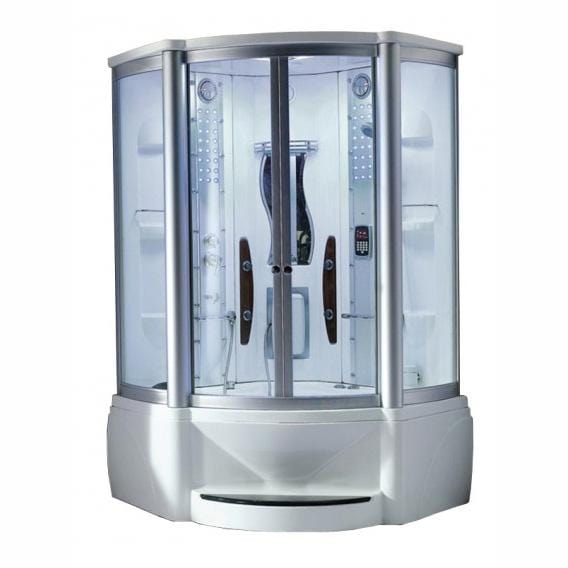

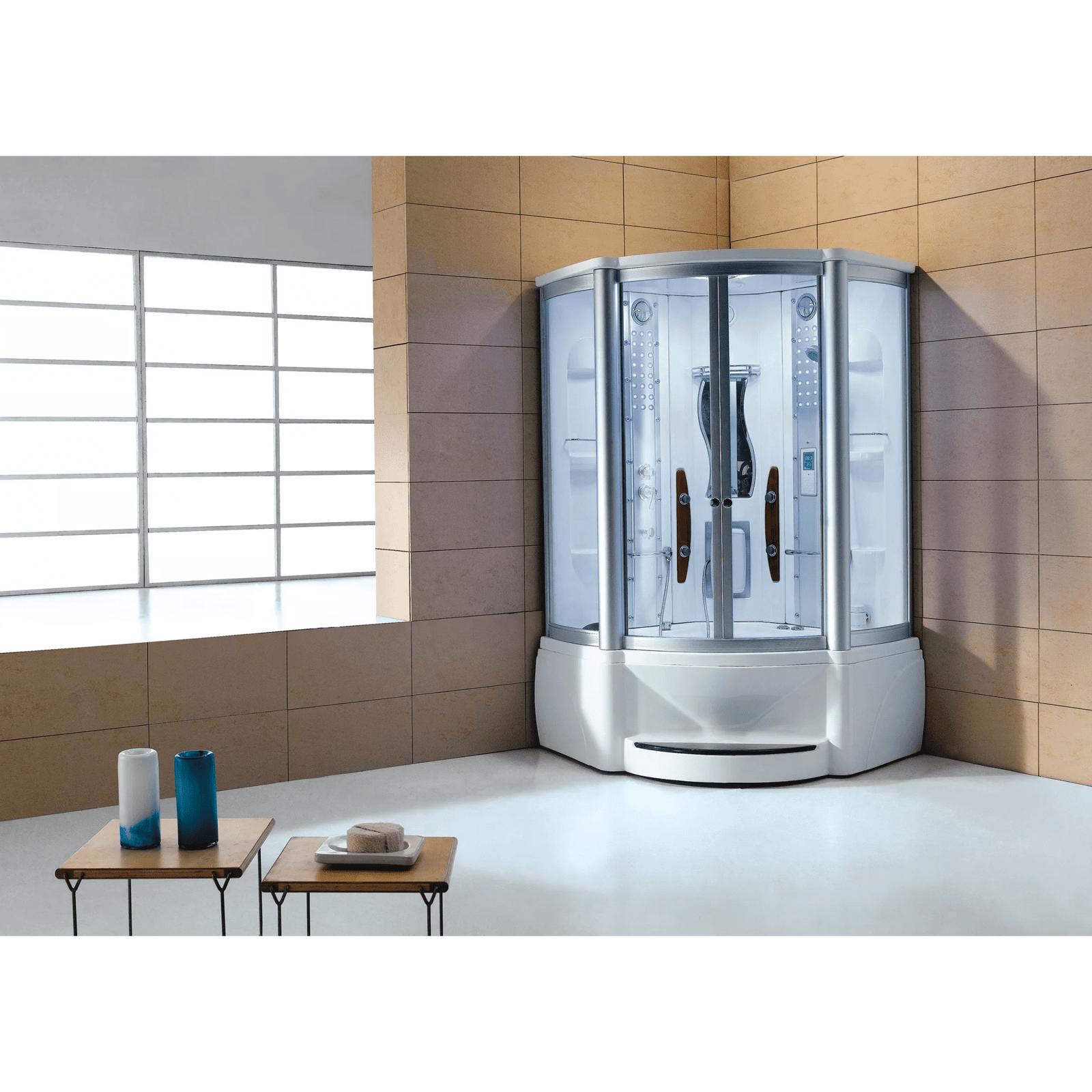

The Mesa 609A combination steam shower with jetted tub features 2 acupuncture jets, 6 whirlpool jets, and a 3KW high-efficiency steam engine. This combination steam shower provides all the benefits of a luxury steam bath in a space-saving design. Indulge yourself in a state of complete relaxation and tranquility with the many features the Mesa 609A steam shower has to offer.
View the Mesa Steam Shower - WS-802A Features below:
Includes A Flexible Drain Hose. This means putting your drain anywhere you want
48"L x 48"W x 85"H (Add 2" for ventilation exhaust pipe)
ETL Certified (220V)
Electrical requirements (1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.
Electrical requirements (1) 220v with a 20amp dual pole breaker GFCI Breaker for the heat pump
3KW High Output Steam Engine
The frame is aluminum and the tub is acrylic

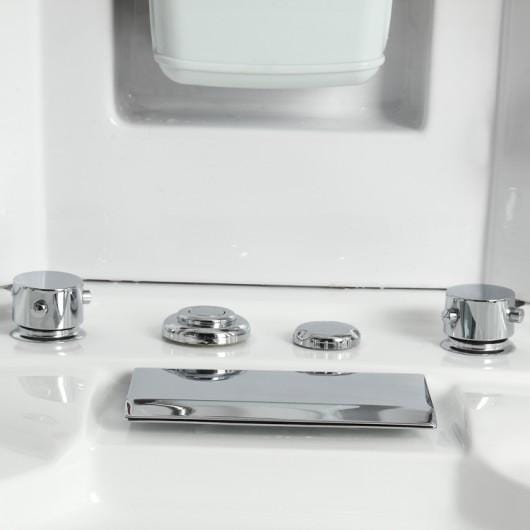

Adjustable Temperature and Time Control.
Advanced computerized LCD

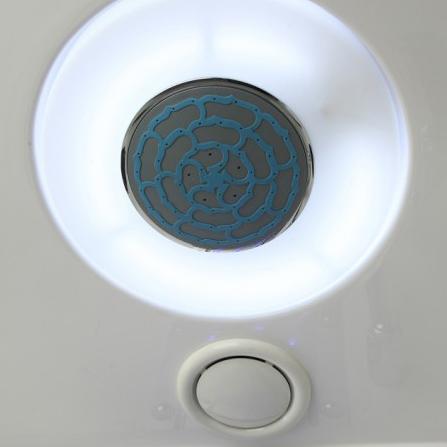

Oversized Rainfall Shower Head

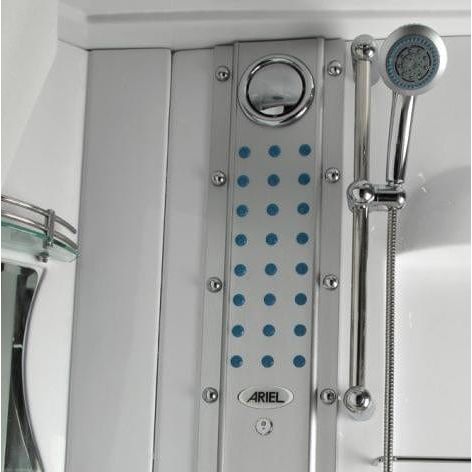

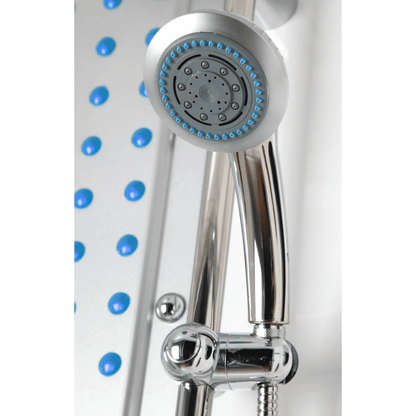

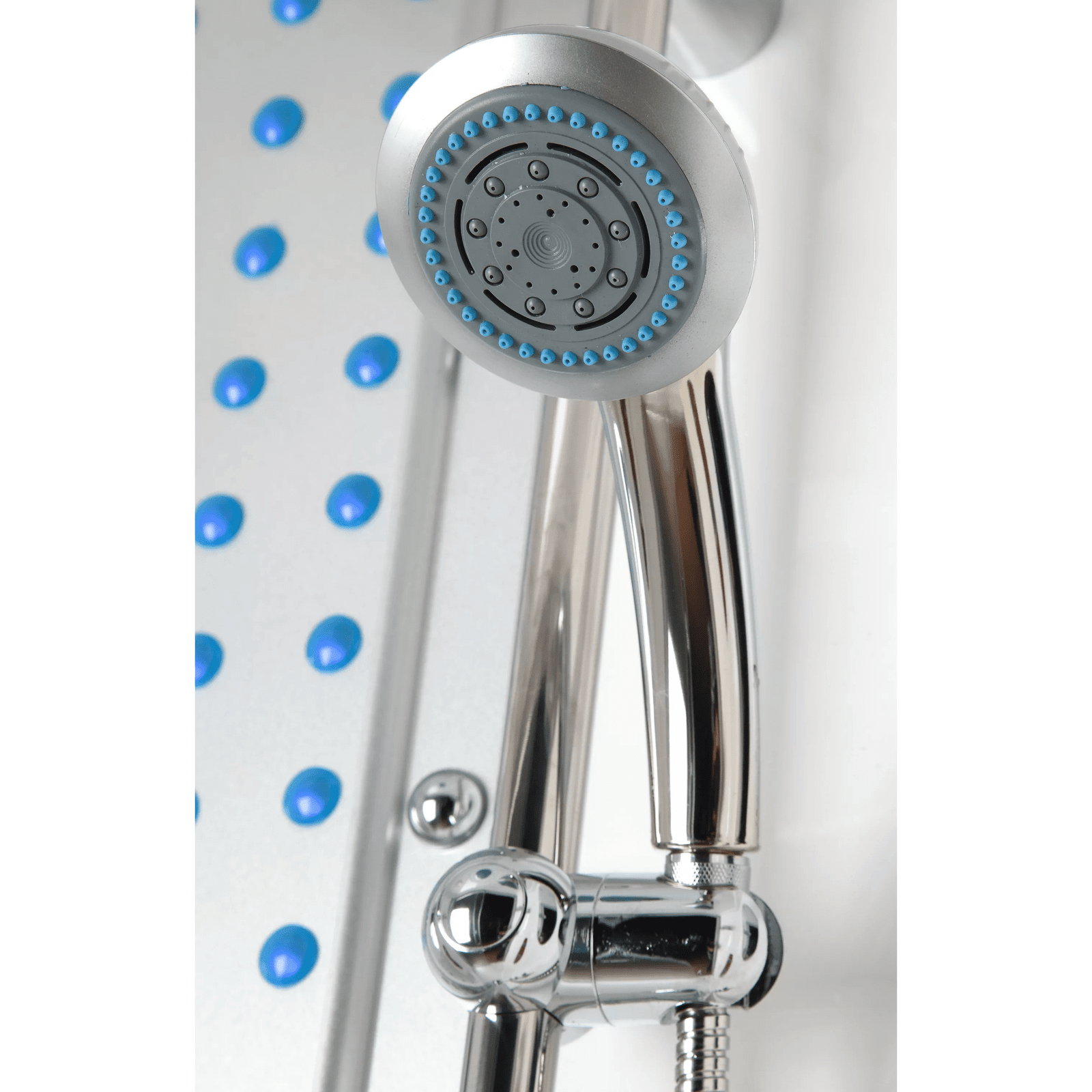

Adjustable Handheld Showerhead

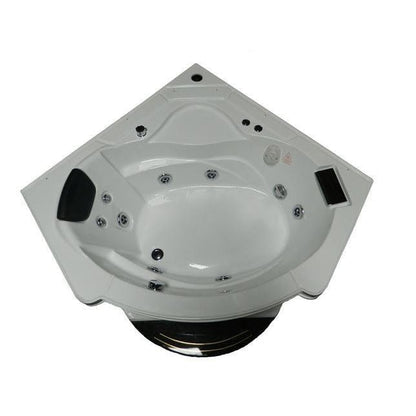

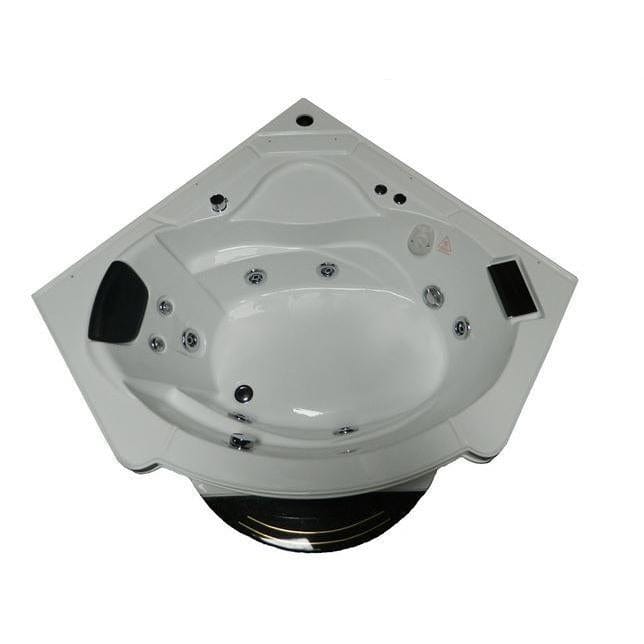

Jetted Tub with 6 Massage Jets

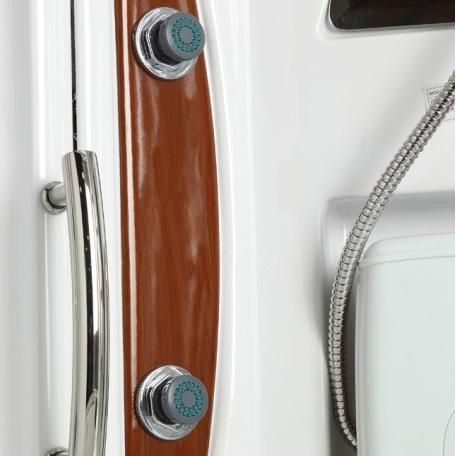

2 Acupuncture Jets
Sliding Glass Doors
Ozone Sterilization System
Weight 600 Pounds
Additional Steam Shower Features

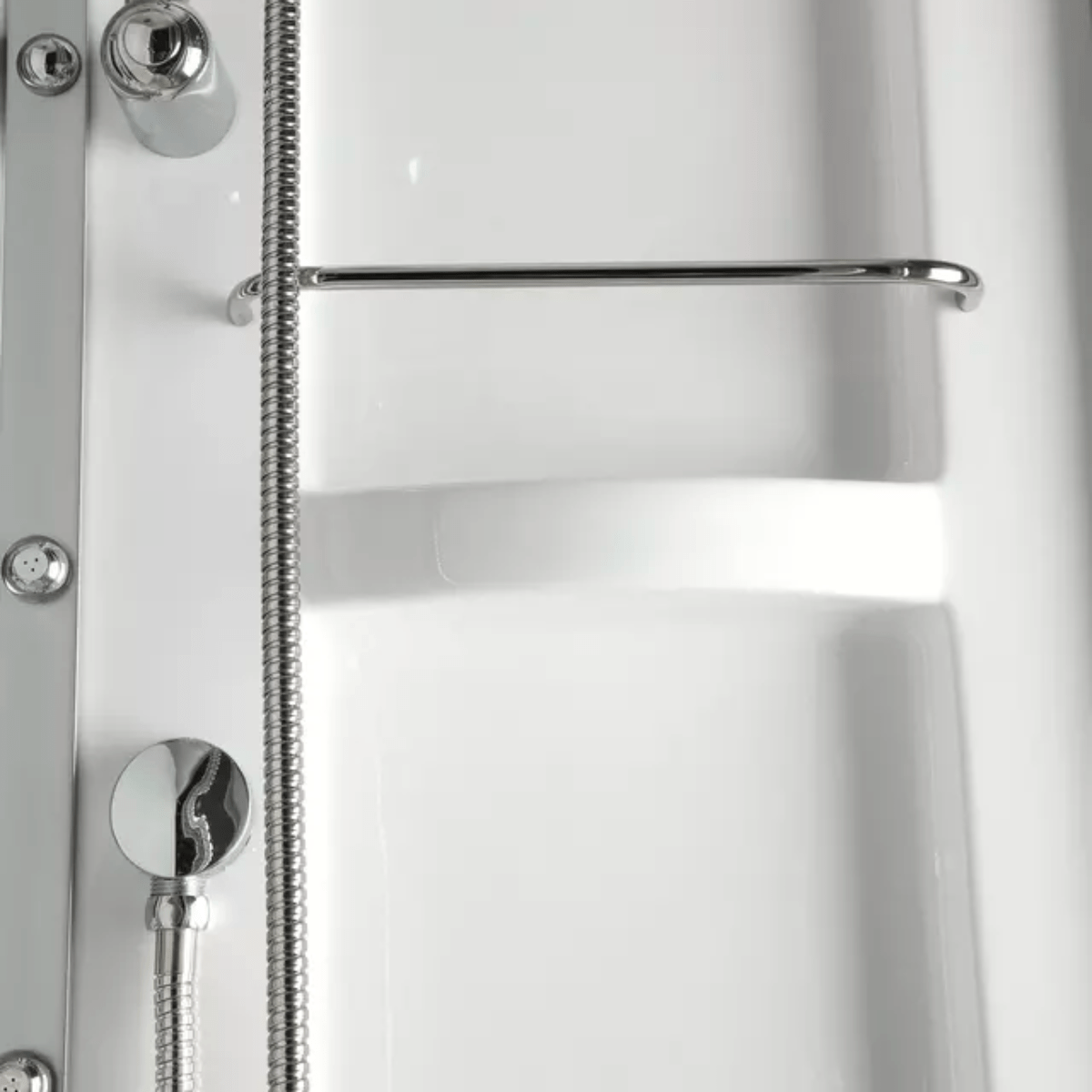

Handheld Shower Wand
Sliding Glass Doors
Fog Free Mirror
Overhead Dome Light
All steam showers carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delaminating, or cracking. Structural components include acrylic panels, shower pan, ceiling, and glass panels. All steam shower parts carry a (1) one-year guarantee against defects.
Does the unit come in one piece or in panels?
All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.
Can I fit the parts through a standard doorway?
Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".
What type of Electrical Connection and Breaker will I need?
(1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.
(1) 220v with a 20amp dual pole breaker GFCI Breaker for the heat pump
I would like to place it on the second floor, will there be a weight problem?
The unit is about 500 lbs.+water and your weight, and that is definitely a case-by-case type question. Please consult your contractor based on the weights we have provided.
What does the inline heat pump do?
The inline Heat Pump is attached to the water pump, and the heat pump will maintain the water temperature in the tub portion of the unit.
How many HOT/COLD Connections are required?
Regardless of the number of showerheads, all units have one hot/cold connection.
Where is the HOT/COLD Connection located?

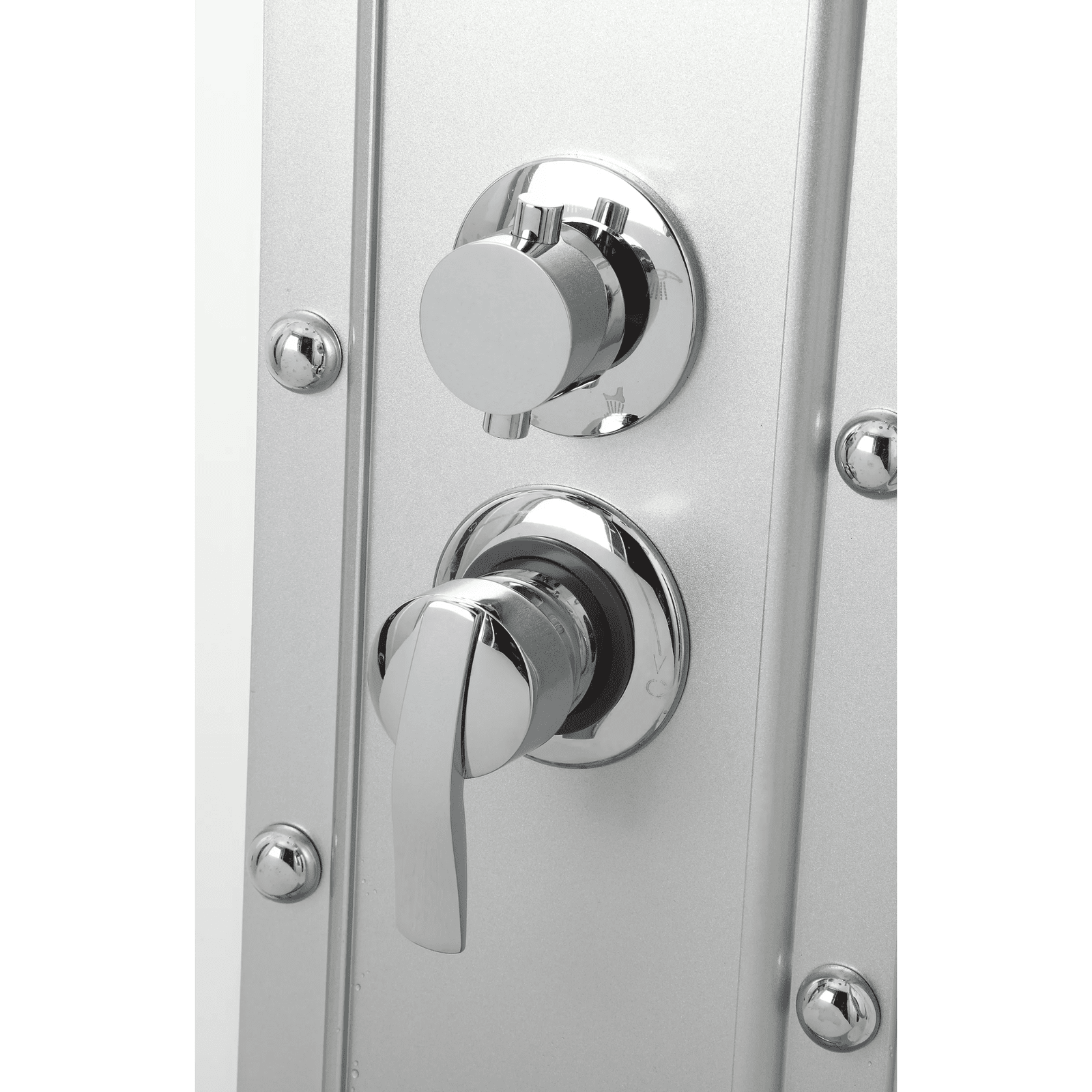

The connection is located behind the shower hot/cold controls which differ per unit. Normally the hot/cold is about 30" from the floor on the back of the unit. Flex hoses are included for easy hookups no matter where your current hot/cold is located. Refer to the listing page of each steam shower for the exact location which can be seen in the diagrams towards the bottom of the page.
Where is the steam generator located?
The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit. All generators are mounted to the frame or screwed to the back of the unit so that they do not take up a room beyond the dimensions of the shower. All of the steam showers will sit flush against the wall.
Do I need an access panel?
The steam showers are designed to be free-standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access. The plumbing and the electrical connections are flexible so that you can easily make this happen. If at all possible, an access panel is a terrific option in case of any future issues.
