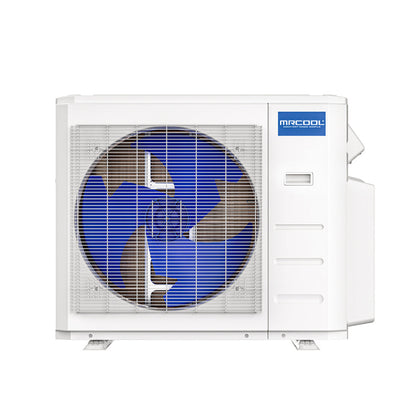

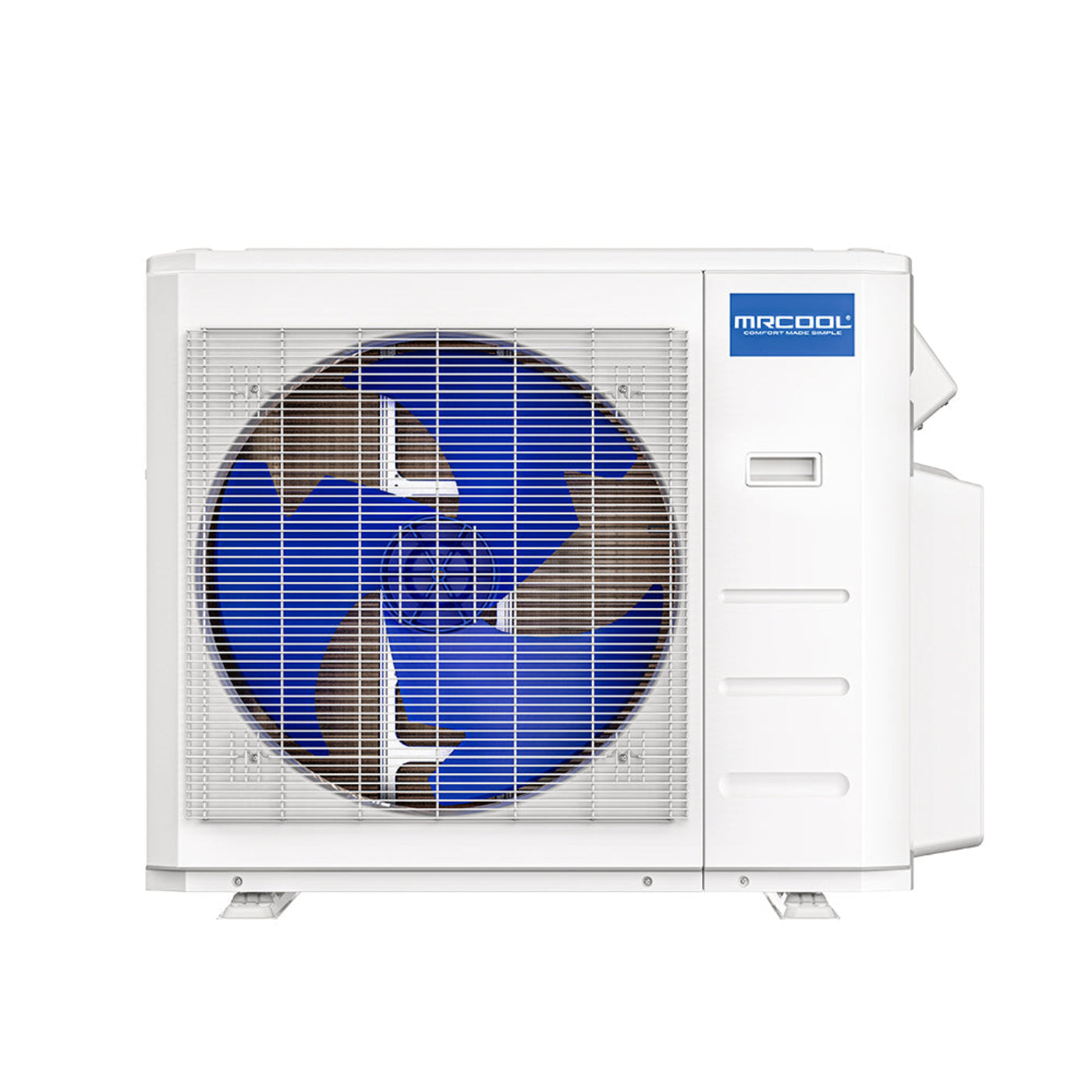

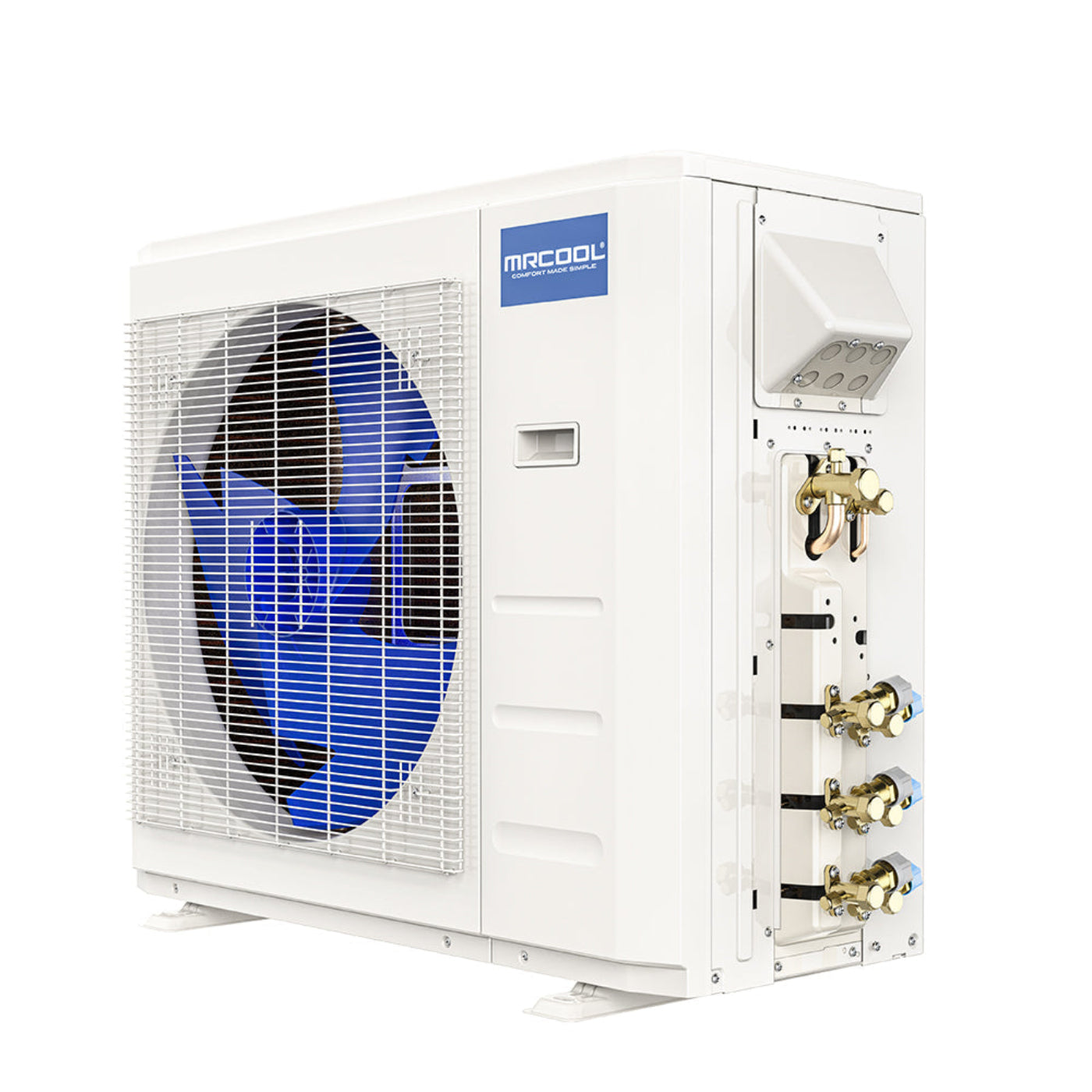

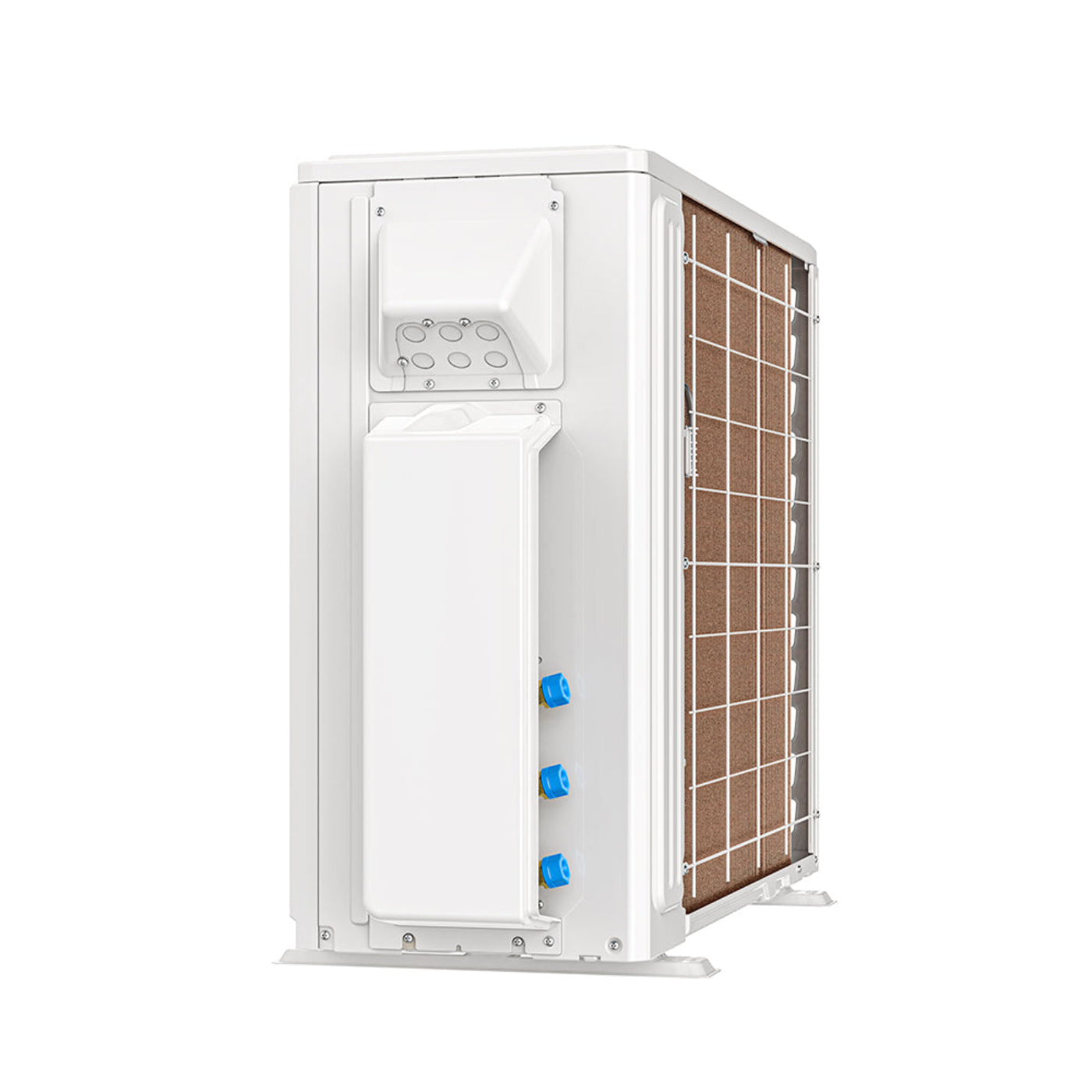

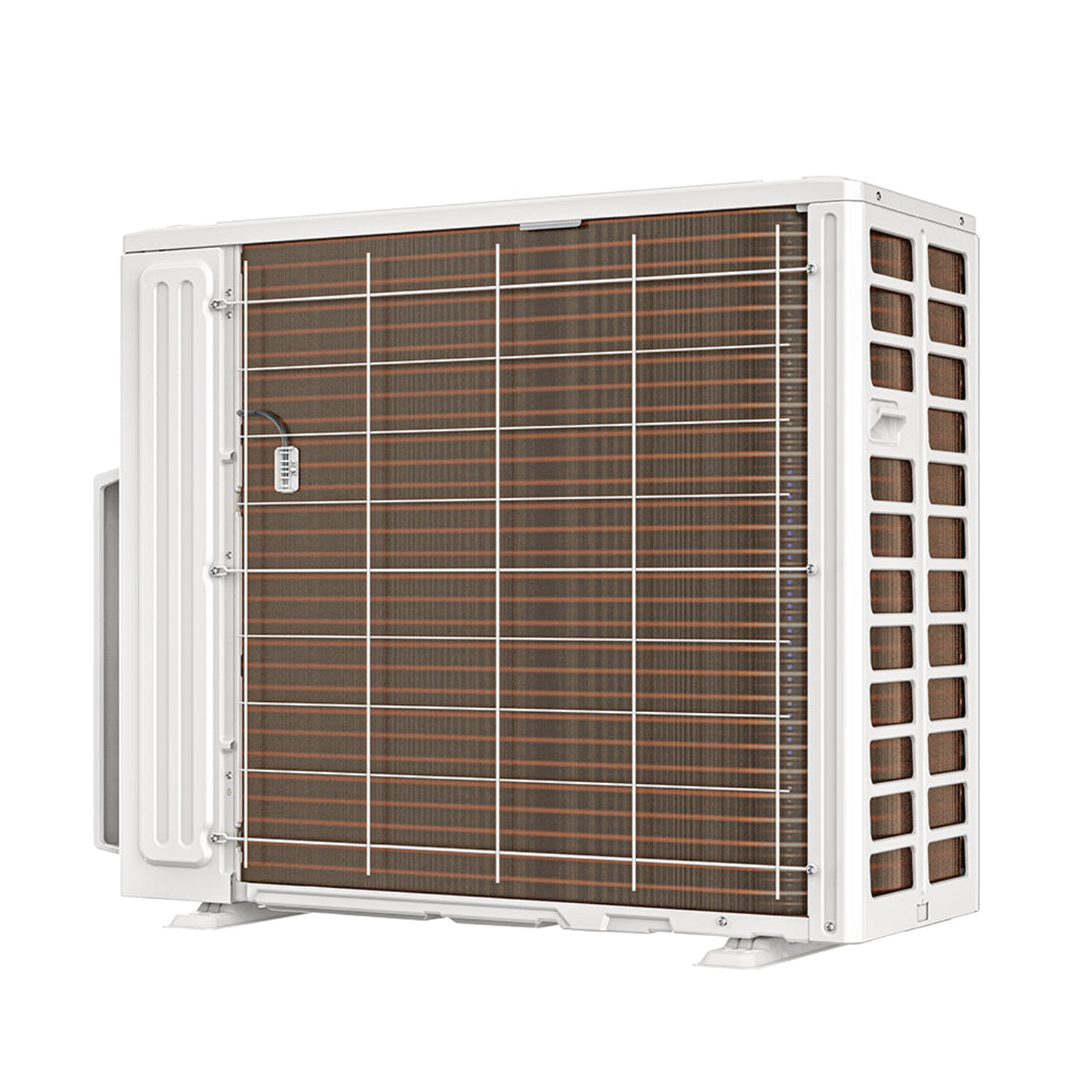

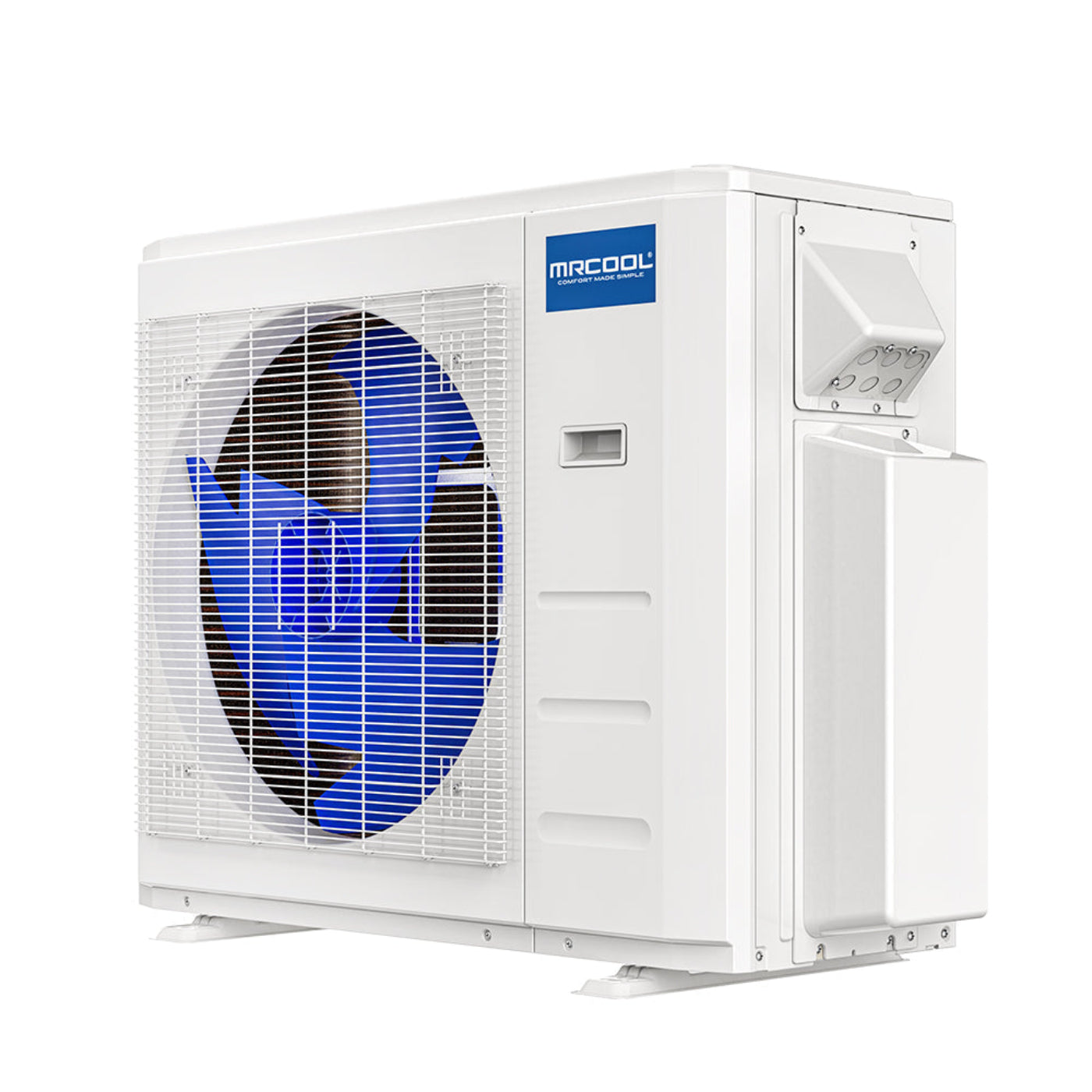

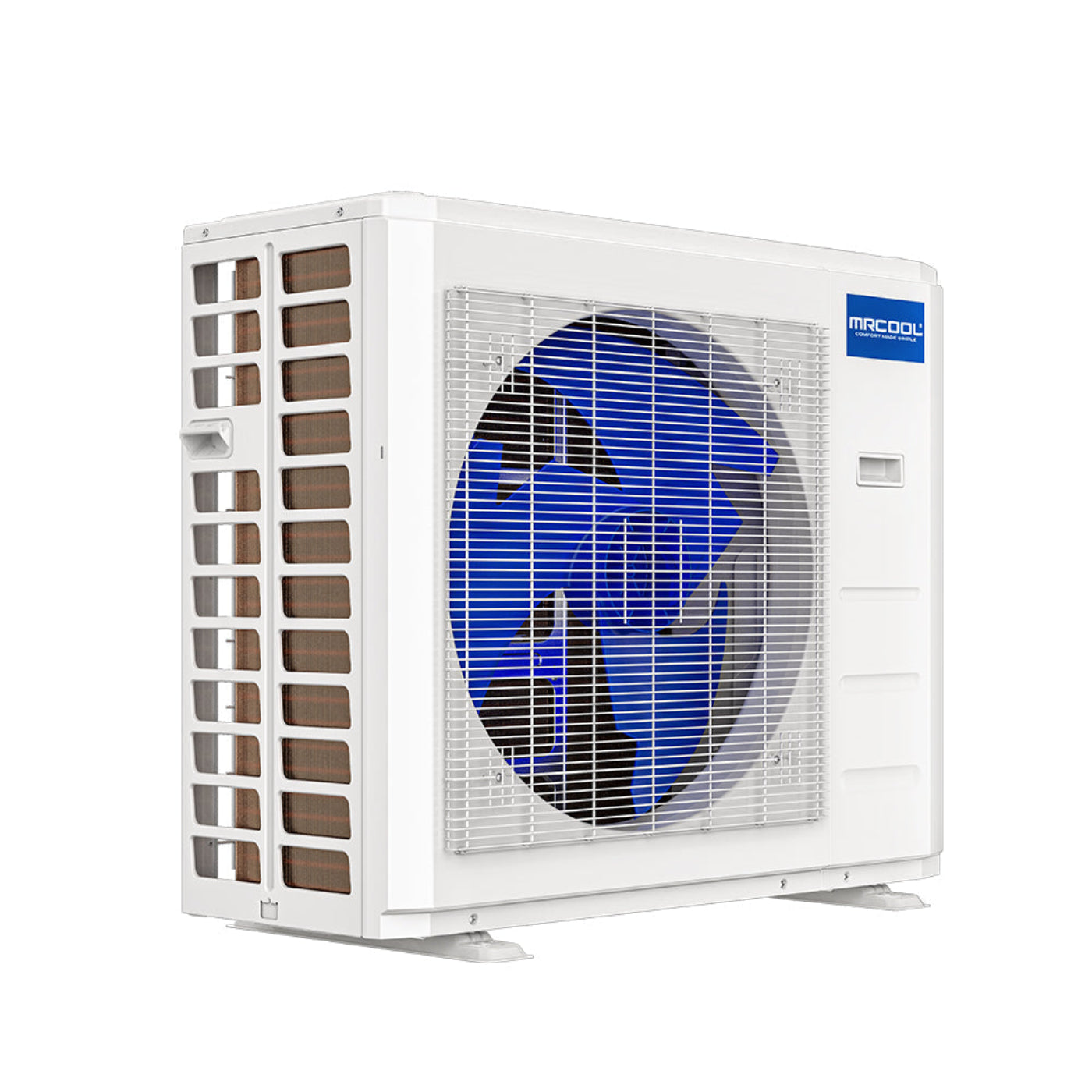

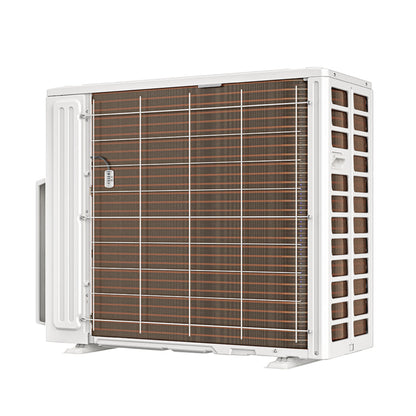

MRCOOL DIY 5th Gen 36,000 BTU Multi-Zone Mini Split Condenser 230V, - DIY-MULTI5-36HP230D-O

MRCOOL DIY 5th Gen 36,000 BTU Multi-Zone Mini Split Condenser 230V,  - DIY-MULTI5-36HP230D-O

The 5th Generation MRCOOL DIY 36k BTU Multi-Zone Ductless Mini-Split Condenser delivers powerful, efficient, and customizable comfort for your entire home. Designed for true DIY installation, this system provides heating and cooling for up to five zones—covering approximately 1,500 square feet—without the need for professional HVAC help. With smart technology, eco-friendly refrigerant, and impressive energy efficiency, this unit combines innovation with convenience for a complete home comfort solution.

Features

• DIY Installation: Built with patented pre-charged Quick Connect line sets, this system can be installed easily and safely without an HVAC technician.
• Exceptional Efficiency: Boasts a SEER2 rating of 23 and an HSPF2-4 rating of 9.9, offering outstanding energy savings and performance year-round.
• Multi-Zone Capability: Supports up to five air handlers, heating and cooling approximately 1,500 square feet for whole-home comfort.
• Eco-Friendly Refrigerant: Uses R-454B, a next-generation refrigerant that is more sustainable and efficient than traditional R-410A.
• Smart Home Compatible: Integrates with the SmartHVAC app, Amazon Alexa, and Google Home for convenient control through voice commands or your smartphone.
• Custom Comfort Control: Set individual zone temperatures, create personalized schedules, and monitor system performance directly from the app.
• Quick Connect Line Sets Sold Separately: Available in multiple lengths to fit your setup, each line set comes pre-charged for simple, mess-free installation.
• Whole-Home Solution: Powerful enough to efficiently heat and cool multiple rooms, offering comfort, control, and cost savings in one system.

What our Experts Think

• High‑Capacity Multi‑Zone Performance – With 48,000 BTU of cooling and heating capacity, this condenser is built to efficiently serve multiple indoor units, making it ideal for large homes, open‑plan spaces, or multi‑room climate control.

• 5th Gen DIY Design – Engineered for the MRCOOL DIY 5th Gen platform, it supports easier installation with quick‑connect fittings that reduce complexity for experienced DIYers and professional installers alike.

• Stable 230 V Operation – Designed for 230 V power supply, delivering reliable, balanced performance in residential and light commercial applications.

• Multi‑Zone Flexibility & Control – Enables precise zoning when paired with compatible indoor units, letting you tailor comfort to each space and reduce energy waste by conditioning only occupied areas.

• Durable Outdoor Build – Weather‑resistant construction helps withstand outdoor elements and daily use for lasting performance.

• Energy‑Efficient Climate Management – Advanced mini‑split engineering helps optimize airflow, temperature balance, and energy use year‑round.

Q&A

Q: What is the MRCOOL DIY 5th Gen 48,000 BTU Multi‑Zone Mini Split Condenser?
A: A powerful outdoor condenser unit for multi‑zone mini split HVAC systems that provides efficient heating and cooling with 230 V single‑phase power.

Q: What capacity does it offer?
A: 48,000 BTU — suitable for large homes, multi‑room zones, or open floor plans.

Q: What system type is it for?
A: Multi‑zone systems that connect multiple indoor air handlers to one outdoor condenser for zoned climate control.

Q: Is it DIY‑friendly?
A: Yes — designed for DIY installation with pre‑charged refrigerant line sets and quick‑connect fittings (when used with compatible MRCOOL components).

Q: What are key performance features?
A: Energy‑efficient inverter technology, quiet operation, strong cooling and heating performance across multiple zones, and smart control options.

Q: Where is it ideal?
A: Larger homes, multi‑room suites, basements, additions, and spaces needing zoned temperature control.

Q: Who is it best for?
A: Homeowners, DIY installers, and HVAC pros building or expanding a multi‑zone mini split system with efficient, flexible climate control.

Maintenance Tips

• Clean outdoor coils: Rinse debris and dirt off condenser fins annually or before peak cooling to maintain efficiency.

• Keep area clear: Remove leaves, plants, and other obstructions around the condenser for proper airflow.

• Inspect line set insulation: Check for cracks or wear; replace damaged insulation to prevent energy loss.

• Secure electrical connections: Ensure wiring and QuickConnect® fittings remain tight and corrosion-free.

• Check condensate drains: Confirm drains are clear so water exits freely and doesn’t cause leaks.

• Annual service: Schedule a professional HVAC tune-up to optimize performance and extend system life.
