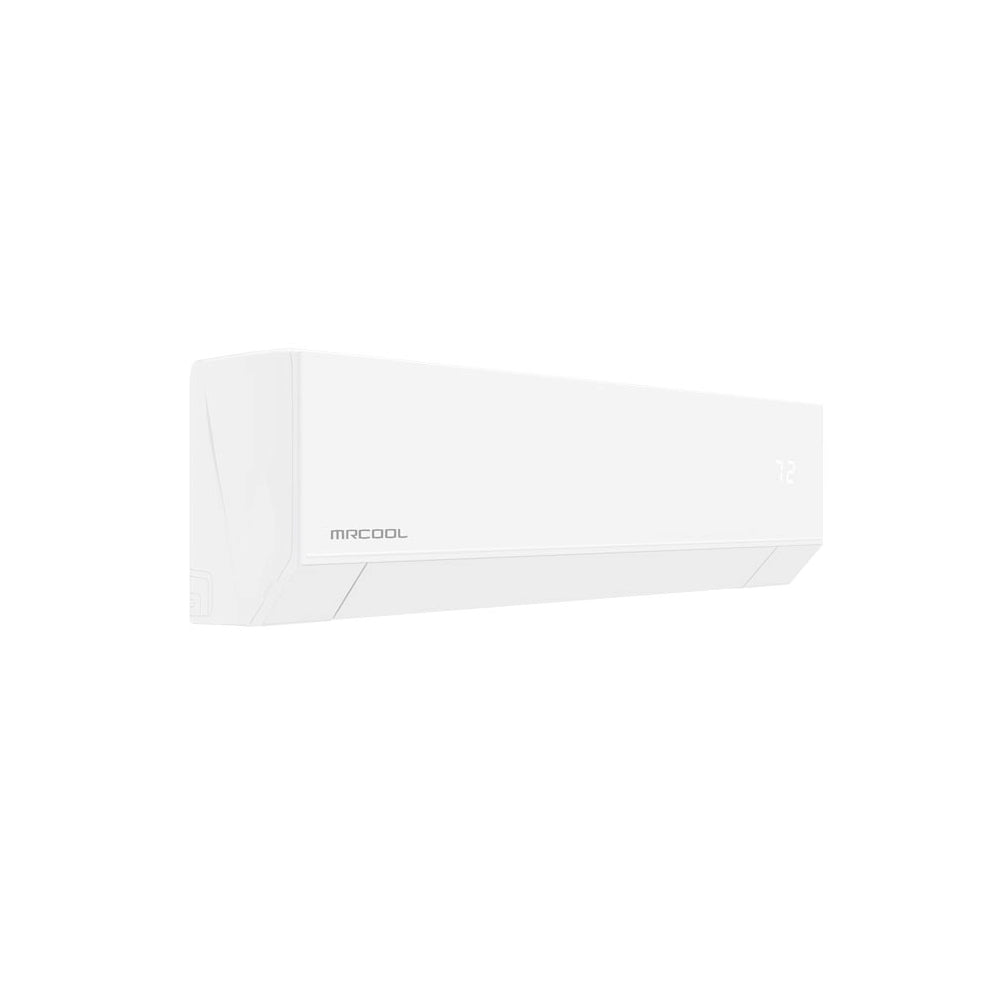

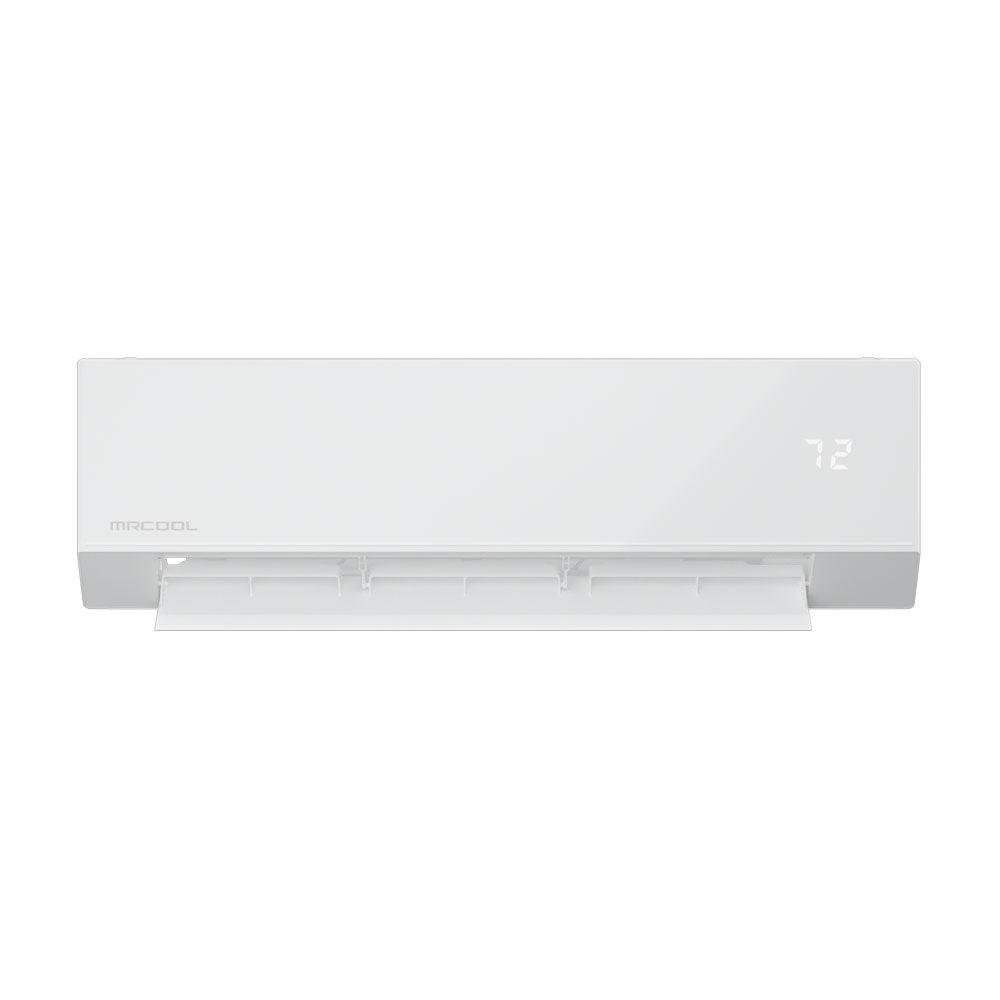

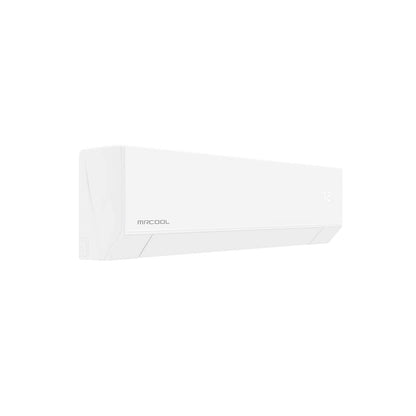

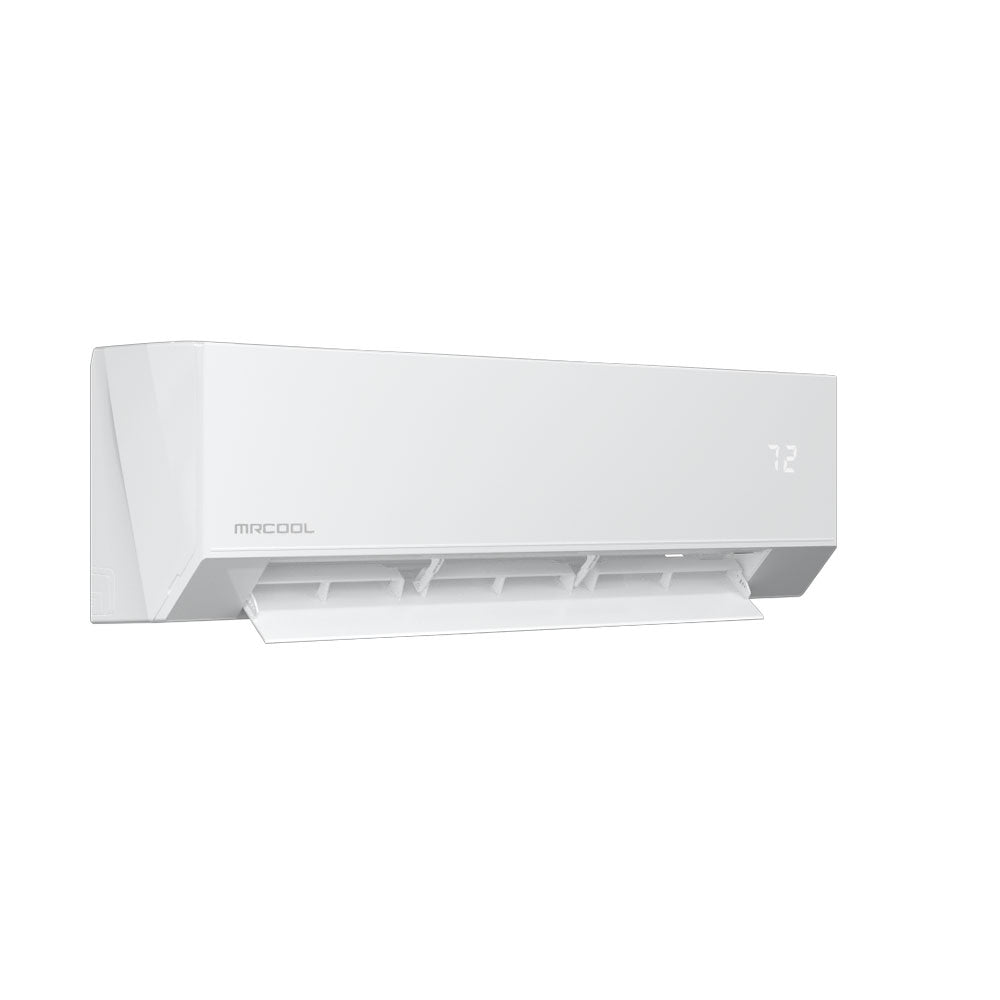

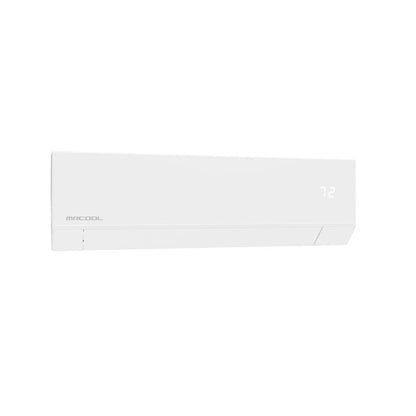

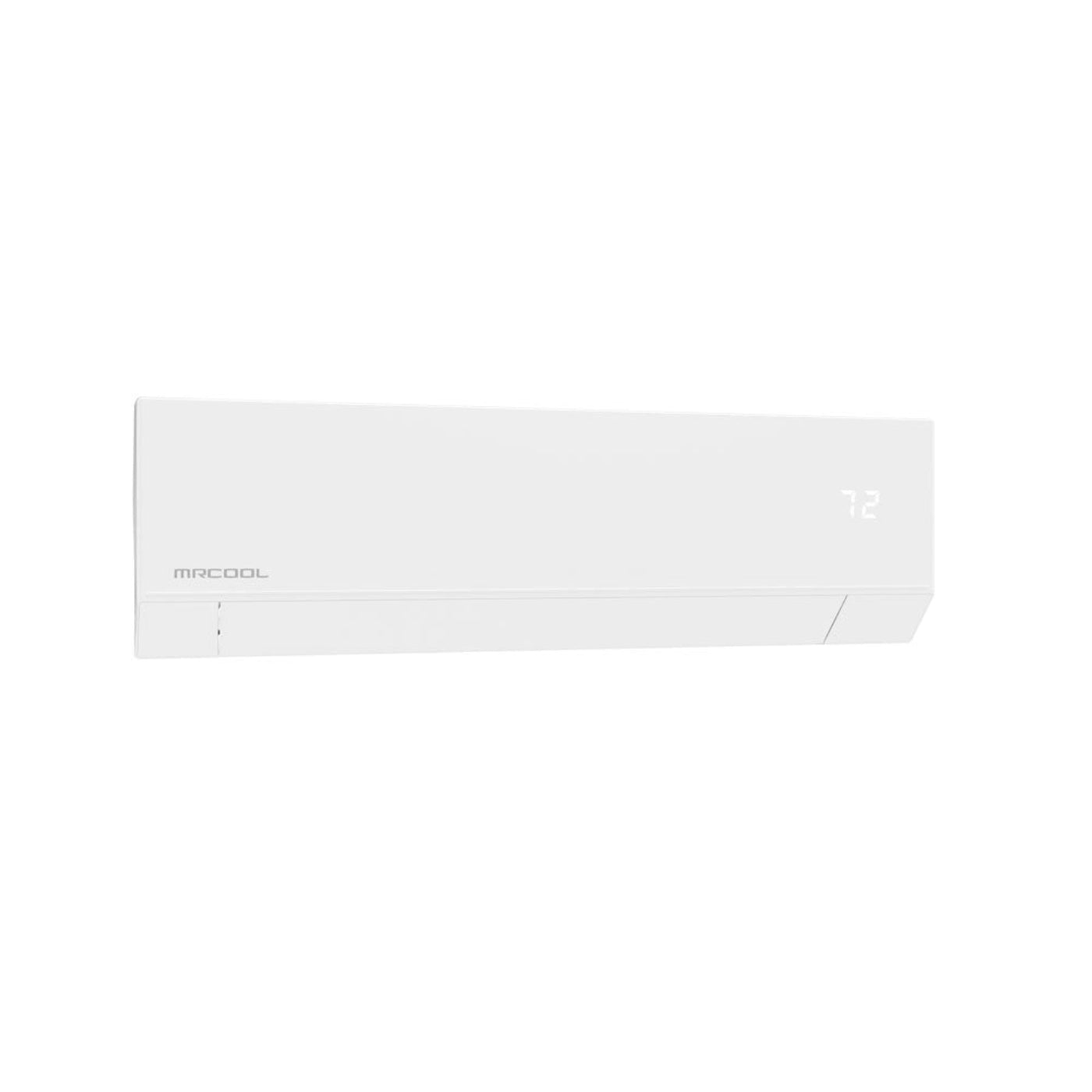

MRCOOL Olympus Energy Star 9K BTU, 3/4 Ton, Ductless Mini Split Wall Mounted Air Handler (O-09-HP-WMAH-230B)
The MRCOOL Olympus 9k Ductless Mini-Split Wall-Mounted Air Handler is an affordable and Energy Star certified unit that provides effective and efficient heating and cooling in one area of your home. Some of the many features of this air handler include the Follow Me function, Auto Swing, the energy saving Sleep mode and the auto restart function. The handler is easy to install and set up, and can be controlled with the SmartHVAC app, the included remote, or your Amazon Alexa or Google Assistant.
Features
Specifications
Dimensions |
31.30" W x 11.61" H x 8.86" D |
Voltage |
208/230V |
Phase |
1 |
Cycle |
60 Hz |
Blow Motor RPM |
1100/850/700 |
Filter Type |
Replaceable |
Overload Protection |
Yes |
Fan Only Option |
Yes |
Quiet Mode |
Yes |
Sleep Mode |
Yes |
Auto Cool |
Yes |
Wifi Compatibility |
Yes |
App Compatibility |
Yes |
Works with IOS |
Yes |
Works with Android |
Yes |
Remote Control Included |
Yes |
Energy Star Compliant |
Yes |
Energy Star Certified |
Yes |
AHRI Certified |
Yes |
Registered Warranty |
5-year Parts/7-year Compressor/1-year Remote |
Registered Parts Warranty |
5-year |
Registered Remote Warranty |
1-year |
Has Batteries |
Yes |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Aerosol |
Yes |
Contains Compressed Gas |
Yes |
Restricted States |
GU, PR, VI |
Net Weight |
22.71lbs |
Gross Depth |
14.57in
|
Gross Height |
12.01in |
Gross Width |
34.25in |
Gross Weight |
28.88lbs |
What our Experts Think
-
Energy Efficiency: Achieves up to 25.5 SEER, offering significant energy savings compared to standard units.
-
Quiet Operation: Indoor noise levels as low as 23.5 dB(A) on low fan speed, ensuring a peaceful environment.
-
Smart Control: Equipped with Wi-Fi capability, allowing control via the SmartHVAC app, Amazon Alexa, or Google Assistant.
-
Comfort Features: Includes Auto Swing, Sleep Mode, Turbo Mode, Timer Mode, and Auto Restart for enhanced comfort and convenience.
-
Professional Installation Required: Designed for installation by a licensed HVAC professional to ensure optimal performance and warranty compliance.
Q&A
Q: What cooling/heating capacity does this air handler provide?
A: It delivers 9,000 BTU (3/4 ton) for efficient cooling and heating in small to medium rooms.
Q: Is this unit compatible with inverter condensers?
A: Yes, designed to work seamlessly with inverter mini split condensers.
Q: Does it have an Energy Star rating?
A: Yes, it’s Energy Star certified for energy-efficient operation.
Q: What voltage does the unit require?
A: Operates on a 230V power supply.
Q: Is this air handler easy to install?
A: Yes, it’s designed for straightforward installation with included mounting hardware.
Maintenance Tips
-
Clean or replace air filters every 1–3 months to maintain airflow and air quality
-
Wipe down the exterior and air intake grills regularly to remove dust
-
Inspect and clean evaporator coils annually to ensure efficient cooling
-
Check for secure electrical connections and proper drainage
-
Avoid blocking airflow around the indoor unit for optimal performance
-
Schedule professional maintenance yearly to extend system lifespan
-
Use the unit within recommended temperature ranges to prevent damage
