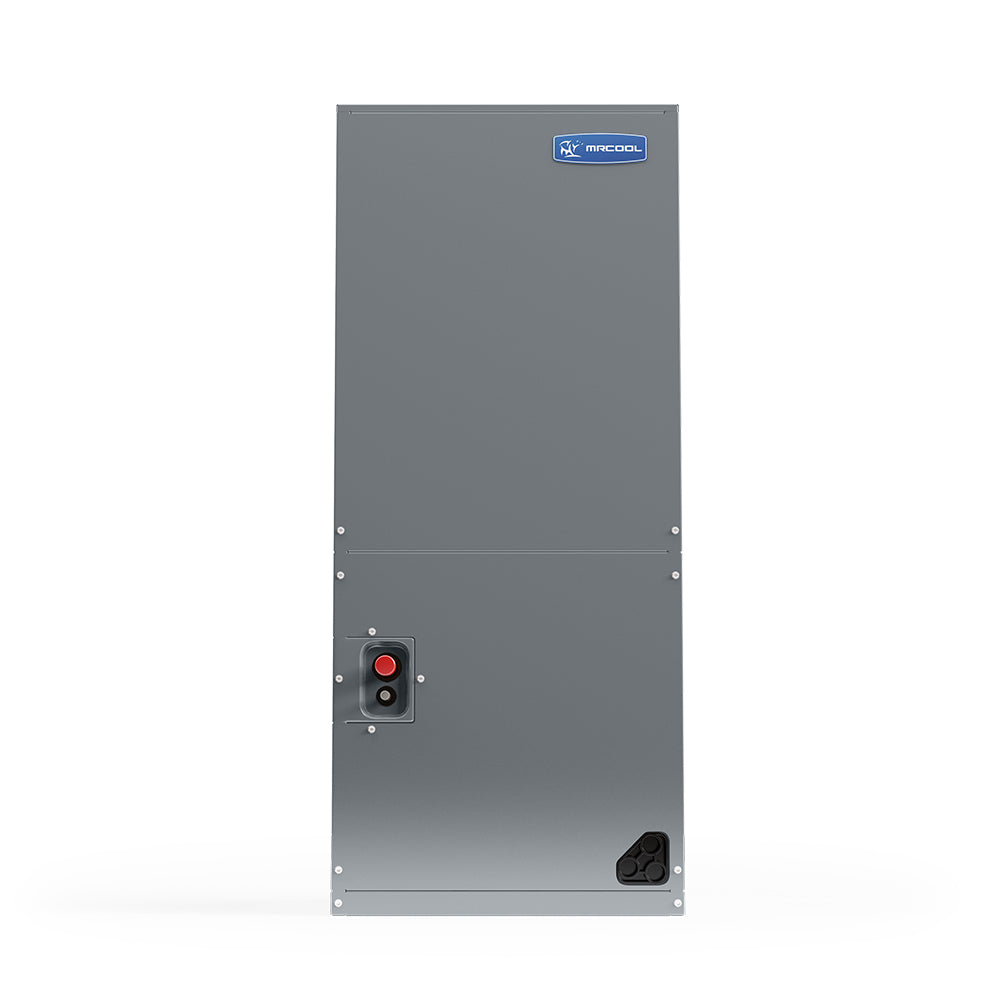

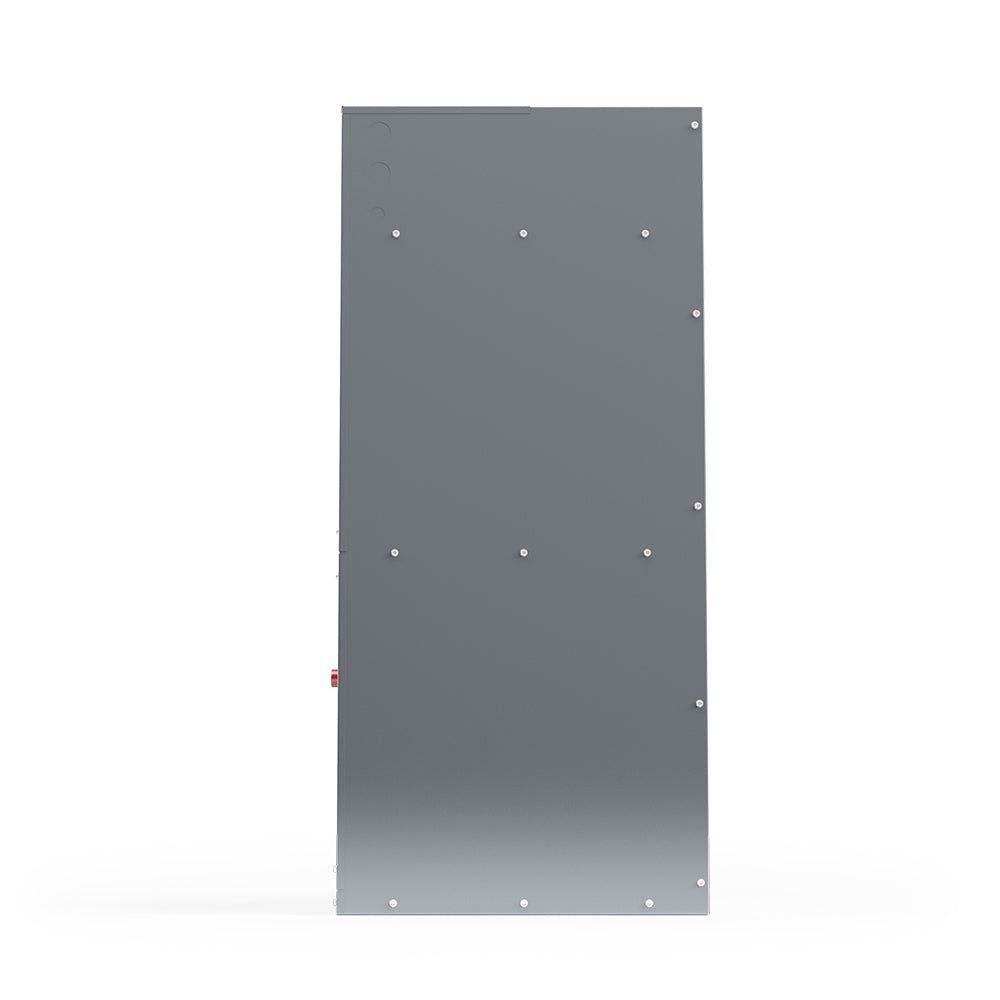

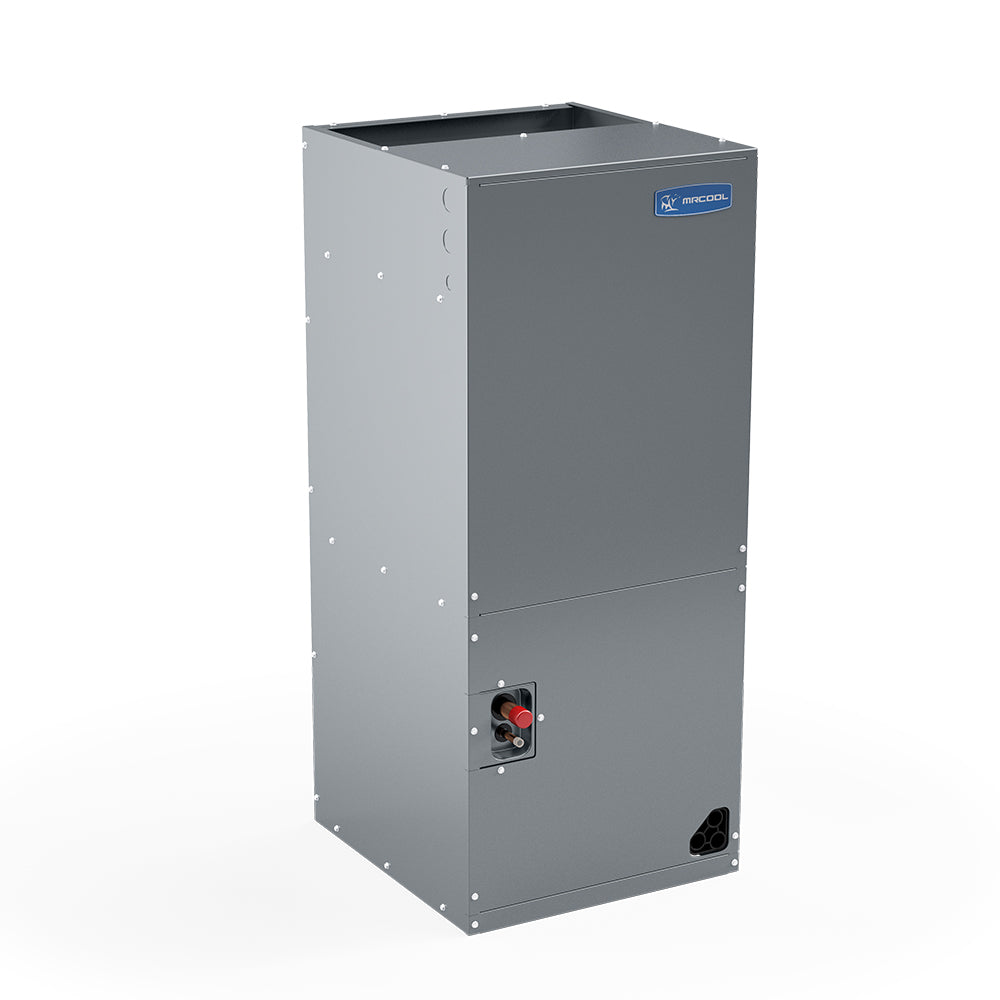

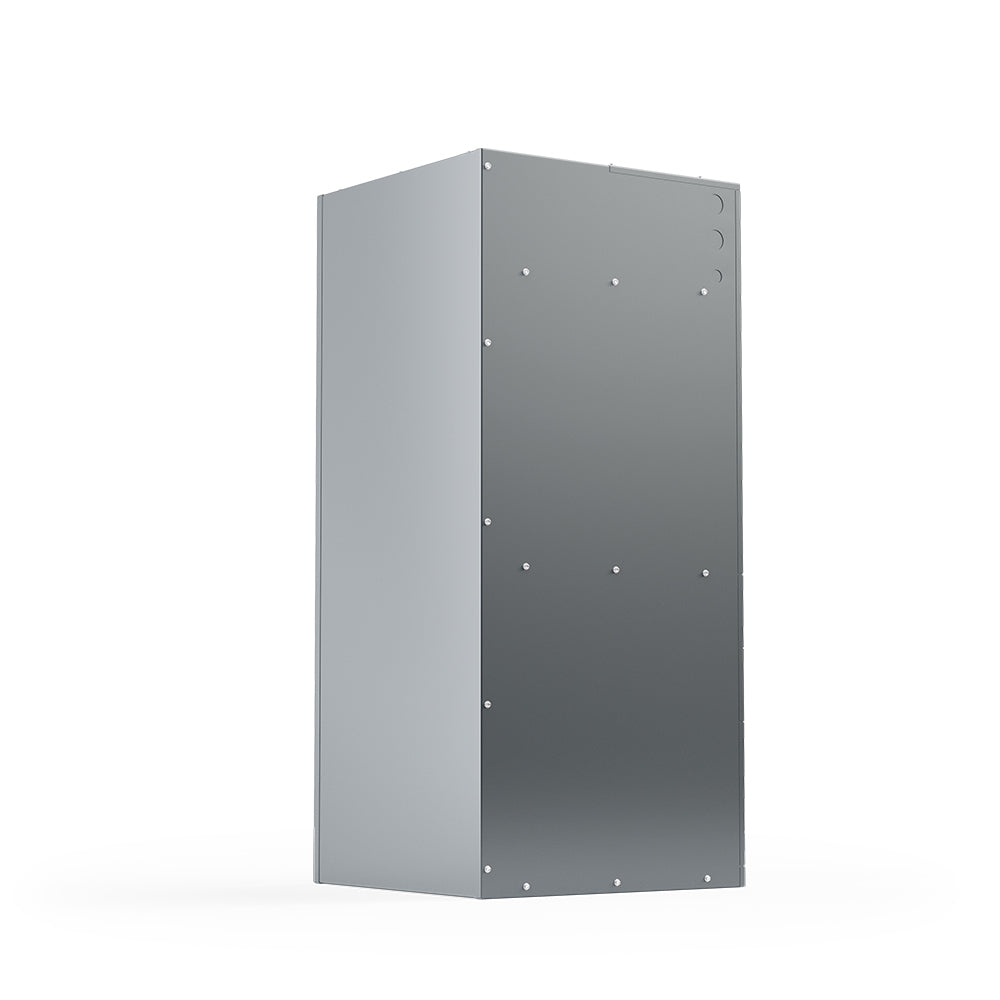

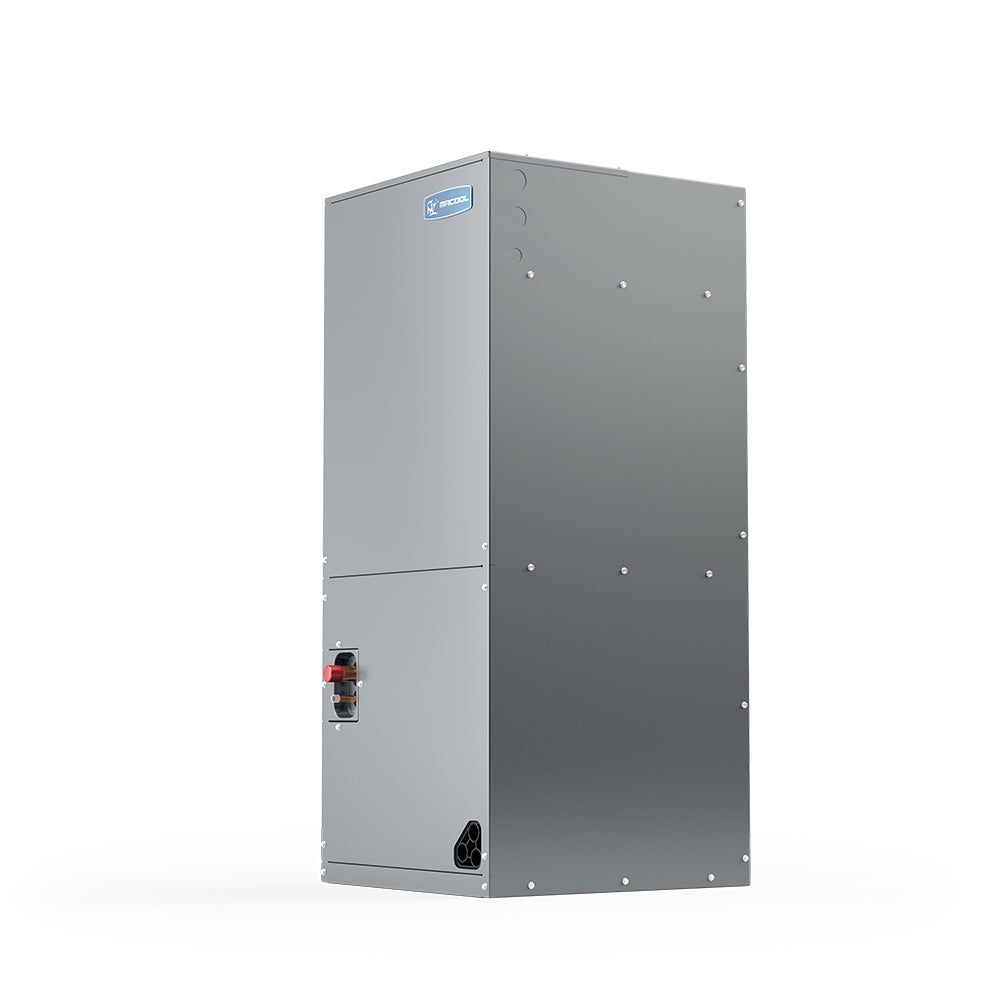

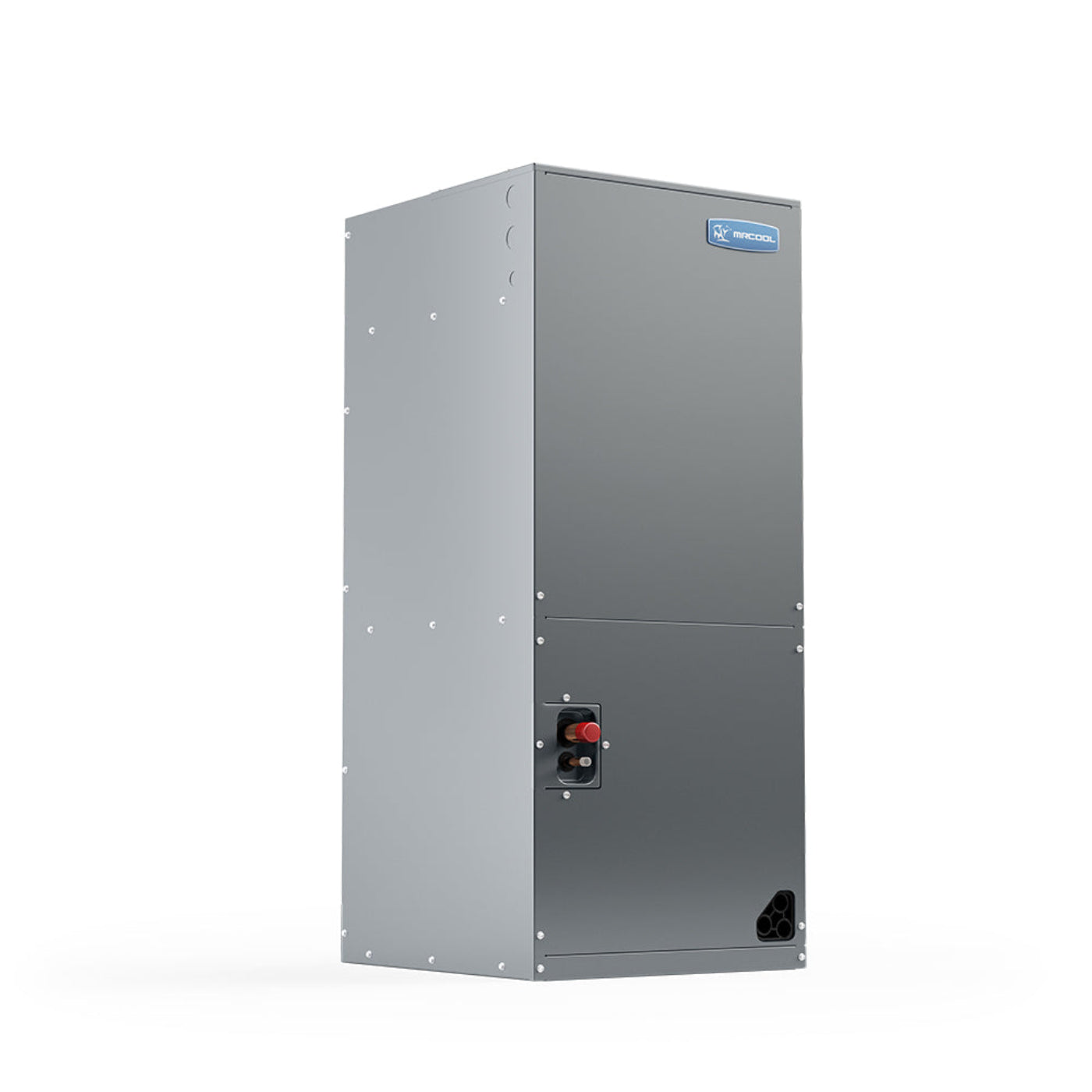

MRCOOL ProDirect 30K BTU, 2.5 Ton, 14 SEER, Split System A/C Air Handler - Multiposition (HAH14030)
No one in your home needs to endure another uncomfortable night, so make sure that you solve your comfort crisis with the MRCOOL multiposition ProDirect 2.5 Ton 14 SEER Split System Air Handler.
The components within this air handler are specifically designed to keep you at the highest level of comfort, like the "A" shaped evaporator coil which absorbs any discomfort you may have in your home, or the three-speed direct drive motor, which will help cover your home in the exact temperature that you want.
The air handler also comes with a removable filter to make your home's air clean and contaminant-free. For extra heating power, this unit can have auxiliary heat kits installed in it. Getting a new home comfort unit can be stressful, but this system is soundly built and guarded by a galvanized steel cabinet that ensures your comfort is never compromised.
To take it a step further, you can enjoy a reliable warranty if you register your air handler online. Forget about discomfort with the power of this MRCOOL ProDirect 2.5 ton split system air handler.
Features
- Equipment should be installed by a qualified professional
- 10 Year Registered Warranty
- AHRI Certified & ETL listed
Specifications
Dimensions |
22" D x 45 3/4" H x 19 2/3" W |
SEER |
14 |
CFM |
1204/1060/919 |
Cooling Capacity |
30000 BTU |
Voltage |
208-230 V |
Phase |
1 |
Cycle |
60 Hz |
Decibel Rating |
42-48 dBA |
Decibel Rating Low |
42 dBA |
Decibel Rating High |
48 dBA |
Number Of Speeds |
3 Speed |
Blower Motor Speeds |
3 Speed |
Blower Motor Rpm |
670/600/530 |
Filter Type |
Replacable |
ETL Listed |
Yes |
AHRI Certified |
Yes |
Registered Warranty |
10 Year Limited Warranty |
Net Weight |
132 lbs |
Gross Depth |
25-3/5in |
Gross Height |
47-5/8in |
Gross Width |
22-5/6in |
Gross Weight |
143 lbs |
What our Experts Think
-
Reliable Cooling Power – 30,000 BTU, 2.5-ton capacity ideal for medium-sized spaces.
-
Energy Efficient – 14 SEER rating balances performance and cost-effectiveness.
-
Multiposition Flexibility – Horizontal, vertical, or downflow installation to fit different duct setups.
-
Durable Build – Sturdy construction ensures long-lasting operation with low maintenance.
-
Seamless Pairing – Designed for MRCOOL ProDirect condensers and compatible HVAC systems.
Q&A
Q: What is the MRCOOL HAH14030 Air Handler used for?
A: It’s a 30,000 BTU, 2.5-ton split system air handler designed for efficient home cooling and heating when paired with a compatible condenser.
Q: Is it energy efficient?
A: Yes, it’s rated up to 14 SEER, delivering reliable performance with energy savings.
Q: Can it be installed in different positions?
A: Absolutely—this multiposition unit allows upflow, downflow, or horizontal installation for flexible setups.
Q: Is it compatible with heat pumps and A/C units?
A: Yes, it works with both air conditioners and heat pump systems.
Q: Who is this air handler best suited for?
A: Perfect for homeowners needing a durable, mid-efficiency air handler for medium-sized spaces.
Maintenance Tips
-
Clean or replace air filters every 1–3 months for proper airflow.
-
Inspect coil surfaces regularly and clean if dust or dirt accumulates.
-
Check drain pan and condensate line to prevent clogs and water damage.
-
Ensure cabinet panels are secure to maintain efficiency.
-
Keep surrounding area clear of debris for unobstructed airflow.
-
Schedule annual professional maintenance to maximize performance and lifespan.
