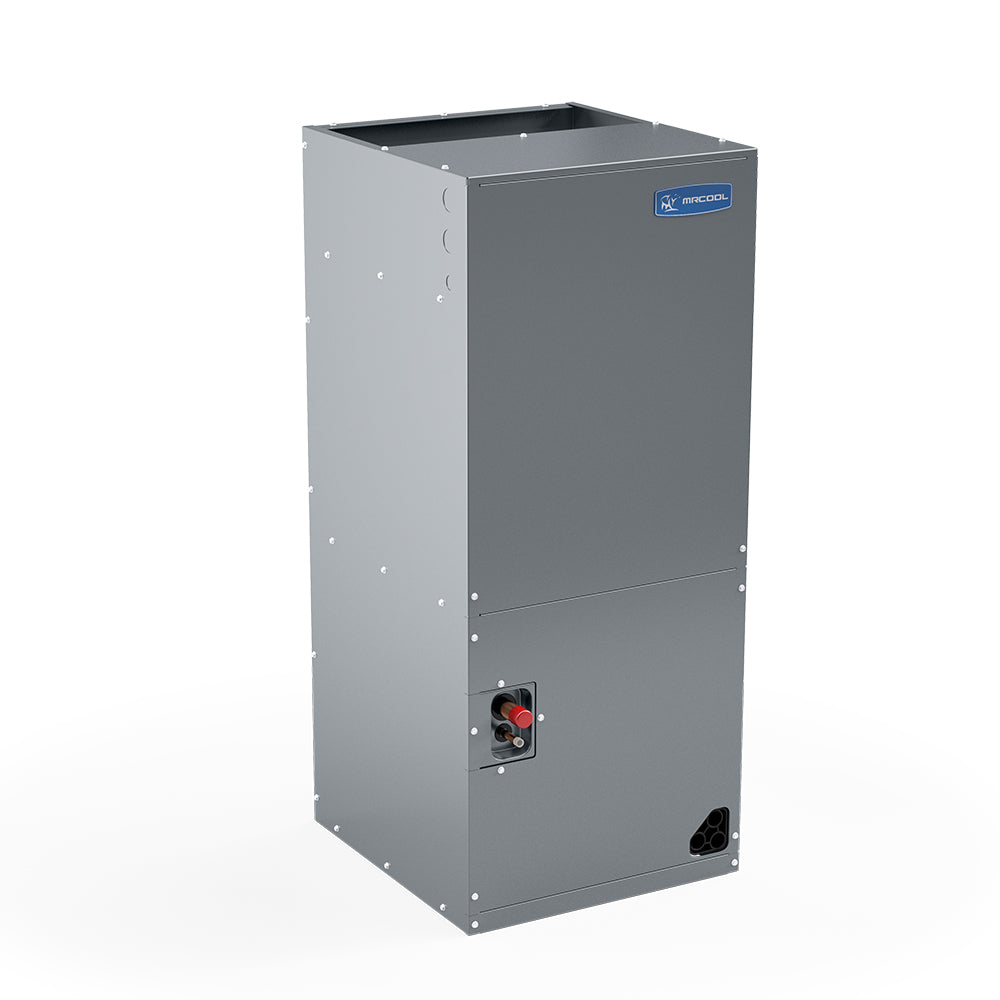

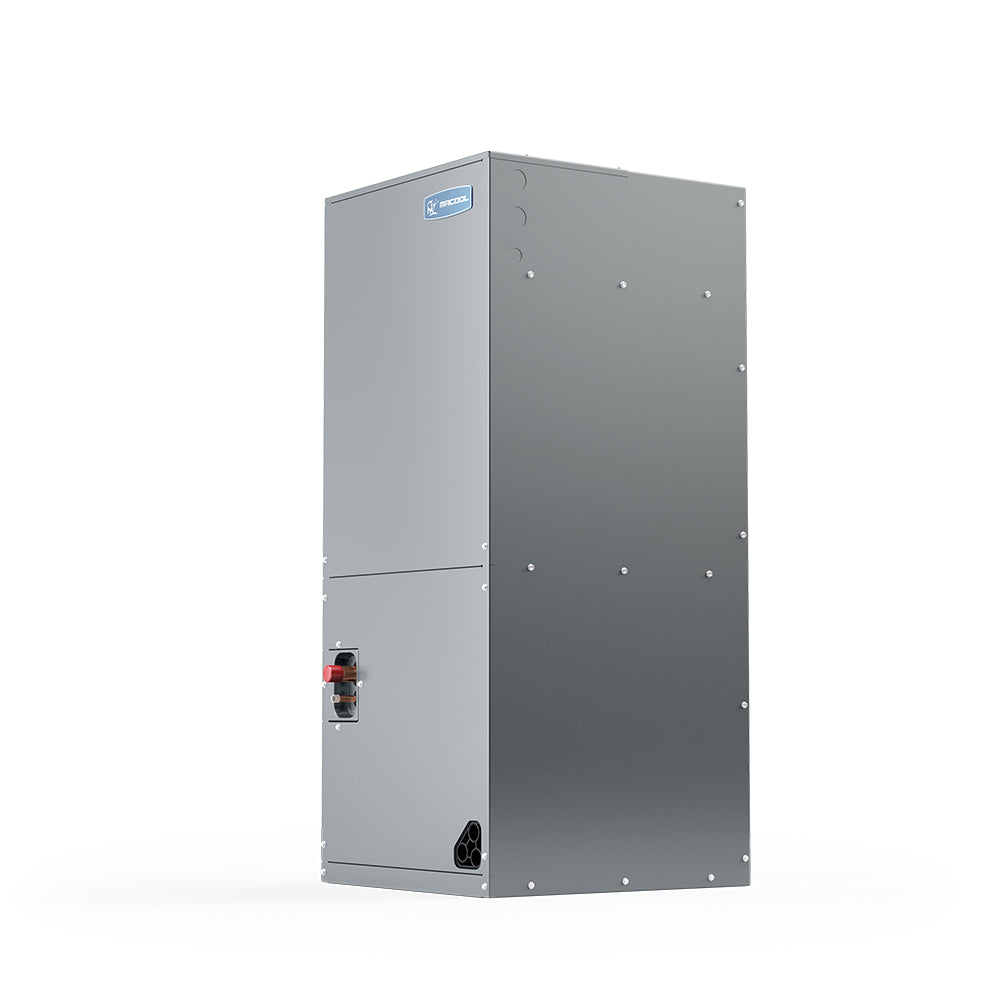

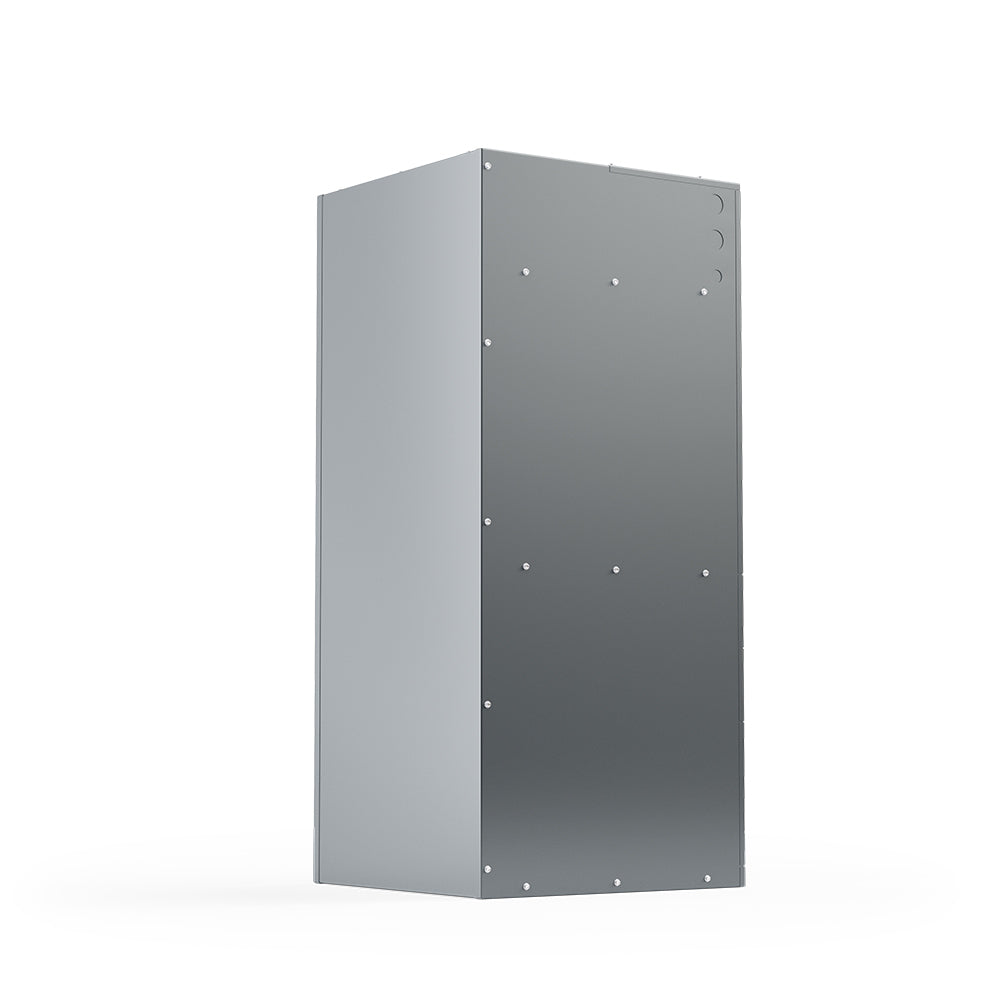

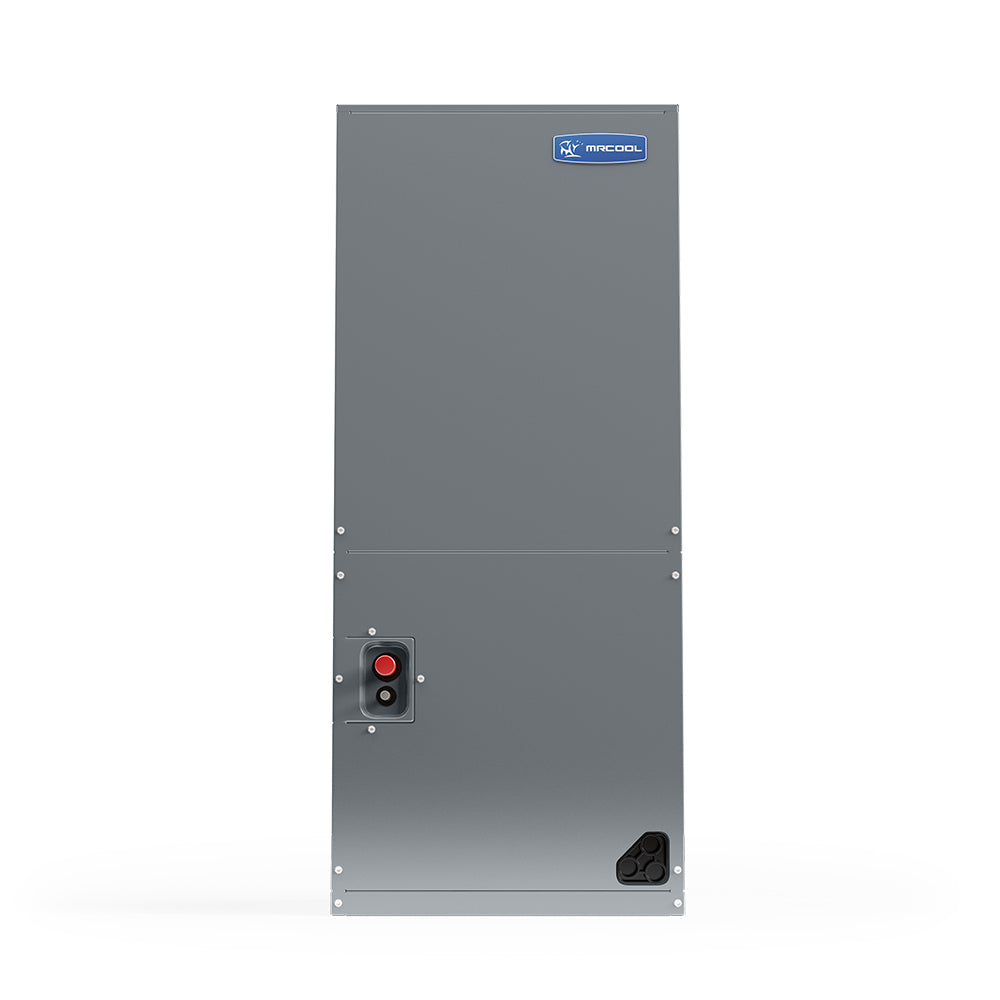

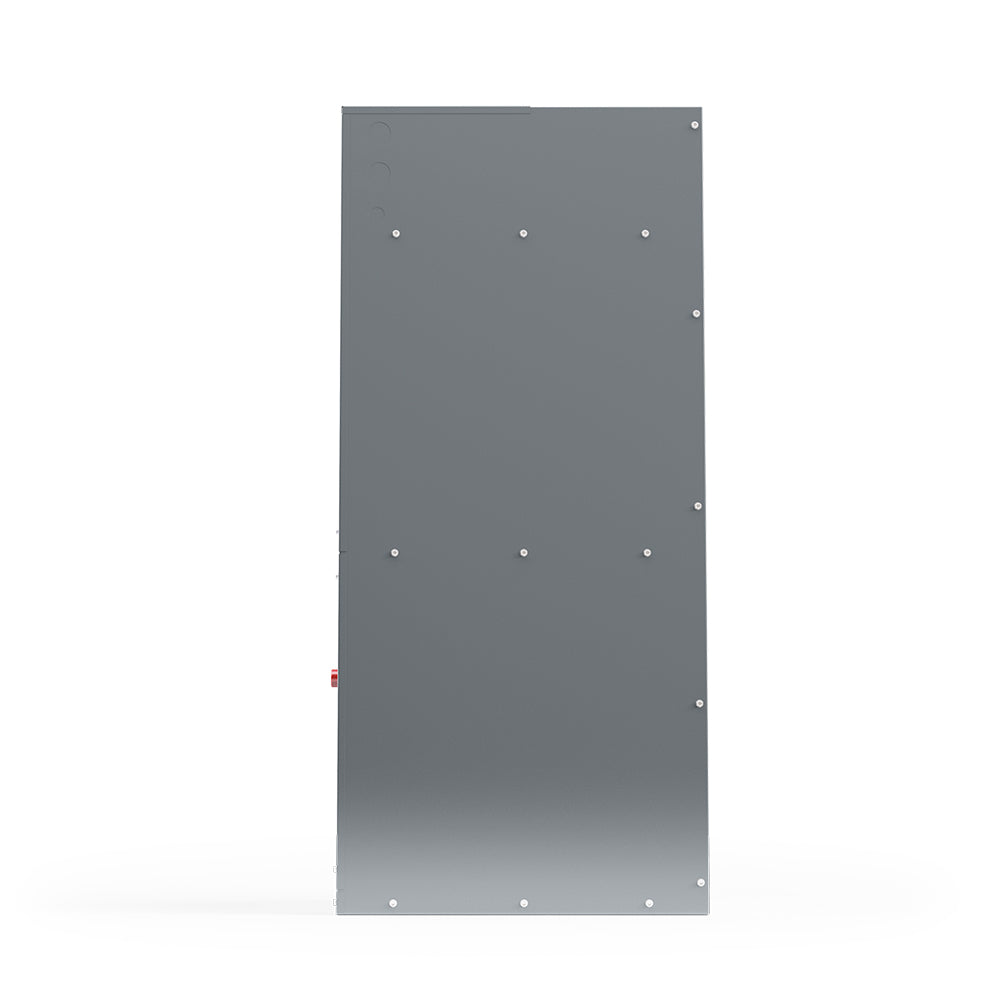

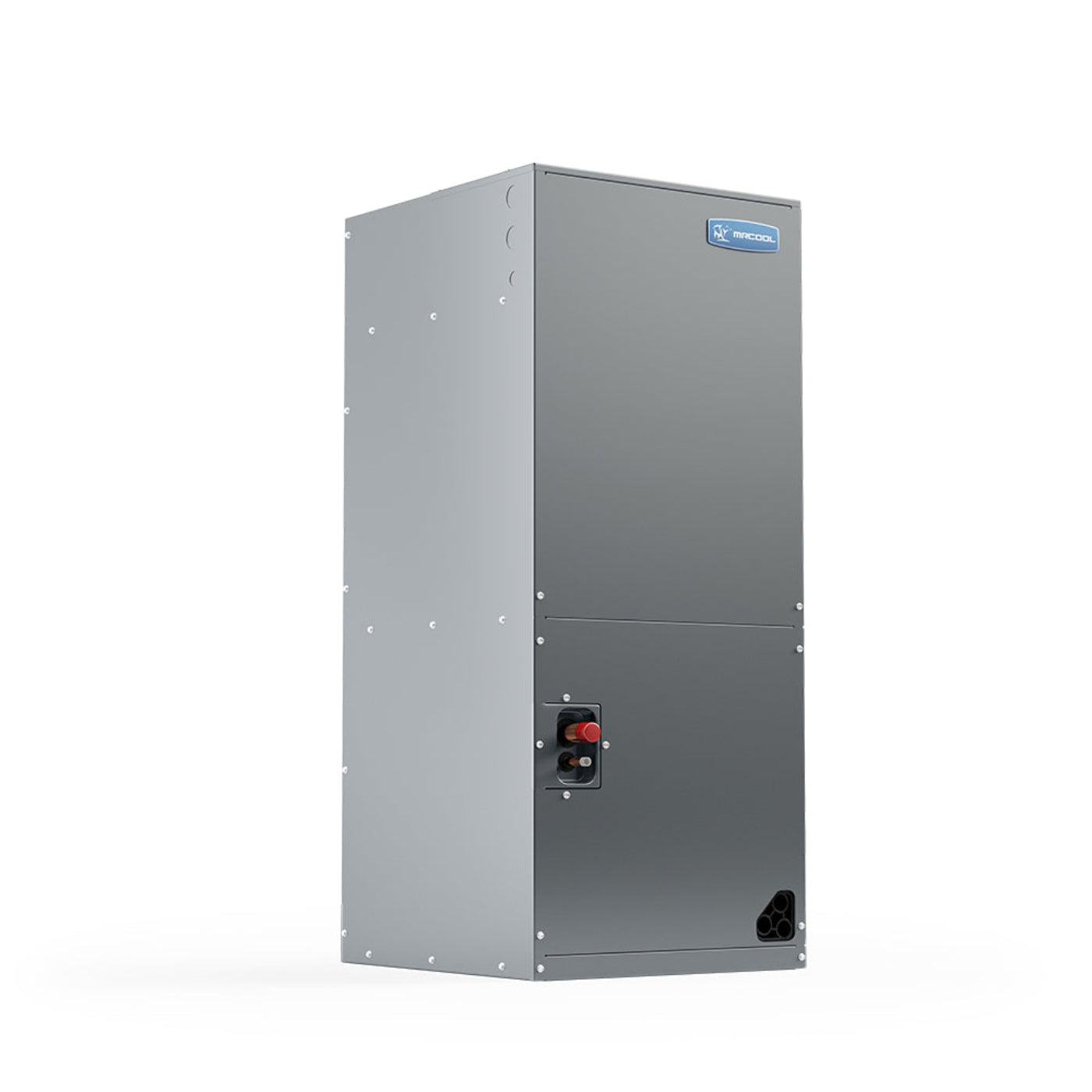

MRCOOL ProDirect 56.5K BTU, 5 Ton, 14 SEER, Split System Air Handler - Multiposition (HAH14060)
Maintaining a consistent temperature in your home shouldn't be a strenuous, stressful task, so if you find yourself pulling out your hair over your current home comfort system, you might need the MRCOOL ProDirect 5 Ton 14 SEER Multiposition Split System Air Handler.
This air handler uses its sturdy ‚"A" shaped evaporator coil to draw out whatever is making your home uncomfortable. To spread comfort throughout your home, the three-speed direct drive blower motor can work quickly without boosting your energy bills. When it goes out into your home, you know that the air is clean, because it goes through a removable filter. The electric heat kits that you can install in this system also help to provide extra comfort when it's a little too cold outside.
This strong, AHRI certified, ETL listed unit is well protected by a galvanized steel cabinet that guards the system from corrosion and other harm that would halt a different unit in its tracks. It's further protected by a superior warranty when you register it online. Stress and discomfort have no place in your home, so remove both entirely with the MRCOOL ProDirect 5 ton split system air handler.
Features
- Equipment should be installed by a qualified professional
- 10 Year Registered Warranty
- AHRI Certified & ETL listed
Specifications
Dimensions |
24" D x 53 1/8" H x 22" W |
SEER |
14 |
CFM |
1695/1574/1434 |
Cooling Capacity |
56500 BTU |
Voltage |
208-230 V |
Phase |
1 |
Cycle |
60 Hz |
Decibel Rating |
51-55 dBA |
Decibel Rating Low |
51 dBA |
Decibel Rating High |
55 dBA |
Number Of Speeds |
3 Speed |
Blower Motor Speeds |
3 Speed |
Blower Motor Rpm |
920/870/820 |
Filter Type |
Replacable |
ETL Listed |
Yes |
AHRI Certified |
Yes |
Registered Warranty |
10 Year Limited Warranty |
Net Weight |
176 lbs |
Gross Depth |
25-1/5in |
Gross Height |
54-3/4in |
Gross Width |
28in |
Gross Weight |
190 lbs |
What our Experts Think
-
High-Capacity Cooling – 56,500 BTU, 5-ton system built for large residential or light commercial spaces.
-
Efficient Operation – 14 SEER rating balances performance and energy savings.
-
Multiposition Flexibility – Supports horizontal, vertical, or downflow installation for versatile setups.
-
Durable & Reliable – Strong build designed for consistent, long-term operation.
-
Seamless Compatibility – Works perfectly with MRCOOL ProDirect condensers and many standard HVAC systems.
Q&A
Q: What is the MRCOOL HAH14060 Air Handler used for?
A: It’s a 56,500 BTU, 5-ton split system air handler built for reliable cooling and heating when paired with a compatible condenser.
Q: Is it energy efficient?
A: Yes, it delivers up to 14 SEER efficiency, offering dependable performance with balanced energy savings.
Q: Can it be installed in different positions?
A: Absolutely—this multiposition design supports upflow, downflow, and horizontal configurations for flexible installation.
Q: Is it compatible with heat pumps and A/C systems?
A: Yes, it works seamlessly with both air conditioners and heat pumps.
Q: Who is this unit best suited for?
A: Ideal for homeowners who need a durable, mid-efficiency air handler for larger residential spaces.
Maintenance Tips
-
Replace or clean air filters every 1–3 months to maintain airflow.
-
Inspect and clean evaporator coil surfaces to prevent dust buildup.
-
Check condensate drain line and pan regularly to avoid clogs and leaks.
-
Ensure cabinet doors and panels are tightly secured for efficient operation.
-
Keep the surrounding area clear of obstructions for proper ventilation.
-
Schedule annual professional maintenance to ensure long-term performance.
