MRCOOL Signature 30K BTU, 2.5 Ton, 16 SEER, R410A Upflow Cased Evaporator Coil - 17.5-Inch Cabinet (MCVP30BNPA)

MRCOOL Signature 30K BTU, 2.5 Ton, 16 SEER, R410A Upflow Cased Evaporator Coil - 17.5-Inch Cabinet (MCVP30BNPA)

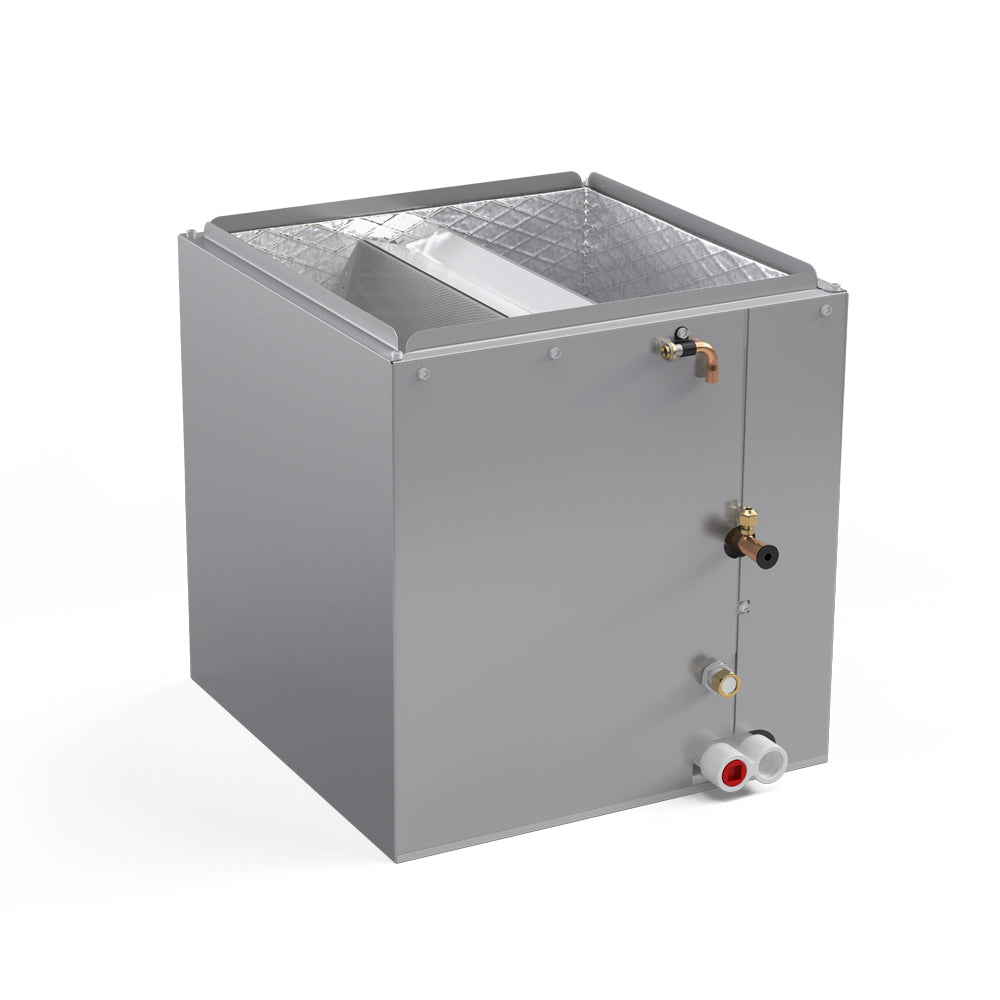

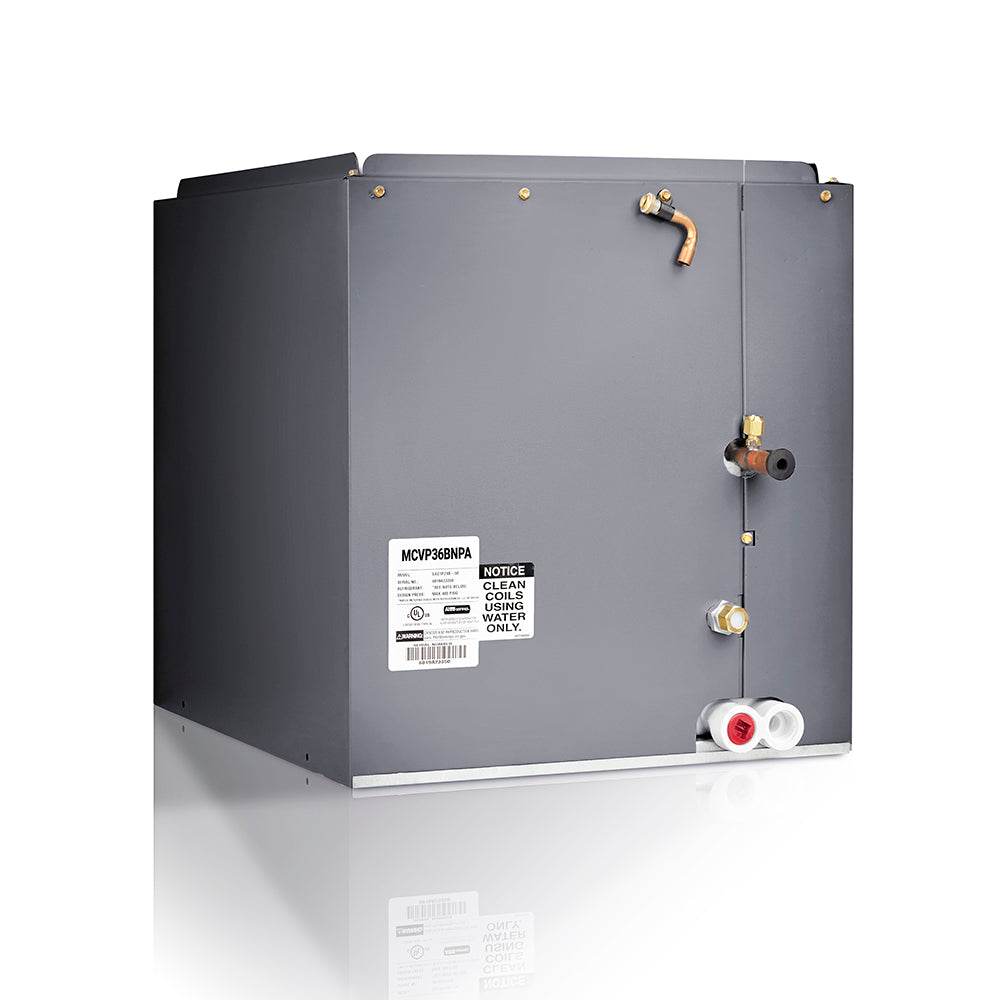

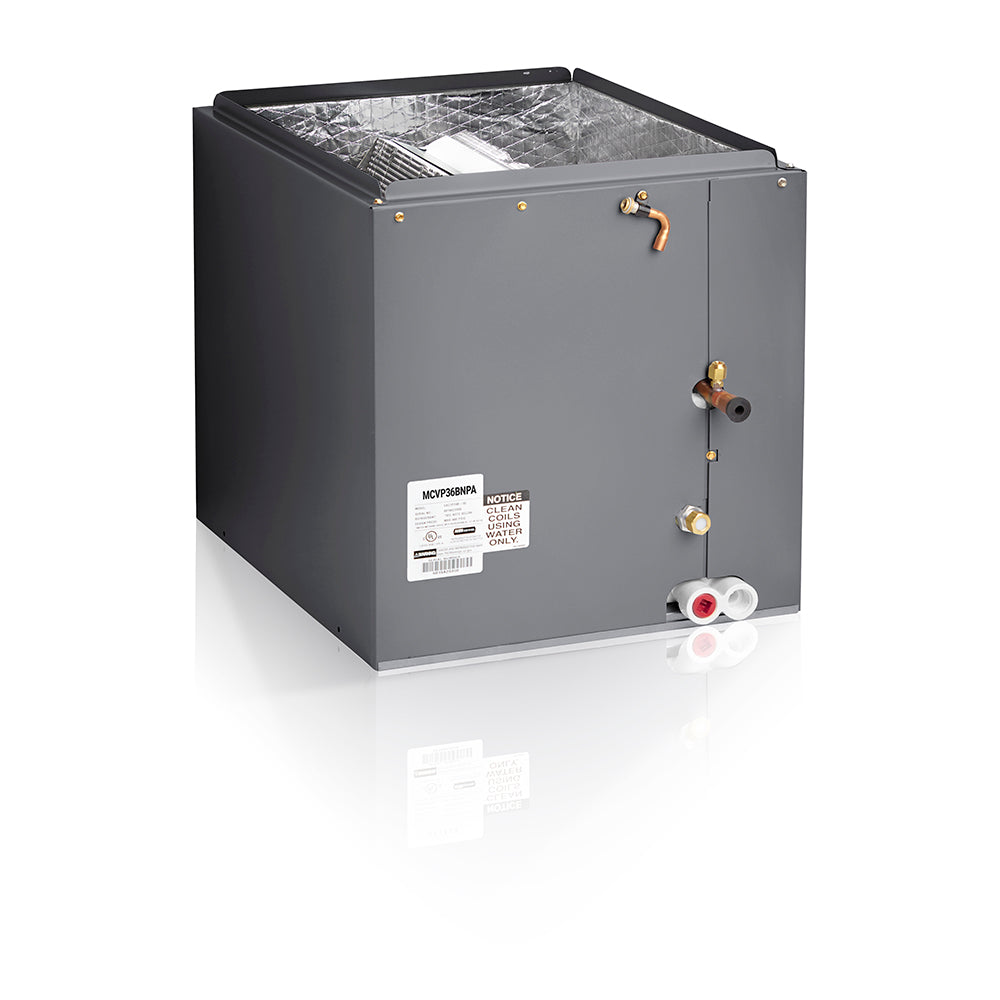

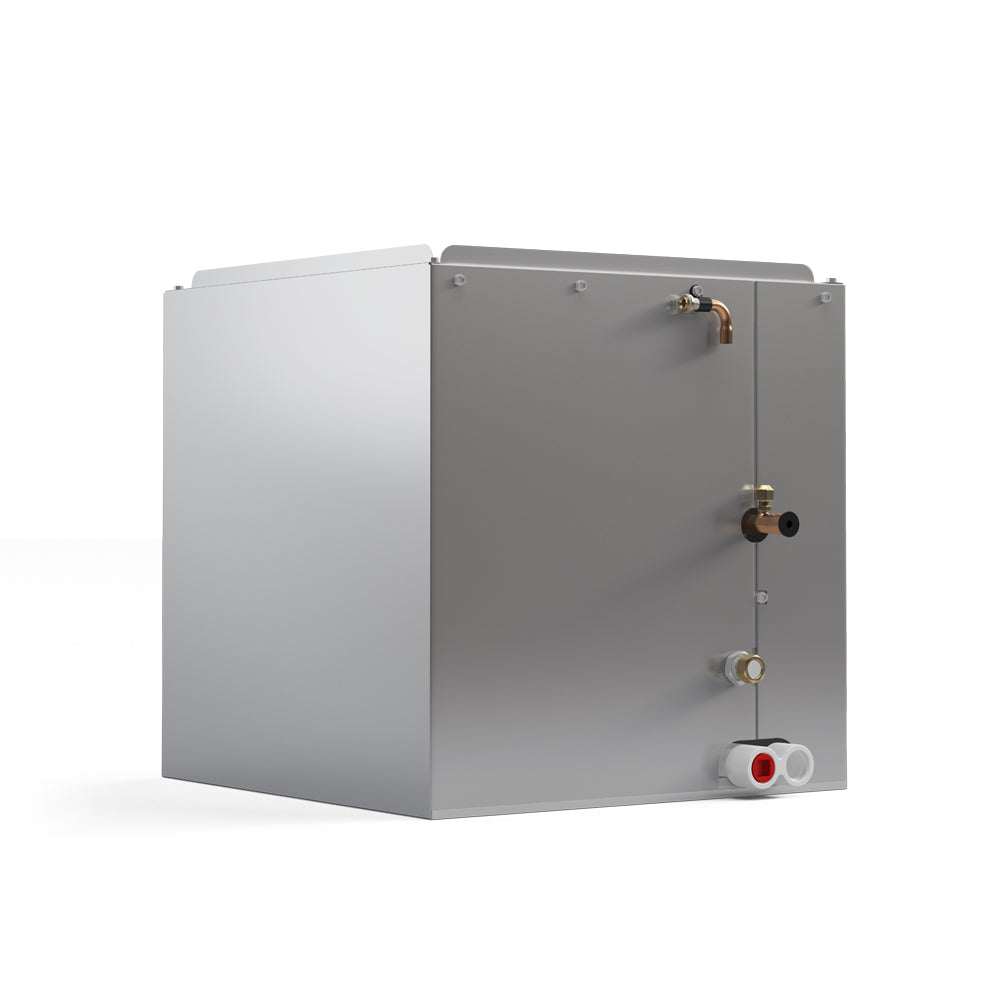

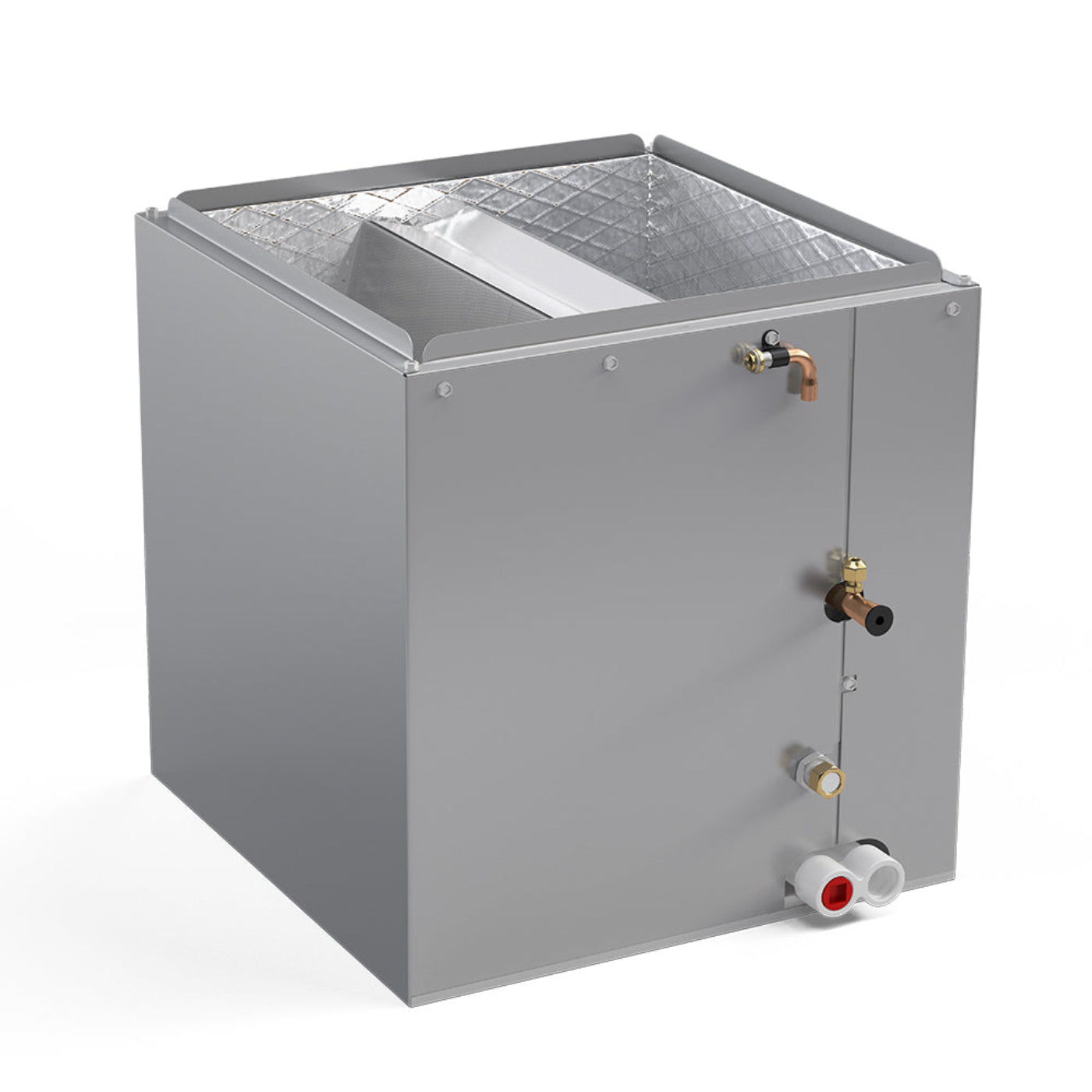

2.5 Ton BTU R410A Upflow Cased Evaporator Coil

This is a brand new 2.5 ton, R410A refrigerant, Upflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.

Features

• Interlocking door assemblies and snug line sealgrommets to minimize air leakage
• All units UL Listed and AHRI Certified
• One of the lowest water retention drain pans in the industry to minimize mold and mildew growth

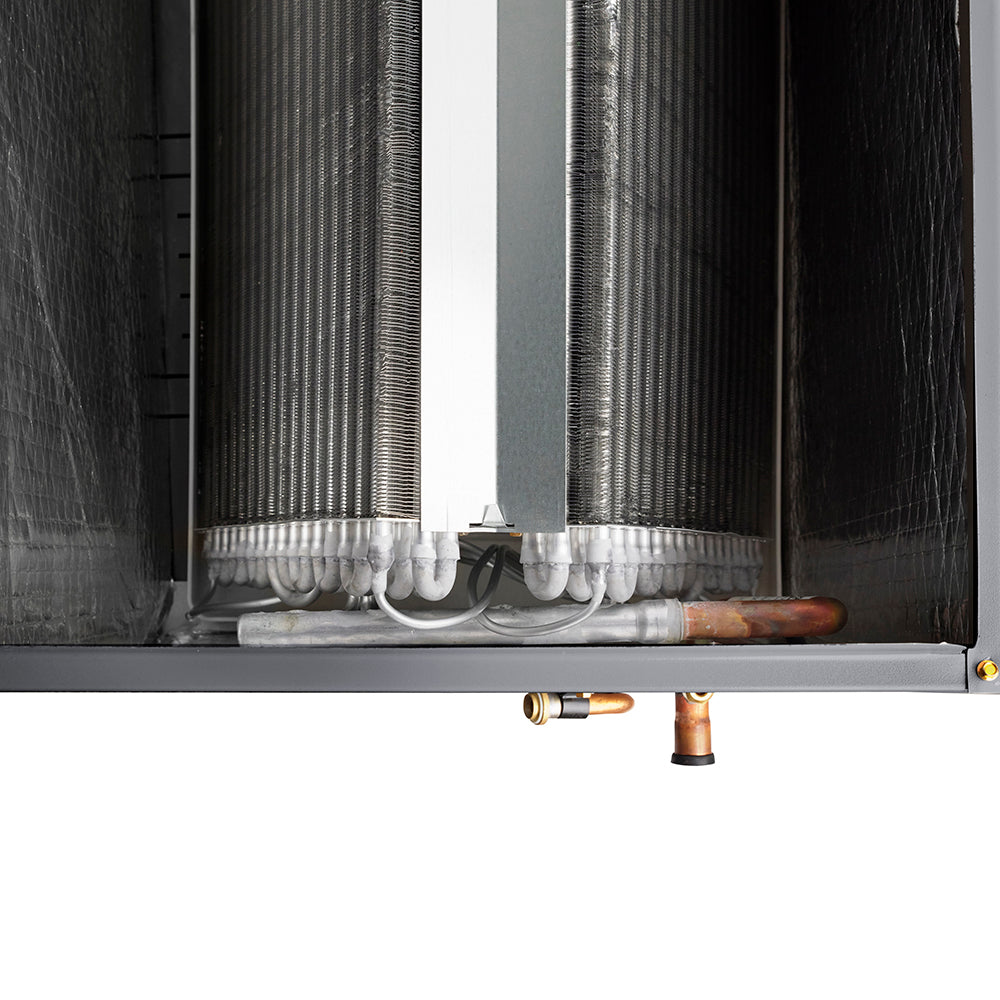

• External cabinet mounted distributor body designed for easy changing of orifice sizes and fast TXV connections

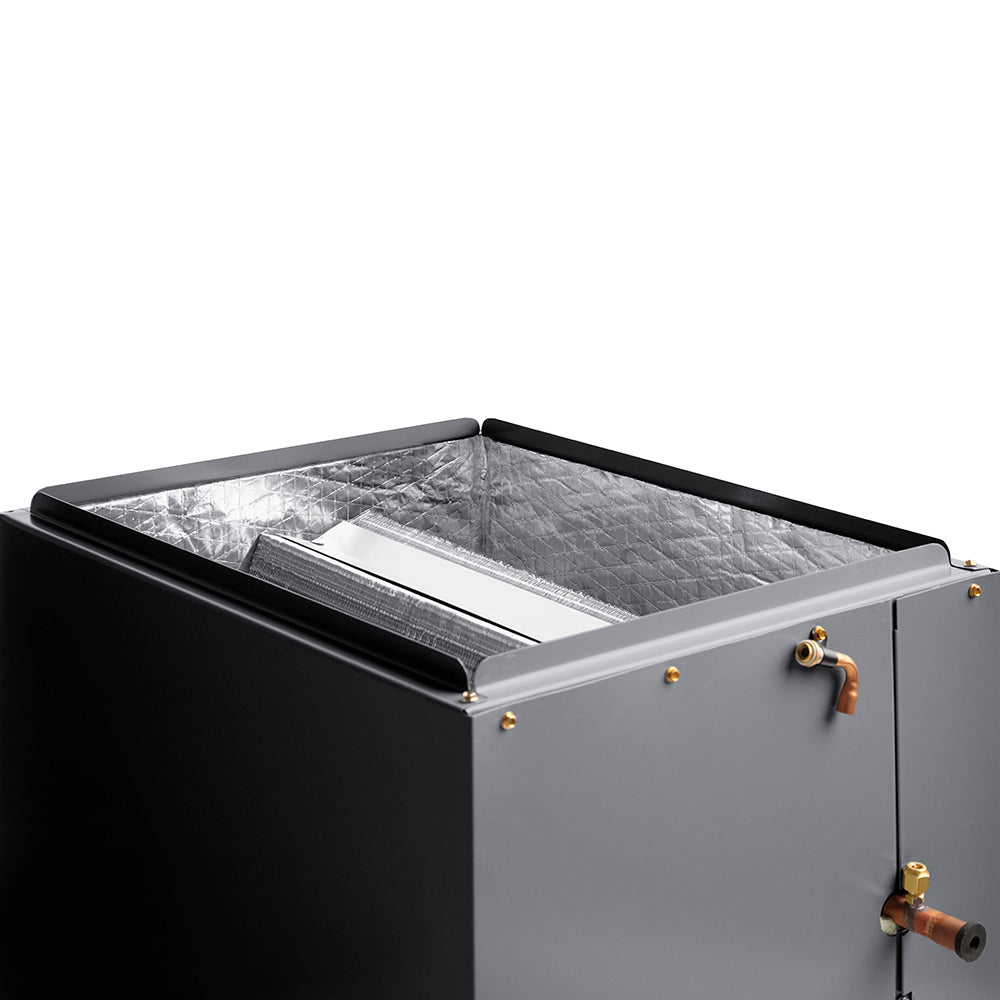

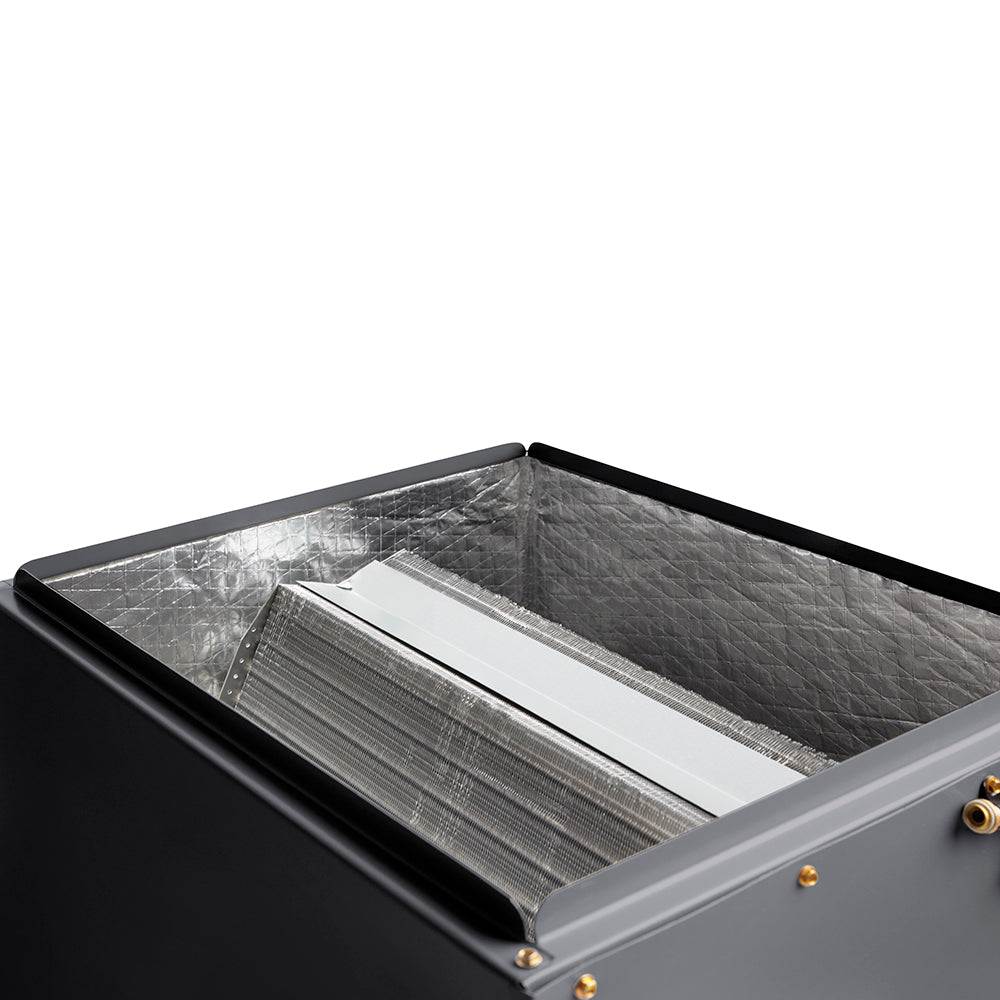

• Foil-face insulation for easy cleaning
• All drain pans are compatible with UV lights

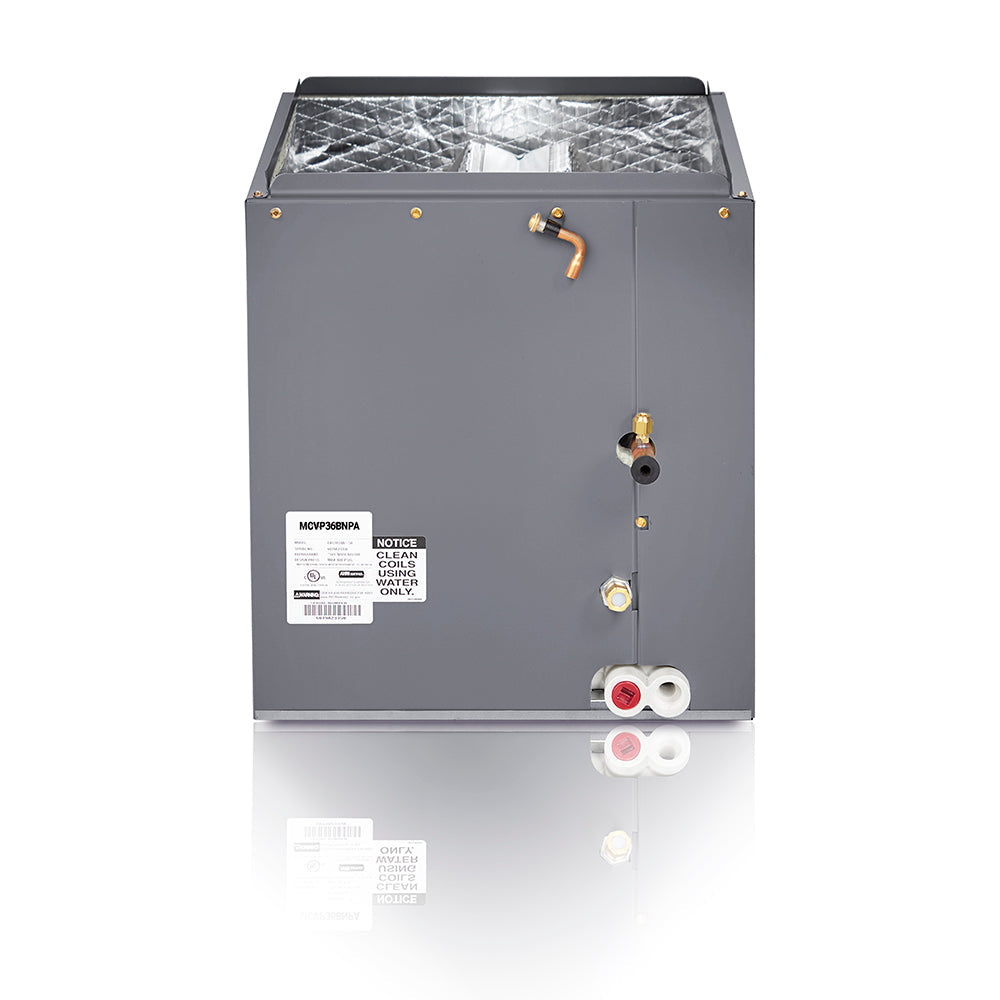

• Two dual drain on front of coil for install flexibility of drain lines around furnace vent and utility connections.
• Superior service access to components, withtubing located at door split and foil-face insulation
• 10-Year Parts Limited Warranty Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.
• Tubing located at door split for easy coil service or cleaning
• Tightly sealed, painted steel cabinet with wall to wall insulation to ensure <2% air leakage

Specifications

What our Experts Think

• Optimal Pairing: Designed to work seamlessly with MRCOOL Signature Series condensers and either a gas furnace or modular blower, achieving up to 16 SEER efficiency.

• Durable Construction: Features a tightly sealed, painted steel cabinet with wall-to-wall insulation, ensuring less than 2% air leakage.

• Easy Maintenance: Equipped with foil-faced insulation for easy cleaning and service access.

• Flexible Installation: Dual drain connections on the front allow for flexible drain line routing around furnace vents and utility connections.

• Long-Term Reliability: Comes with a 10-year registered parts limited warranty, reflecting MRCOOL's commitment to quality.

Q&A

Q: What is the cooling capacity of this evaporator coil?
A: It has a 30,000 BTU (2.5 Ton) cooling capacity.

Q: What SEER rating does this coil support?
A: Designed for systems up to 16 SEER efficiency.

Q: What refrigerant type is compatible?
A: Uses environmentally friendly R410A refrigerant.

Q: What is the cabinet size?
A: Features a compact 17.5-inch upflow cased cabinet.

Q: Is this coil compatible with MRCOOL systems?
A: Yes, it’s optimized for MRCOOL Signature HVAC units.

Q: What installation type does it support?
A: Suitable for upflow air handler installations.

Maintenance Tips

• Inspect and clean the coil regularly to prevent dust and debris buildup

• Ensure proper airflow by keeping surrounding areas clear of obstructions

• Check condensate drain for clogs and clean as needed to avoid water damage

• Verify all electrical connections are secure and free of corrosion

• Schedule professional HVAC maintenance annually for optimal performance

• Monitor refrigerant levels and report any leaks immediately

• Keep the unit dry and protected from external moisture
