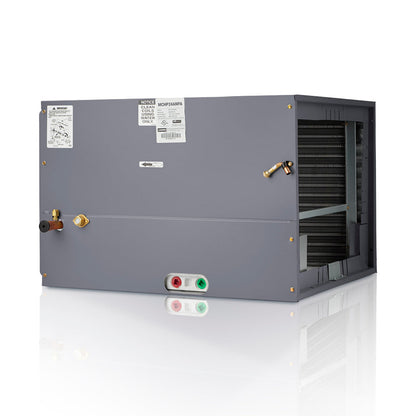

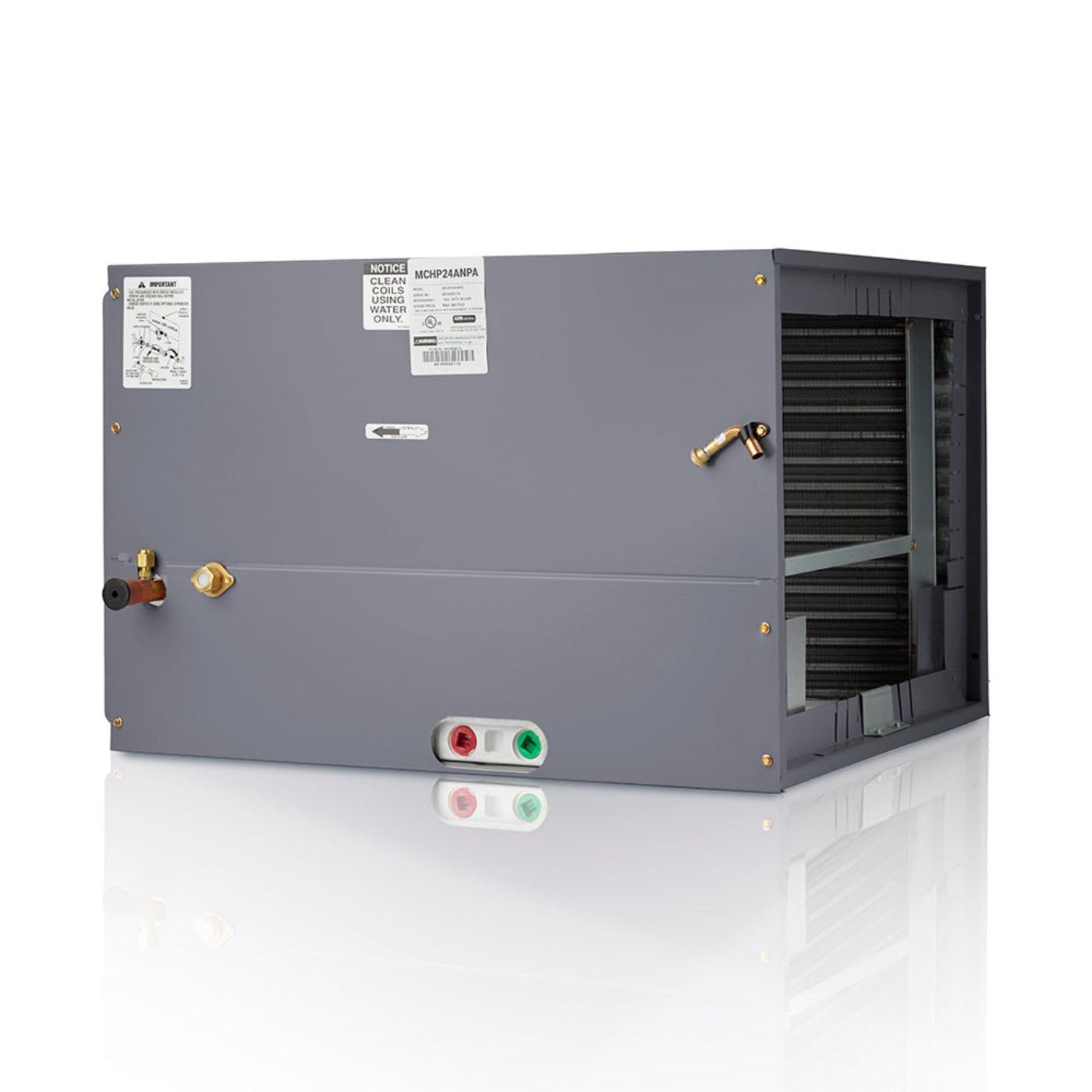

MRCOOL Signature 48K BTU, 4 Ton, 16 SEER, R410A Horizontal Cased Evaporator Coil - 17.5-Inch Cabinet (MCHP48BNPA)
4 Ton BTU R410A Horizontal Cased Evaporator Coil
This is a brand new 4 ton, R410A refrigerant, horizontal cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.
Features
- Interlocking door assemblies and snug line sealgrommets to minimize air leakage
- All units UL Listed and AHRI Certified
- One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
- Insulated galvanized steel case with durable embossed finish
- Foil-face insulation for easy cleaning
- All drain pans are compatible with UV lights
- Removable top panels for easy service or cleaning
- Superior service access to components, withtubing located at door split and foil-face insulation
- 10-Year Parts Limited Warranty

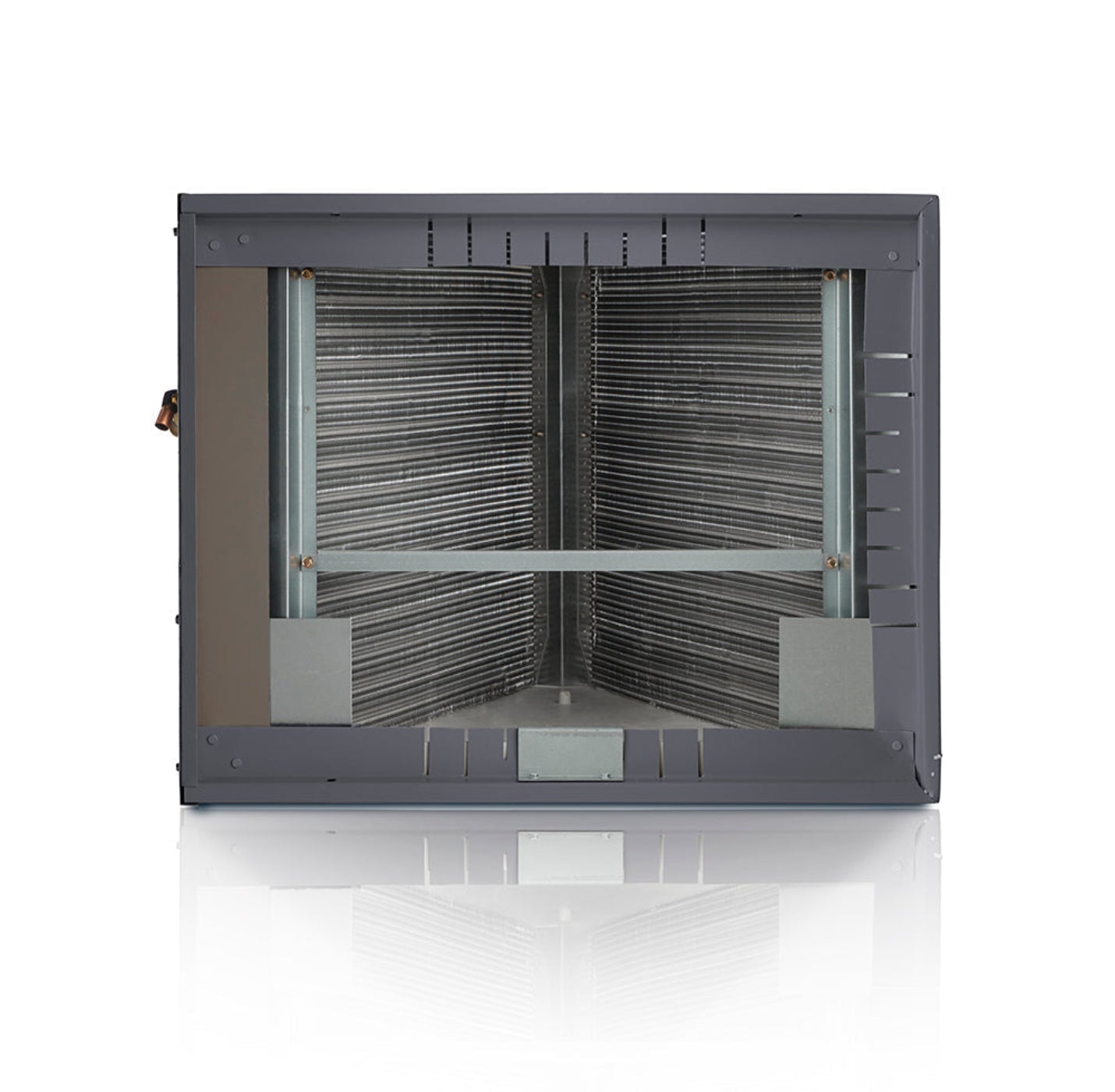

- Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.

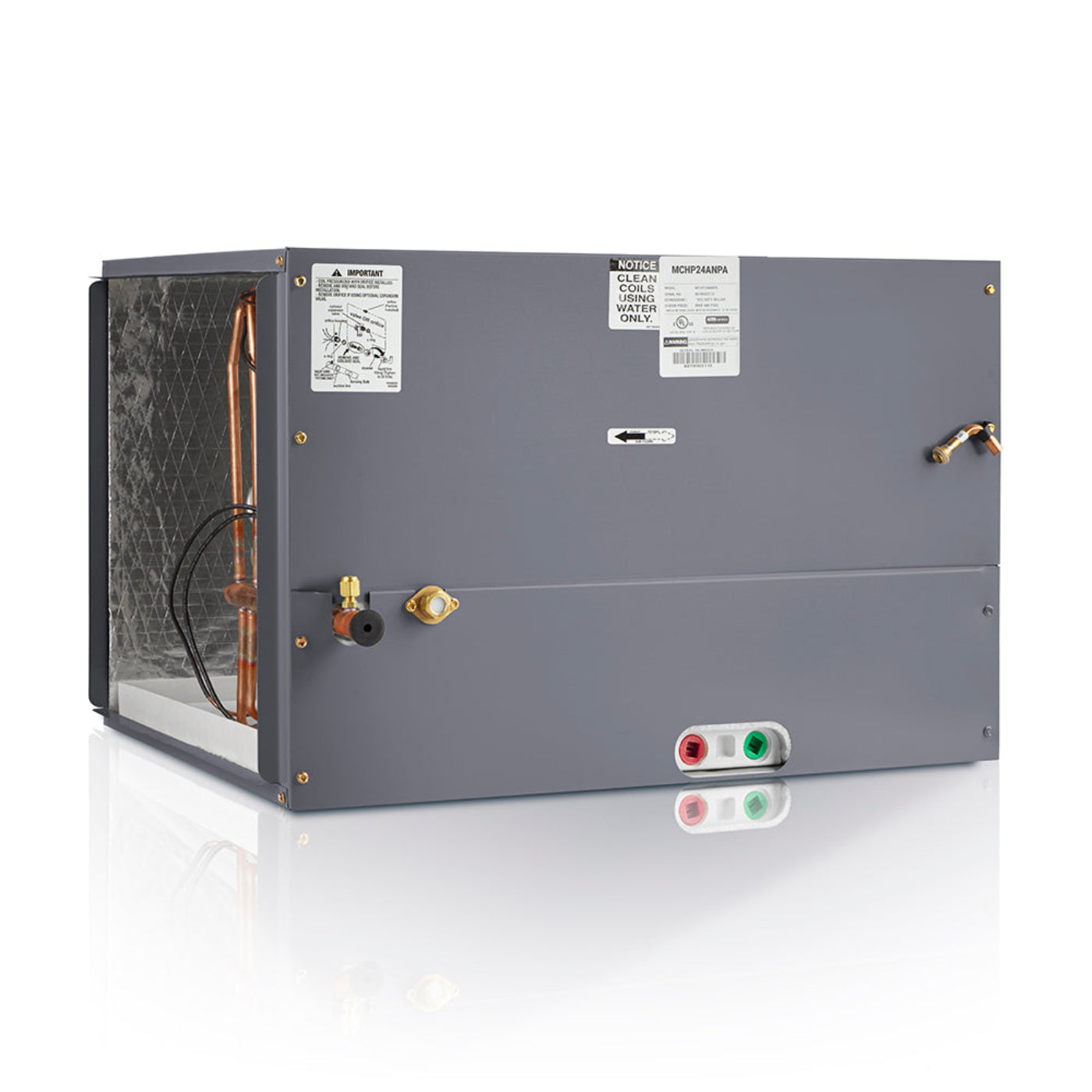

- Tubing located at door split for easy coil service or cleaning
- Refrigerant lines extend outside of the cabinet for easy connection
Specifications
Dimensions |
31.5" D x 17.5" H x 21.5" W |
Tonnage |
4 |
Cooling Capacity |
48000 |
Color |
Gray |
Color Family |
Gray |
Refrigerant Type |
R-410A |
Drain Connection Size |
3/4 |
Lineset Included |
No |
Line Set Length |
15ft, 25ft, 35ft, 50ft |
Max Lineset Length |
50ft |
Lineset Fitting Type |
Sweat |
Liquid Line Size |
3/8 |
Suction Line Size |
7/8 |
UL Reconized |
yes |
UL Listed |
yes |
Energy Star Compliant |
no |
Energy Star Certified |
no |
AHRI Certified |
yes |
Registered Warranty |
Registered 10 Year Parts Warranty |
Base Warranty |
5 Year Parts Warranty |
Registered Parts Warranty |
Registered 10 Year Parts Warranty |
Base Parts Warranty |
5 Year Parts Warranty |
Contains Chemicals |
Yes |
Contains Aerosol |
Yes |
Contains Compressed GAS |
Yes |
Proposition 65 Warning |
Yes |
Restricted States |
No |
Net Weight |
60 |
What our Experts Think
-
High-Capacity Performance – 48,000 BTU, 4-ton coil built for powerful residential or light commercial cooling.
-
Energy Efficient – 16 SEER rating helps optimize system performance and reduce energy costs.
-
Durable Build – R410A compatible with corrosion-resistant components for long-lasting reliability.
-
Flexible Installation – Horizontal cased design fits a wide range of HVAC setups with a 17.5-inch cabinet.
-
Seamless Integration – Works with MRCOOL Signature Series and many standard HVAC systems.
Q&A
Q: What is the MRCOOL MCHP48BNPA evaporator coil used for?
A: It’s a 4-ton, 48,000 BTU horizontal cased evaporator coil designed for central HVAC systems using R410A refrigerant.
Q: What size cabinet does it fit?
A: This model is built for a 17.5-inch wide cabinet.
Q: Is it energy efficient?
A: Yes, it supports systems rated up to 16 SEER, helping improve cooling performance and efficiency.
Q: Can it be used with both cooling and heating systems?
A: Absolutely—it’s compatible with air conditioners and heat pump systems.
Q: Who is this coil best suited for?
A: Ideal for homeowners and HVAC professionals needing a reliable replacement or upgrade coil for horizontal installations.
Maintenance Tips
-
Inspect and clean coil surface regularly to prevent dust and dirt buildup.
-
Keep surrounding area free of debris to maintain airflow and efficiency.
-
Check drain pan and line periodically to avoid clogs and water damage.
-
Replace or clean air filters in the system every 1–3 months.
-
Ensure cabinet panels are secure to maintain proper air pressure.
-
Schedule annual professional maintenance for optimal performance and longevity.
