MRCOOL Signature 48K BTU, 4 Ton, 16 SEER, R410A Upflow Cased Evaporator Coil - 17.5-Inch Cabinet (MCVP48BNPA)

lMRCOOL Signature 48K BTU, 4 Ton, 16 SEER, R410A Upflow Cased Evaporator Coil - 17.5-Inch Cabinet (MCVP48BNPA)

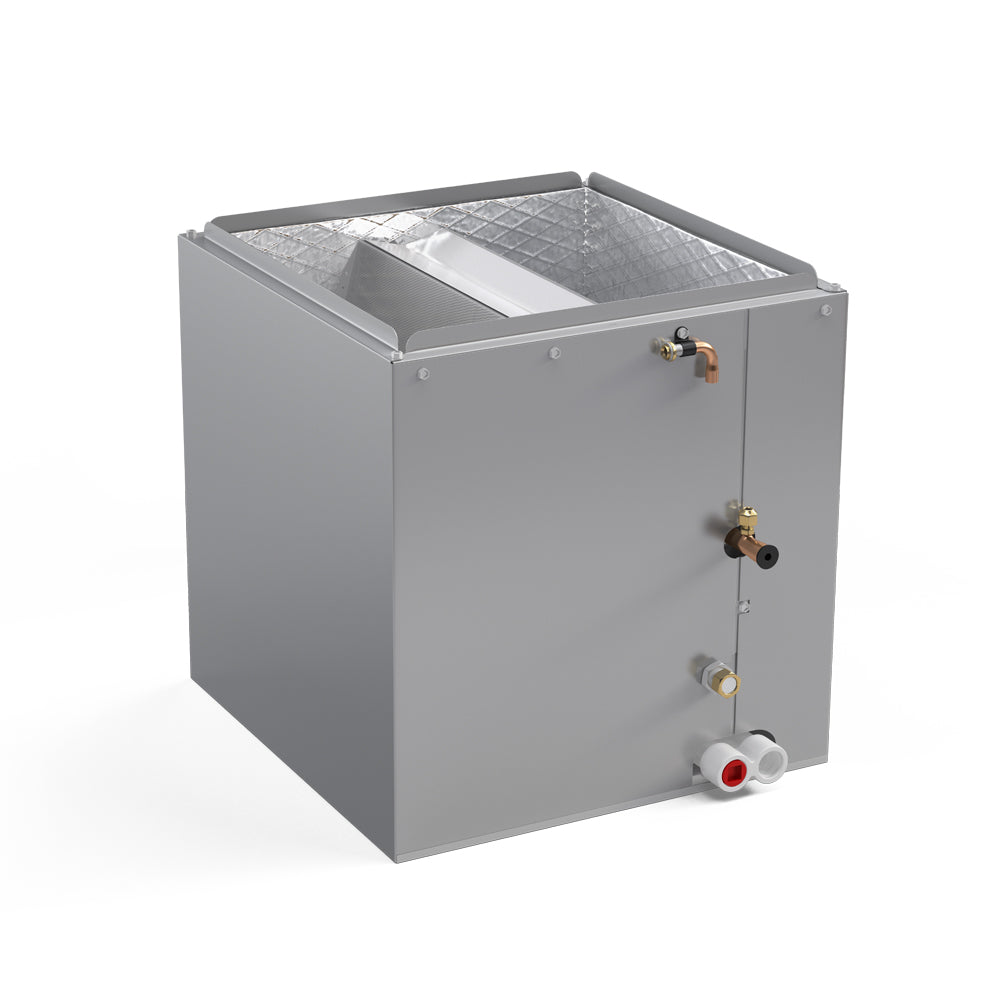

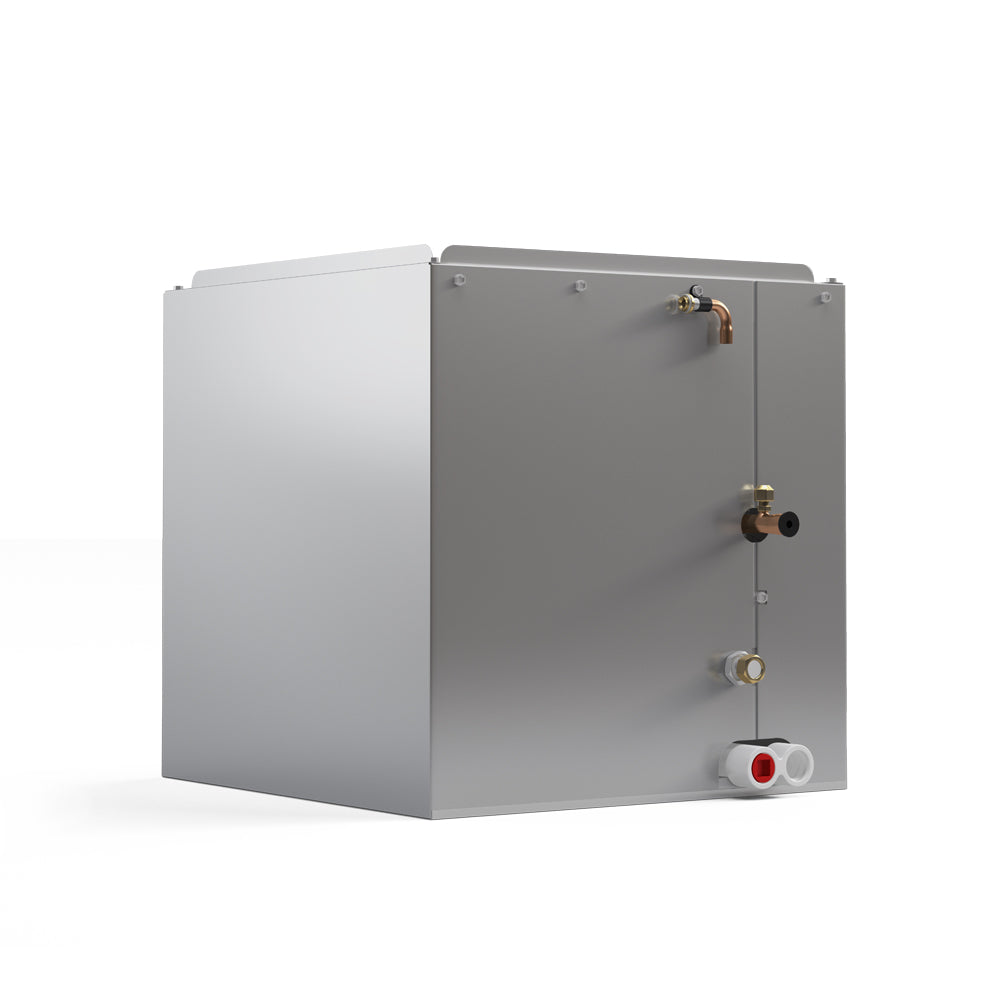

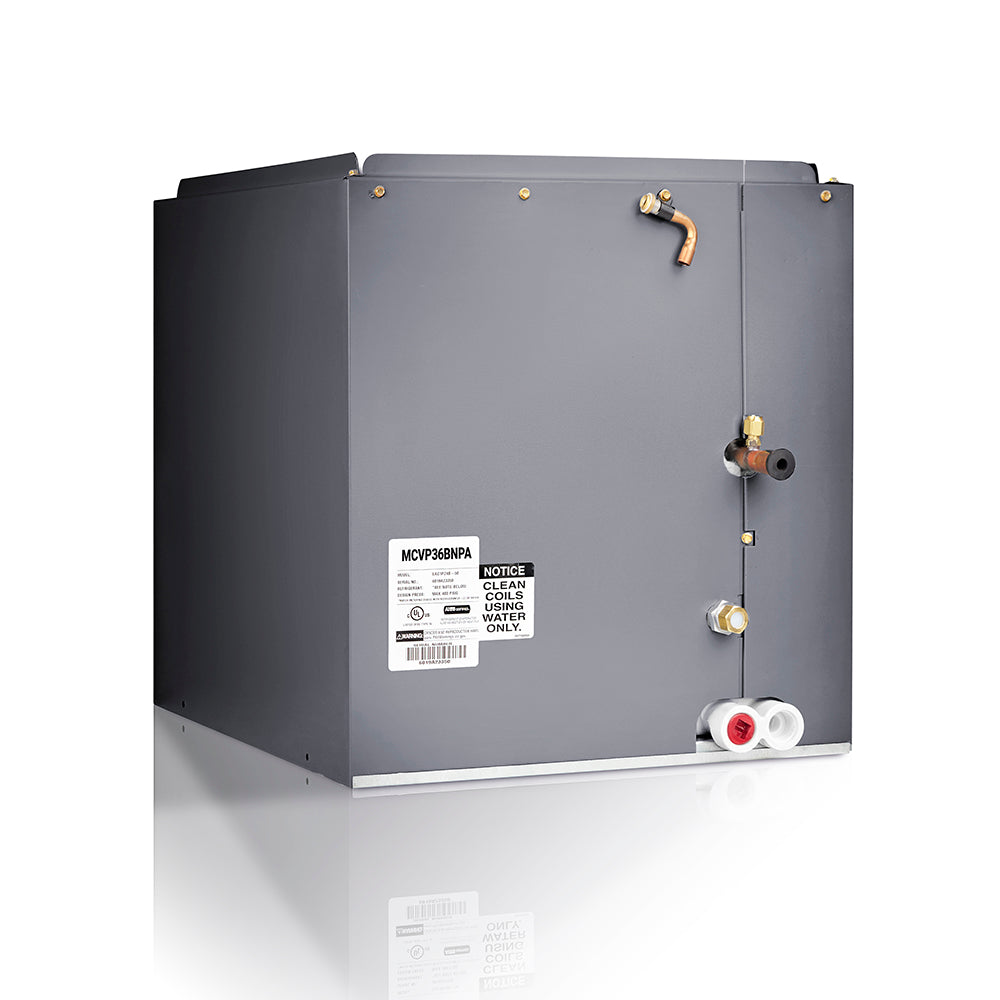

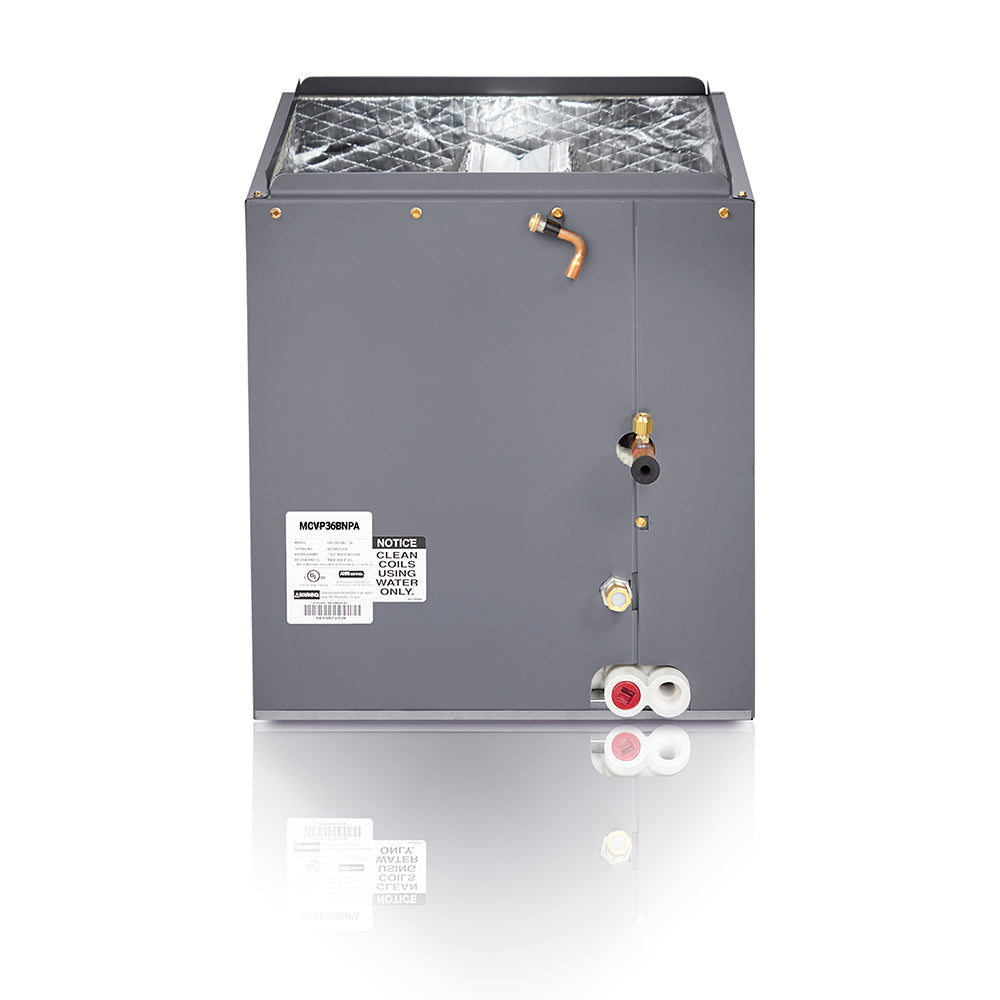

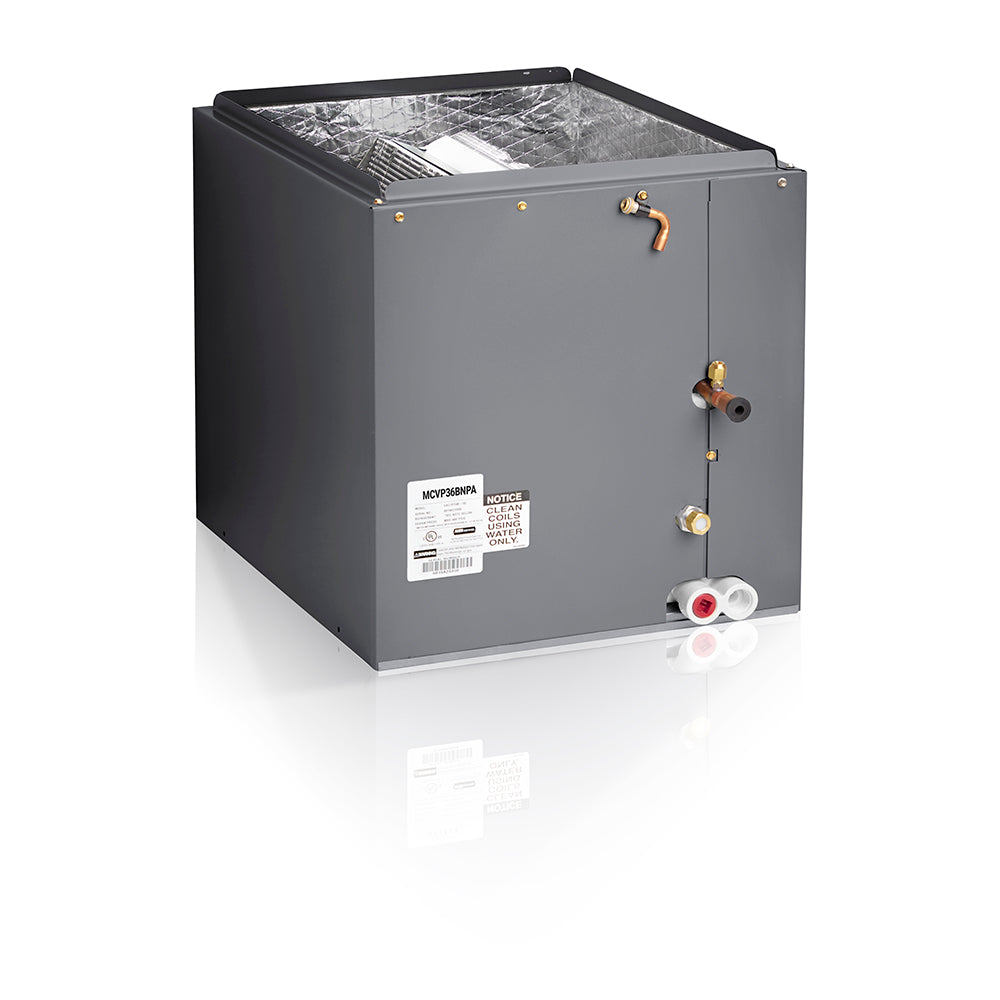

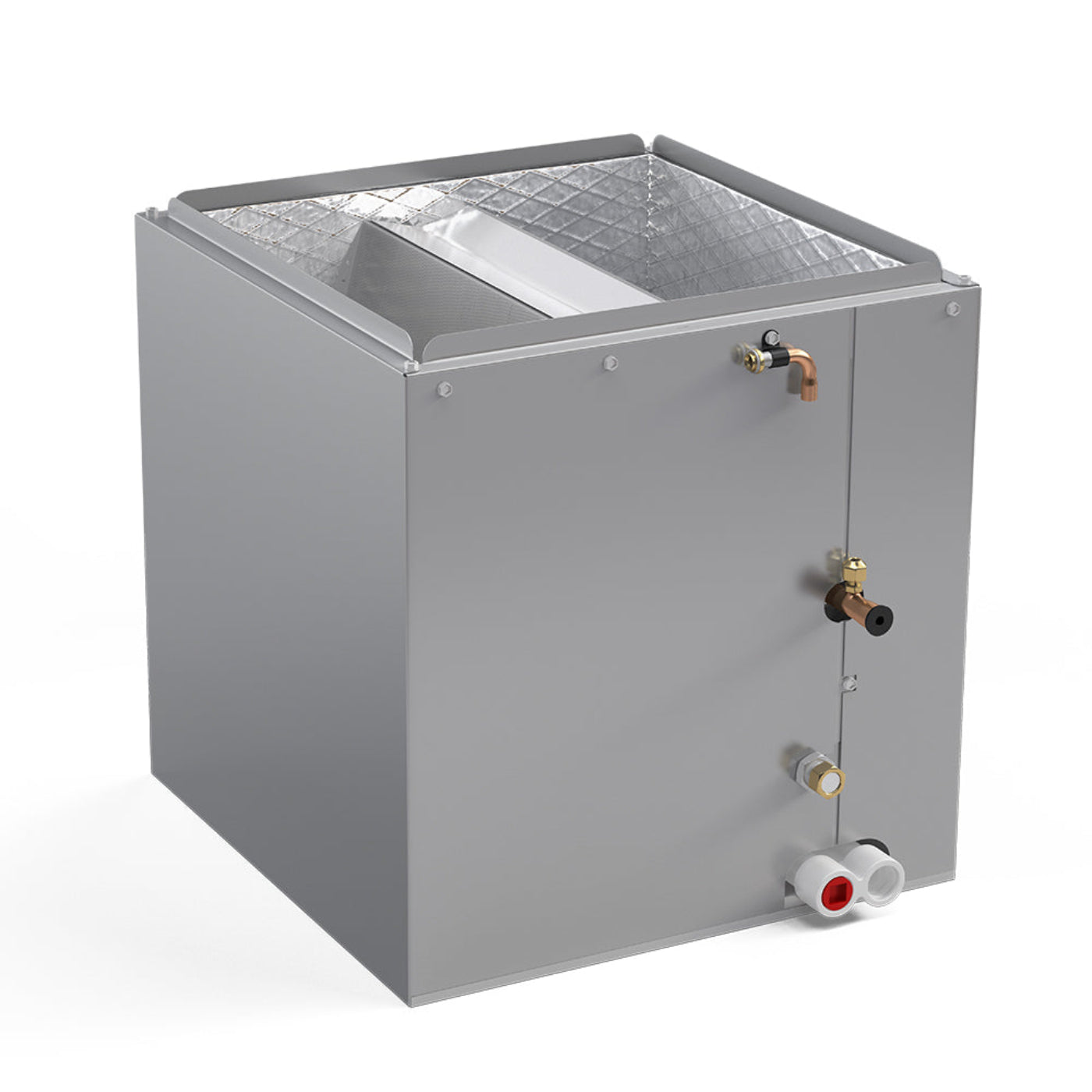

4 Ton BTU R410A Upflow Cased Evaporator Coil

This is a brand new 4 ton, R410A refrigerant, Upflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.

Features

• Interlocking door assemblies and snug line sealgrommets to minimize air leakage
• All units UL Listed and AHRI Certified
• One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
• External cabinet mounted distributor body designed for easy changing of orifice sizes and fast TXV connections

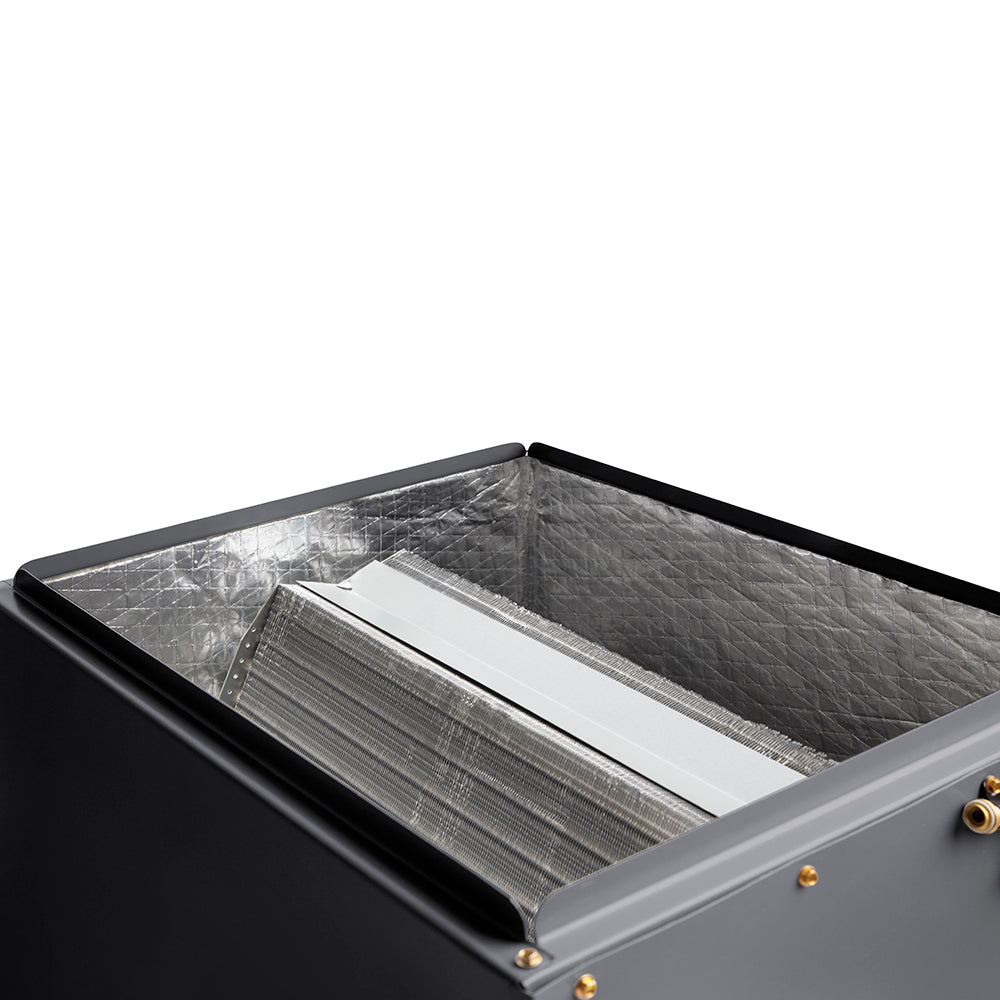

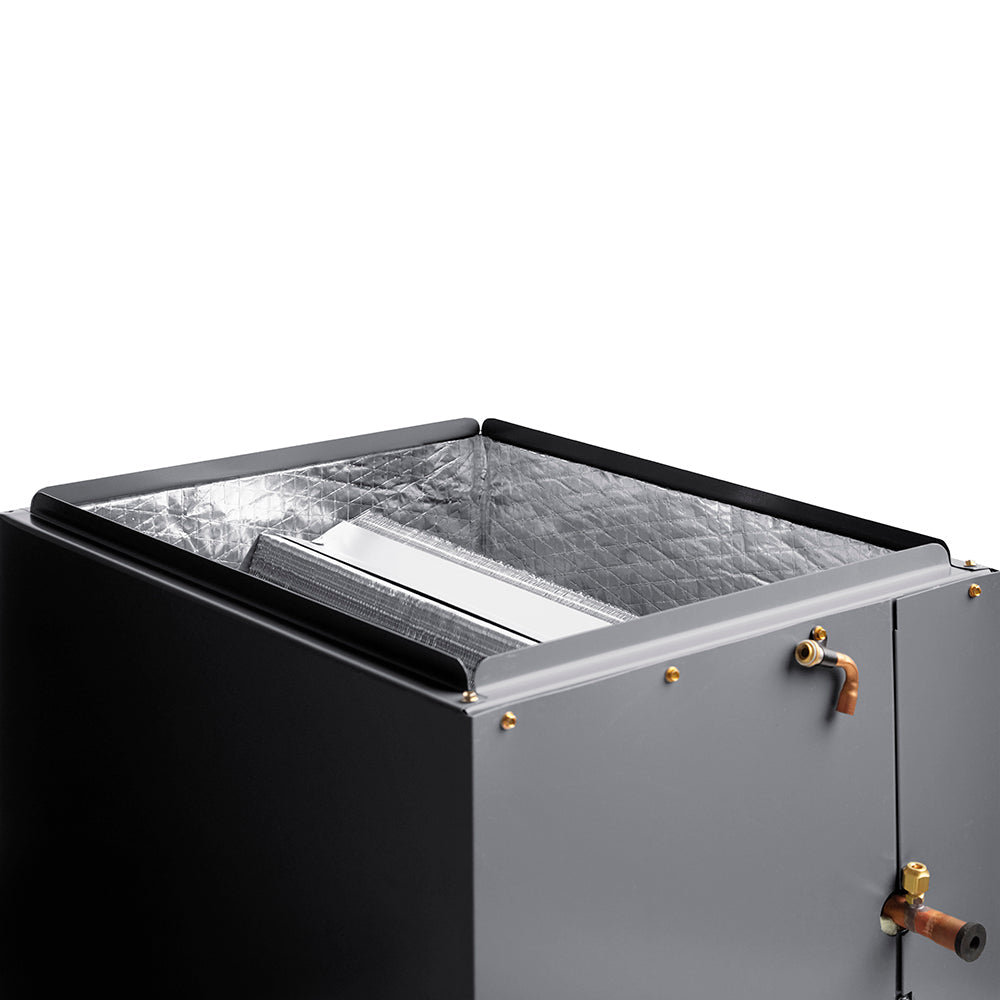

• Foil-face insulation for easy cleaning
• All drain pans are compatible with UV lights Two dual drain on front of coil for install flexibility of drain lines around furnace vent and utility connections. Superior service access to components, withtubing located at door split and foil-face insulation 10-Year Parts Limited Warranty
• Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.

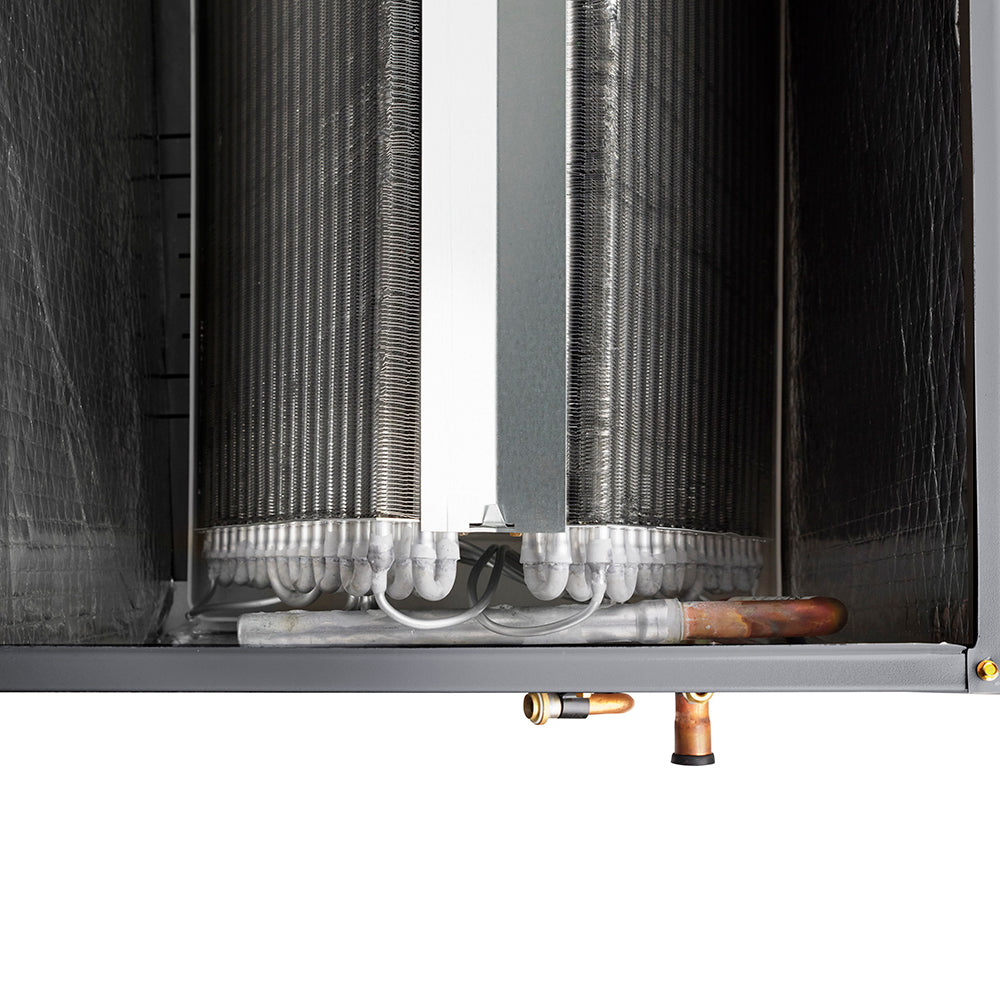

• Tubing located at door split for easy coil service or cleaning
• Tightly sealed, painted steel cabinet with wall to wall insulation to ensure <2% air leakage

Specifications

What our Experts Think

• High-Capacity Performance – 48,000 BTU (4 Ton) coil efficiently supports larger residential and light commercial HVAC systems.

• Optimized Airflow – Upflow cased design ensures consistent and even air distribution throughout the space.

• Durable Cabinet – Rugged 17.5-inch steel housing protects components and extends system longevity.

• Flexible Compatibility – Works seamlessly with MRCOOL Signature Series condensers and many standard HVAC units.

• Energy-Conscious Design – 16 SEER efficiency rating helps lower energy costs when paired with the right condenser.

• Compact Fit – Slim cabinet profile makes installation possible in tighter spaces without sacrificing performance.

Q&A

Q: What is the cooling capacity of this coil?
A: The MRCOOL MCVP48BNPA provides 48,000 BTU (4 tons) of cooling capacity, making it ideal for medium to large residential and light commercial spaces.

Q: What refrigerant is it compatible with?
A: This evaporator coil is designed for use with R-410A refrigerant systems.

Q: What type of airflow configuration does it support?
A: It features an upflow design, ensuring efficient airflow in vertical installations.

Q: What is the cabinet size?
A: The coil comes in a 17.5-inch wide cabinet, built for durability and easy installation.

Q: Is this coil energy efficient?
A: Yes, it is rated for 16 SEER systems, helping to maintain reliable comfort with energy savings.

Q: Where is it commonly used?
A: The MCVP48BNPA is often paired with MRCOOL Signature condensers and air handlers for complete split system HVAC setups.

Maintenance Tips

• Clean coil surfaces regularly to maintain efficient heat transfer.

• Replace or clean air filters every 1–2 months to ensure proper airflow.

• Inspect for ice buildup, refrigerant leaks, or unusual noises.

• Keep the surrounding cabinet area clear of dust and obstructions.

• Flush and clean the condensate drain line to prevent water damage.

• Schedule annual professional maintenance for peak performance and longevity.
